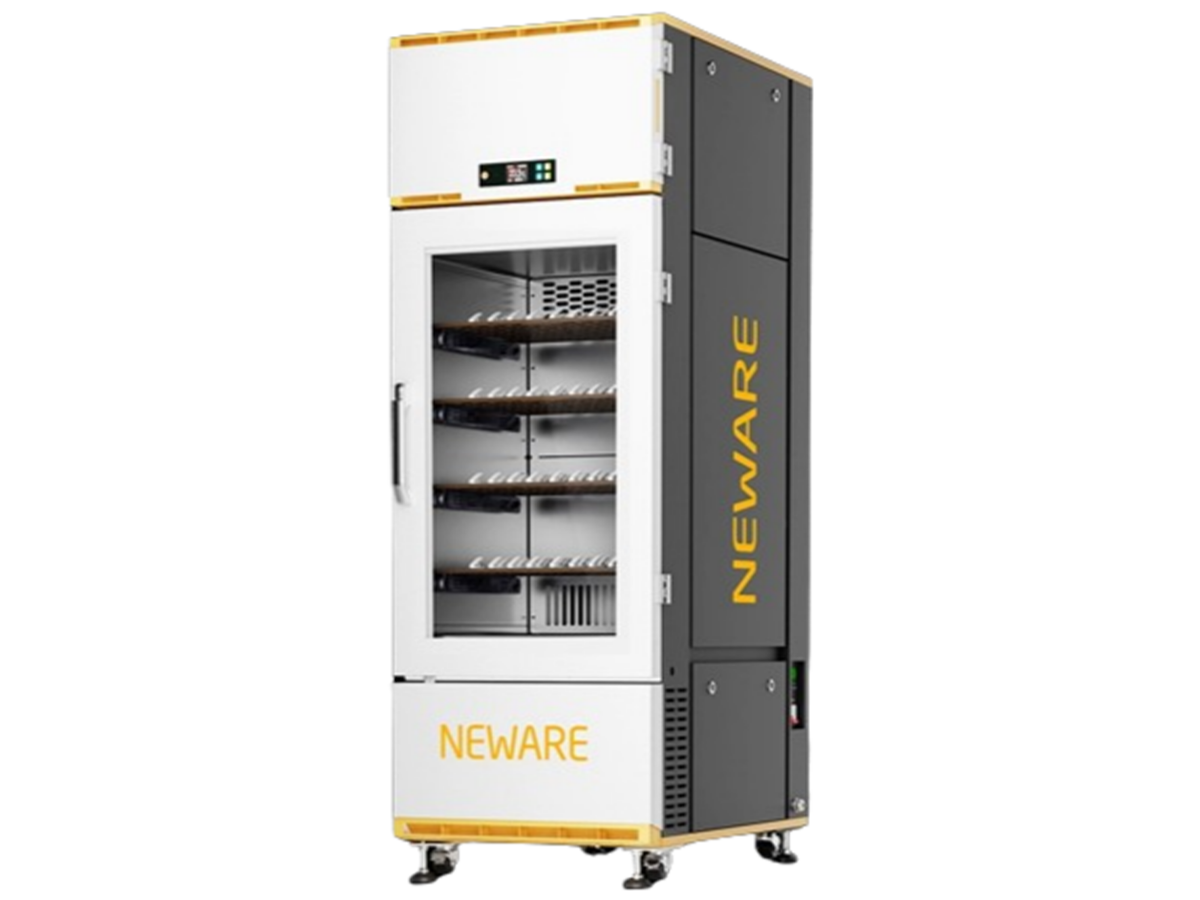

Neware coin cell all-in-one testing system with 200L temperature chamber and 160 channels for high-throughput battery testing and electrochemical research.
Neware coin cell all-in-one testing system with 200L temperature chamber and 160 channels for high-throughput battery testing and electrochemical research.

Neware WIHW-200L-160CH-B Coin Cell All-in-One Testing System

Neware WIHW-200L-160CH-B Coin Cell All-in-One Testing System [200L, 160 Channels] Integrated temperature-controlled coin cell testing system combining environmental chamber and multi-channel battery testing for high-throughput electrochemical research. General Description The Neware Coin Cell All-in-One Testing System is a fully integrated battery...
Vendor: Cell Lab
SKU: NW0007
Product type: Battery Equipment
£38,169.00
£38,169.00
Subtotal: £38,169.00
Description
Description
x

Neware WIHW-200L-160CH-B Coin Cell All-in-One Testing System [200L, 160 Channels]

Integrated temperature-controlled coin cell testing system combining environmental chamber and multi-channel battery testing for high-throughput electrochemical research.

General Description

The Neware Coin Cell All-in-One Testing System is a fully integrated battery testing platform designed for high-throughput coin cell evaluation in battery research laboratories and pilot-scale development environments. By combining a temperature-controlled environmental chamber with a high-density battery testing system, the unit provides a compact and efficient solution for simultaneous electrochemical testing under controlled temperature conditions.

The system features a 200 L temperature chamber capable of maintaining stable testing environments between 0 °C and 60 °C, enabling reliable electrochemical performance evaluation across a range of thermal conditions. With up to 160 testing channels, the system allows researchers to perform large-scale parallel testing of coin cells for cycle life studies, material screening, and electrochemical characterisation.

Constructed with a SUS304 stainless steel inner chamber and polyurethane insulation, the system ensures excellent thermal stability and durability. The chamber integrates directly with Neware battery testing systems via RS485 communication, enabling synchronised environmental control and battery testing through dedicated software.

This integrated design significantly improves laboratory efficiency by reducing equipment footprint while providing precise environmental control and high-density battery testing capability.

Key Features

  • Integrated Coin Cell Testing Platform
    Combines temperature chamber and multi-channel battery testing system in a single compact unit.
  • High Channel Density (Up to 160 Channels)
    Supports large-scale parallel testing for coin cell research and high-throughput battery screening.
  • Stable Temperature Control (0–60 °C)
    Provides reliable environmental conditions with temperature fluctuation ≤1 °C and deviation ±2 °C.
  • Robust Chamber Construction
    SUS304 stainless steel interior with polyurethane insulation for durability and thermal stability.
  • Direct Integration with Battery Testing Systems
    Supports RS485 communication for seamless integration with Neware battery cyclers and control software.

Specifications

Parameter Specification
Model WIHW-200L-160CH-B
System Type Coin Cell All-in-One Testing System
Channel Capacity 160 channels
Power Supply AC 220 V ±10%, 50 Hz
Power Consumption 3 kW
Input Current 16 A
Chamber Volume 200 L
Temperature Range 0 – 60 °C
Temperature Fluctuation ≤1 °C
Temperature Deviation ±2 °C
Heating Time 25 °C → 60 °C ≤30 min
Cooling Time 25 °C → 0 °C ≤50 min
Inner Chamber Size 500 × 500 × 800 mm
External Dimensions 600 × 920 × 1800 mm
Net Weight Approx. 200 kg
Cooling Method Air cooling
Refrigerant R134a
Communication Interface RS485 / Ethernet
Controller LED digital display + touchscreen
Technical Data Sheet Click Here

Applications & Industries

  • Coin cell battery research and development
  • Lithium-ion material screening and evaluation
  • High-throughput battery cycle testing
  • University and research laboratory electrochemistry studies
  • Battery materials discovery and optimisation
  • Pilot-scale battery testing environments

FAQ

What types of batteries is this system designed for?
The system is primarily designed for high-throughput testing of coin cells used in battery research.

How many battery channels does the system support?
The system supports up to 160 testing channels for parallel electrochemical testing.

Can the system connect to battery cyclers?
Yes, it integrates directly with battery testing systems via RS485 communication.

What temperature range does the chamber support?
The temperature-controlled chamber operates between 0 °C and 60 °C.

Is the chamber suitable for long-term battery testing?
Yes, the stable temperature control and robust insulation design make it suitable for continuous battery cycling experiments.
