Description
xNeware MGW-1000 High Temperature Chamber [1000L, 150°C]
Large-capacity high temperature test chamber for coin cell, pouch cell, and in situ battery performance testing applications.
General Description
This is quote product, please contact us for the quotation.

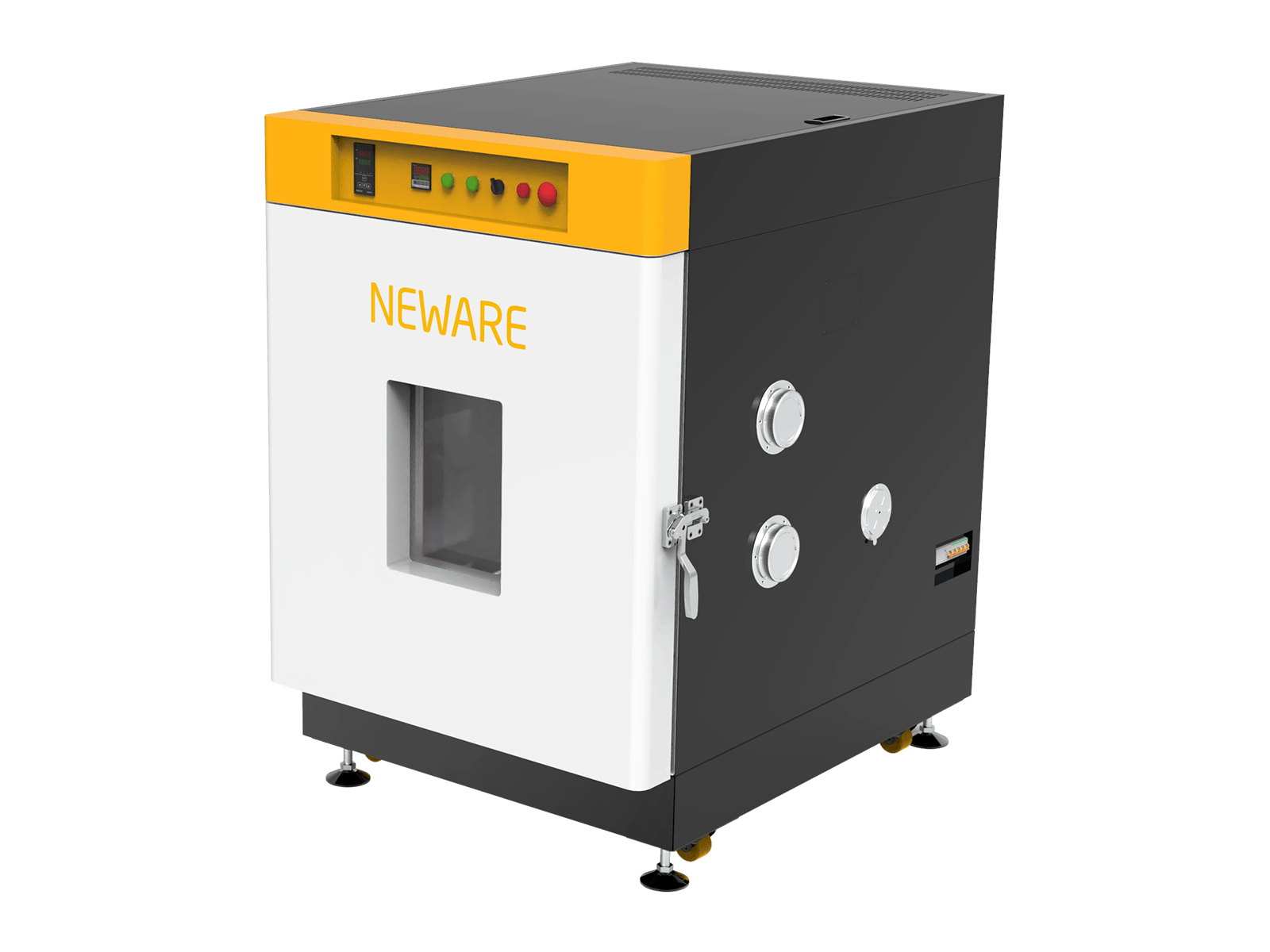

The Neware MGW-1000 High Temperature Chamber is a laboratory-scale environmental testing chamber designed for high-temperature battery testing and electrochemical performance evaluation of coin cells and pouch cells. Built for battery research laboratories and industrial testing environments, the chamber provides stable thermal conditions for long-duration battery ageing, thermal stability analysis, and in situ electrochemical testing.
Featuring a large 1000L chamber capacity, the system organises test samples across two shelf layers to maximise airflow uniformity and maintain stable temperature distribution throughout the chamber. The chamber supports a temperature range from ambient temperature +15°C up to 150°C, making it suitable for accelerated thermal testing and battery reliability studies.
The MGW-1000 includes four predrilled cable ports for direct integration with battery cyclers and external measurement systems, enabling real-time in situ electrochemical performance monitoring during environmental testing. The system is fully compatible with Neware battery testing systems for integrated battery analysis workflows.
Optional chamber capacities including 100L, 150L, 225L, 408L, and 800L are also available for different laboratory requirements.
Key Features
Large 1000L Chamber Capacity
Spacious environmental chamber designed for high-throughput battery testing applications.
High Temperature Testing up to 150°C
Supports thermal ageing, battery stability analysis, and environmental reliability testing.
Optimised Airflow Shelf Design
Two-layer shelf structure maximises airflow circulation and temperature uniformity.
Predrilled Cable Ports for In Situ Testing
Four cable ports enable direct connection with battery cyclers and external instruments.
Compatible with Neware Battery Testers
Supports integrated electrochemical testing and environmental simulation workflows.
Specifications
| Parameter | Specification |
|---|---|
| SKU | NW0038 |
| Model | MGW-1000 |
| Power Supply | AC 380V ±10%, Three-phase five-wire (L1+L2+L3+N+E) |
| Power Consumption | 8 kW |
| Capacity | 1000 L |
| Shelf Layers | 2 |
| Outer Dimensions | 1250 × 1700 × 1650 mm |
| Inner Dimensions | 1000 × 1000 × 1000 mm |
| Cable Ports | 4 (2 on each side) |
| Weight | 400 kg |
| Temperature Range | Ambient Temperature +15°C to 150°C |
| Temperature Fluctuation | ≤1°C |
| Temperature Deviation | ±2.0°C |
| Heating Time | 15°C → 150°C ≤90 min |
| Warranty | 1-year limited warranty with lifetime technical support |
Applications & Industries
- Coin cell thermal testing
- Pouch cell environmental testing
- In situ electrochemical battery analysis
- Battery ageing and thermal stability studies
- Battery research laboratories and universities
- Battery manufacturing and quality validation
- Environmental reliability testing for energy storage devices
FAQ
What battery types can be tested in this chamber?
The chamber is designed for coin cells, pouch cells, and other laboratory-scale battery testing applications.
Does the chamber support in situ battery testing?
Yes, the chamber includes predrilled cable ports for direct connection to battery cyclers and measurement systems.
What is the maximum operating temperature?
The chamber supports temperatures up to 150°C.
How many cable ports are included?
The system includes four cable ports, with two ports on each side of the chamber.
Can the chamber integrate with Neware battery testers?
Yes, the MGW-1000 is compatible with Neware battery testing systems for integrated environmental and electrochemical testing.
