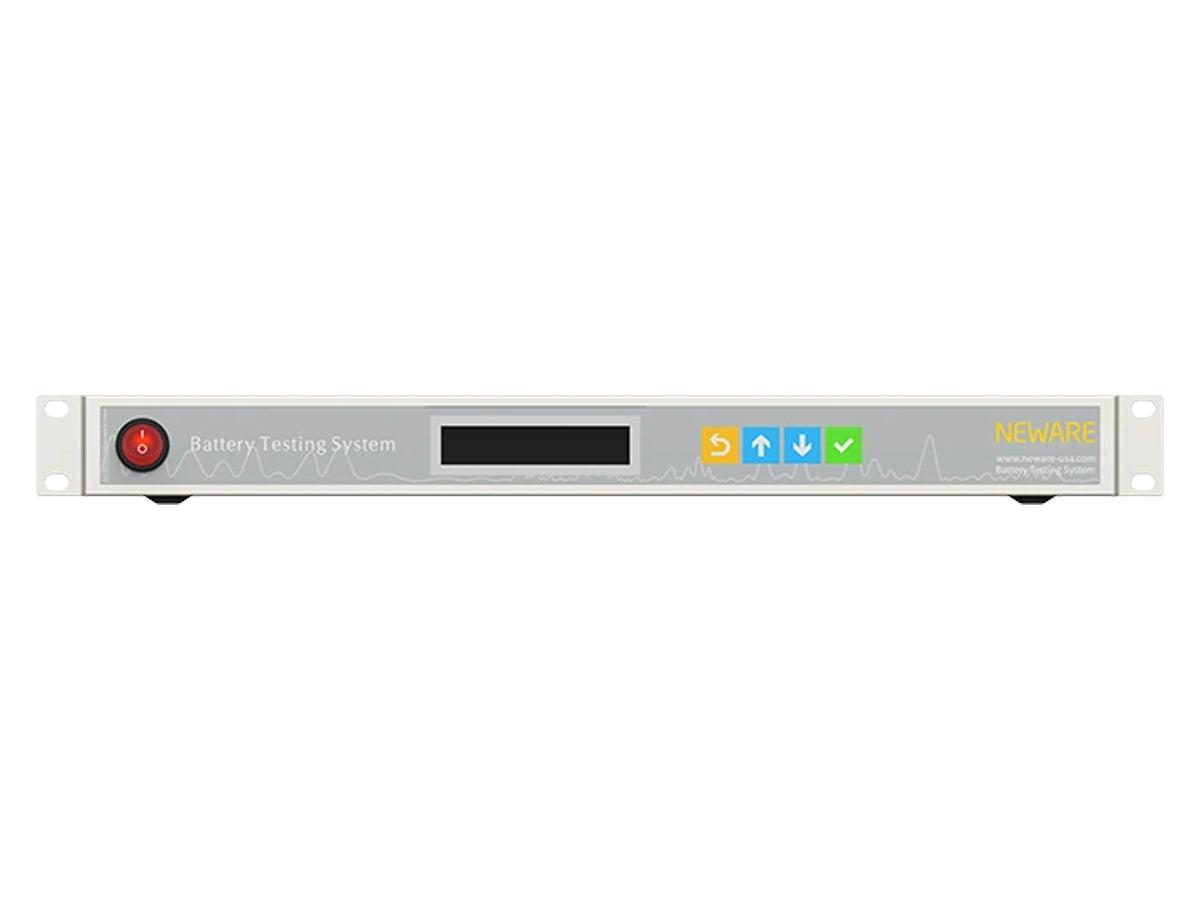

Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.

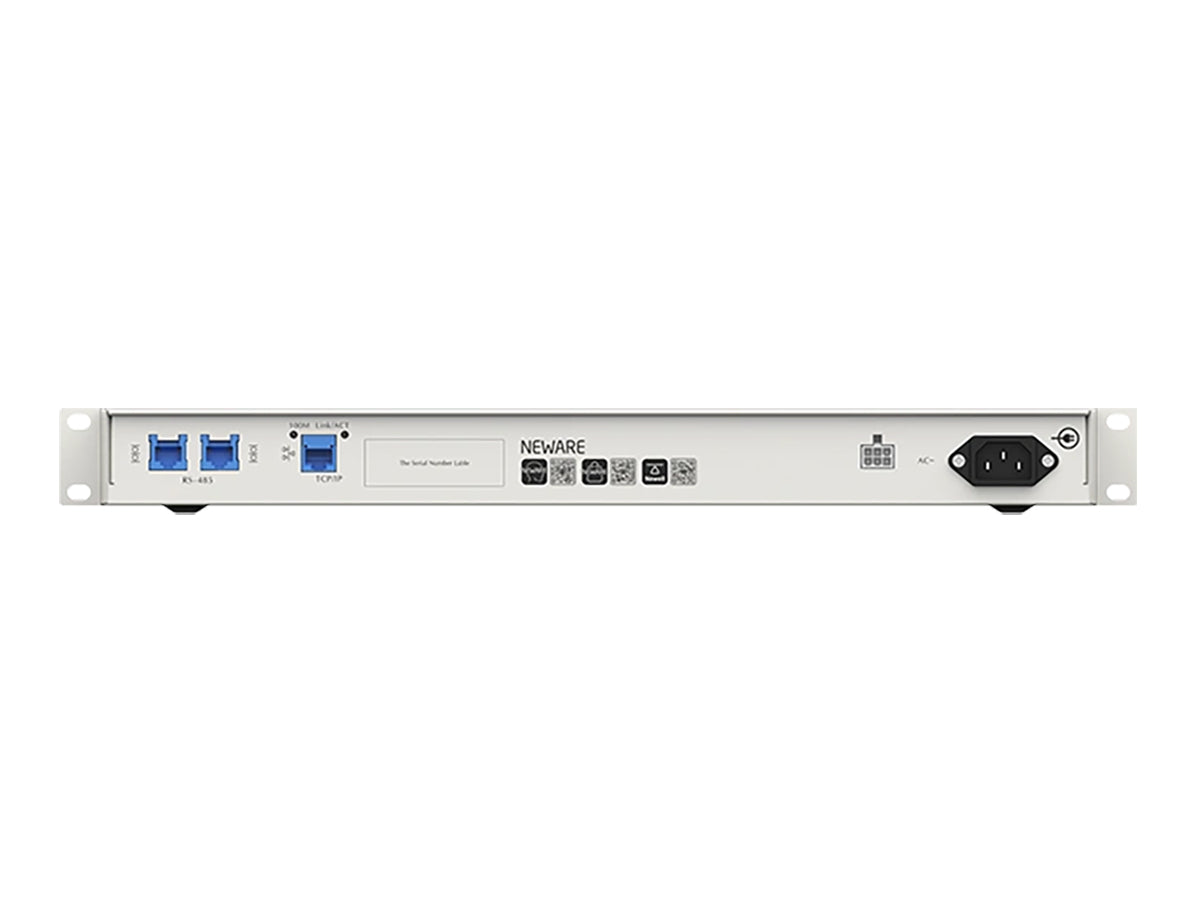

Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.

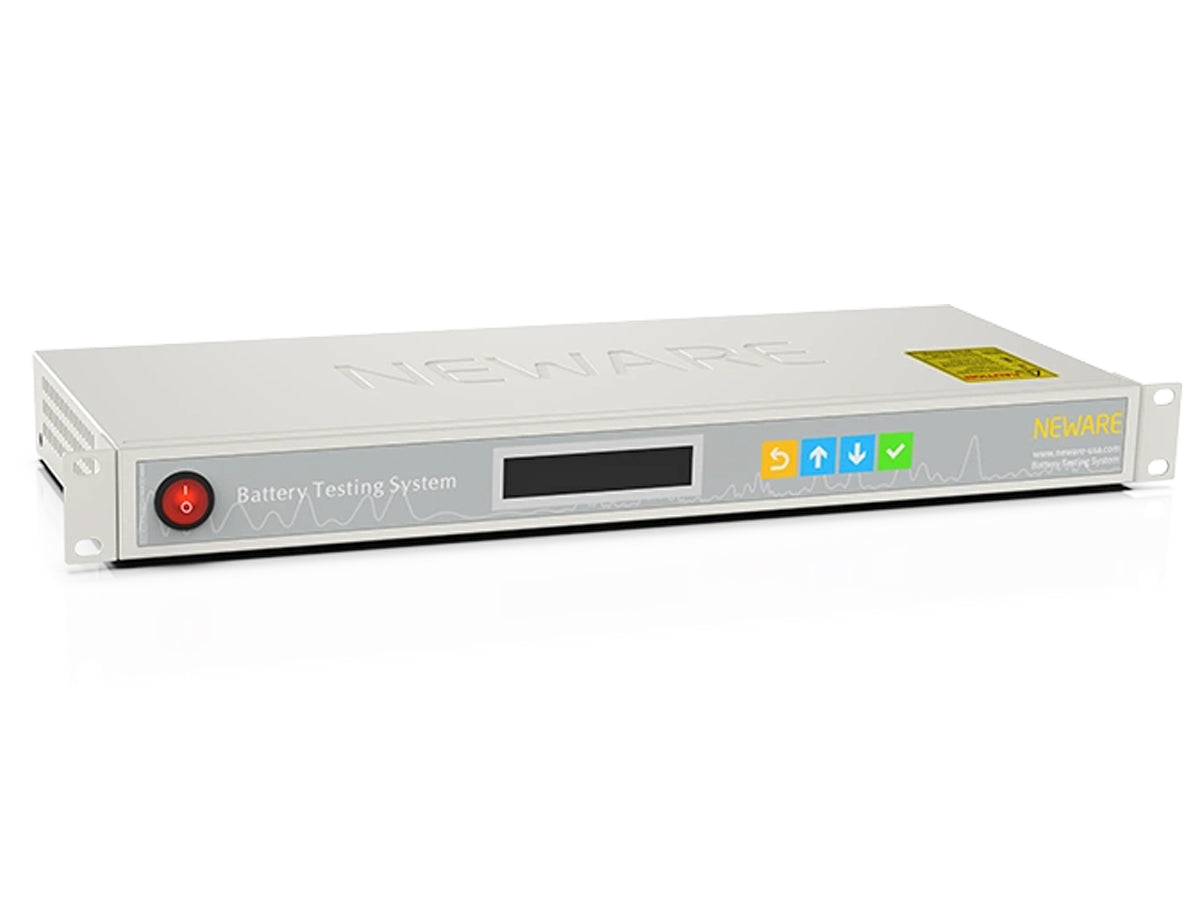

Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.

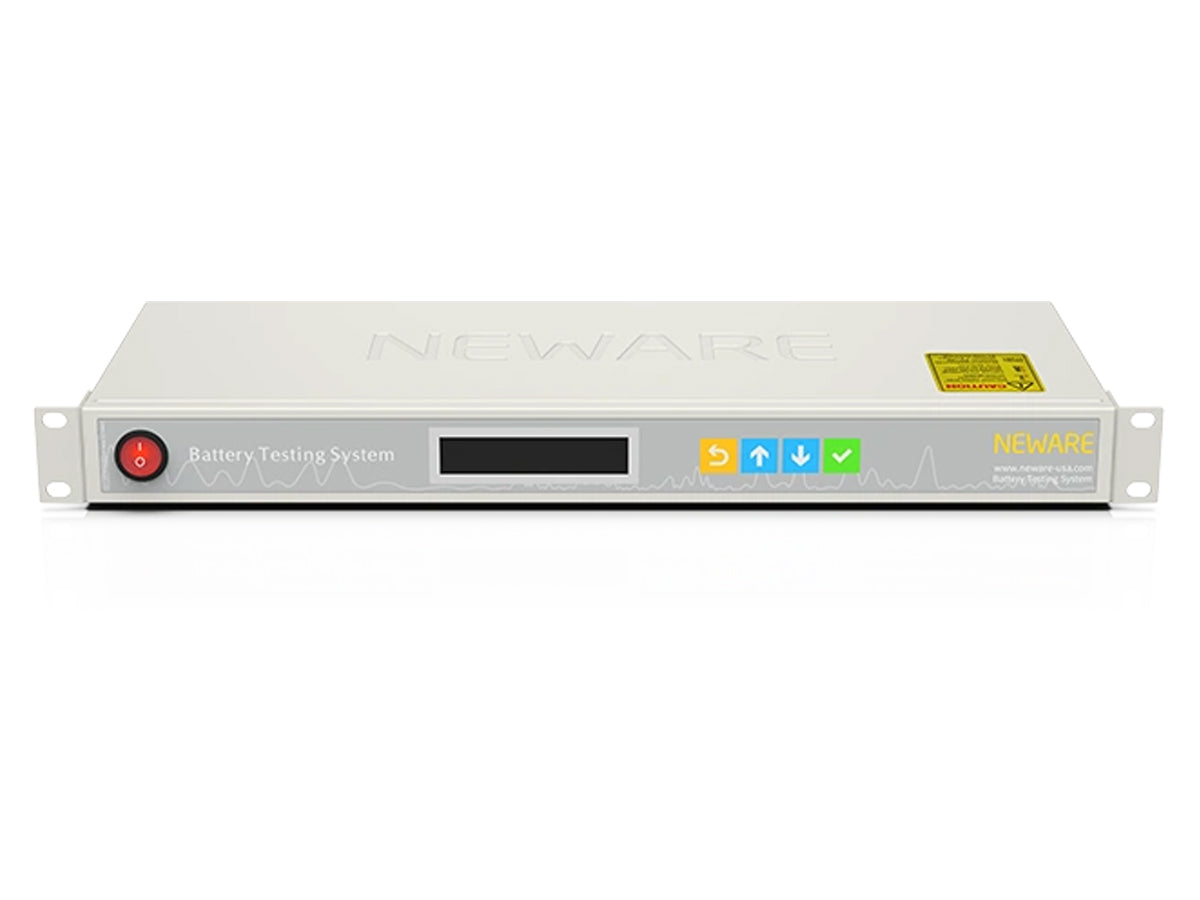

Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.

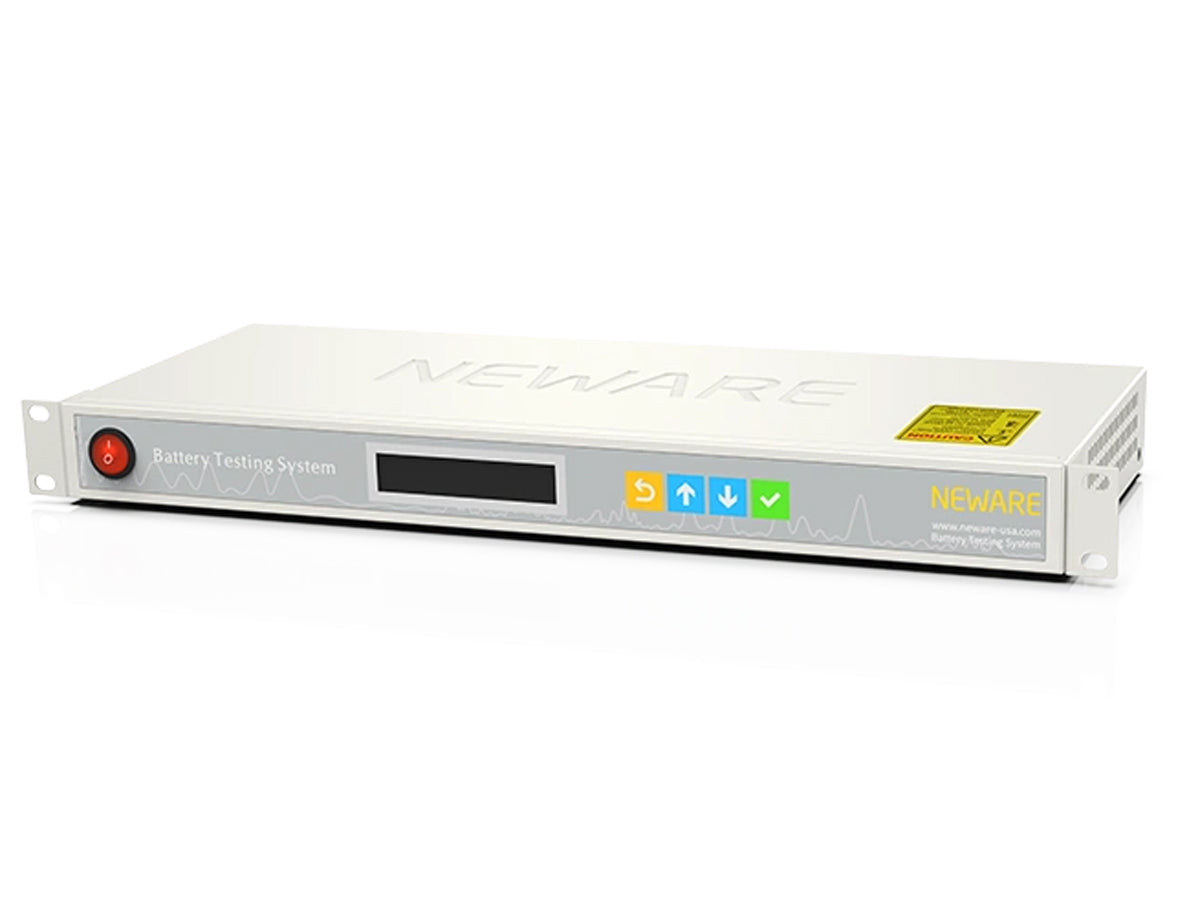

Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.
Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.
Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.
Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.
Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.
Neware CT-ZWJ-4'S-T-1U battery tester control unit with TCP/IP communication, Linux architecture, and support for up to 256 testing channels.

Neware CT-ZWJ-4'S-T-1U Battery Tester Control Unit [Middle Machine]

Neware CT-ZWJ-4'S-T-1U Battery Tester Control Unit [Middle Machine] Industrial battery testing control unit / middle machine with Linux-based architecture, TCP/IP communication, and high-speed multi-channel data management for integrated battery testing systems. General Description The Neware CT-ZWJ-4'S-T-1U Battery Tester Control Unit /...
Vendor: Cell Lab
SKU: NW0049
Product type: Battery Equipment
£325.00
£325.00
Subtotal: £325.00
Description
Description
x

Neware CT-ZWJ-4'S-T-1U Battery Tester Control Unit [Middle Machine]

Industrial battery testing control unit / middle machine with Linux-based architecture, TCP/IP communication, and high-speed multi-channel data management for integrated battery testing systems.

General Description

The Neware CT-ZWJ-4'S-T-1U Battery Tester Control Unit / Middle Machine is a professional industrial-grade communication and control platform designed for advanced battery testing systems and integrated laboratory automation environments. Engineered for high-channel battery cycler management, the unit provides stable data communication, real-time monitoring, and intelligent testing coordination across large-scale battery testing networks.

Built with an ARM9 processor and Linux-based core architecture, the system supports high-speed TCP/IP communication with up to 256 main and auxiliary channels. The platform enables real-time equipment monitoring, automated charge-discharge process control, and intelligent protection logic for continuous battery testing applications.

The control unit supports offline operation protection and automatic test-state recovery after power interruption, ensuring uninterrupted battery testing workflows. It can also integrate with third-party laboratory devices including temperature chambers, chillers, pressure modules, PLC systems, and height measurement systems through communication integration.

With a compact 1U rack-mounted design, RJ45 Ethernet communication, and LCD interface, the CT-ZWJ-4'S-T-1U is suitable for battery R&D laboratories, pilot production lines, and industrial battery testing systems requiring scalable multi-channel management and automated data acquisition.

Key Features

Supports Up to 256 Channels
Controls and manages up to 256 main and auxiliary battery testing channels.

Linux-Based Industrial Control Architecture
ARM9 processor with Linux core for stable long-term operation and reliable data management.

High-Speed TCP/IP Communication
RJ45 Ethernet interface with 100M communication rate for real-time data transfer.

Power-Off Recovery and Offline Testing
Automatically restores testing status after power interruption and supports uninterrupted offline operation.

Third-Party Device Integration
Compatible with temperature chambers, chillers, PLC systems, pressure modules, and other external equipment.

Specifications

Parameter Specification
Model CT-ZWJ-4'S-T-1U
Product Type Battery Tester Control Unit
Power Supply AC 220V ±10% / 50Hz
Input Power 15 W
Data Cache 1 GB
Sampling Frequency Max. 100Hz (10ms)
Clock Error 1 s / Day
CPU ARM9
System Kernel Linux Core
Display LCD
Communication Interface RJ45
Communication Mode TCP/IP
Communication Rate 100M
Protection Level IP20
Maximum Supported Channels 256
Operating Temperature 0°C–40°C
Storage Temperature -10°C–50°C
Operating Humidity ≤70% RH (non-condensing)
Storage Humidity ≤80% RH (non-condensing)
Dimensions 482 × 170 × 50 mm (1U, 19")

Technical Specifications

 Click here

Applications & Industries

  • Multi-channel battery testing systems
  • Battery cycler communication management
  • Battery R&D laboratories
  • Pilot battery production lines
  • Automated battery testing environments
  • Environmental chamber integration
  • Industrial battery testing control systems

FAQ

What is the maximum number of channels supported?

The control unit supports up to 256 main and auxiliary channels.

Does the system support offline testing?

Yes, the unit supports offline operation to ensure testing continues even if upper computer communication is interrupted.

Can the control unit recover after power failure?

Yes, it supports automatic power-off recovery and restores the previous testing state.

What communication interface does the system use?

The system uses RJ45 Ethernet communication with TCP/IP protocol.

Can the control unit integrate with third-party equipment?

Yes, it supports integration with temperature chambers, chillers, PLC systems, pressure modules, and other laboratory equipment.
