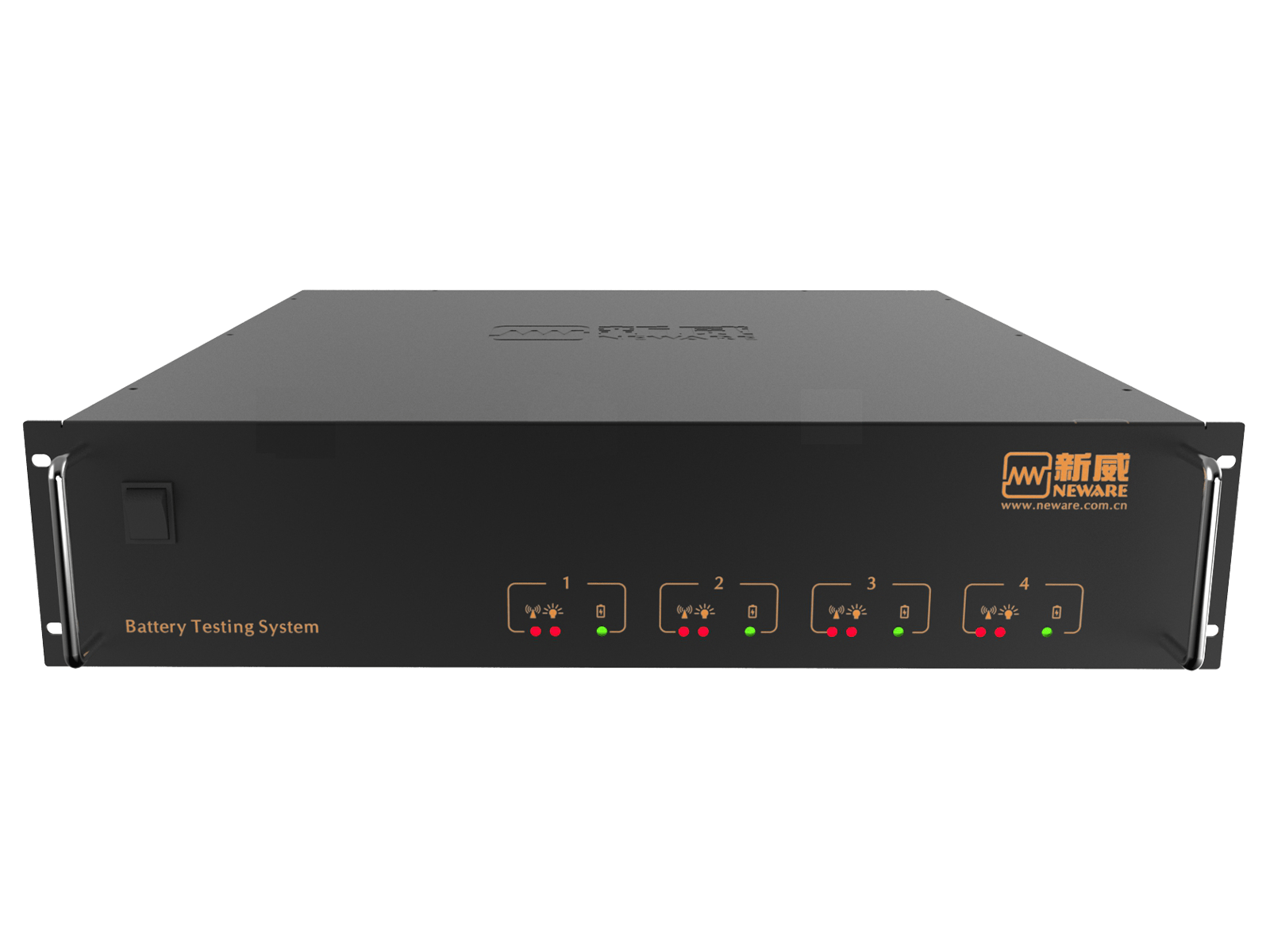

Neware CT-9004G-5V5A battery tester with 4 channels, 0.1μA–5A multi-range output, 1000Hz sampling, and ultra-high precision electrochemical testing.

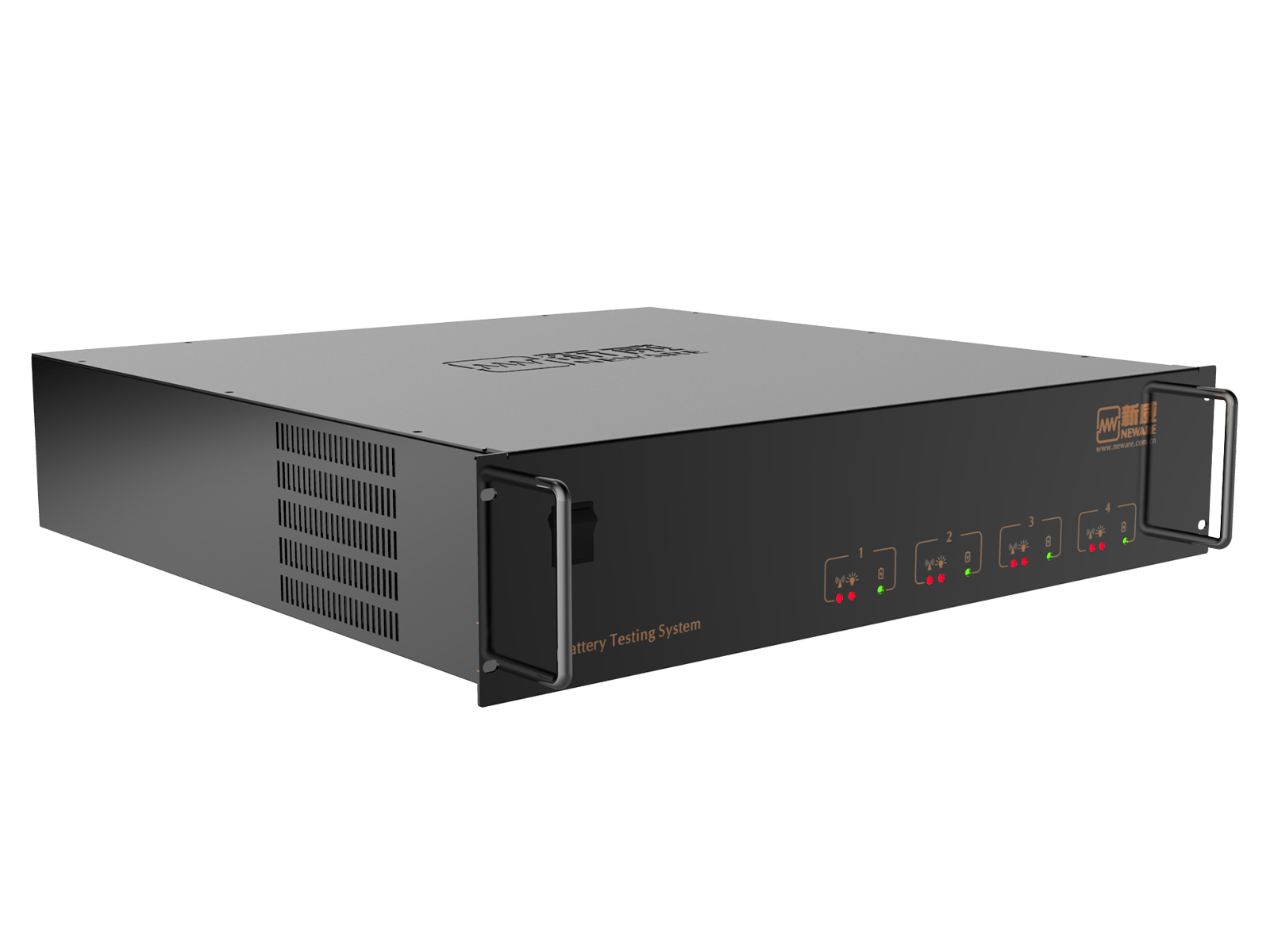

Neware CT-9004G-5V5A battery tester with 4 channels, 0.1μA–5A multi-range output, 1000Hz sampling, and ultra-high precision electrochemical testing.
Neware CT-9004G-5V5A battery tester with 4 channels, 0.1μA–5A multi-range output, 1000Hz sampling, and ultra-high precision electrochemical testing.
Neware CT-9004G-5V5A battery tester with 4 channels, 0.1μA–5A multi-range output, 1000Hz sampling, and ultra-high precision electrochemical testing.

Neware CT-9004G-5V5A Battery Tester [4Ch, ±5V 5A]

Neware CT-9004G-5V5A Battery Tester [4Ch, ±5V 5A] Ultra-high precision multi-range battery testing system with 1000Hz sampling for advanced electrochemical research and micro-current analysis. General Description The Neware CT-9004G-5V5A Battery Tester is an ultra-high precision battery testing platform engineered for advanced...
Vendor: Cell Lab
SKU: NW0039
Product type: Battery Equipment
£11,379.00
£11,379.00
Subtotal: £11,379.00
Description
Description
x

Neware CT-9004G-5V5A Battery Tester [4Ch, ±5V 5A]

Ultra-high precision multi-range battery testing system with 1000Hz sampling for advanced electrochemical research and micro-current analysis.

General Description

The Neware CT-9004G-5V5A Battery Tester is an ultra-high precision battery testing platform engineered for advanced electrochemical analysis, micro-current measurement, and high-speed battery characterisation. Designed for scientific research laboratories, battery developers, and precision electrochemical applications, the system combines four-range current architecture, ultra-fast sampling, and exceptionally high measurement accuracy.

Each channel supports a voltage range from -5V to +5V and programmable current ranges from 0.1μA to 5A, enabling highly stable operation across ultra-low current and high-current applications. With voltage and current accuracy reaching ±0.02% FS and stability of ±0.005% FS, the CT-9004G platform delivers highly repeatable and precise electrochemical test data.

The system supports advanced charge-discharge functions including constant current, constant voltage, constant power, constant resistance, DCIR testing, nested cycle programming, and high-speed continuous acquisition up to 1000Hz. Its four-line Kelvin connection architecture ensures highly accurate voltage and current sampling during demanding battery tests.

Built on TCP/IP Ethernet communication and MySQL database architecture, the system supports automated testing, MES data upload, SMBUS/I2C communication compatibility, barcode binding functions, and multi-cabinet control for professional laboratory integration and industrial battery research applications.

Key Features

Ultra-High Precision Measurement System
Voltage and current accuracy ±0.02% FS with stability ±0.005% FS for highly sensitive electrochemical testing.

Wide Dynamic Multi-Range Current Architecture
Four programmable current ranges from 0.1μA to 5A for micro-current and high-current applications.

1000Hz High-Speed Data Acquisition
Supports continuous 1000Hz recording frequency with minimum 1ms data logging interval.

Advanced Electrochemical Testing Functions
Supports CC, CV, CP, CR, CCCV, DCIR testing, nested cycle programming, and high-speed pulse analysis.

Industrial Communication and MES Integration
Supports Ethernet TCP/IP, MySQL database, SMBUS/I2C compatibility, barcode binding, and MES upload functions.

Specifications

Parameter Specification
SKU# NW0039 – 110V
NW0040 – 220V
Model CT-9004G-5V5A
Channels 4
Power Supply AC 220V +10% / -20%, 50Hz
Input Power 300 W
Resolution AD: 16-bit; DA: 16-bit
Input Impedance ≥1000 MΩ
Voltage Range Charge: -5V to +5V; Discharge: 0.7V–5V (9.05G), -5V–5V (9.07G)
Voltage Accuracy ±0.02% FS
Voltage Stability ±0.005% FS
Current Range Range1: 0.1μA–150μA; Range2: 150μA–5mA; Range3: 5mA–150mA; Range4: 150mA–5A
Current Accuracy Range1: ±30nA; Range2: ±1μA; Range3: ±30μA; Range4: ±1mA
Current Stability ±0.005% FS
Output Power per Channel 25 W
Power Stability ±0.01% FS
Current Response Time ≤100 μs
Minimum Working Step Time ≥1 ms
Minimum Data Record Interval 1 ms
Recording Frequency 1000 Hz
Charge Modes CC, CCCV, CV, CP, CPCV, CR
Discharge Modes CC, CP, CR, CCCV
DCIR Testing Supported
Maximum Cycles 65,535
Maximum Steps 255
Nested Cycle Layers Up to 4
Communication TCP/IP Ethernet
Database MySQL
Data Export Excel 2003/2010, TXT
Fixture Type Universal Clamp (Polymer Clamp)
SMBUS / I2C Supported
MES Upload Supported
Operating System Windows 10
Operating Temperature 25 ±5°C (accuracy guarantee)
Storage Temperature 0–60°C
Working Humidity ≤70% RH (non-condensing)
Technical Data Sheet Click Here

Applications & Industries

  • Advanced electrochemical battery research
  • Ultra-low current battery analysis
  • Coin cell and pouch cell testing
  • DC internal resistance (DCIR) analysis
  • SMBUS and smart battery testing
  • High-speed battery characterisation
  • University and industrial R&D laboratories
  • Battery material and electrolyte evaluation

FAQ

What current range does this system support?

The system supports four programmable ranges from 0.1μA to 5A.

What is the maximum data acquisition speed?

The CT-9004G supports continuous recording at up to 1000Hz.

Does the system support DCIR testing?

Yes, dedicated DCIR measurement steps are supported.

Can the system communicate with smart batteries?

Yes, the system supports SMBUS and I2C communication protocols.

Does the platform support MES integration?

Yes, MES data upload and barcode binding functions are supported.
