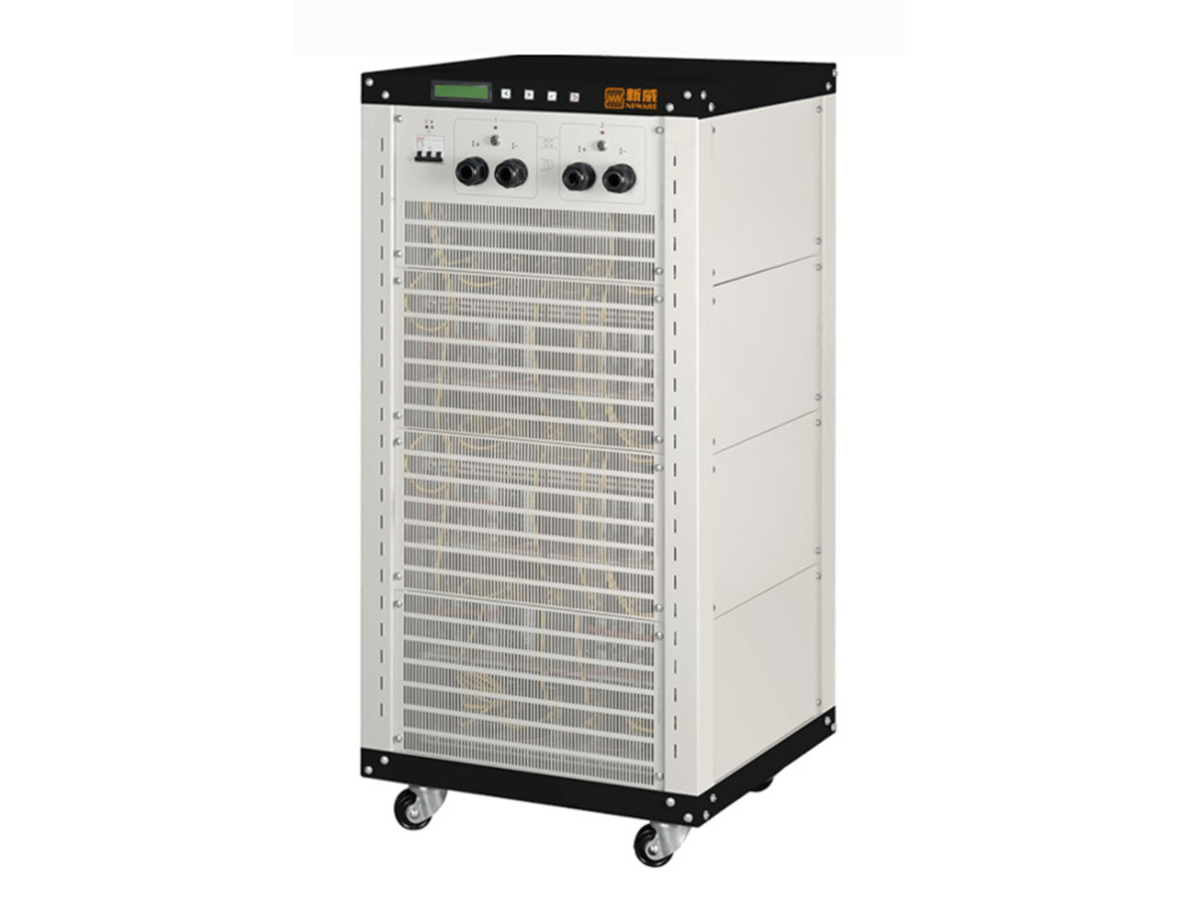

Neware CT-8008-5V100A-NFA battery tester with 8 channels, 100A high-current output, pulse testing, simulation, and DCIR analysis for lithium battery research.
Neware CT-8008-5V100A-NFA battery tester with 8 channels, 100A high-current output, pulse testing, simulation, and DCIR analysis for lithium battery research.

Neware CT-8008-5V100A-NFA Battery Tester [8Ch, 5V 100A]

Neware CT-8008-5V100A-NFA Battery Tester [8Ch, 5V 100A] High-current battery testing system for lithium-ion cells, supercapacitors, pulse testing, and advanced electrochemical analysis. General Description The Neware CT-8008-5V100A-NFA Battery Tester is a high-current multi-range battery testing system engineered for advanced lithium-ion battery...
Vendor: Cell Lab
SKU: NW0036
Product type: Battery Equipment
£15,899.00
£15,899.00
Subtotal: £15,899.00
Description
Description
x

Neware CT-8008-5V100A-NFA Battery Tester [8Ch, 5V 100A]

High-current battery testing system for lithium-ion cells, supercapacitors, pulse testing, and advanced electrochemical analysis.

General Description

The Neware CT-8008-5V100A-NFA Battery Tester is a high-current multi-range battery testing system engineered for advanced lithium-ion battery research, supercapacitor evaluation, and high-power electrochemical testing applications. Designed for demanding R&D laboratories and battery manufacturing environments, the system combines rapid dynamic response, high current capability, and precision closed-loop control architecture.

The system features 8 independent testing channels with programmable voltage from 0.025V to 5V and current output up to 100A. Multi-range current architecture enables precise control across low-current and high-current testing conditions, while ±0.05% FS voltage and current accuracy ensure stable and repeatable testing performance.

The CT-8008 platform supports advanced charge-discharge modes including constant current, constant voltage, constant power, pulse testing, simulation testing, and DC internal resistance (DCIR) analysis. With data acquisition frequency up to 100Hz and minimum data recording interval of 10ms, the system is suitable for dynamic battery analysis and high-speed electrochemical testing.

Ethernet-based TCP/IP communication, MySQL database support, Kelvin connection data acquisition, and multi-format data export provide efficient laboratory integration and automated battery testing workflows.

Key Features

High-Current 100A Output Capability
Supports programmable current output from 0.5A to 100A for high-power battery testing.

Multi-Range Precision Control
Three current ranges (10A / 50A / 100A) provide accurate low-current and high-current performance.

Advanced Pulse and Simulation Testing
Supports pulse testing, simulation profiles, DCIR analysis, and dynamic charge-discharge workflows.

High-Speed Data Acquisition
100Hz acquisition frequency with minimum 10ms recording interval for dynamic battery analysis.

Professional Industrial Communication System
TCP/IP Ethernet communication, MySQL database support, and Kelvin connection architecture.

Specifications

Parameter Specification
Model CT-8008-5V100A-NFA
Channels 8 independent
Input Power Supply AC 380V / 208V ±10%, 50Hz / 60Hz
Input Power 7089 W
Resolution AD: 16-bit; DA: 16-bit
Input Impedance ≥1 MΩ
Voltage Range 0.025V–5V
Minimum Discharge Voltage 0V
Voltage Accuracy ±0.05% FS
Voltage Stability ±0.05% FS
Current Range 0.5A–100A
Current Ranges per Channel 10A / 50A / 100A
Current Accuracy ±0.05% FS
CV Cut-off Current 0.2A
Current Stability ±0.05% FS
Maximum Output Power per Channel 500 W
Power Stability ±0.2% FS
Maximum Current Response Time <20 ms
Minimum Data Record Interval 10 ms
Minimum Voltage Record 10 mV
Minimum Current Record 200 mA
Data Acquisition Frequency 100 Hz
Charge Modes CC, CV, CCCV, CP, Pulse, Simulation
Discharge Modes CV, CP, CR
Pulse Width Minimum 500 ms
Pulse Counts Up to 32
Simulation File Lines 100,000
DCIR Supported
Multi-Range Architecture 4 ranges
Channel Union Up to 2 channels
Maximum Cycles 65,535
Maximum Steps 254
Cycle Nesting 3
Communication TCP/IP
Database MySQL
Data Export Excel, TXT, CSV, PDF, Plot/Graph
Data Acquisition Method Kelvin connection
Leak Current 0.005 mA
Noise <85 dB
Protection Level IP20
Operating System Windows 7/8/10 64-bit
Dimensions 730 × 600 × 1520 mm
Rack Size 30U (24")
Technical Data Sheet Click Here

Applications & Industries

  • High-current lithium-ion battery testing
  • Supercapacitor and EDLC evaluation
  • Pulse and simulation battery testing
  • Battery cycle life analysis
  • DC internal resistance (DCIR) testing
  • Battery R&D laboratories and universities
  • Battery manufacturing and quality validation

FAQ

What is the maximum current output of this system?

The system supports programmable current output up to 100A per channel.

Does the system support pulse testing?

Yes, pulse testing is supported with a minimum pulse width of 500 ms.

Can channels be combined for higher current testing?

Yes, up to 2 channels can be combined, although pulse and simulation functions are unavailable after channel union.

What data acquisition speed does the system support?

The system supports up to 100Hz acquisition frequency with a minimum 10ms data recording interval.

Does the system support DCIR analysis?

Yes, DCIR analysis is fully supported within the testing platform.
