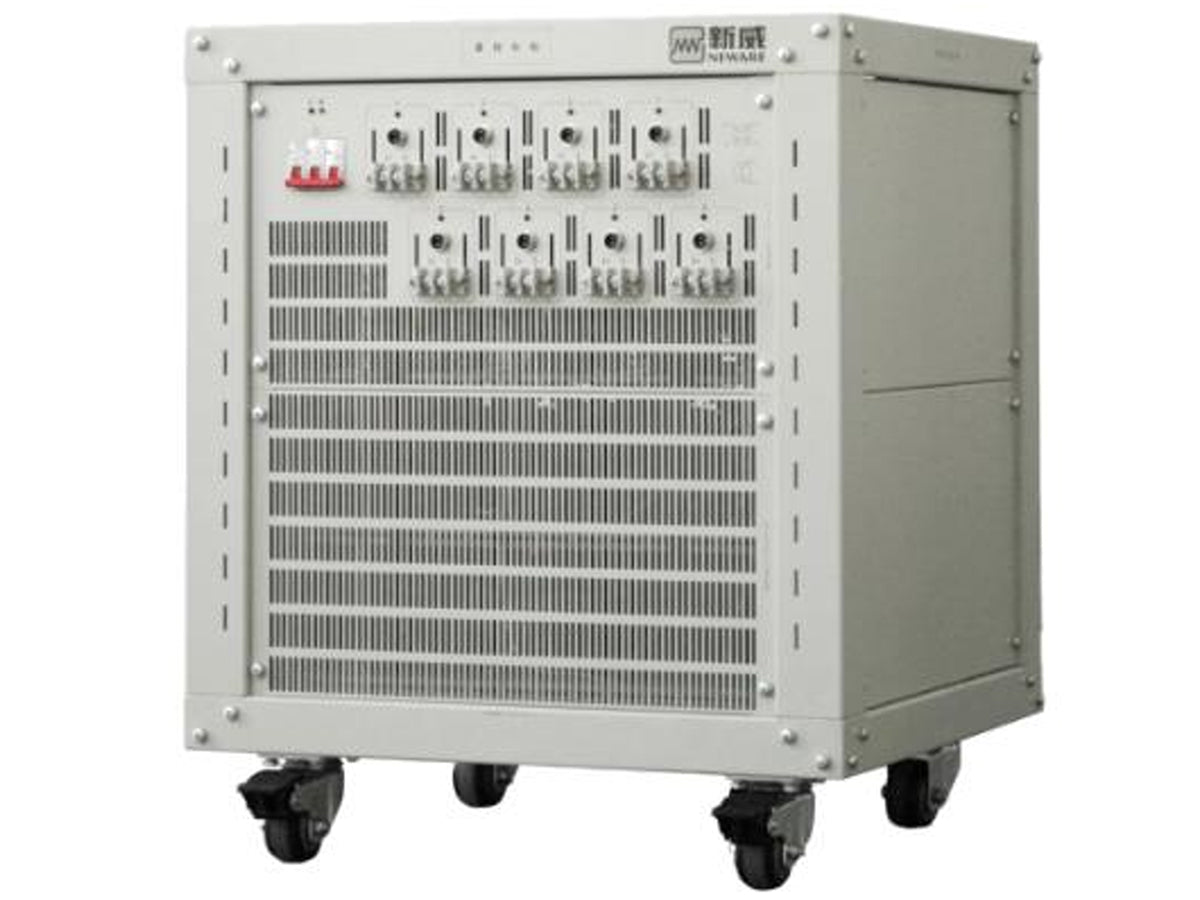

Neware CT-4032-5V40A-NA Battery Tester [32Ch, 5V 40A]
Neware CT-4032-5V40A-NA Battery Tester [32Ch, 5V 40A] High-current 32-channel battery tester for lithium-ion cell cycling, performance evaluation, and high-throughput battery research. General Description The Neware CT-4032-5V40A-NA Battery Tester is a high-current multi-channel battery testing system designed for precision charge and...
- £26,520.00
- £26,520.00
- Unit price
- per
Subtotal:
£26,520.00
Description
xNeware CT-4032-5V40A-NA Battery Tester [32Ch, 5V 40A]
High-current 32-channel battery tester for lithium-ion cell cycling, performance evaluation, and high-throughput battery research.
General Description
The Neware CT-4032-5V40A-NA Battery Tester is a high-current multi-channel battery testing system designed for precision charge and discharge testing of lithium-ion and rechargeable battery cells. With 32 independent channels per unit, the system enables large-scale parallel testing for laboratories, pilot production lines, and battery manufacturing environments.
Each channel supports a voltage range of 0.025V to 5V and current range of 0.2A to 40A, delivering up to 200W output power per channel. The system provides stable and accurate performance with ±0.1% FS voltage and current accuracy, ensuring reliable battery performance analysis and cycle life testing.
The CT-4032-5V40A-NA supports multiple charge and discharge modes including constant current, constant voltage, constant power, and constant resistance. With flexible pulse testing capability, DC internal resistance testing, and nested loop programming, it enables advanced battery characterisation under dynamic operating conditions.
Built with Ethernet communication and MySQL database architecture, the system supports real-time monitoring, automated testing, and efficient data export in text, Excel, PDF, and graphical formats. Its industrial-grade protection and independent channel control make it suitable for demanding battery R&D and production testing environments.
Key Features
-
32 Independent Testing Channels
Provides 32 fully independent channels per unit, enabling high-throughput battery testing. -
High Current Output Capability
Supports up to 40A per channel with 200W output power for high-rate charge and discharge testing. -
High Measurement Accuracy
Voltage and current accuracy ±0.1% FS with 16-bit AD/DA resolution. -
Advanced Pulse and DCIR Testing
Supports pulse testing with minimum pulse width of 500ms and DC internal resistance analysis. -
Professional Data Management System
MySQL database storage, TCP/IP communication, and export options including TXT, XLS, PDF, and graphs.
Specifications
| Parameter | Specification |
|---|---|
| Model | CT-4032-5V40A-NA |
| Channels per Unit | 32 |
| Voltage Range | 0.025V–5V |
| Minimum Discharge Voltage | 2V |
| Current Range | 0.2A–40A |
| Voltage Accuracy | ±0.1% FS |
| Current Accuracy | ±0.1% FS |
| Output Power per Channel | 200 W |
| Current Response Time | ≤20 ms |
| Minimum Data Record Interval | 100 ms |
| Frequency | 10 Hz |
| Input Power | 11342 W |
| Input Supply | AC 380V ±10%, 50 Hz |
| Communication | TCP/IP (Ethernet) |
| Database | MySQL |
| Data Export | TXT, XLS, PDF, Graph |
| Dimensions | 600 × 600 × 1780 mm (36U) |
| Noise | <75 dB |
| Protection Level | IP20 |
| Technical Data Sheet | Click Here |
Applications & Industries
- Lithium-ion battery cycle life testing
- High-current battery performance evaluation
- Battery manufacturing and quality inspection
- Electric vehicle battery module testing
- Energy storage system development
- University and research laboratories
FAQ
What battery types can this tester support?
It is suitable for lithium-ion and other rechargeable battery cells within the 0–5V testing range.
Does it support pulse testing?
Yes, it supports constant current and constant power pulse testing with a minimum pulse width of 500ms.
How many channels are available per unit?
Each unit provides 32 independent testing channels.
Can it perform DC internal resistance testing?
Yes, DCIR testing is supported.
What data formats can be exported?
Test data can be exported in TXT, XLS, PDF, and graphical formats.
