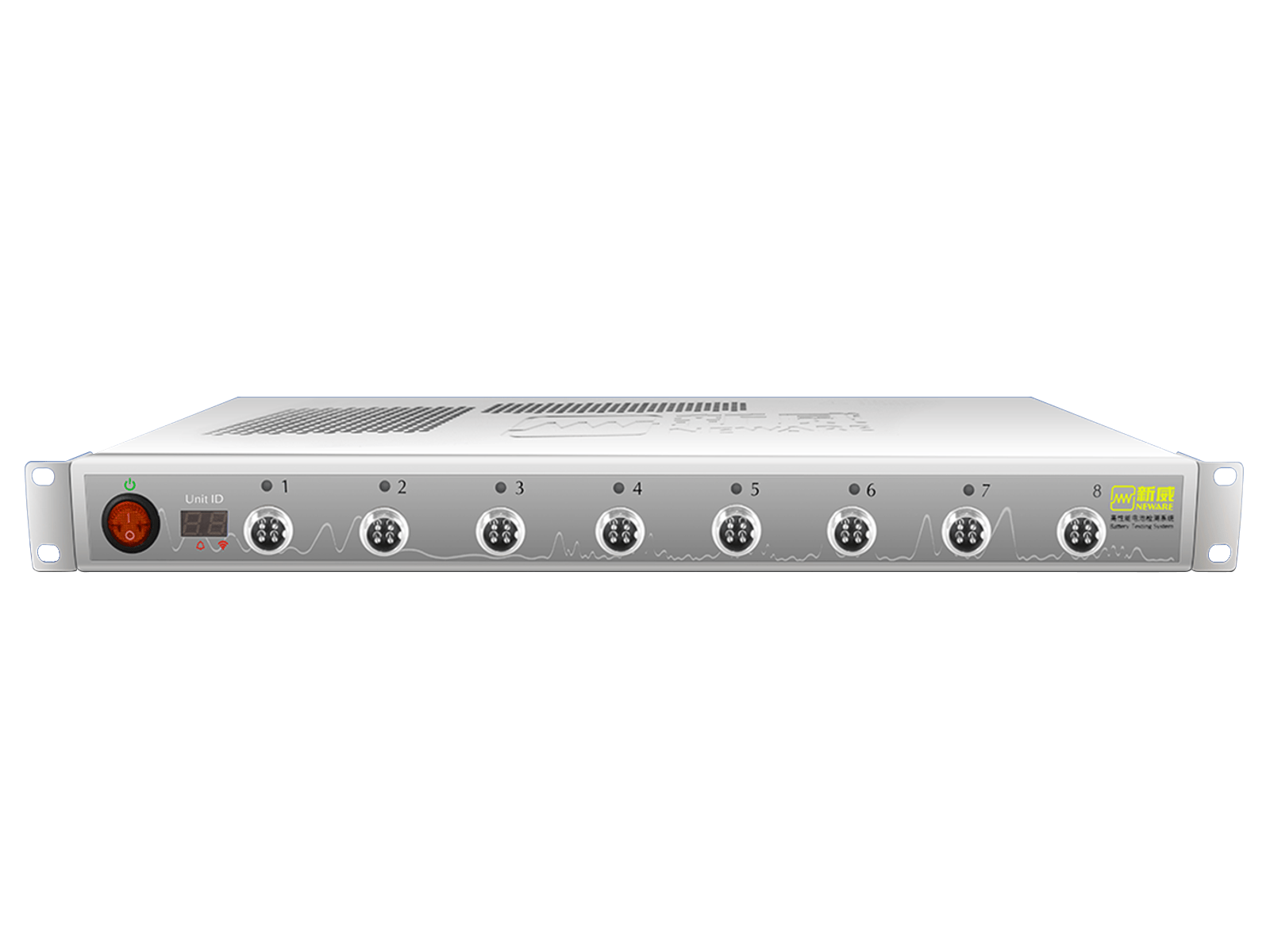

Neware CT-4008T-5V50mA-164 Battery Tester [8Ch, 5V 50mA]

Neware CT-4008T-5V50mA-164 Battery Tester [8Ch, 5V 50mA] Ultra-low current battery testing system for precision electrochemical analysis, coin cell research, and advanced material characterisation. General Description The Neware CT-4008T-5V50mA-164 Battery Tester is a high-precision ultra-low current battery testing system designed for...
Vendor: Cell Lab
SKU: NW0023
Product type: Battery Equipment
£2,249.00
£2,249.00

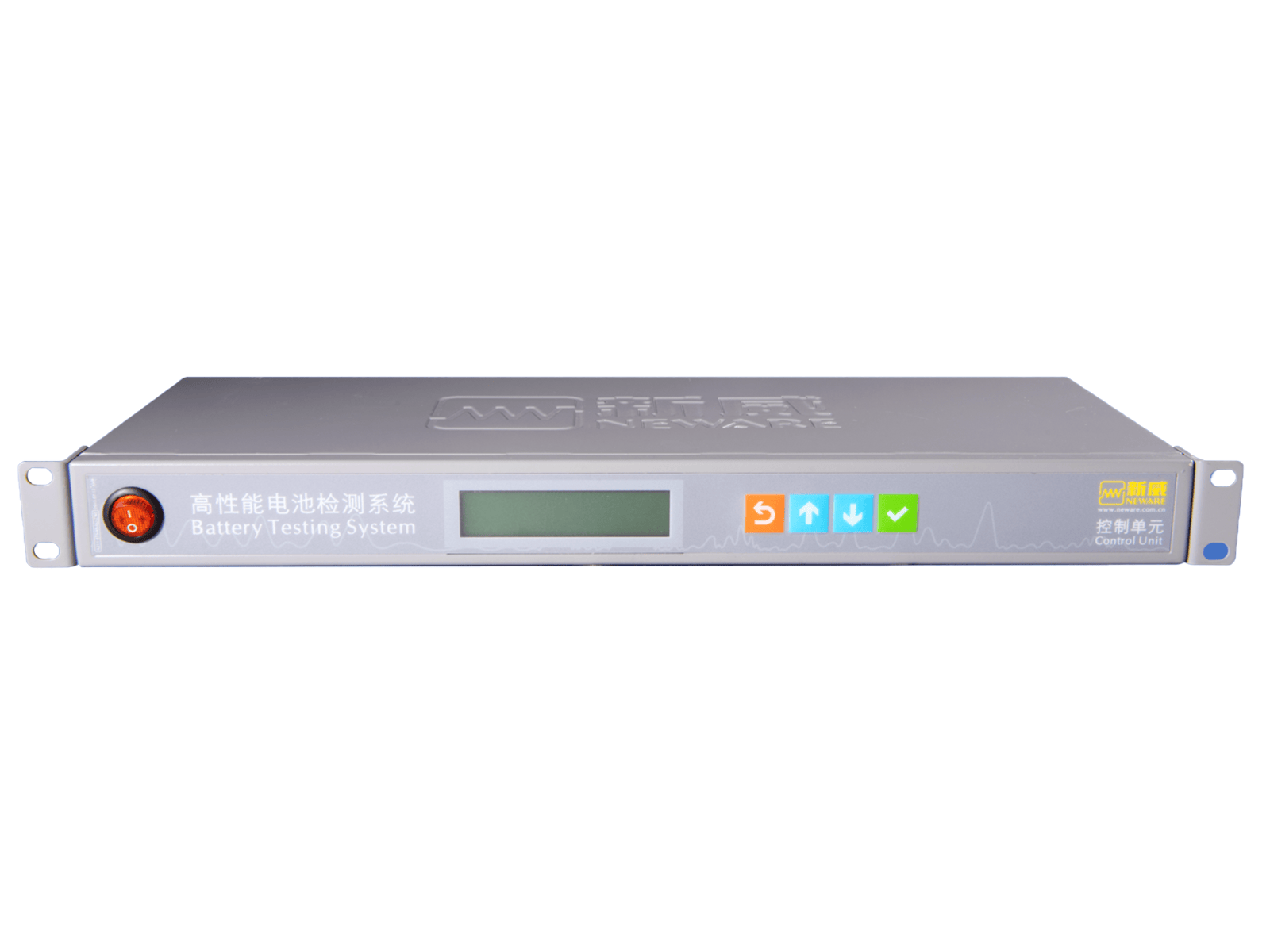

Power Option: 110V, with middle machine
Subtotal: £2,249.00
Description
Description
x

Neware CT-4008T-5V50mA-164 Battery Tester [8Ch, 5V 50mA]

Ultra-low current battery testing system for precision electrochemical analysis, coin cell research, and advanced material characterisation.

General Description

The Neware CT-4008T-5V50mA-164 Battery Tester is a high-precision ultra-low current battery testing system designed for advanced electrochemical research and precision low-current applications. Featuring 8 independent channels with closed-loop control architecture, the system is ideal for coin cell testing, three-electrode analysis, and highly sensitive battery material evaluation.

The system supports a voltage range from 25mV to 5V and programmable current ranges from 5μA to 50mA across multiple ranges, enabling accurate testing under extremely low current conditions. With ±0.05% FS voltage and current accuracy, 16-bit AD/DA resolution, and Kelvin connection data acquisition, it provides highly stable and repeatable electrochemical measurement performance.

Advanced testing functions include constant current, constant voltage, constant power, pulse testing, and DC internal resistance analysis. Ethernet-based TCP/IP communication, MySQL database architecture, and multi-format data export allow efficient laboratory data management and automated testing workflows.

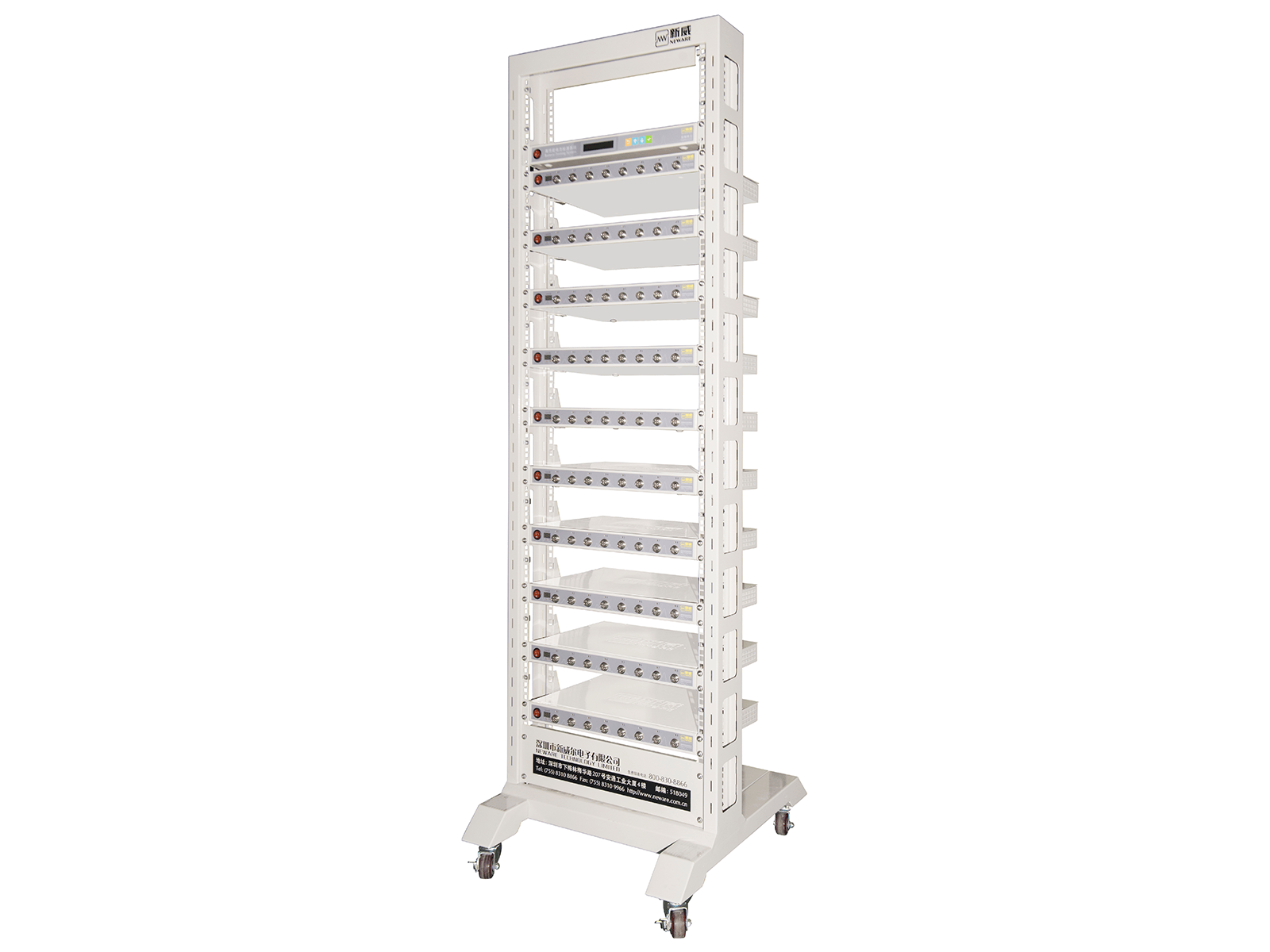

Its compact 1U rack-mounted structure, low-noise operation, and high-density channel design make the CT-4008T series suitable for modern battery laboratories and precision electrochemical research environments.

Key Features

Ultra-Low Current Multi-Range Control
Supports programmable current ranges from 5μA to 50mA for highly sensitive electrochemical applications.

High Precision Measurement System
Voltage and current accuracy ±0.05% FS with stable ultra-low current performance.

Advanced Electrochemical Testing Functions
Supports CC, CV, CCCV, CP, CR, pulse testing, and DCIR analysis.

Independent Closed-Loop Channel Architecture
8 fully independent channels with Kelvin connection for accurate data acquisition.

Compact Laboratory Integration Design
1U rack-mounted structure with low noise operation and Ethernet communication support.

Specifications

Parameter Specification

SKU#
NW0023 110V, with middle machine
NW0024 220V, with middle machine

NW0025 110V, without middle machine

NW0026 220V, without middle machine
Model CT-4008T-5V50mA-164
Channels 8
Power Supply AC 220V / 110V ±10%, 50Hz
Input Power 25 W
Resolution AD: 16-bit; DA: 16-bit
Input Impedance ≥1 GΩ
Voltage Range 25mV – 5V
Minimum Discharge Voltage -5V
Voltage Accuracy ±0.05% FS
Voltage Stability ±0.05% FS
Current Range 5μA–1mA / 1mA–25mA / 25mA–50mA
Current Accuracy ±0.05% FS
CV Cut-off Current 2μA / 50μA / 100μA
Output Power per Channel 0.25 W
Power Stability ±0.1% FS
Current Response Time <500 μs
Minimum Data Record Interval 100 ms
Recording Frequency 10 Hz
Minimum Pulse Width 500 ms
Pulse Counts Up to 32
Maximum Cycles 65,535
Maximum Steps 254
Cycle Nesting 3
Communication TCP/IP (Ethernet)
Database MySQL
Data Export Excel, TXT, CSV, PDF, Plot/Graph
Leak Current 0.005 μA
Noise <45 dB
Dimensions 483 × 310 × 48 mm (1U)
Technical Data Sheet Click Here

Applications & Industries

  • Coin cell electrochemical testing
  • Ultra-low current battery analysis
  • Battery material and electrolyte evaluation
  • Three-electrode electrochemical research
  • University and scientific research laboratories
  • Precision battery R&D applications

FAQ

What current range does this system support?

The system supports programmable current ranges from 5μA to 50mA across multiple ranges.

Can the system perform DCIR analysis?

Yes, calculated DCIR analysis is supported within the BTSDA software platform.

What battery types is this model suitable for?

It is suitable for coin cells, three-electrode systems, and ultra-low current electrochemical applications.

Does the system support pulse testing?

Yes, pulse testing is supported with a minimum pulse width of 500 ms.

What operating systems are supported?

The software supports Windows 7, Windows 8, and Windows 10 (64-bit).
