Description
xNeware CT-4008T-5V20mA-164 Battery Tester [8Ch, 5V 20mA]
Ultra-low current battery testing system for precision coin cell analysis, micro-current electrochemical research, and advanced material evaluation.
General Description

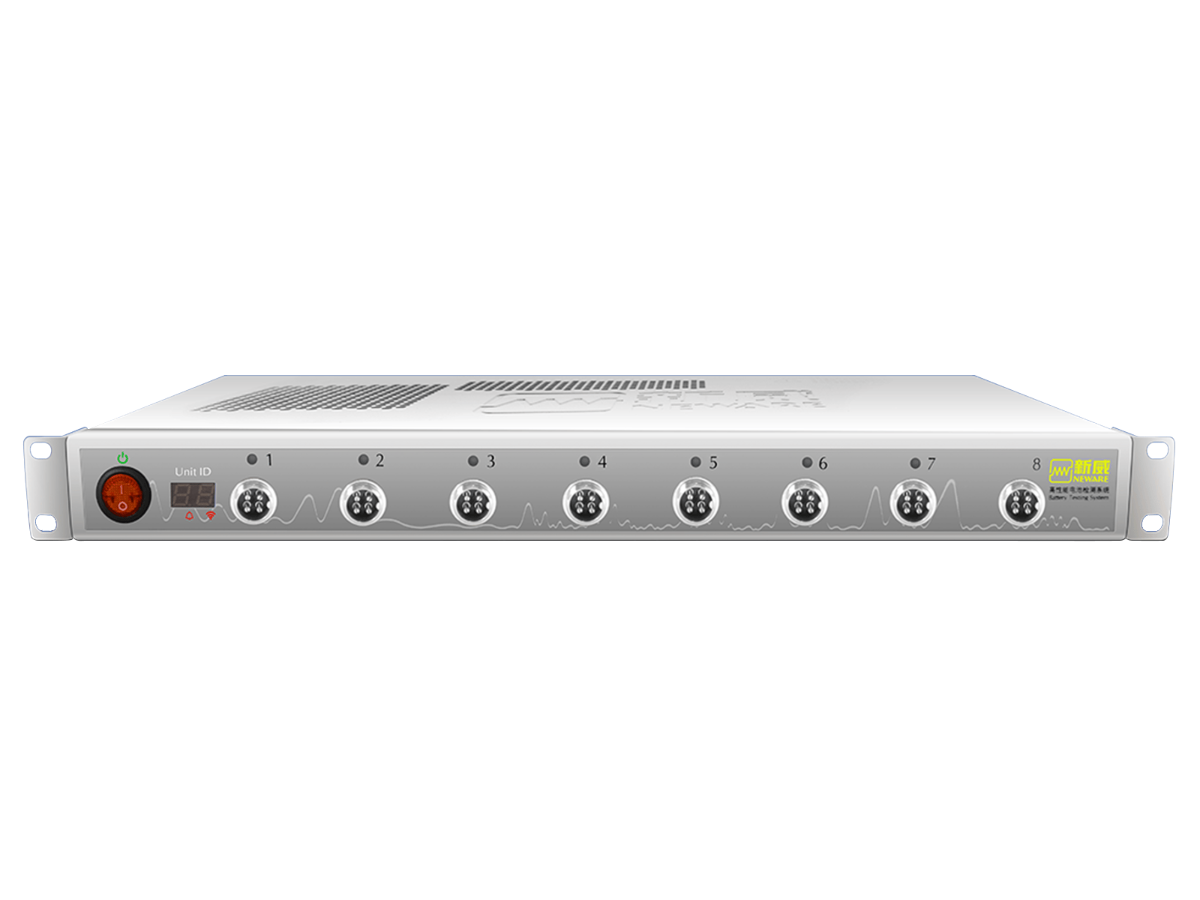

The Neware CT-4008T-5V20mA-164 Battery Tester is a high-precision ultra-low current battery testing platform designed for advanced electrochemical research, micro-current battery analysis, and material characterisation. Engineered for laboratories requiring highly sensitive current control, this system is ideal for coin cells, three-electrode systems, and precision low-current applications.
With 8 independent channels, each channel supports a voltage range from 25mV to 5V and programmable current ranges from 5μA to 20mA, enabling accurate battery testing across multiple ultra-low current levels. Featuring ±0.05% FS voltage and current accuracy with 16-bit AD/DA resolution, the system delivers exceptional precision for DCIR testing, dQ/dV analysis, pulse testing, and long-term cycle studies.
Its independent closed-loop channel architecture, Kelvin connection data acquisition, and Ethernet-based TCP/IP communication ensure stable performance, precise control, and efficient data management. The compact 1U rack-mounted design makes it ideal for high-density laboratory integration while maintaining low noise operation.
Key Features
Ultra-Low Current Multi-Range Testing
Supports three programmable current ranges from 5μA–20mA for highly sensitive electrochemical applications.
High Precision Measurement System
Voltage and current accuracy ±0.05% FS with stable micro-current control.
Advanced Electrochemical Testing Functions
Supports CC, CV, CCCV, CP, CR, pulse testing (minimum 500 ms), and DCIR analysis.
Independent Closed-Loop Channel Design
8 independent channels with Kelvin connection for highly accurate data acquisition.
Compact Laboratory Design
1U rack-mounted system with low noise (<45 dB) and Ethernet communication for efficient lab deployment.
Specifications
| Parameter | Specification |
|---|---|
| Model | CT-4008T-5V20mA-164 |
| Channels | 8 |
| Power Supply | AC 220V / 110V ±10%, 50Hz |
| Input Power | 25 W |
| Resolution | AD:16-bit; DA:16-bit |
| Input Impedance | ≥1 GΩ |
| Voltage Range | 25mV–5V |
| Minimum Discharge Voltage | -5V |
| Voltage Accuracy | ±0.05% FS |
| Voltage Stability | ±0.05% FS |
| Current Range | Range1: 5μA–1mA; Range2: 1–10mA; Range3: 10–20mA |
| Current Accuracy | ±0.05% FS |
| CV Cut-off Current | 2μA / 20μA / 40μA |
| Output Power per Channel | 0.1 W |
| Power Stability | ±0.1% FS |
| Current Response Time | <500 μs |
| Minimum Data Record Interval | 100 ms |
| Recording Frequency | 10 Hz |
| Minimum Pulse Width | 500 ms |
| Pulse Counts | Up to 32 |
| Maximum Cycles | 65,535 |
| Maximum Steps | 254 |
| Cycle Nesting | 3 |
| Communication | TCP/IP (Ethernet) |
| Database | MySQL |
| Data Export | Excel, TXT, CSV, PDF, Plot/Graph |
| Dimensions | 483 × 310 × 48 mm (1U) |
| Noise | <45 dB |
| Leak Current | 0.005 μA |
| Technical Data Sheet | Click Here |
Applications & Industries
Coin cell electrochemical testing
Three-electrode system analysis
Ultra-low current battery research
Battery material and electrolyte characterisation
University and scientific research laboratories
Precision electrochemical R&D
FAQ
What makes this model suitable for ultra-low current testing?
It supports programmable current ranges down to 5μA with ±0.05% FS accuracy.
Can it support DC internal resistance testing?
Yes, DCIR testing is fully supported.
What battery types is it best suited for?
It is particularly suitable for coin cells, three-electrode systems, and micro-current electrochemical applications.
Does it support pulse testing?
Yes, pulse testing is supported with a minimum pulse width of 500 ms.
What operating system is supported?
It supports Windows 7, 8, and 10 (64-bit).
