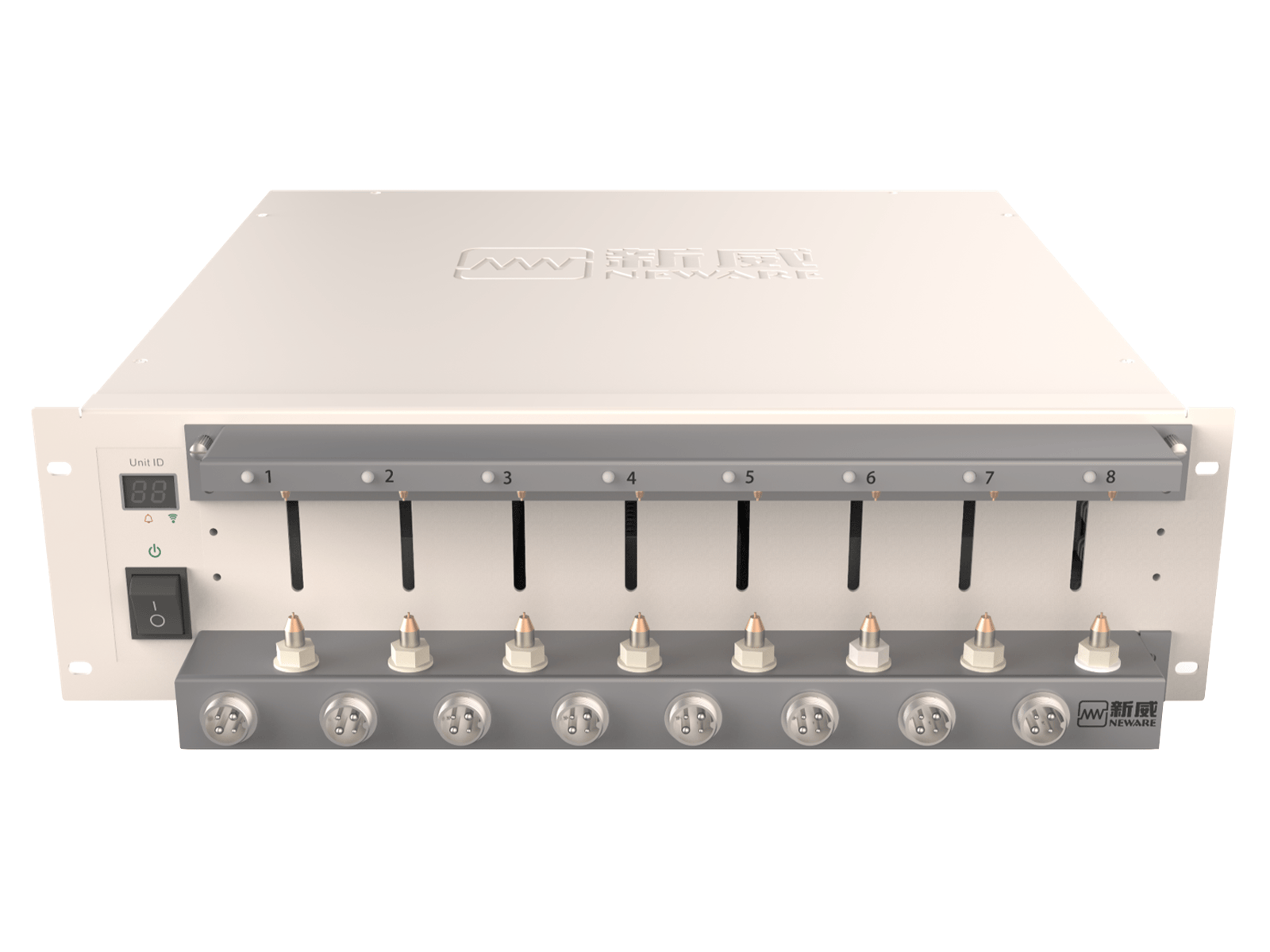

Neware CT-4008T-5V12A battery tester with 8 channels and 12A multi-range output for cylindrical cell, pouch cell, supercapacitor, and electrochemical testing.
Neware CT-4008T-5V12A battery tester with 8 channels and 12A multi-range output for cylindrical cell, pouch cell, supercapacitor, and electrochemical testing.

Neware CT-4008T-5V12A Battery Tester [8Ch, 5V 12A]

Neware CT-4008T-5V12A Battery Tester [8Ch, 5V 12A] High-precision multi-range battery testing system for cylindrical cells, pouch cells, supercapacitors, and advanced electrochemical research. General Description The Neware CT-4008T-5V12A Battery Tester is a high-precision multi-range battery testing platform designed for advanced lithium-ion...
Vendor: Cell Lab
SKU: NW0031
Product type: Battery Equipment
£3,079.00
£3,079.00
Style: 110V
Subtotal: £3,079.00
Description
Description
x

Neware CT-4008T-5V12A Battery Tester [8Ch, 5V 12A]

High-precision multi-range battery testing system for cylindrical cells, pouch cells, supercapacitors, and advanced electrochemical research.

General Description

The Neware CT-4008T-5V12A Battery Tester is a high-precision multi-range battery testing platform designed for advanced lithium-ion battery research, electrochemical analysis, and laboratory-scale battery development. Featuring fast dynamic response and high current capability, the system is suitable for cylindrical cells, pouch cells, supercapacitors, and EDLC testing applications.

Equipped with 8 independent testing channels, the system supports a voltage range from 25mV to 5V and programmable current ranges up to 12A. With ±0.05% FS voltage and current accuracy, 16-bit AD/DA resolution, and independent closed-loop channel control, the system provides highly stable and repeatable charge-discharge testing performance.

The CT-4008T platform supports advanced electrochemical testing functions including DCIR analysis, pulse testing, cycle life testing, and multi-step programmable workflows. Ethernet-based TCP/IP communication, MySQL database architecture, and multi-format data export enable efficient automated testing and laboratory data management.

Its compact 3U rack-mounted design and flexible clamp compatibility make it ideal for battery research laboratories, universities, and battery manufacturing environments requiring high-precision multi-channel battery analysis.

Key Features

High Current Multi-Range Architecture
Three programmable current ranges: 5mA–1A, 1A–6A, and 6A–12A for flexible battery testing.

High Precision Measurement System
Voltage and current accuracy ±0.05% FS with stable closed-loop control architecture.

Advanced Electrochemical Testing Functions
Supports CC, CV, CCCV, CP, CR, pulse testing, DCIR analysis, and programmable cycle testing.

Fast Dynamic Response Performance
Current response time <1 ms with minimum pulse width of 500 ms.

Professional Laboratory Integration
Ethernet communication, MySQL database support, and multi-format data export for automated battery analysis.

Specifications

Parameter Specification
SKU# NW0030 – 110V
NW0031 – 220V
NW0032 – 110V, without middle machine
NW0033 – 220V, without middle machine
Model CT-4008T-5V12A
Channels 8 independent
Power Supply AC 220V / 110V ±10%, 50Hz
Input Power 826 W
Resolution AD: 16-bit; DA: 16-bit
Input Impedance ≥1 MΩ
Voltage Range 25mV–5V
Minimum Discharge Voltage 2V (universal holder); 2.5V (2m cable)
Voltage Accuracy ±0.05% FS
Voltage Stability ±0.05% FS
Current Range Range1: 5mA–1A; Range2: 1A–6A; Range3: 6A–12A
Current Accuracy ±0.05% FS
CV Cut-off Current 2mA / 12mA / 24mA
Output Power per Channel 60 W
Power Stability ±0.1% FS
Current Response Time <1 ms
Minimum Data Record Interval 100 ms
Recording Frequency 10 Hz
Minimum Pulse Width 500 ms
Pulse Counts Up to 32
Maximum Cycles 65,535
Maximum Steps 254
Cycle Nesting 3
Communication TCP/IP (Ethernet)
Database MySQL
Data Export Excel, TXT, CSV, PDF, Plot/Graph
Leak Current <5 μA
Noise <85 dB
Dimensions 483 × 563 × 130 mm (S1) / 483 × 518 × 130 mm (204n)
Weight 14 kg
Technical Data Sheet Click Here

Applications & Industries

  • Cylindrical cell battery testing
  • Pouch cell electrochemical analysis
  • Supercapacitor and EDLC testing
  • Battery cycle life evaluation
  • DC internal resistance (DCIR) testing
  • University and scientific research laboratories
  • Battery manufacturing and quality validation

FAQ

What types of batteries can this system test?

It is suitable for cylindrical cells, pouch cells, supercapacitors, and other rechargeable battery systems within a 5V range.

What testing modes are supported?

The system supports CC, CV, CCCV, CP, CR, pulse testing, and programmable cycle testing.

Does the system support DCIR analysis?

Yes, calculated DCIR analysis is available within the BTSDA software platform.

What communication interface does the system use?

The system uses Ethernet-based TCP/IP communication.

What clamp types are supported?

Universal holder, alligator, polymer, and ring connector clamps are supported.
