xNeware CT-4008T-5V10mA-164 Battery Tester [8Ch, 5V 10mA]
Ultra-low current battery testing system for micro-current analysis, coin cell research, and high-precision electrochemical testing.
General Description

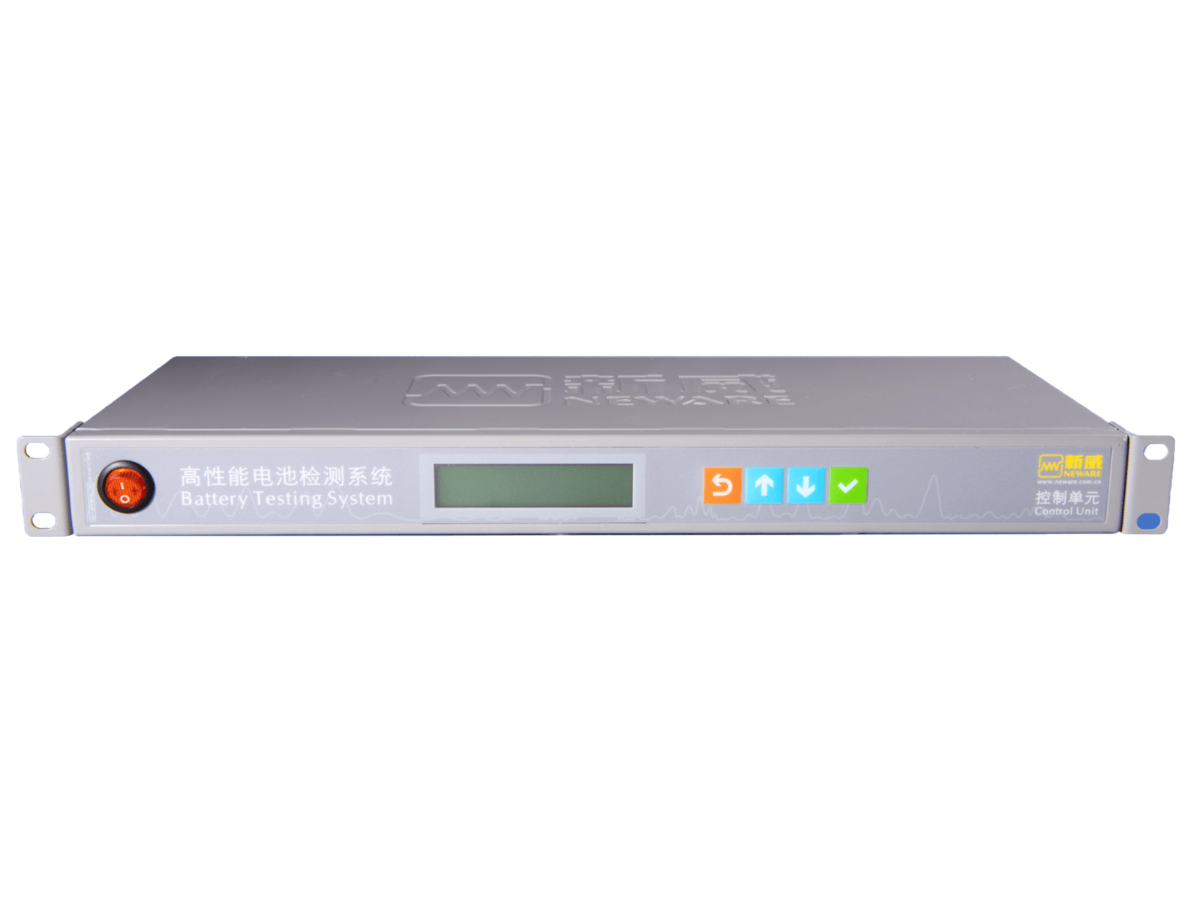

The Neware CT-4008T-5V10mA-164 Battery Tester is a high-precision micro-current battery testing system designed for advanced electrochemical research and ultra-low current applications. With eight independent channels and high-resolution measurement capability, the system is ideal for coin cell testing, material characterisation, and low-current battery analysis.
The system supports a voltage range from 25 mV to 5V and multiple current ranges down to 5 μA, enabling highly sensitive detection and control of electrochemical behaviour. With ±0.05% FS accuracy for both voltage and current, it ensures precise and stable testing performance for long-term experiments and micro-current measurements.
Advanced testing capabilities include constant current, constant voltage, constant power, pulse testing, and DC internal resistance (DCIR) analysis. The system also supports nested cycle programming and multi-step test profiles, making it suitable for complex electrochemical workflows.
With Ethernet-based communication and MySQL database architecture, the system enables real-time monitoring, automated control, and efficient data export. Its compact 1U rack-mounted design makes it ideal for high-density laboratory setups.
Key Features
Ultra-Low Current Measurement Capability
Supports current ranges down to 5 μA, ideal for micro-current and material-level testing.
High Measurement Accuracy (±0.05% FS)
Ensures precise voltage and current control for sensitive electrochemical experiments.
Multiple Current Ranges per Channel
Three programmable current ranges: 5 μA–1 mA, 1–5 mA, and 5–10 mA.
Advanced Electrochemical Testing Functions
Supports CC, CV, CCCV, CP, CR modes, pulse testing (minimum 500 ms), and DCIR analysis.
Compact High-Density Design

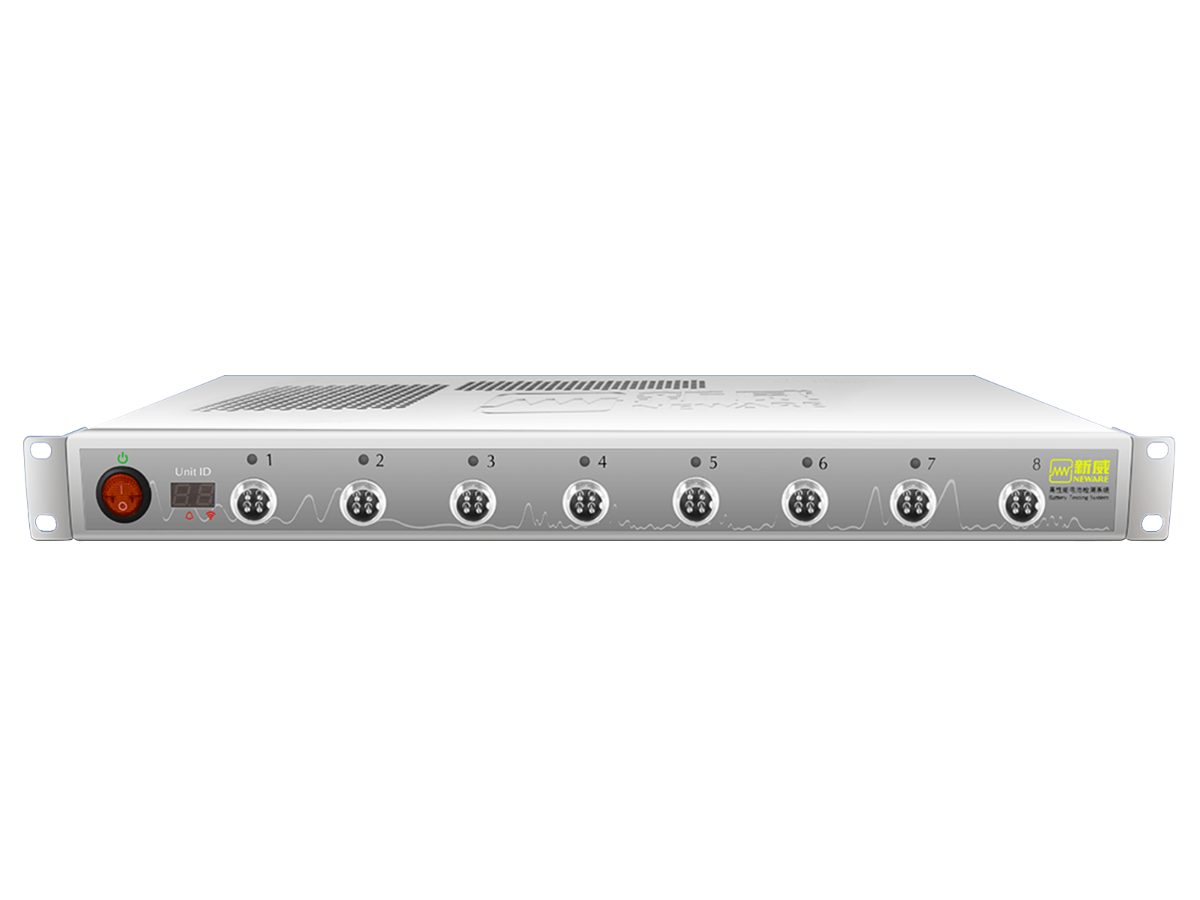

1U rack-mounted structure with 8 independent channels for efficient laboratory integration.
Specifications
| Parameter | Specification |
|---|---|
| Model | CT-4008T-5V10mA-164 |
| Channels | 8 |
| Power Supply | AC 220V / 110V ±10%, 50Hz |
| Input Power | 25 W |
| Input Impedance | ≥1 GΩ |
| Voltage Range | 25 mV – 5 V |
| Minimum Discharge Voltage | -5 V |
| Voltage Accuracy | ±0.05% FS |
| Voltage Stability | ±0.05% FS |
| Current Range | 5 μA – 10 mA (multi-range) |
| Current Accuracy | ±0.05% FS |
| CV Cut-off Current | 2 μA / 0.01 mA / 0.02 mA |
| Output Power per Channel | 0.05 W |
| Power Stability | ±0.1% FS |
| Current Response Time | <500 μs |
| Data Record Interval | ≥100 ms |
| Recording Frequency | 10 Hz |
| Maximum Cycles | 65,535 |
| Maximum Steps | 254 |
| Communication | TCP/IP (Ethernet) |
| Database | MySQL |
| Data Export | Excel, TXT, CSV, PDF, Graph |
| Dimensions | 480 × 330 × 44 mm (1U) |
| Noise | <85 dB |
| Leak Current | 0.005 μA |
| Technical Data Sheet | Click Here |
Applications & Industries
Coin cell electrochemical testing
Micro-current battery research
Solid-state battery material analysis
Battery electrode and electrolyte evaluation
University and research institute laboratories
High-precision electrochemical experiments
FAQ
What makes this system suitable for micro-current testing?
It supports ultra-low current measurement down to 5 μA with high precision ±0.05% FS.
Can it perform DC internal resistance testing?
Yes, DCIR calculation is supported within the system software.
What battery types can be tested?
It is suitable for coin cells and other low-current electrochemical systems.
Does it support pulse testing?
Yes, it supports pulse testing with a minimum pulse width of 500 ms.
Is the system suitable for long-term experiments?
Yes, it supports up to 65,535 cycles with stable long-duration operation.
