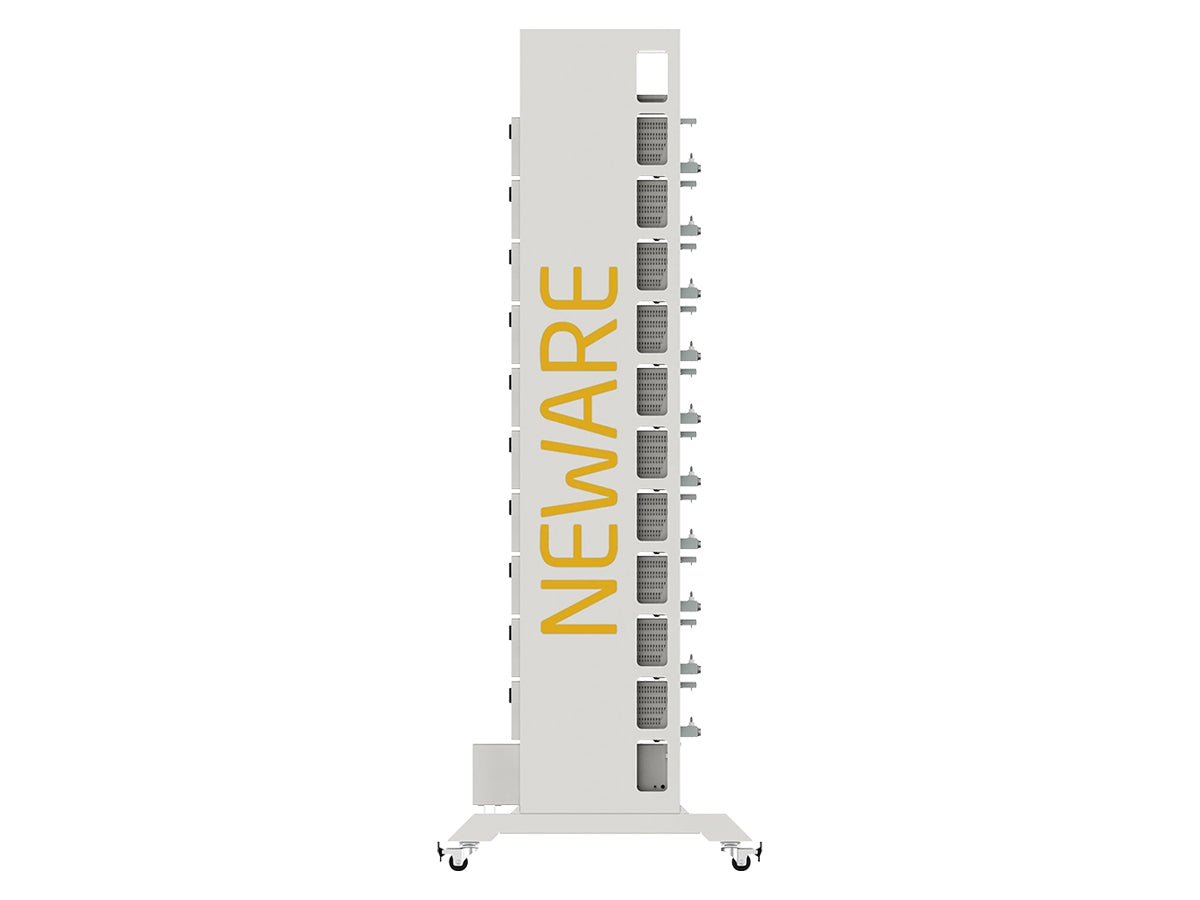

Neware CT-4008Q-5V6A-S1 battery tester with 8 channels, four-range 0.5mA–6A output, pulse testing, DCIR analysis, and high-precision electrochemical testing.

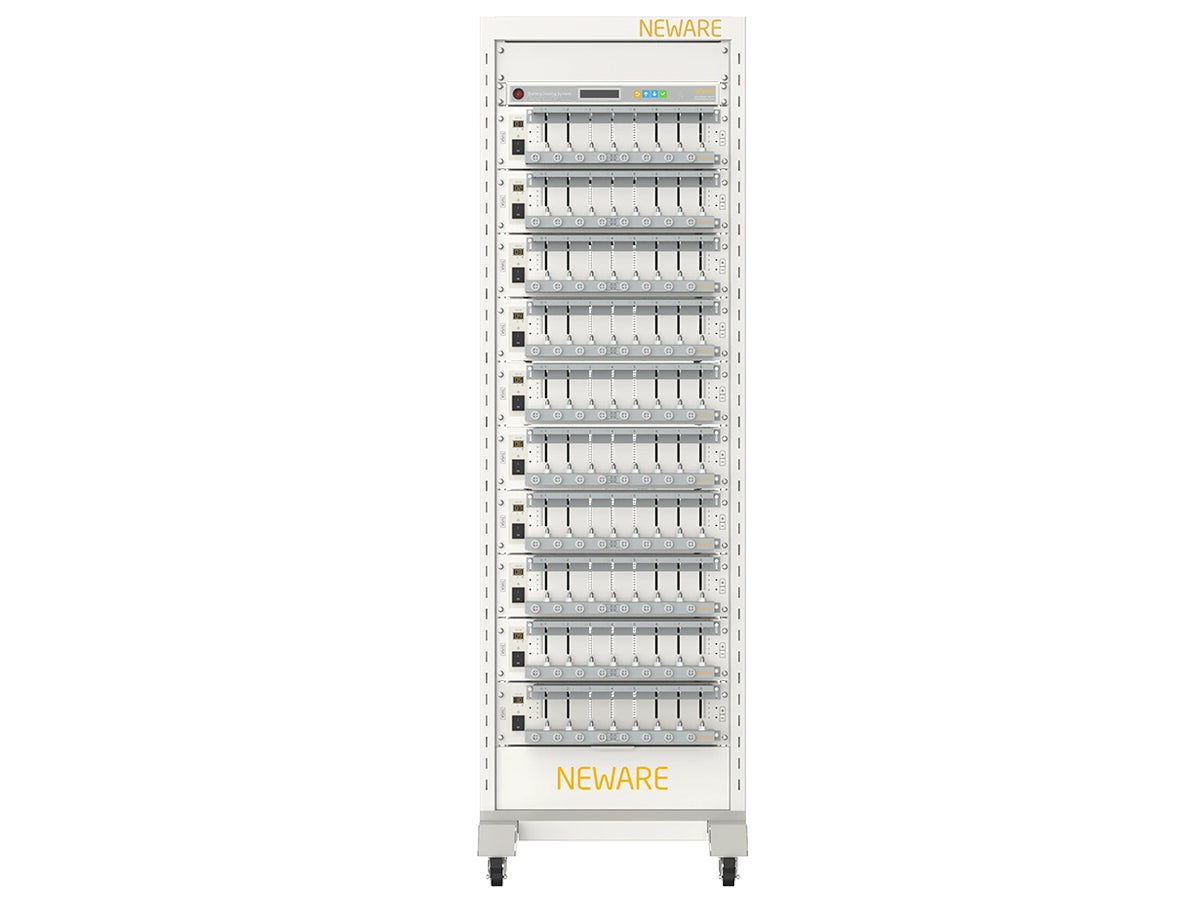

Neware CT-4008Q-5V6A-S1 battery tester with 8 channels, four-range 0.5mA–6A output, pulse testing, DCIR analysis, and high-precision electrochemical testing.

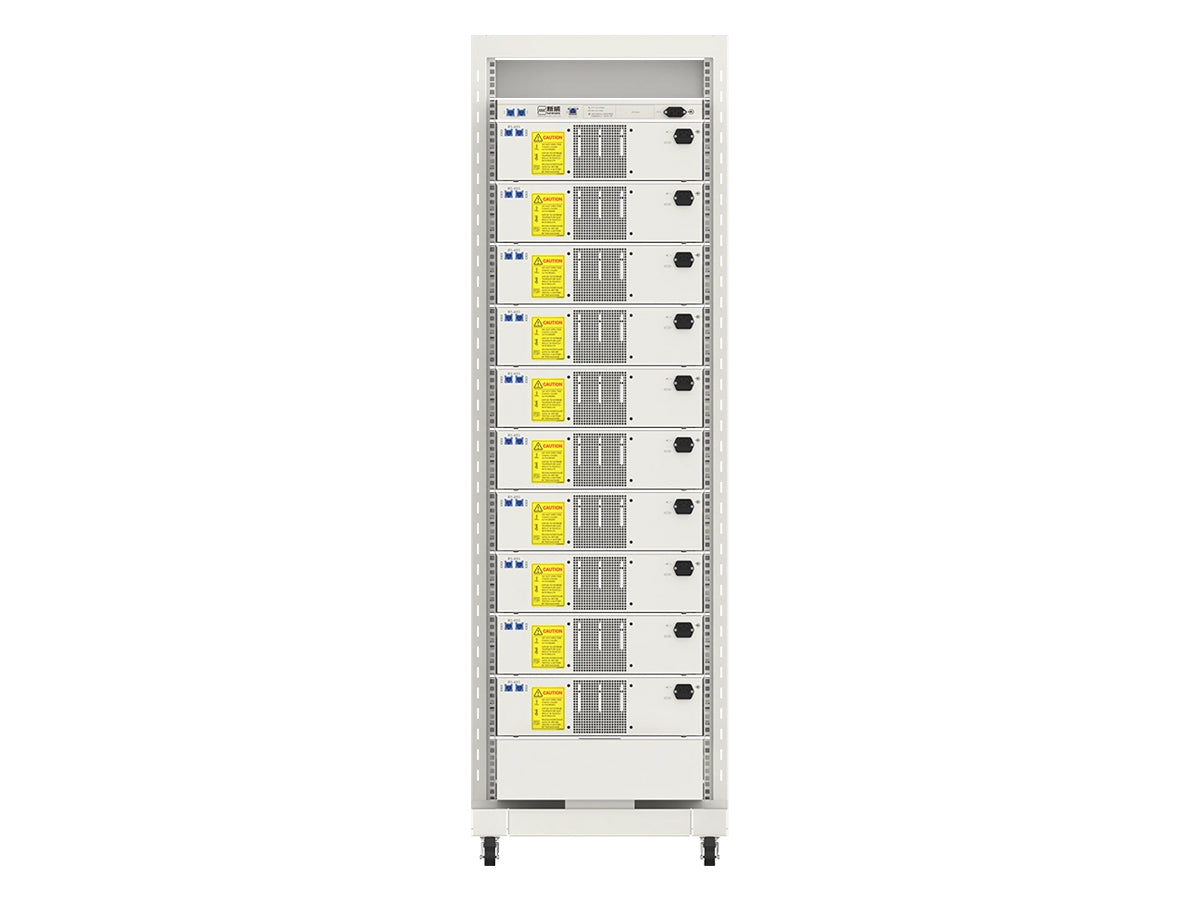

Neware CT-4008Q-5V6A-S1 battery tester with 8 channels, four-range 0.5mA–6A output, pulse testing, DCIR analysis, and high-precision electrochemical testing.

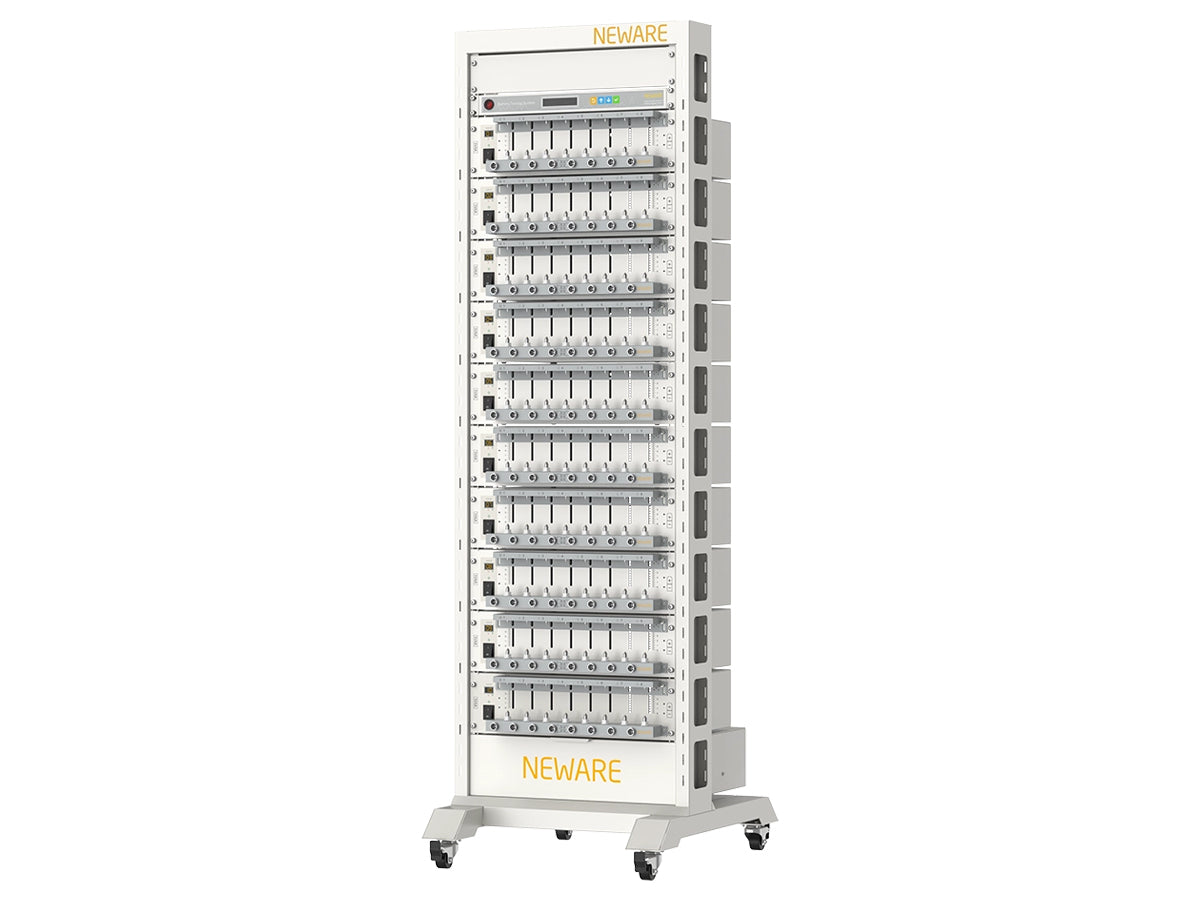

Neware CT-4008Q-5V6A-S1 battery tester with 8 channels, four-range 0.5mA–6A output, pulse testing, DCIR analysis, and high-precision electrochemical testing.
Neware CT-4008Q-5V6A-S1 battery tester with 8 channels, four-range 0.5mA–6A output, pulse testing, DCIR analysis, and high-precision electrochemical testing.
Neware CT-4008Q-5V6A-S1 battery tester with 8 channels, four-range 0.5mA–6A output, pulse testing, DCIR analysis, and high-precision electrochemical testing.
Neware CT-4008Q-5V6A-S1 battery tester with 8 channels, four-range 0.5mA–6A output, pulse testing, DCIR analysis, and high-precision electrochemical testing.
Neware CT-4008Q-5V6A-S1 battery tester with 8 channels, four-range 0.5mA–6A output, pulse testing, DCIR analysis, and high-precision electrochemical testing.

Neware CT-4008Q-5V6A-S1 Battery Tester [8Ch, 5V 6A]

Neware CT-4008Q-5V6A-S1 Battery Tester [8Ch, 5V 6A] Four-range high-precision battery testing system with pulse testing, DCIR analysis, and ultra-stable electrochemical measurement performance. General Description The Neware CT-4008Q-5V6A-S1 Battery Tester is a high-precision four-range battery testing platform engineered for advanced electrochemical...
Vendor: Cell Lab
SKU: NW0054
Product type: Battery Equipment
£1,774.00
£1,774.00
Subtotal: £1,774.00
Description
Description
x

Neware CT-4008Q-5V6A-S1 Battery Tester [8Ch, 5V 6A]

Four-range high-precision battery testing system with pulse testing, DCIR analysis, and ultra-stable electrochemical measurement performance.

General Description

The Neware CT-4008Q-5V6A-S1 Battery Tester is a high-precision four-range battery testing platform engineered for advanced electrochemical analysis, battery cycling evaluation, and precision charge-discharge testing applications. Designed for laboratory research, battery material development, and industrial battery testing environments, the system combines wide dynamic current control, ultra-stable measurement accuracy, and advanced electrochemical testing functions.

The system features 8 independent testing channels with programmable voltage output from 25mV to 5V and four programmable current ranges from 0.5mA to 6A. With voltage and current accuracy reaching ±0.02% FS, the CT-4008Q platform delivers highly repeatable battery testing data for lithium-ion batteries, pouch cells, cylindrical cells, and electrochemical devices.

Advanced testing capabilities include constant current, constant voltage, constant power, constant resistance, pulse testing, continuous charge/discharge switching, and DCIR analysis. The system supports up to 32 programmable pulses, 10Hz acquisition frequency, and nested cycle programming with up to 3-layer loop nesting for complex battery testing workflows.

Built on TCP/IP Ethernet communication and MySQL database architecture, the CT-4008Q-5V6A-S1 provides reliable data management, offline testing support, and automated laboratory integration for professional electrochemical research environments.

Key Features

Four-Range Current Architecture
Supports programmable current ranges from 0.5mA to 6A for flexible battery testing applications.

High-Precision Electrochemical Measurement
Voltage and current accuracy ±0.02% FS with stable double closed-loop control.

Advanced Pulse and DCIR Testing
Supports pulse testing, continuous switching, and custom DCIR calculation functions.

Independent Multi-Channel Control
8 independent channels with four-line Kelvin connection for precise data acquisition.

Professional Data Communication System
TCP/IP Ethernet communication with MySQL database architecture and offline testing support.

Specifications

Parameter Specification
Model CT-4008Q-5V6A-S1
Channels 8 independent
Power Supply AC 220V ±10% / 50Hz
Input Power 400 W
Resolution AD: 24-bit; DA: 16-bit
Input Impedance ≥1 MΩ
Voltage Range 25mV–5V
Minimum Discharge Voltage Upper & lower fixture: 1V; 2m line length: 1.5V
Voltage Accuracy ±0.02% FS
Voltage Stability ±0.02% FS
Current Range Range1: 0.5mA–100mA; Range2: 100mA–500mA; Range3: 500mA–3A; Range4: 3A–6A
Current Accuracy ±0.02% FS
CV Cut-off Current Range1: 0.2mA; Range2: 1mA; Range3: 6mA; Range4: 12mA
Current Stability ±0.02% FS
Output Power per Channel 30 W
Power Stability ±0.02% FS
Current Response Time ≤1.5 ms
Working Step Time Up to (365 × 24) hours per step
Minimum Sampling Time 100 ms
Minimum Sampling Voltage 10 mV
Recording Frequency 10 Hz
Charge Modes CC, CV, CCCV, CP
Discharge Modes CC, CV, CCCV, CP, CR
Pulse Modes CC, CP
Minimum Pulse Width 500 ms
Pulse Counts Up to 32
Continuous Charge/Discharge Switching Supported
DCIR Testing Custom point DCIR calculation supported
Maximum Cycles 65,535
Maximum Steps 254
Cycle Nesting Up to 3 layers
Protection Functions Voltage, current, capacity, delay time, offline testing, power-loss protection
Channel Control Independent control
Data Acquisition Method Four-line Kelvin connection
Communication TCP/IP
Database MySQL
Data Export Excel 2003/2010, TXT
Operating System Windows 7 / Windows 10
Server Disk Configuration 500 GB
Leakage Current <5 μA
Noise <55 dB
Protection Level IP20
Fixture Types Crocodile fixture / Polymer fixture / Line nose fixture
Dimensions 483 × 404 × 130 mm (3U, 19")
Technical Specifications Click here

Applications & Industries

  • Lithium-ion battery charge-discharge testing
  • Coin cell and pouch cell analysis
  • DC internal resistance (DCIR) testing
  • Pulse and transient electrochemical testing
  • Battery material development
  • Electrochemical research laboratories
  • University battery research
  • Industrial battery testing systems

FAQ

What current range does this system support?

The system supports four programmable current ranges from 0.5mA to 6A.

Does the platform support pulse testing?

Yes, pulse testing is supported with up to 32 programmable pulses.

Can the system perform DCIR analysis?

Yes, custom point DCIR calculation is supported.

What communication protocol does the system use?

The system uses TCP/IP Ethernet communication with MySQL database architecture.

Does the system support offline testing?

Yes, the platform supports offline testing and power-loss data protection.
