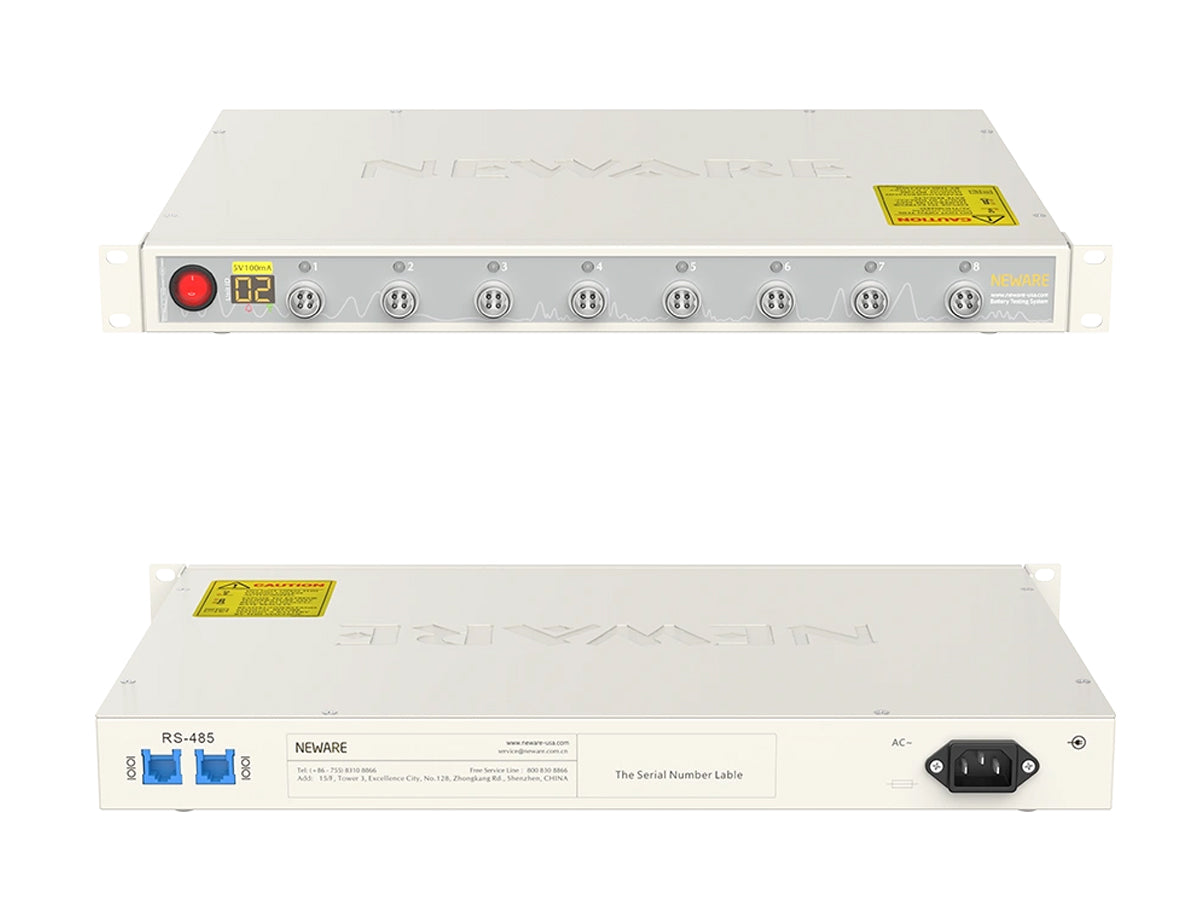

Neware CT-4008Q-5V100mA-124 Battery Tester [8Ch, 100mA]

Ultra-high precision four-range battery testing system for micro-current electrochemical analysis and advanced battery research applications.

General Description

The Neware CT-4008Q-5V100mA-124 Battery Tester is an ultra-high precision four-range battery testing platform designed for advanced electrochemical analysis, ultra-low current battery evaluation, and scientific battery research applications. Engineered for high-sensitivity electrochemical testing workflows, the system delivers exceptional measurement precision, stable closed-loop control, and flexible multi-range current operation.

The system features 8 independent channels with programmable voltage control from 10mV to 5V and ultra-low current ranges from 0.2μA to 100mA. With industry-leading ±0.01% FS voltage and current accuracy, 24-bit AD resolution, and four-line Kelvin sampling architecture, the platform provides highly stable and repeatable battery testing performance for demanding laboratory environments.

Advanced electrochemical functions include constant current, constant voltage, constant power, constant resistance, pulse testing, DCIR analysis, continuous charge/discharge switching, and multi-layer nested cycle programming. With a minimum data recording interval of 100ms, pulse width down to 500ms, and support for up to 10 nested cycle layers, the CT-4008Q platform is suitable for precision electrochemical experiments and long-term battery cycling analysis.

Built on TCP/IP Ethernet communication and MySQL database architecture, the system supports centralised data management, offline testing, safety protection logic, and multi-format export for professional battery research laboratories and industrial testing applications.

Key Features

Ultra-High Precision Measurement Performance
Voltage and current accuracy ±0.01% FS with stable closed-loop control architecture.

Four-Range Ultra-Low Current System
Supports programmable current ranges from 0.2μA to 100mA for precision electrochemical testing.

Advanced Pulse and DCIR Analysis
Supports pulse testing, continuous charge/discharge switching, and custom DCIR calculation.

10-Layer Nested Cycle Programming
Supports highly flexible multi-step electrochemical test programming.

Professional Laboratory Data Management
TCP/IP Ethernet communication, MySQL database architecture, and multi-format export support.

Specifications

Parameter Specification
Model CT-4008Q-5V100mA-124
Channels 8 independent
Power Supply AC 220V ±10% / 50Hz
Input Power 40 W
Resolution AD: 24-bit; DA: 16-bit
Input Impedance ≥1 GΩ
Voltage Range 10mV–5V
Minimum Discharge Voltage -5V
Voltage Accuracy ±0.01% FS
Voltage Stability 0.02% FS
Current Range Range1: 0.2μA–0.1mA; Range2: 0.1mA–1mA; Range3: 1mA–10mA; Range4: 10mA–100mA
Current Accuracy ±0.01% FS
CV Cut-off Current Range1: 0.1μA; Range2: 1μA; Range3: 10μA; Range4: 0.1mA
Current Stability 0.02% FS
Output Power per Channel 0.5 W
Power Stability 0.04% FS
Current Response Time ≤1 ms
Working Step Time Up to (365 × 24) hours per step
Minimum Data Record Interval 100 ms
Recording Frequency 10 Hz
Charge Modes CC, CV, CCCV, CP
Discharge Modes CC, CV, CCCV, CP, CR
Pulse Modes CC, CP
Minimum Pulse Width 500 ms
Pulse Counts Up to 32
Continuous Charge/Discharge Switching Supported
DCIR Testing Custom point DCIR calculation supported
Maximum Cycles 65,535
Maximum Steps 254
Cycle Nesting Up to 10 layers
Protection Functions Voltage, current, capacity, delay time, offline testing, power-loss protection
Channel Control Independent control
Data Acquisition Method Four-line Kelvin connection
Communication TCP/IP
Database MySQL
Data Export Excel 2003/2010, TXT
Operating System Windows 7 / Windows 10 and above
Server Disk Configuration 500 GB
Leakage Current 0.005 μA
Noise <45 dB
Protection Level IP20
Fixture Types Crocodile fixture / Polymer fixture / PCB buckle fixture
Dimensions 443 × 310 × 43 mm (1U, 19")
Technical Specifications Click here

Applications & Industries

  • Ultra-low current battery testing
  • Precision electrochemical analysis
  • Coin cell and pouch cell research
  • DC internal resistance (DCIR) testing
  • Pulse and switching electrochemical testing
  • Battery material and electrolyte evaluation
  • Scientific battery research laboratories
  • University and industrial electrochemical research

FAQ

What current range does this system support?

The system supports four programmable ranges from 0.2μA to 100mA.

What is the measurement accuracy?

Voltage and current accuracy reach ±0.01% FS.

Does the system support DCIR analysis?

Yes, custom point DCIR calculation is supported.

Can the platform perform pulse testing?

Yes, pulse testing is supported with minimum pulse width down to 500ms.

What communication method does the system use?

The system uses TCP/IP Ethernet communication with MySQL database architecture.
