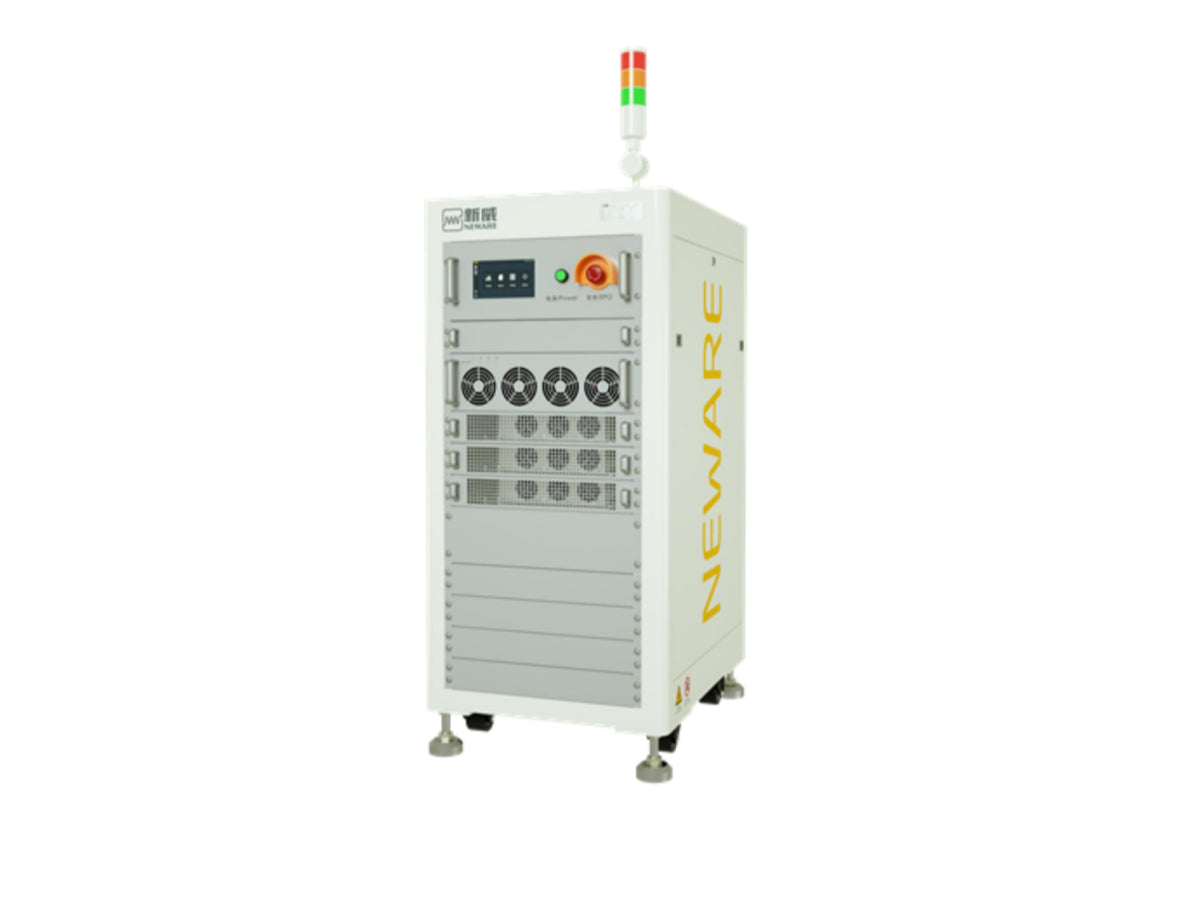

Neware CE-6004n-60V300A-H battery test system with 4 channels, 60V 300A output, 72kW regenerative battery cycler for EV battery module and pack testing.
Neware CE-6004n-60V300A-H battery test system with 4 channels, 60V 300A output, 72kW regenerative battery cycler for EV battery module and pack testing.

Neware CE-6016n-60V20A-H Battery Test System [16Ch, 60V 20A]

Neware CE-6016n-60V20A-H Battery Test System [16Ch, 60V 20A] High-precision 16-channel battery cycler for lithium-ion cell testing, cycle life analysis, and advanced battery research. General Description The Neware CE-6016n-60V20A-H Battery Test System is a professional multi-channel battery testing platform designed for...
Vendor: Cell Lab
SKU: NW0003
Product type: Battery Equipment
£13,357.00
£13,357.00
Subtotal: £13,357.00
Description
Description
x

Neware CE-6016n-60V20A-H Battery Test System [16Ch, 60V 20A]

High-precision 16-channel battery cycler for lithium-ion cell testing, cycle life analysis, and advanced battery research.

General Description

The Neware CE-6016n-60V20A-H Battery Test System is a professional multi-channel battery testing platform designed for high-accuracy charge and discharge testing of lithium-ion and other rechargeable battery cells. Featuring eight independent channels with support for parallel operation, the system delivers precise voltage and current control for laboratory research, pilot production, and quality assurance environments.

With voltage output up to 60V and current up to 20A per channel, the system supports a wide range of electrochemical test profiles including constant current, constant voltage, constant power, pulse testing, and DC internal resistance analysis. The integrated TCP/IP communication and database management system enable reliable automated testing and advanced data analysis.

Key Features

  • 16 Independent Testing Channels
    Each channel operates independently and supports flexible battery testing configurations.

  • Wide Voltage and Current Range
    Supports voltage up to 60V and current up to 20A per channel for diverse battery types.

  • High Accuracy Measurement System
    Voltage accuracy ±0.05% FS and current accuracy ±0.1% FS ensure reliable results.

  • Advanced Charge and Discharge Modes
    Supports constant current, constant voltage, constant power, pulse testing, and DCIR analysis.

  • Professional Data Management and Integration
    Ethernet communication, Excel export, and integration with environmental chambers and BMS systems.

Specifications

Parameter Specification
Model CE-6016n-60V20A-H
Channels 16
Voltage Range Charge: 0–60V; Discharge: 3–60V
Current Range 0.04–20A
Voltage Accuracy ±0.05% FS
Current Accuracy ±0.1% FS
Single Channel Power 1.2 kW
Total Output Power 9.6 kW
Input Power Supply 3-phase AC 380V, 50/60 Hz
Input Power 11.3 kW
Communication Ethernet
Data Output Excel, TXT
Dimensions 600 × 800 × 1300 mm
Weight About 178 kg
Technical Data Sheet Click Here

Applications & Industries

  • Lithium-ion battery testing

  • Battery research laboratories

  • Battery manufacturing quality control

  • Electric vehicle battery testing

  • Energy storage system development

  • Universities and research institutes

FAQ

Q1: What battery types can be tested?
Lithium-ion, sodium-ion, solid-state, cylindrical, pouch, and prismatic cells.

Q2: Can channels be connected in parallel?
Yes, multiple channels can be connected in parallel for higher current testing.

Q3: Does it support internal resistance testing?
Yes, DC internal resistance testing is supported.

Q4: Can it connect to environmental test chambers?
Yes, it supports integration with environmental chambers and other external equipment.
