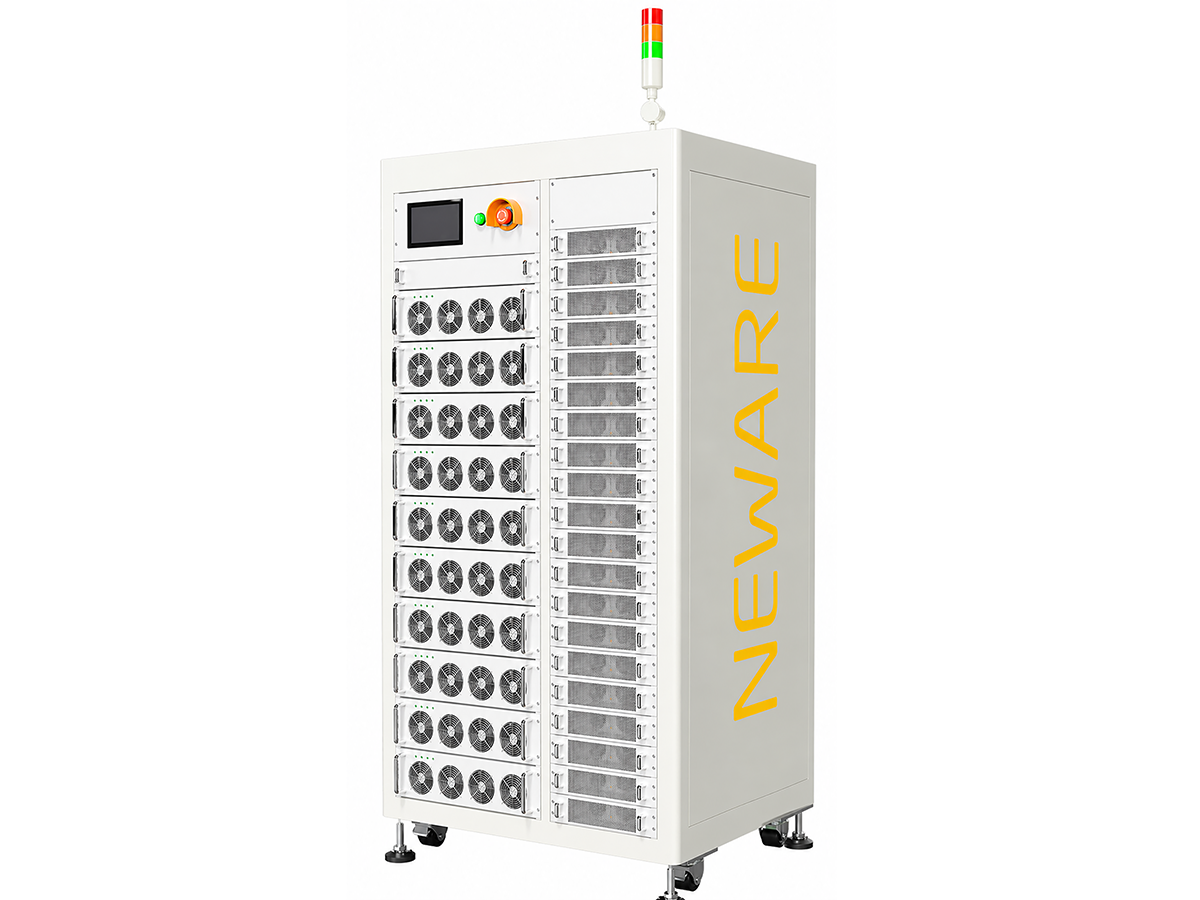

Neware CE-6004n-60V300A-H battery test system with 4 channels, 60V 300A output, 72kW regenerative battery cycler for EV battery module and pack testing.
Neware CE-6004n-60V300A-H battery test system with 4 channels, 60V 300A output, 72kW regenerative battery cycler for EV battery module and pack testing.

Neware CE-6004n-60V300A-H Battery Test System [4Ch, 60V 300A]

Neware CE-6004n-60V300A-H Battery Test System [4Ch, 60V 300A] High-power regenerative battery module and pack cycler for EV batteries, energy storage systems, and industrial high-current battery validation. General Description The Neware CE-6004n-60V300A-H Battery Test System is a high-power regenerative battery testing...
Vendor: Cell Lab
SKU: NW0017
Product type: Battery Equipment
£28,999.00
£28,999.00
Subtotal: £28,999.00
Description
Description
x

Neware CE-6004n-60V300A-H Battery Test System [4Ch, 60V 300A]

High-power regenerative battery module and pack cycler for EV batteries, energy storage systems, and industrial high-current battery validation.

General Description

The Neware CE-6004n-60V300A-H Battery Test System is a high-power regenerative battery testing platform engineered for battery module, battery pack, and large-format energy storage system validation. Built on Neware’s CE-6000 architecture, this system is specifically designed for demanding EV battery development, industrial battery manufacturing, and advanced battery R&D applications requiring ultra-high current precision.

With four independent channels and support for up to four-channel parallel operation, each channel delivers a voltage range of 0–60V (charge) and 3–60V (discharge) with programmable current output from 0.12A to 300A across four independent ranges. Each channel provides 18kW output power, with total system power reaching 72kW, making it suitable for high-capacity battery module and pack testing under real-world operational conditions.

The CE-6004n system features regenerative energy recovery, allowing discharged energy to be internally reused or fed back to the grid for improved energy efficiency and reduced operating costs. Combined with 24-bit voltage and current resolution, ±0.02% FS voltage accuracy, and ±0.05% FS current accuracy, the platform delivers highly stable and repeatable battery performance data for cycle life, pulse, DCIR, and simulation testing.

Key Features

  • Ultra-High Current Capability
    Supports four programmable current ranges from 0.12A to 300A for module and battery pack testing.
  • 72kW High-Power Output
    18kW per channel with 72kW total machine output for large-scale battery validation.
  • Regenerative Energy Recovery System
    Discharge energy can be reused internally or returned to the grid to maximise efficiency.
  • High-Speed Dynamic Response
    Current response time ≤3 ms and current conversion time ≤6 ms for dynamic simulation and pulse testing.
  • Industrial Integration and Communication
    Ethernet, TCP/IP, CAN, RS485, BMS communication, and third-party equipment integration supported.

Specifications

Parameter Specification
Model CE-6004n-60V300A-H
Channels 4 independent
Channel Parallel Up to 4 channels
Power Supply 3PH-AC380V ±15%, 50/60Hz
Input Power 84.7 kW
Input Current 128.7 A / phase
Power Factor ≥99%
THDi ≤5%
System Efficiency 90% (Max)
Voltage Range Charge: 0–60V; Discharge: 3–60V
Voltage Accuracy ±0.02% FS
Voltage Resolution 24-bit
Current Range 0.12A–300A (4 ranges)
Current Accuracy ±0.05% FS
Current Resolution 24-bit
Single Channel Output Power 18 kW
Total Output Power 72 kW
Current Response Time ≤3 ms
Current Conversion Time ≤6 ms
Minimum Step Time 0.1 s
Minimum Pulse Width 50 ms
Recording Frequency 100 Hz
Maximum Cycles 65,535
Communication Ethernet / TCP/IP
Database MySQL
Data Export Excel, TXT
Dimensions 950 × 800 × 1950 mm
Weight About 423 kg
Noise ≤65 dB
Protection Level IP20
Technical Data Sheet Click Here

Applications & Industries

  • EV battery module and pack testing
  • Energy storage system validation
  • High-power lithium battery R&D
  • Automotive battery durability testing
  • Industrial battery manufacturing and QA
  • Battery simulation and driving profile validation

FAQ

What battery systems is this model designed for?
It is designed for battery modules, battery packs, EV batteries, and large-scale energy storage systems.

Does the system support channel parallel operation?
Yes, it supports up to four-channel parallel connection.

What testing modes are supported?
It supports CCC, CVC, CPC, CRD, pulse testing, simulation testing, and DCIR analysis.

Can the system integrate with BMS and environmental chambers?
Yes, optional communication expansion supports CAN, RS485, BMS, environmental chambers, chillers, and pressure fixtures.

Does it support auxiliary temperature monitoring?
Yes, optional AUX channels support thermocouple monitoring from -200°C to 260°C.
