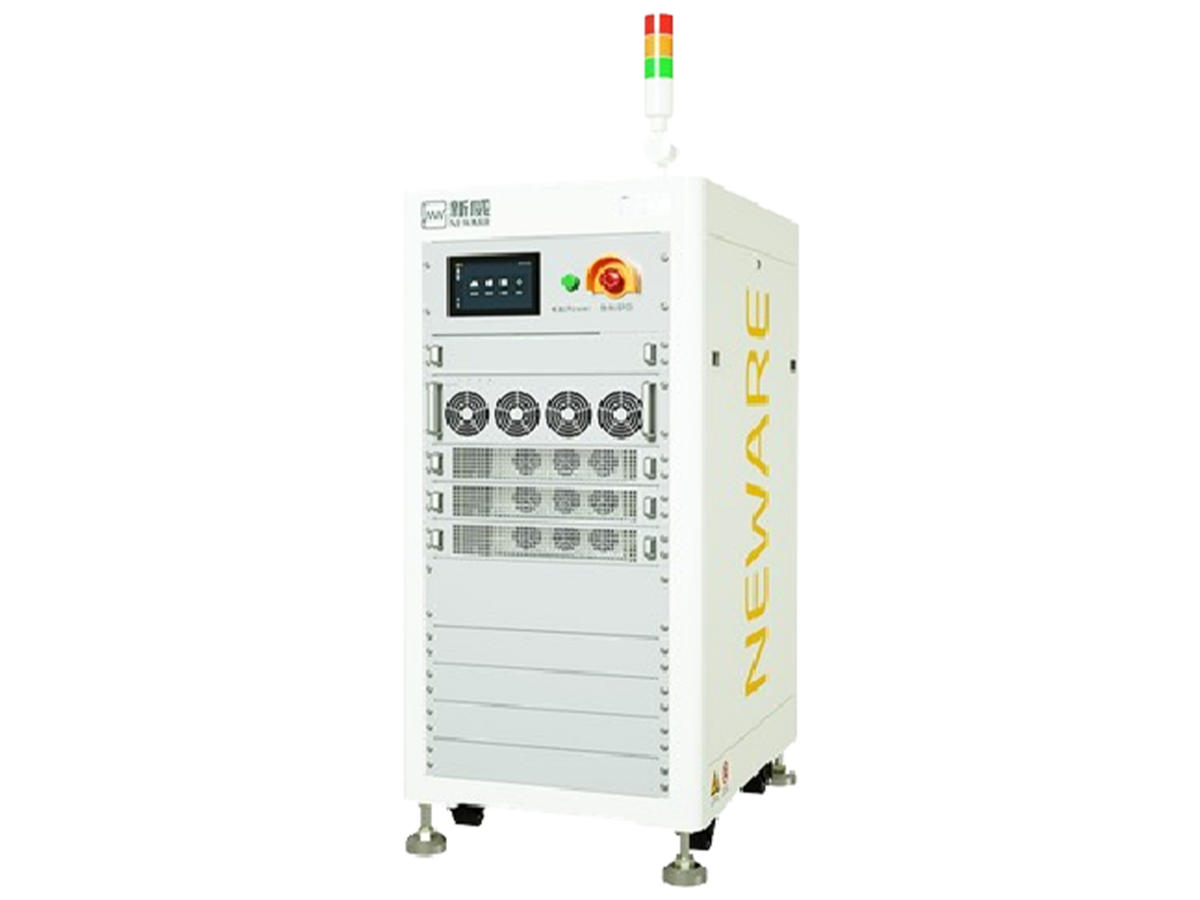

Neware CE-6004n-120V100A-H battery module testing system with 4 channels and 48kW output for high-power battery pack testing and energy storage research.
Neware CE-6004n-120V100A-H battery module testing system with 4 channels and 48kW output for high-power battery pack testing and energy storage research.

Neware CE-6004n-120V100A-H Battery Module Testing System

Neware CE-6004n-120V100A-H Battery Module Testing System High-power regenerative battery cycler for module and battery pack testing with high precision control and dynamic response. General Description The Neware CE-6004n-120V100A-H Battery Module Testing System is a high-power battery charge–discharge platform designed for battery...
Vendor: Cell Lab
SKU: NW0008
Product type: Battery Equipment
£19,149.00
£19,149.00
Channels: 4 Channels CE-6004n-120V100A-H
Subtotal: £19,149.00
Description
Description
x

Neware CE-6004n-120V100A-H Battery Module Testing System

High-power regenerative battery cycler for module and battery pack testing with high precision control and dynamic response.

General Description

The Neware CE-6004n-120V100A-H Battery Module Testing System is a high-power battery charge–discharge platform designed for battery module and battery pack testing in advanced energy storage and electric vehicle applications. Built on the CE-6000 high-power architecture, the system provides high dynamic response speed, excellent measurement accuracy, and stable long-term operation for demanding battery testing environments.

The system supports a wide voltage range up to 120V and current up to 100A, delivering up to 12kW output power per channel. With four independent channels and a total system output power of 48kW, it enables efficient testing of high-capacity battery modules and packs for cycle life evaluation, performance validation, and dynamic driving simulation tests.

The CE-6000 series adopts a regenerative power architecture, allowing discharged energy to be reused by other charging channels or fed back to the power grid, significantly improving energy efficiency and reducing operating costs. The system consists of a main testing unit and a communication controller (middle machine), which allows centralised control through computer software and scalable laboratory deployment.

Key Features

  • High-Power Battery Module Testing
    Supports up to 120V and 100A per channel, ideal for battery modules and pack testing.
  • High Precision Measurement
    Voltage accuracy ±0.02% FS and current accuracy ±0.05% FS ensure reliable and repeatable results.
  • Regenerative Energy Technology
    Recovered discharge energy can be reused by other channels or returned to the power grid to reduce energy consumption.
  • Flexible Multi-Channel Configuration
    Four independent channels enable simultaneous testing of multiple battery modules.
  • Advanced Battery Test Functions
    Supports pulse testing, cycle life testing, and driving simulation tests for comprehensive battery evaluation.

Specifications

Parameter Specification
Model CE-6004n-120V100A-H
Channels 4 independent
Power Supply AC 380V ±15%, 50/60Hz, three-phase
Input Power 56.5 kW
Input Current 85.8 A / phase
Input Resistance ≥1 mΩ
Noise ≤65 dB
Voltage Range Charge: 0–120 V; Discharge: 3–120 V
Voltage Accuracy ±0.02% FS
Current Range 0.5 – 100 A
Current Accuracy ±0.05% FS
CV Cut-off Current 100 mA
Output Power per Channel 12 kW
Total Output Power 48 kW
Dimensions 600 × 800 × 1300 mm
Weight 206 kg
Standard Cable Length 0.2 m
Warranty 1-year limited warranty with lifetime technical support

Applications & Industries

  • Battery module and pack testing
  • Electric vehicle battery validation
  • Energy storage system development
  • Battery cycle life and durability testing
  • Driving cycle simulation and performance analysis
  • Battery manufacturing and quality control

FAQ

What is a middle machine?
The middle machine acts as the communication interface between the computer and the battery cyclers. At least one middle machine is required to operate the testing system.

How many testing units can one middle machine control?
One middle machine can control up to 10 main testing units.

Is the middle machine the same for all cycler types?
Yes. A single type of middle machine can be used with different cycler models.
