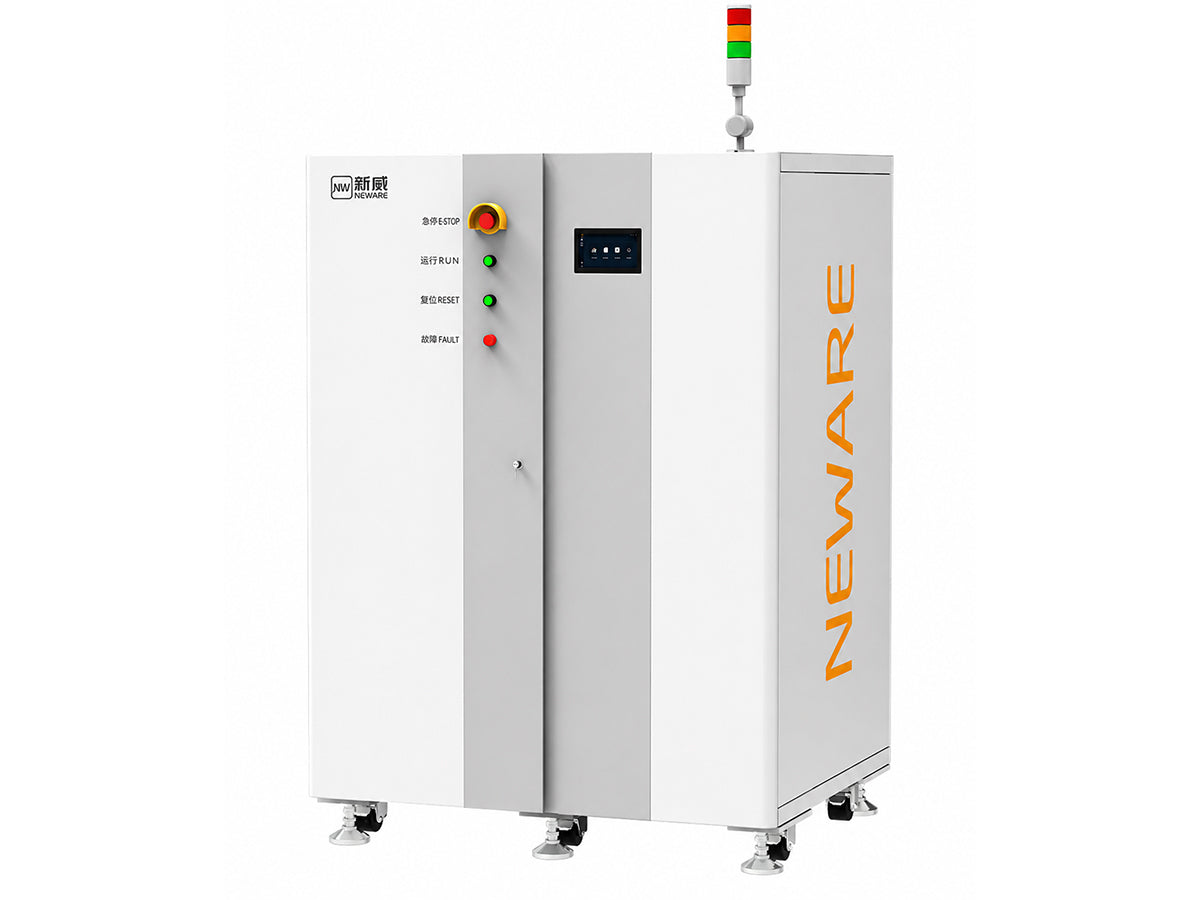

Neware CE-6002n-800V100A-IG battery test system with 2 channels, 800V 100A, 160kW regenerative cycler for EV battery pack and energy storage testing.
Neware CE-6002n-800V100A-IG battery test system with 2 channels, 800V 100A, 160kW regenerative cycler for EV battery pack and energy storage testing.

Neware CE-6002n-800V100A-IG Battery Test System [2Ch, 800V 100A]

Neware CE-6002n-800V100A-IG Battery Test System [2Ch, 800V 100A] Ultra-high voltage regenerative battery pack testing system for EV battery packs, energy storage systems, and industrial high-voltage battery validation. General Description The Neware CE-6002n-800V100A-IG Battery Test System is an ultra-high voltage regenerative...
Vendor: Cell Lab
SKU: NW0016
Product type: Battery Equipment
£42,999.00
£42,999.00
Subtotal: £42,999.00
Description
Description
x

Neware CE-6002n-800V100A-IG Battery Test System [2Ch, 800V 100A]

Ultra-high voltage regenerative battery pack testing system for EV battery packs, energy storage systems, and industrial high-voltage battery validation.

General Description

The Neware CE-6002n-800V100A-IG Battery Test System is an ultra-high voltage regenerative battery cycler designed for advanced battery pack, EV battery, and large-scale energy storage system testing. Built on Neware’s CE-6000 high-power platform, this system is engineered for demanding high-voltage applications requiring precise control, industrial-grade stability, and dynamic simulation capability.

Featuring 2 independent channels, each channel supports 0–800V charge, 30–800V discharge, and programmable current from 0.5A to 100A, delivering 80kW per channel and 160kW total machine output power. With IGBT-based power control architecture, 24-bit voltage/current resolution, and ±0.02% FS voltage accuracy, the system provides exceptional precision for battery pack cycle life analysis, performance validation, pulse testing, and driving simulation.

The regenerative architecture enables recovered discharge energy to be internally reused or returned to the power grid, significantly improving operational efficiency while reducing energy waste. With support for CAN, RS485, BMS communication, and third-party chamber integration, the CE-6002n-800V100A-IG is built for EV manufacturers, battery developers, and industrial battery validation laboratories.

Key Features

  • Ultra-High Voltage Testing Capability
    Supports charge voltage up to 800V and discharge voltage from 30V to 800V for EV packs and high-voltage battery systems.
  • 160kW Regenerative Power Output
    80kW per channel with total machine output power of 160kW for industrial-scale testing.
  • IGBT Power Control Architecture
    Industrial-grade IGBT module design for high efficiency, high stability, and superior high-voltage control.
  • Advanced Dynamic Simulation Functions
    Supports pulse testing (minimum 100 ms), DCIR, cycle life testing, and current/power simulation.
  • Industrial Communication and Integration
    Supports Ethernet, TCP/IP, CAN, RS485, BMS communication, and third-party equipment integration.

Specifications

Parameter Specification
Model CE-6002n-800V100A-IG
Channels 2 independent
Channel Parallel Up to 4 channels
Power Supply 3PH-AC380V ±10%, 50/60Hz
Input Power 177.8 kW per cabinet
Input Current 270.1 A / phase
Power Factor ≥99%
THDi ≤5%
System Efficiency 94% (Max)
Power Control Module IGBT
Voltage Range Charge: 0–800V; Discharge: 30–800V
Minimum Discharge Voltage 30V
Voltage Accuracy ±0.02% FS
Voltage Resolution 24-bit
Current Range 0.5A–100A
Current Accuracy ±0.05% FS
Current Resolution 24-bit
Single Channel Output Power 80 kW
Total Output Power 160 kW
Current Response Time ≤5 ms
Current Conversion Time ≤10 ms
Minimum Step Time 0.1 s
Minimum Pulse Width 100 ms
Recording Frequency 100 Hz
Maximum Cycles 65,535
Communication Ethernet / TCP/IP
Database MySQL
Data Export Excel, TXT
Equipment Dimensions 1350 × 1250 × 2000 mm (per cabinet)
Weight About 1500 kg (per cabinet)
Noise ≤75 dB
Protection Level IP20
Technical Data Sheet Click Here

Applications & Industries

  • EV battery pack testing
  • High-voltage battery pack validation
  • Energy storage system testing
  • Automotive battery development
  • Industrial battery manufacturing and QA
  • Driving simulation and battery durability validation

FAQ

What battery systems is this model designed for?
It is designed for EV battery packs, high-voltage battery systems, and industrial energy storage systems.

What is the maximum voltage supported?
The system supports up to 800V charging and 800V discharge operation.

Does this model use regenerative energy recovery?
Yes, discharged energy can be reused internally or returned to the grid.

What communication protocols are supported?
Ethernet, TCP/IP, CAN, RS485, and BMS communication are supported.

Is auxiliary temperature monitoring available?
Yes, optional AUX channels support thermocouple temperature monitoring from -200°C to 260°C.
