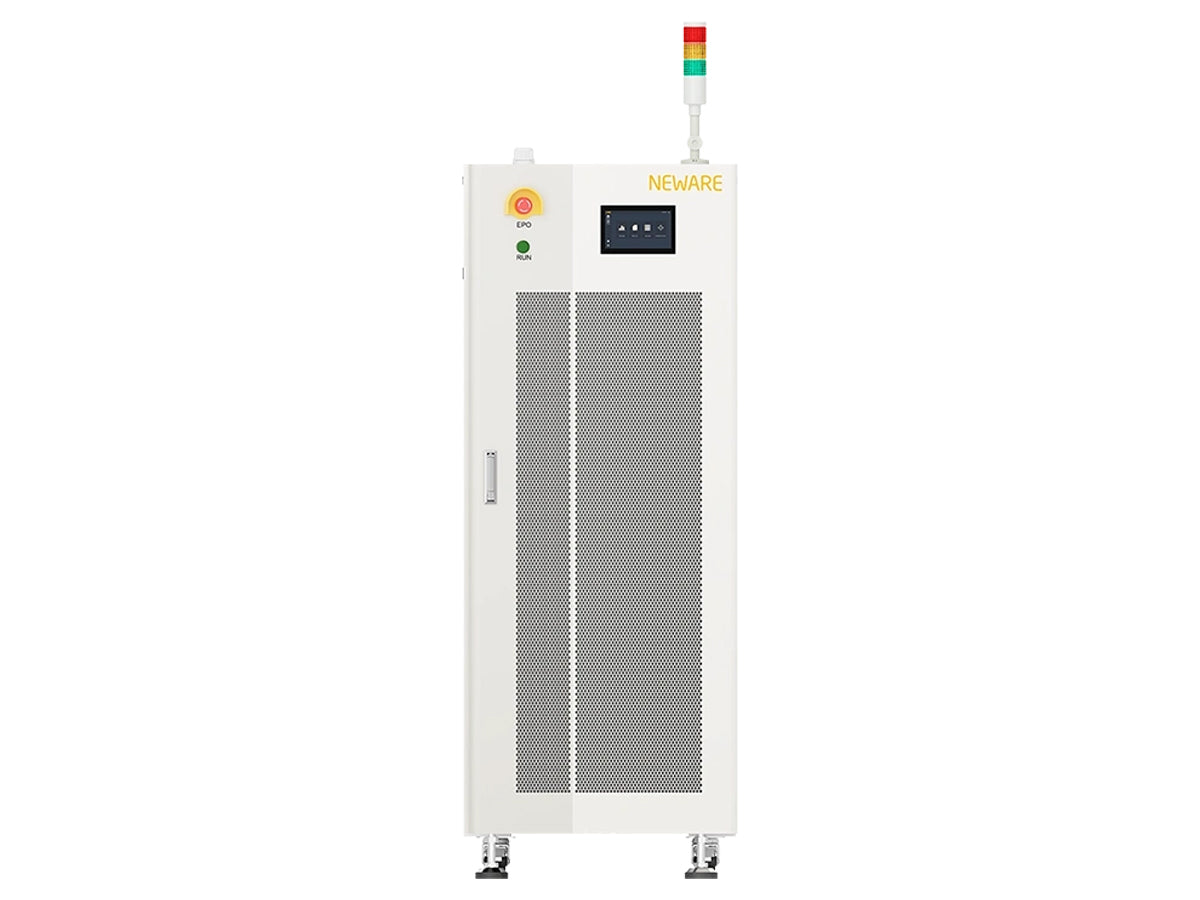

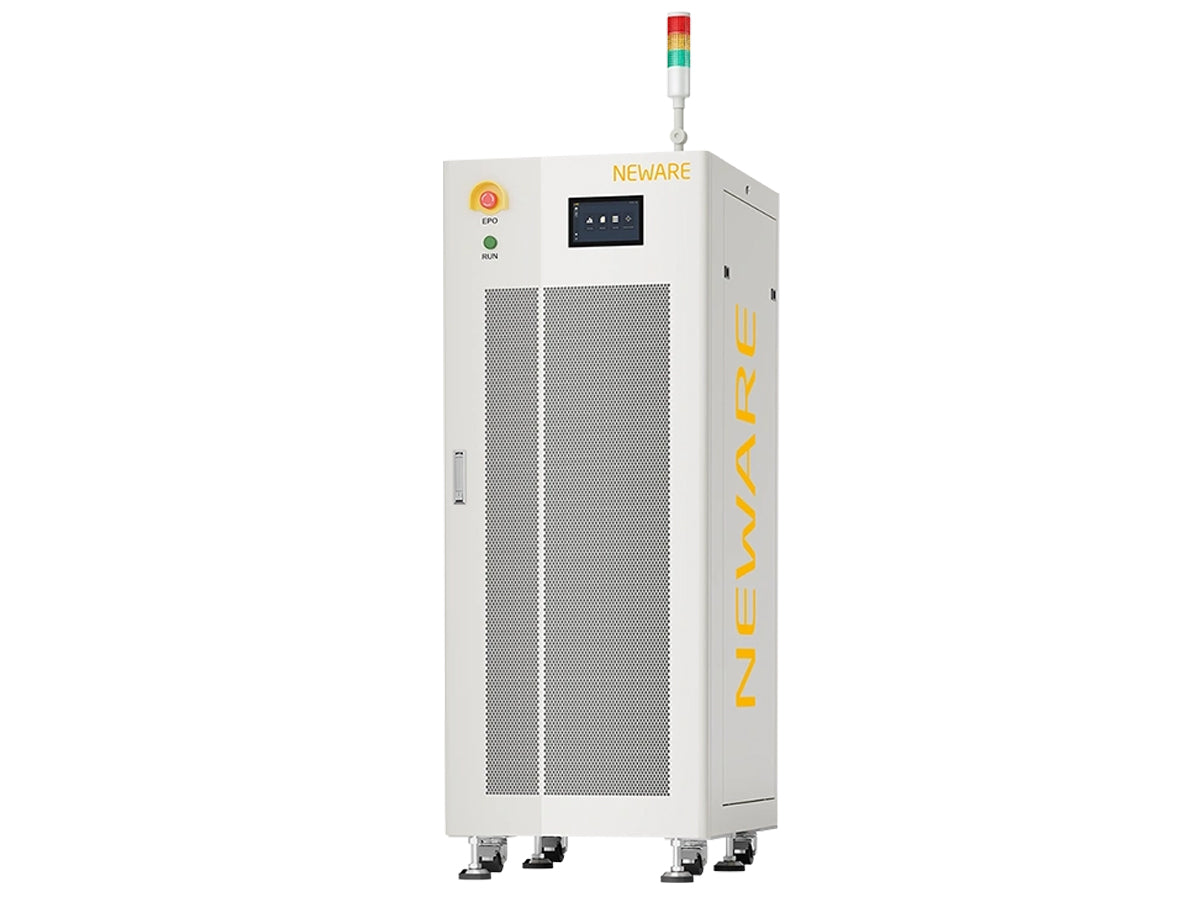

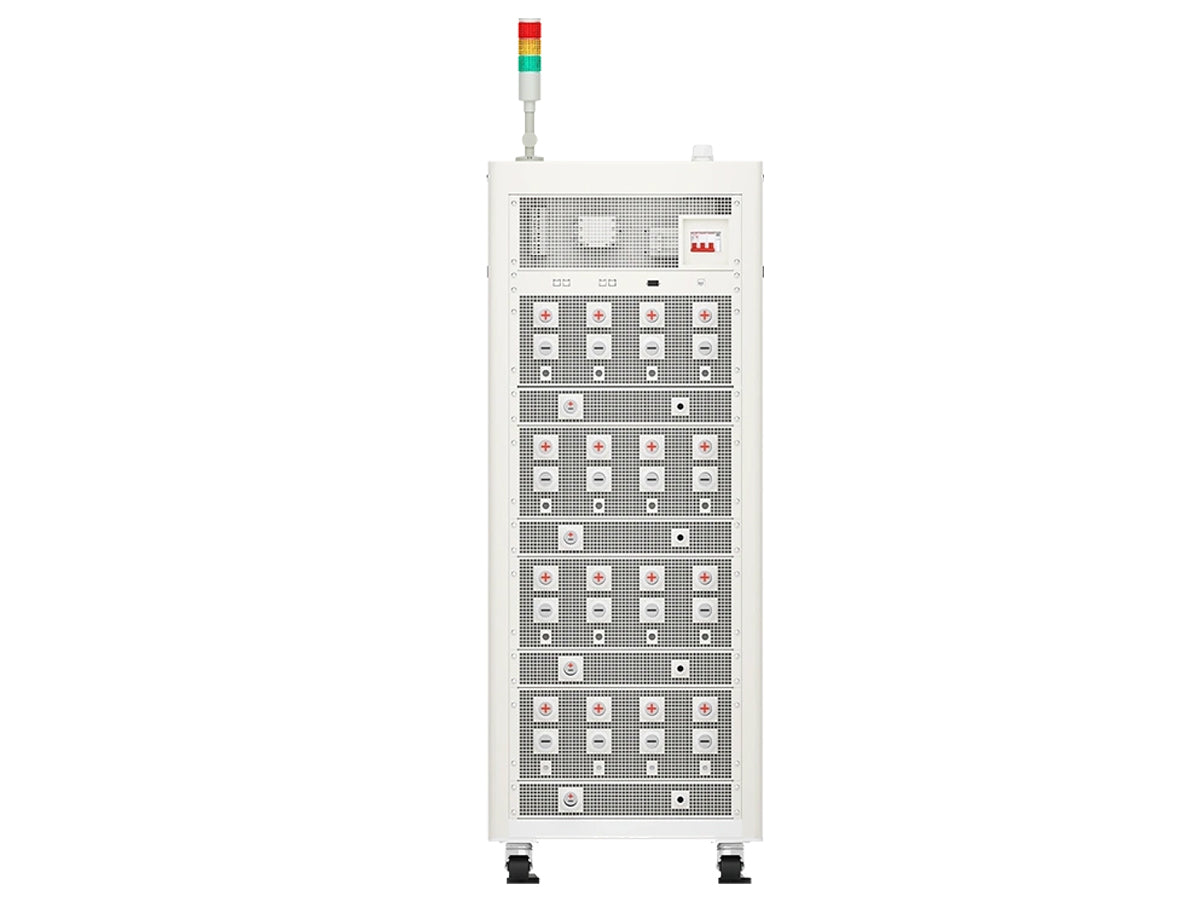

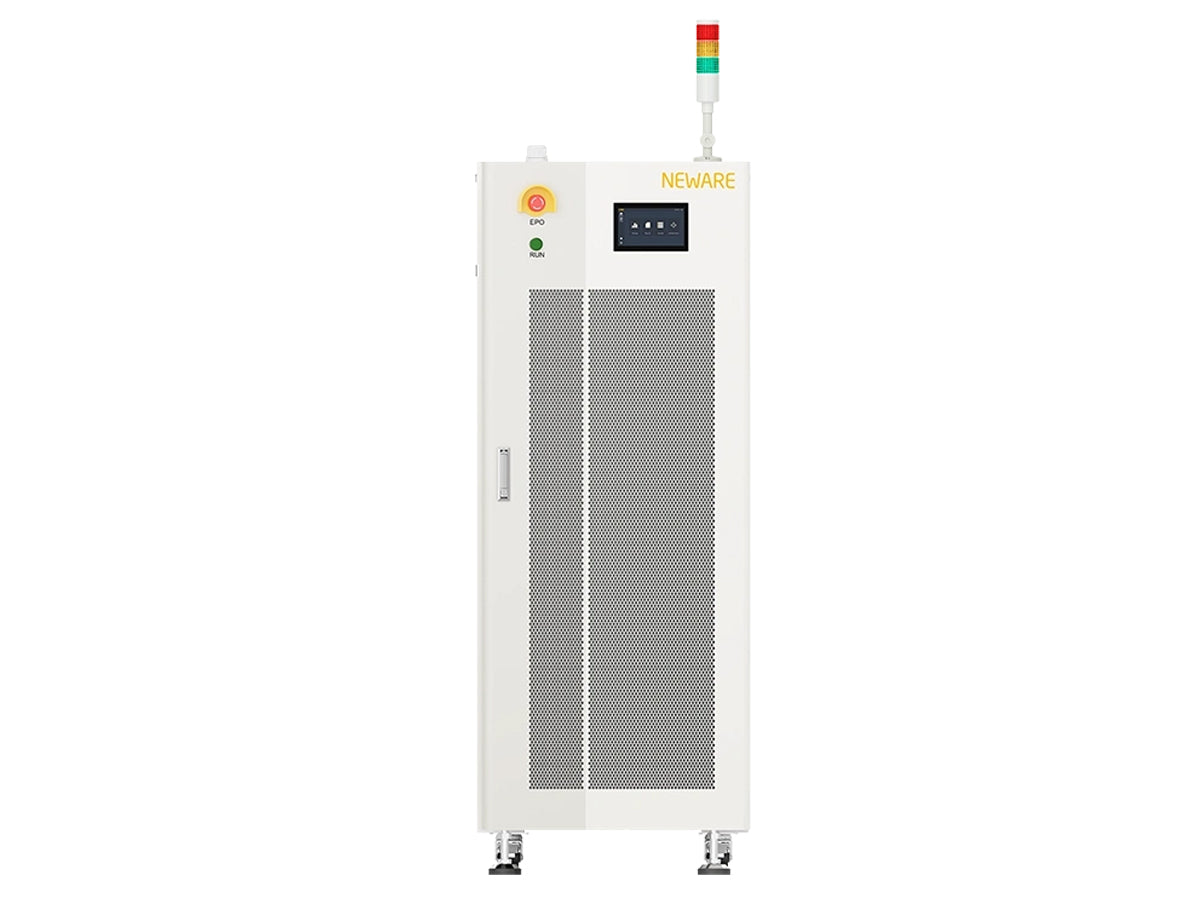

Neware CE-6000 Battery Module & Pack Testing System
Neware CE-6000 Battery Module & Pack Testing System Regenerative high-power battery testing platform for cells, modules, packs, BMS validation, and EV energy storage applications. General Description The Neware CE-6000 Battery Testing System is Neware’s flagship high-power regenerative testing platform developed...
- £8,870.00
- £8,870.00
- Unit price
- per
Subtotal:
£8,870.00
Description
xNeware CE-6000 Battery Module & Pack Testing System
Regenerative high-power battery testing platform for cells, modules, packs, BMS validation, and EV energy storage applications.
General Description
The Neware CE-6000 Battery Testing System is Neware’s flagship high-power regenerative testing platform developed for comprehensive evaluation of battery cells, modules, battery packs, energy storage systems, and electric vehicle batteries. Designed for advanced battery R&D, pilot production, validation laboratories, and manufacturing environments, the CE-6000 series combines ultra-high precision measurement, high-power energy recovery technology, and flexible system scalability.
The CE-6000 platform supports a wide range of voltage and current configurations, from low-voltage cell testing to ultra-high-voltage battery cluster testing up to 3000V, making it suitable for applications ranging from individual lithium-ion cells to large-scale energy storage and EV battery packs.
Featuring regenerative power technology, the system recovers discharge energy and returns it to the grid or redistributes it to charging channels, significantly reducing power consumption and operating costs during long-term testing. The platform supports pulse testing, DCIR analysis, driving cycle simulation, BMS communication, EOL testing, and environmental chamber integration for complete battery performance and safety validation.
Built on Neware's high-speed control architecture, the CE-6000 delivers fast dynamic response, multi-channel scalability, high-accuracy measurement, and comprehensive automation capabilities for next-generation battery development and production testing.
Key Features
Comprehensive Cell-to-Pack Testing Platform
Supports battery cell, module, pack, battery cluster, PCS, and energy storage system testing.
Regenerative Energy Recovery Technology
Discharge energy can be reused by charging channels or returned to the grid, reducing operating costs.
Ultra-Wide Voltage Coverage
Available configurations from 5V cell testing systems up to 3000V battery cluster testing platforms.
Advanced Battery Validation Functions
Supports pulse testing, DCIR analysis, driving cycle simulation, EOL testing, and BMS validation.
Flexible Multi-Channel Expansion
Modular architecture allows scalable channel configurations for research and production environments.
Specifications
| Parameter | Specification |
|---|---|
| Series | CE-6000 |
| Product Type | Regenerative Battery Testing System |
| Applications | Cell, Module, Pack, Cluster, ESS, EV Battery Testing |
| Voltage Range Options | 5V – 3000V |
| Current Range Options | 20A – 2400A (depending on configuration) |
| Voltage Accuracy | Up to ±0.02% FS |
| Current Accuracy | Up to ±0.02% FS (cell systems) / ±0.05% FS (module & pack systems) |
| Resolution | 24-bit AD Acquisition |
| Response Time | ≤1.5ms to ≤5ms (model dependent) |
| Data Acquisition Frequency | Up to 100Hz |
| Pulse Testing | Supported |
| DCIR Analysis | Supported |
| Driving Cycle Simulation | Supported |
| BMS Communication | Supported |
| DBC Protocol Support | Supported |
| EOL Testing | Supported |
| Auxiliary Voltage Monitoring | Supported |
| Auxiliary Temperature Monitoring | Supported |
| Environmental Chamber Integration | Supported |
| Energy Recovery Efficiency | Up to 90% |
| Communication | TCP/IP, CAN, RS485 |
| Database | MySQL |
| Data Export | Excel, TXT, CSV, PDF, Graph |
| Operating System | Windows 10 / Windows 11 |
| Channel Expansion | Modular expandable architecture |
| Safety Protection | Over-voltage, over-current, over-temperature, emergency stop |
| Application Industries | EV, ESS, Telecom Storage, Power Tools, E-Bikes, E-Motorcycles |
Applications & Industries
- Electric vehicle battery development
- Battery module validation testing
- Battery pack charge-discharge testing
- Energy storage system (ESS) evaluation
- Telecom energy storage testing
- Battery production quality control
- BMS development and verification
- End-of-line (EOL) battery testing
- University and industrial battery research laboratories
- Battery cluster and PCS testing for utility-scale storage systems
FAQ
What battery types can the CE-6000 test?
The CE-6000 supports battery cells, modules, battery packs, battery clusters, and energy storage systems.
Does the CE-6000 support regenerative energy recovery?
Yes. The system can return discharge energy to the grid or reuse it internally, significantly reducing energy consumption.
What is the maximum voltage available in the CE-6000 series?
The platform is available in configurations up to 3000V for battery cluster and PCS testing.
Can the CE-6000 communicate with BMS systems?
Yes. The platform supports CAN communication, DBC file integration, and comprehensive BMS testing functions.
Can the CE-6000 integrate with environmental chambers?
Yes. The system supports auxiliary voltage, auxiliary temperature, and environmental chamber integration for multidimensional battery testing.
