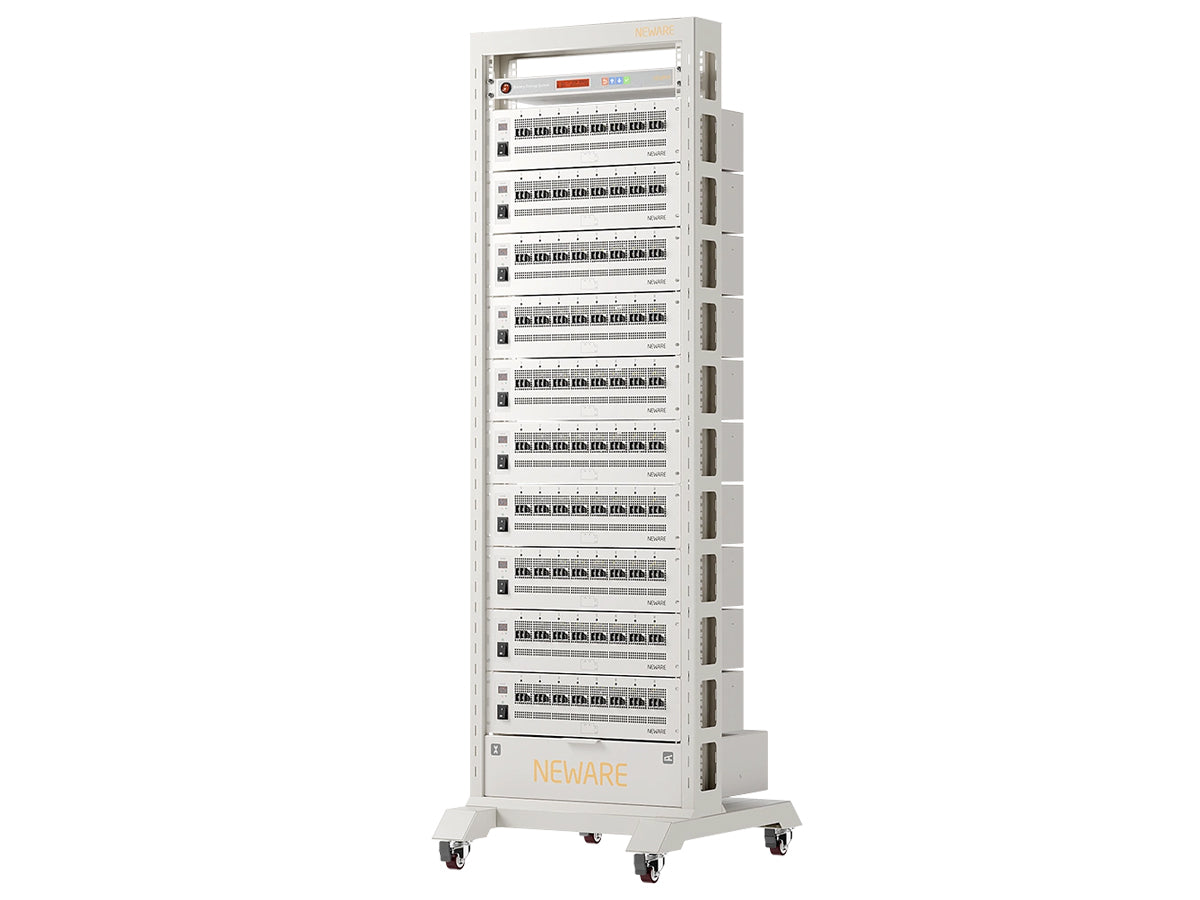

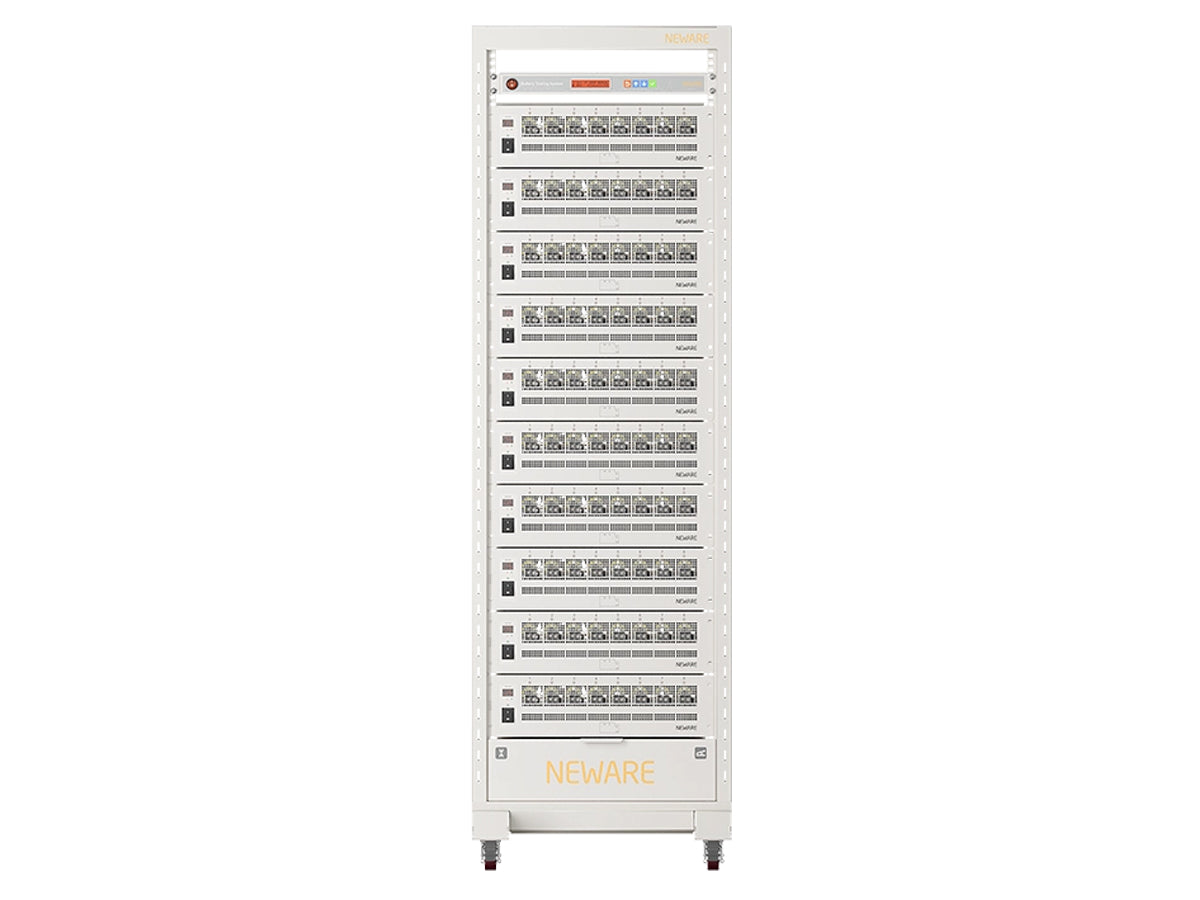

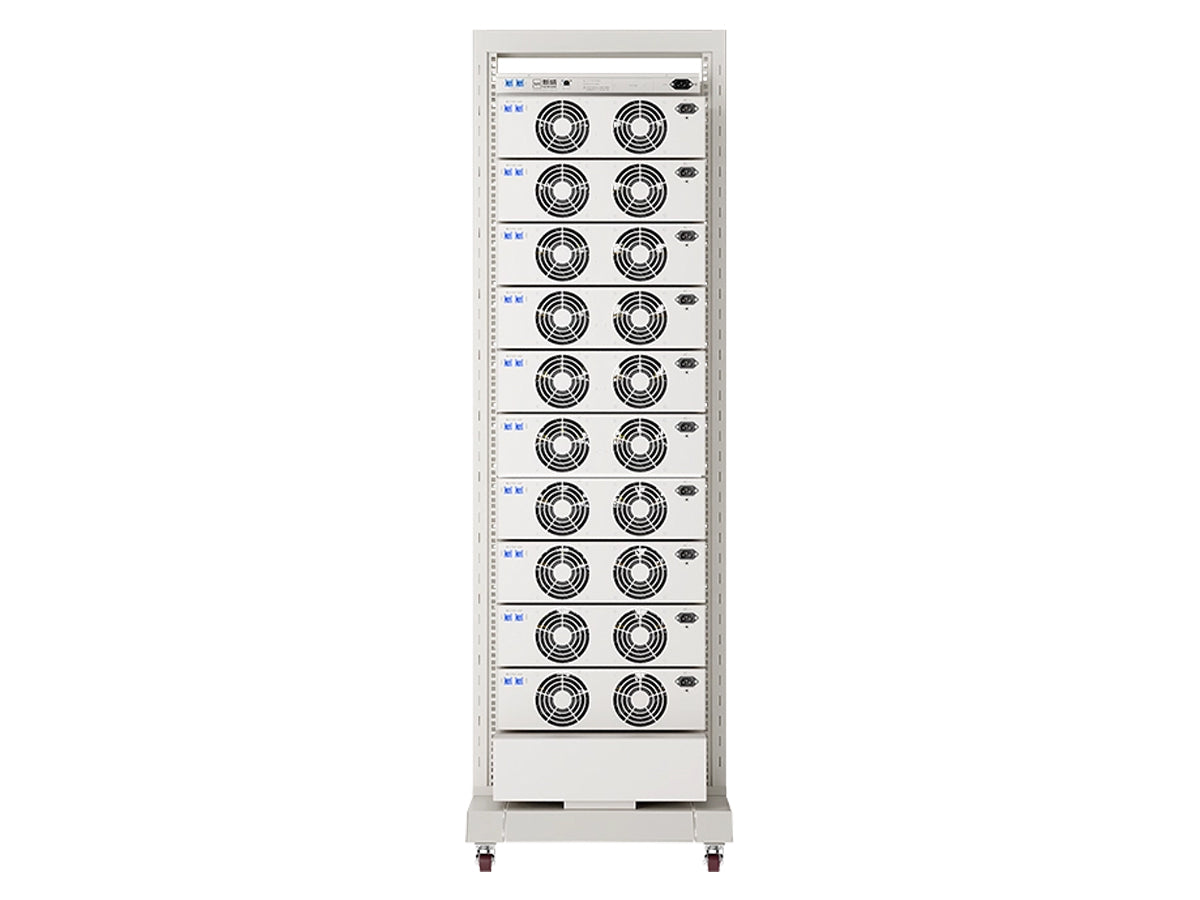

Neware CE-4008Q-20V10A Battery Module Tester [8Ch, 20V 10A]
Neware CE-4008Q-20V10A Battery Module Tester [8Ch, 20V 10A] High-precision battery module testing system with pulse testing, DCIR analysis, and advanced electrochemical charge-discharge control. General Description The Neware CE-4008Q-20V10A Battery Module Tester is a professional high-precision electrochemical testing platform designed for...
- £2,365.00
- £2,365.00
- Unit price
- per
Subtotal:
£2,365.00
Description
xNeware CE-4008Q-20V10A Battery Module Tester [8Ch, 20V 10A]
High-precision battery module testing system with pulse testing, DCIR analysis, and advanced electrochemical charge-discharge control.
General Description
The Neware CE-4008Q-20V10A Battery Module Tester is a professional high-precision electrochemical testing platform designed for lithium-ion battery modules, battery packs, and high-voltage energy storage applications. Engineered for advanced battery R&D, pilot production, and industrial validation environments, the system combines high-voltage operation, precision current control, and stable closed-loop architecture for demanding module-level testing workflows.
The platform features 8 independent testing channels with programmable voltage control up to 20V and programmable current output up to 10A. With high-precision voltage and current acquisition architecture, the system delivers stable and repeatable battery module testing performance suitable for lithium-ion modules, multi-cell packs, and energy storage devices.
Advanced testing capabilities include constant current, constant voltage, constant current-constant voltage, constant power, pulse charge/discharge testing, and DCIR analysis. The system supports pulse modes based on both current and power control, enabling dynamic battery response analysis and advanced electrochemical characterisation.
Built with TCP/IP communication, MySQL database architecture, and four-terminal Kelvin acquisition technology, the CE-4008Q-20V10A provides reliable automated data management and scalable laboratory integration for modern battery research and industrial testing environments.
Key Features
20V High-Voltage Battery Module Testing
Designed for battery module, multi-cell, and energy storage system evaluation.
10A Precision Current Output
Supports stable high-current charge and discharge testing applications.
Advanced Pulse and DCIR Analysis
Supports pulse charge/discharge testing and custom DCIR analysis functions.
Independent 8-Channel Architecture
Each channel operates independently with precision closed-loop control.
Professional Industrial Communication System
TCP/IP communication with MySQL database support and multi-format data export.
Specifications
| Parameter | Specification |
|---|---|
| Model | CE-4008Q-20V10A |
| Channels | 8 independent |
| Power Supply | AC 220V ±10% / 50Hz |
| Input Power | Approx. 1800 W |
| Resolution | AD: 24-bit; DA: 16-bit |
| Input Impedance | ≥100 MΩ |
| Protection Level | IP20 |
| Channel Architecture | Dual closed-loop CC & CV structure |
| Channel Control | Independent control |
| Cell Connection | Four-terminal Kelvin connection |
| Voltage Range | 25mV–20V |
| Minimum Discharge Voltage | 2V |
| Voltage Accuracy | ±0.02% FS |
| Voltage Stability | 0.04% FS |
| Current Range | Multi-range programmable current up to 10A |
| Current Accuracy | ±0.02% FS |
| Current Stability | 0.04% FS |
| Output Power per Channel | 200 W |
| Power Accuracy | ±0.04% FS |
| Power Stability | 0.08% FS |
| Current Rise Time | ≤1 ms (10%–90% FS) |
| Current Conversion Time | ≤10 ms (-90%–90% FS) |
| Working Step Time | ≤(365 × 24) h/step |
| Data Acquisition Rate | 10 Hz |
| Charge/Discharge Modes | CC, CV, CCCV, CP, Pulse |
| Cut-off Conditions | Voltage, current, time, capacity, energy |
| Pulse Modes | Current, Power |
| Minimum Pulse Time | 500 ms |
| Maximum Pulse Count | 32 |
| Maximum Cycles | 65,535 |
| Maximum Steps | 255 |
| Maximum Cycle Nesting | 10 |
| Software Protection | Voltage/current upper & lower limit protection |
| Hardware Protection | Over-voltage, over-current, over-temperature |
| PC Communication | TCP/IP |
| Operating System | Windows 11 |
| Database | MySQL |
| Data Export Formats | Excel, TXT, Graph, PDF, CSV |
| Operating Temperature | 0°C–40°C |
| Storage Temperature | -10°C–50°C |
| Operating Humidity | ≤70% RH (non-condensing) |
| Storage Humidity | ≤80% RH (non-condensing) |
| Clamp Types | Polymer / Alligator |
| Rack Size | 3U (19") |
| Dimensions | 483 × 438 × 130 mm |
| Technical Specifications | Click here |
Applications & Industries
- Battery module charge-discharge testing
- Lithium-ion battery pack evaluation
- Energy storage system analysis
- DC internal resistance (DCIR) testing
- Pulse charge/discharge analysis
- Battery management system (BMS) validation
- Battery R&D laboratories
- Industrial electrochemical testing systems
FAQ
What voltage range does this system support?
The system supports programmable voltage testing up to 20V.
What is the maximum output current?
The platform supports up to 10A programmable current output.
Does the system support pulse testing?
Yes, pulse charge/discharge testing is supported.
Can the system perform DCIR analysis?
Yes, custom DCIR analysis is supported.
What communication protocol does the system use?
The platform uses TCP/IP communication with MySQL database architecture.
