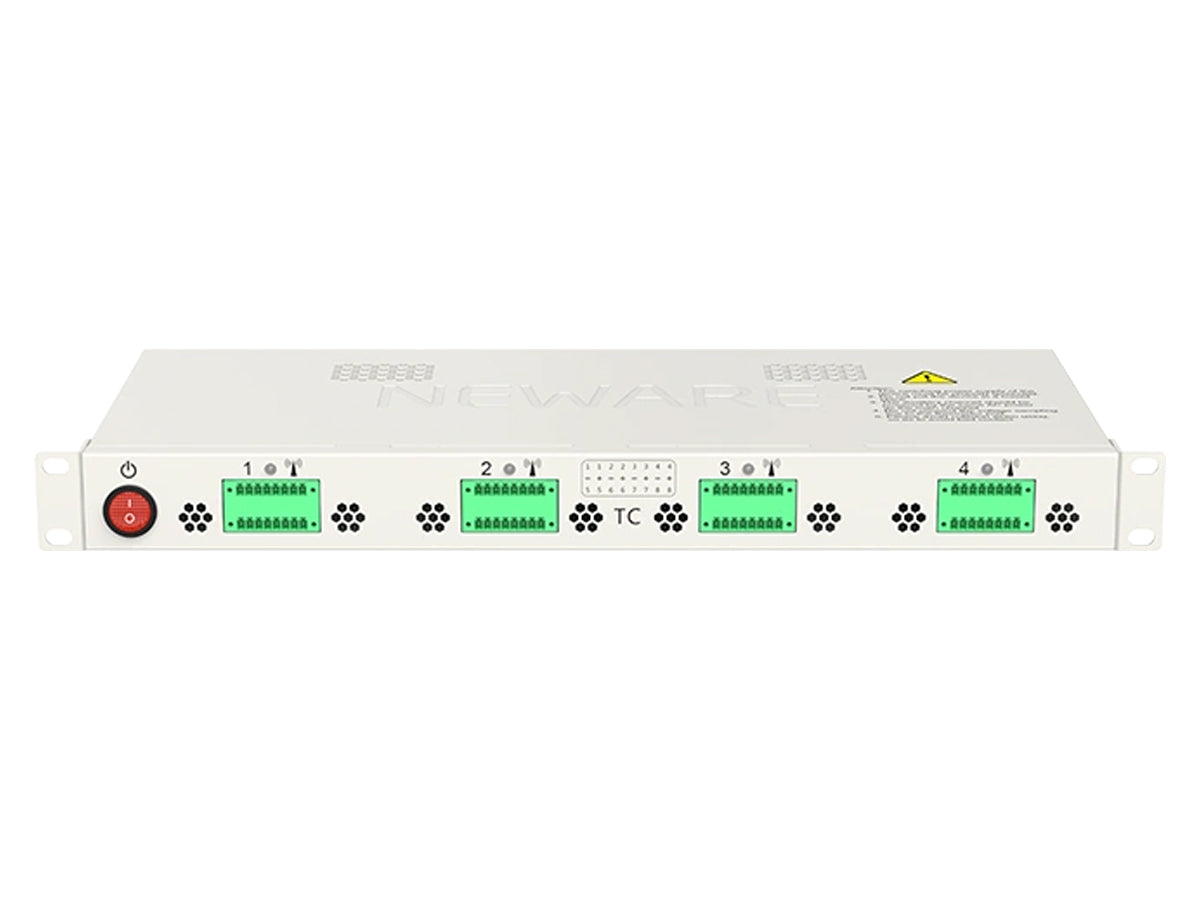

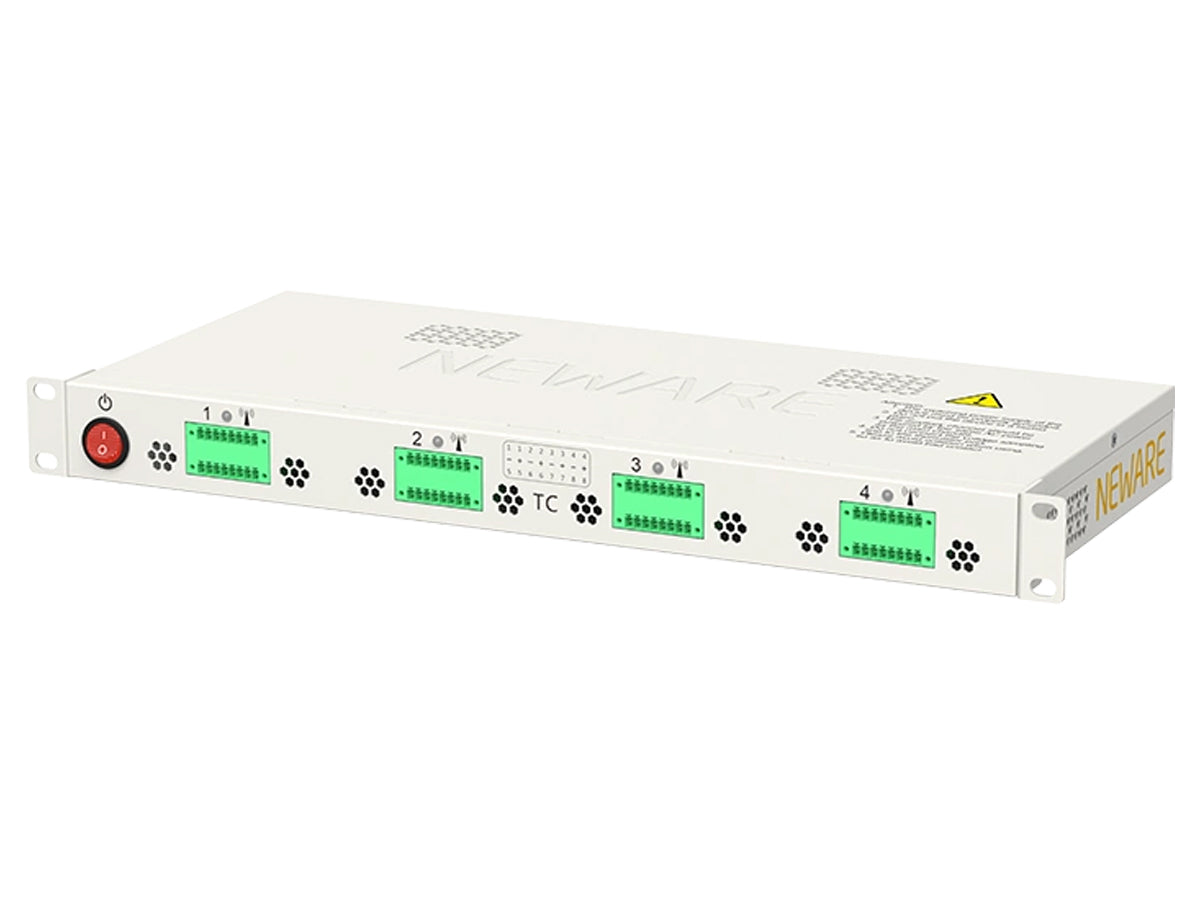

Neware CA-4032n-1U-T-TC Auxiliary Temperature Unit [32Ch]

32-channel thermocouple auxiliary temperature acquisition unit for battery thermal monitoring and integrated battery testing systems.

General Description

The Neware CA-4032n-1U-T-TC Auxiliary Temperature Unit is a professional multi-channel temperature acquisition module designed for advanced battery thermal monitoring and safety validation applications. Developed for integration with Neware battery charge-discharge systems, the unit enables synchronised temperature monitoring during electrochemical testing and environmental evaluation workflows.

This configuration supports 32 independent temperature acquisition channels using thermocouple sensors, providing high-density thermal monitoring for battery cells, battery modules, and large-scale battery testing systems. The system supports a wide temperature measurement range from -200°C to 260°C, making it suitable for high-temperature testing, thermal runaway studies, and environmental chamber integration.

With a sampling frequency of 10Hz (100ms) and temperature resolution of 0.1°C, the platform delivers stable real-time thermal acquisition for laboratory and industrial battery testing environments. Auxiliary temperature channels can be flexibly mapped to any primary channel under the same middle machine, enabling scalable battery testing system integration.

Built with RS485 communication architecture and industrial-grade protection design, the CA-4032n-1U-T-TC is suitable for lithium-ion battery R&D, energy storage testing, environmental simulation systems, and industrial battery validation applications.

Key Features

32-Channel Temperature Acquisition System
Supports simultaneous thermal monitoring across large battery testing setups.

Thermocouple Sensor Compatibility
Compatible with thermocouple sensors for wide-range temperature measurement applications.

Wide Temperature Measurement Range
Supports temperature acquisition from -200°C to 260°C.

Flexible Channel Mapping Architecture
Auxiliary temperature channels can be assigned to any primary channel under the same middle machine.

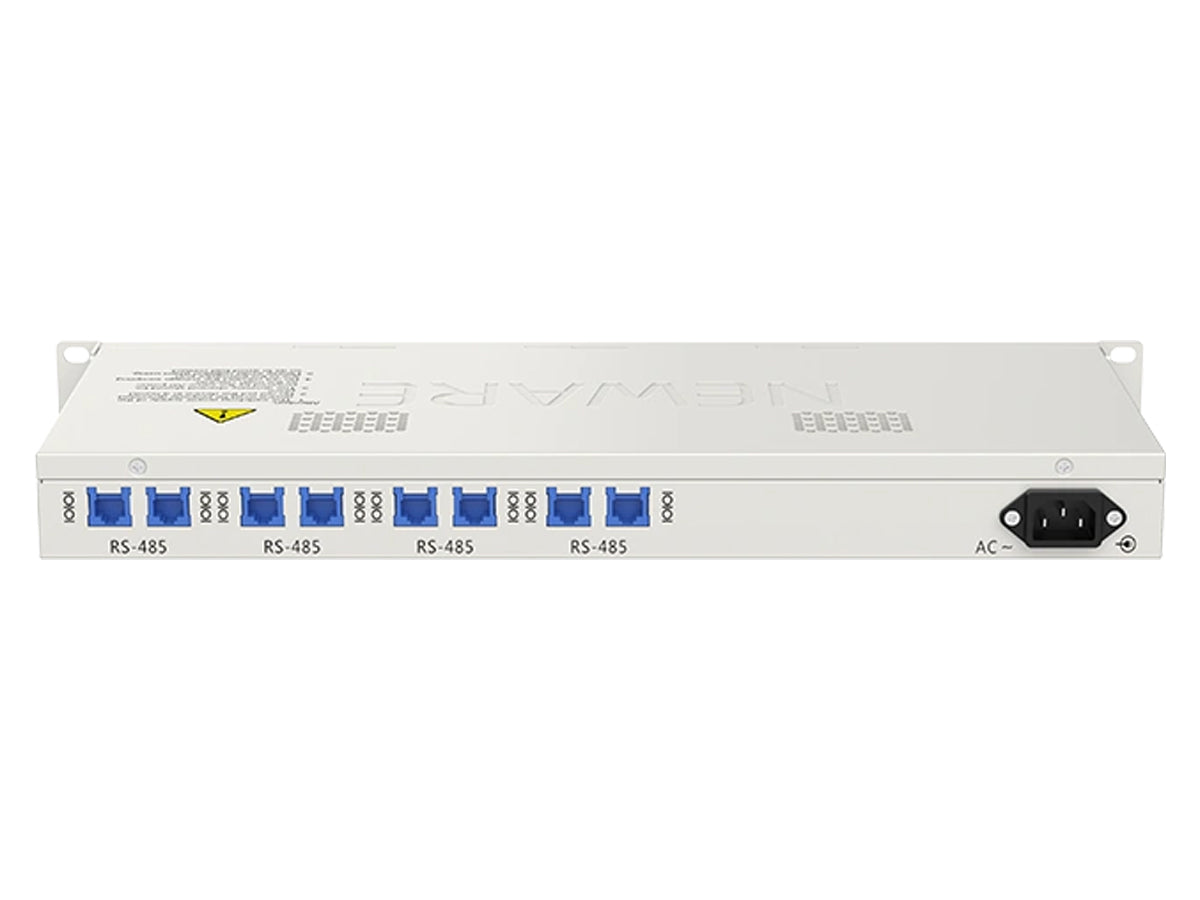

Industrial RS485 Communication System
Stable RS485 communication for professional battery testing integration.

Specifications

Parameter Specification
Model CA-4032n-1U-T-TC
Product Type Auxiliary Temperature Acquisition Unit
Channels 32
Test Item Temperature
Sensor Type Thermocouple
Temperature Measurement Range -200°C to 260°C
Temperature Accuracy ±1°C (within 2m cable length)
Temperature Resolution 0.1°C
Sampling Frequency 10Hz (100ms)
Communication Mode RS485
Protection Functions Upper temperature limit and lower temperature limit
Data Export Excel, TXT
Channel Mapping Auxiliary channels assignable to any primary channel
Maximum Temperature Auxiliary Channels per Primary Channel Up to 248
Protection Level IP20
Input Power 15 W
Operating Temperature 0°C–40°C
Storage Temperature -10°C–50°C
Operating Humidity ≤70% RH (non-condensing)
Storage Humidity ≤80% RH (non-condensing)
Probe Types Type K Thermocouple / Type T Thermocouple
Form Factor 1U Rack Mount
Technical Specifications Click here

Applications & Industries

  • Battery thermal monitoring
  • Lithium-ion battery safety testing
  • Thermal runaway analysis
  • Environmental chamber integration
  • Battery module temperature acquisition
  • Energy storage system testing
  • Battery R&D laboratories
  • Industrial battery validation systems

FAQ

How many temperature channels does this unit support?

The system supports 32 independent auxiliary temperature channels.

What temperature sensor type is supported?

The unit supports thermocouple sensors including Type K and Type T thermocouples.

What is the temperature measurement range?

The system supports temperature acquisition from -200°C to 260°C.

Can the auxiliary channels be assigned freely?

Yes, auxiliary temperature channels can be mapped to any primary channel under the same middle machine.

What communication method does the unit use?

The system uses RS485 communication for integration with Neware battery testing equipment.
