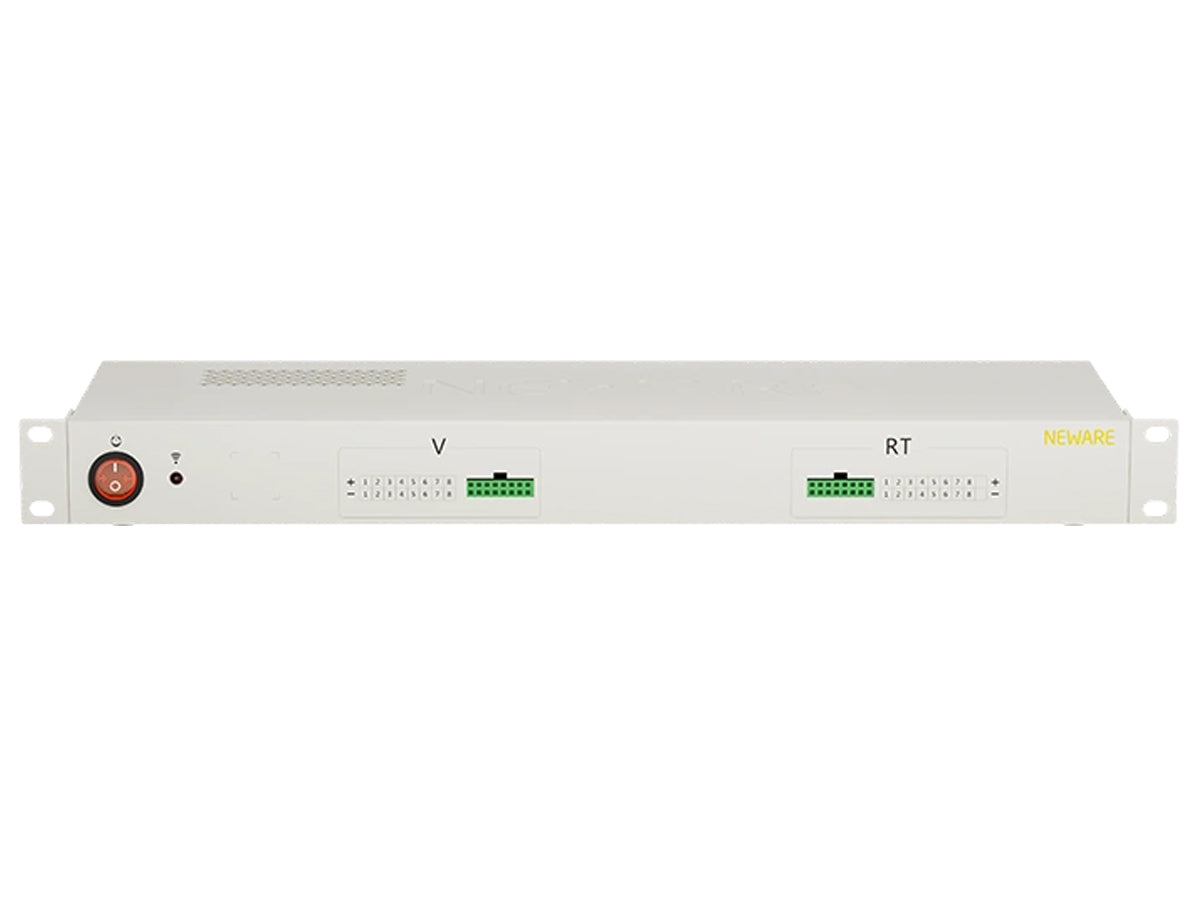

Neware CA-4008n-1U-5VT-TC auxiliary channel unit with voltage and temperature monitoring, thermocouple support, and RS485 communication for battery testing systems.

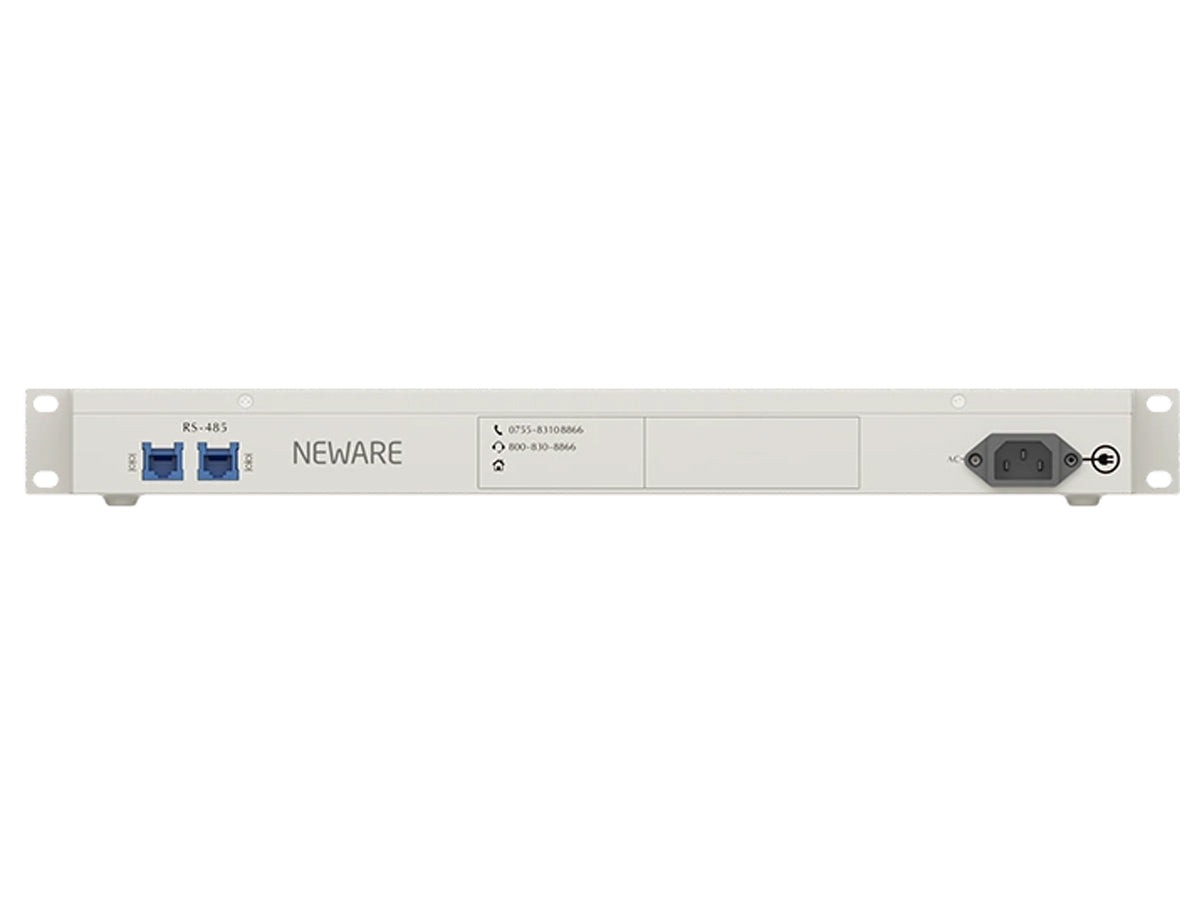

Neware CA-4008n-1U-5VT-TC auxiliary channel unit with voltage and temperature monitoring, thermocouple support, and RS485 communication for battery testing systems.

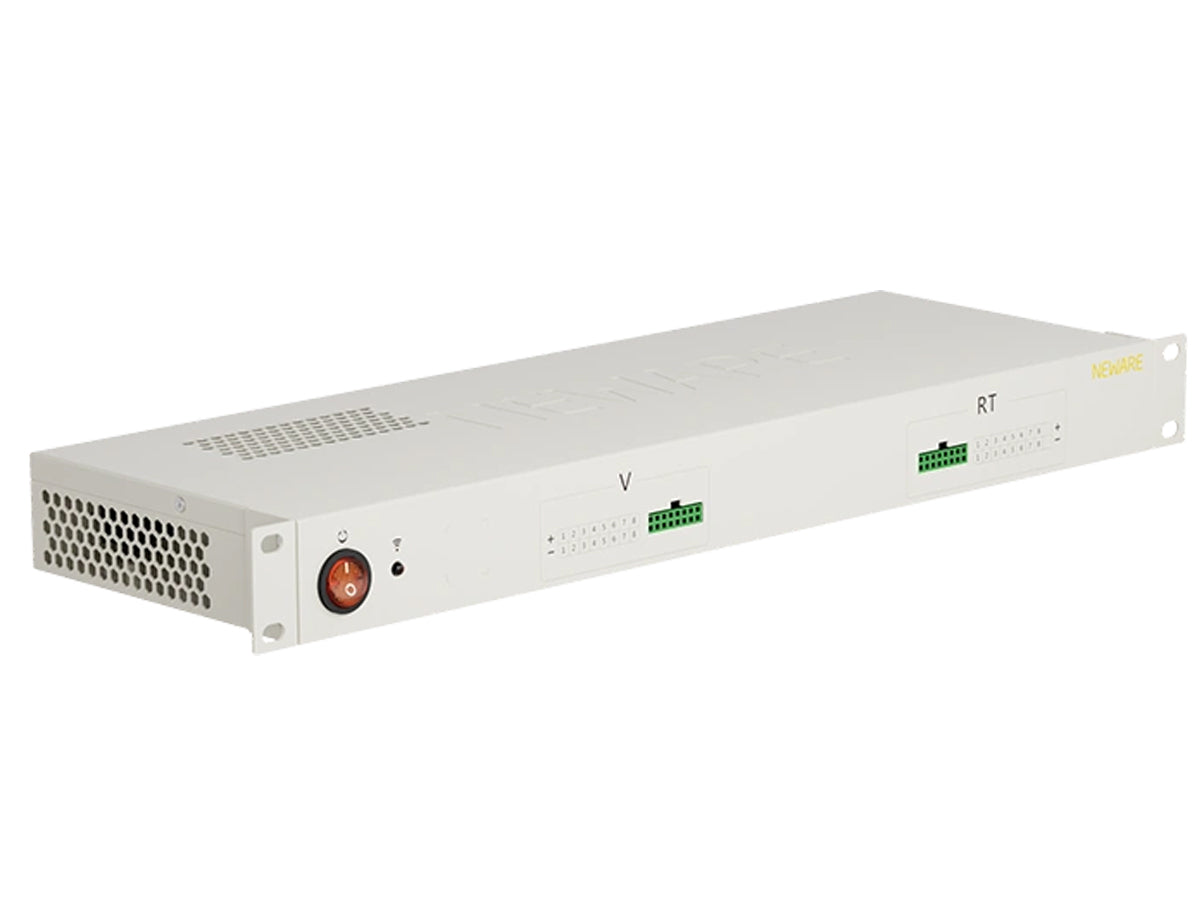

Neware CA-4008n-1U-5VT-TC auxiliary channel unit with voltage and temperature monitoring, thermocouple support, and RS485 communication for battery testing systems.

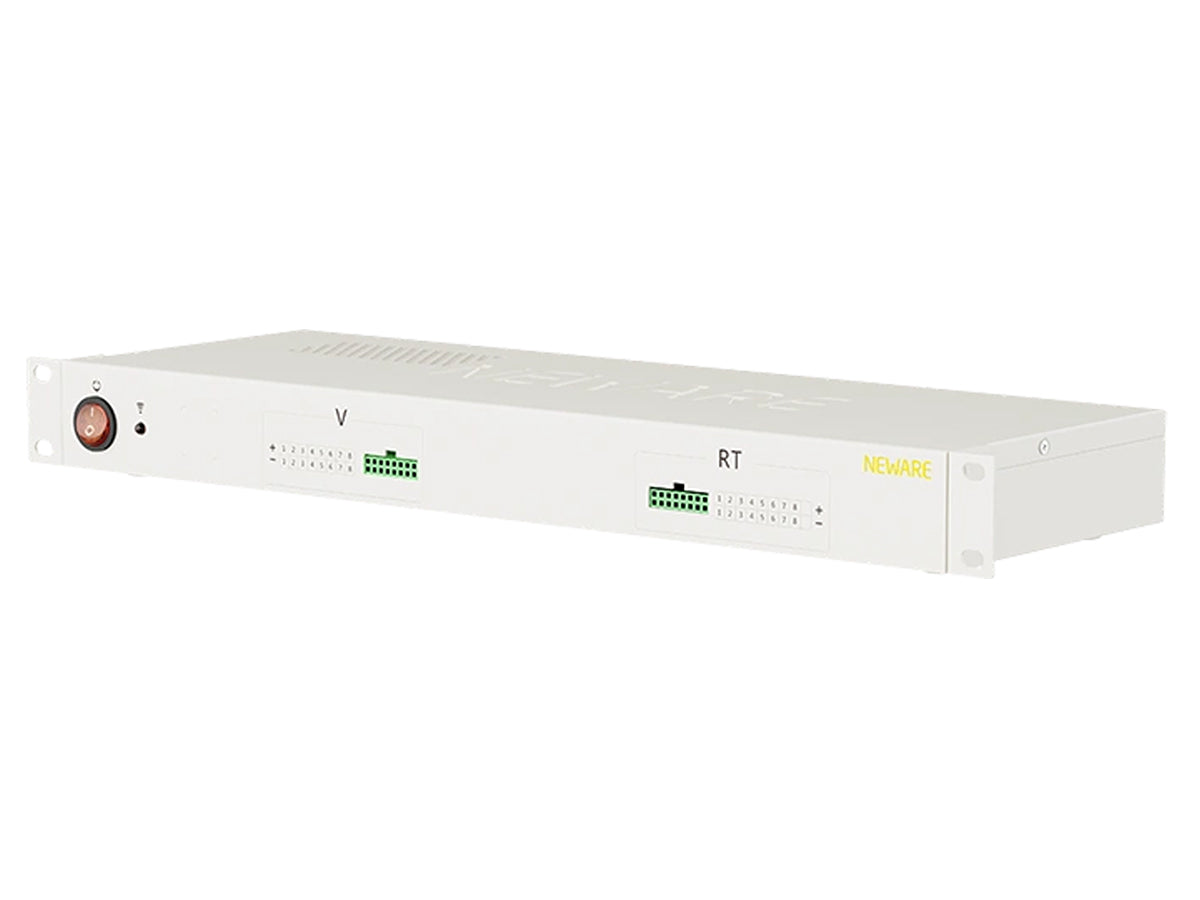

Neware CA-4008n-1U-5VT-TC auxiliary channel unit with voltage and temperature monitoring, thermocouple support, and RS485 communication for battery testing systems.
Neware CA-4008n-1U-5VT-TC auxiliary channel unit with voltage and temperature monitoring, thermocouple support, and RS485 communication for battery testing systems.
Neware CA-4008n-1U-5VT-TC auxiliary channel unit with voltage and temperature monitoring, thermocouple support, and RS485 communication for battery testing systems.
Neware CA-4008n-1U-5VT-TC auxiliary channel unit with voltage and temperature monitoring, thermocouple support, and RS485 communication for battery testing systems.
Neware CA-4008n-1U-5VT-TC auxiliary channel unit with voltage and temperature monitoring, thermocouple support, and RS485 communication for battery testing systems.

Neware CA-4008n-1U-5VT-TC Auxiliary Channel Unit [8Ch]

Neware CA-4008n-1U-5VT-TC Auxiliary Channel Unit [8Ch] Auxiliary voltage and temperature acquisition module for integrated battery testing systems with thermocouple and thermistor support. General Description The Neware CA-4008n-1U-5VT-TC Auxiliary Channel Unit is a professional auxiliary acquisition module designed for integrated battery...
Vendor: Cell Lab
SKU: NW0050
Product type: Battery Equipment
£665.00
£665.00
Subtotal: £665.00
Description
Description
x

Neware CA-4008n-1U-5VT-TC Auxiliary Channel Unit [8Ch]

Auxiliary voltage and temperature acquisition module for integrated battery testing systems with thermocouple and thermistor support.

General Description

The Neware CA-4008n-1U-5VT-TC Auxiliary Channel Unit is a professional auxiliary acquisition module designed for integrated battery testing systems and advanced electrochemical research applications. Engineered to work alongside Neware battery charge-discharge equipment, the module enables synchronous voltage and temperature monitoring for enhanced battery safety analysis and environmental testing workflows.

The system supports auxiliary acquisition of both voltage and temperature signals, including thermistor and thermocouple measurement modes. With high-precision voltage acquisition from 0V to 5V and temperature measurement ranges from -30°C to 120°C (thermistor) and -200°C to 260°C (thermocouple), the module provides reliable real-time monitoring for battery research and safety validation applications.

Designed with RS485 communication architecture, the auxiliary unit can be mapped to any main testing channel under the same middle machine, allowing flexible integration into multi-channel battery testing systems. The platform supports temperature protection, voltage protection, single-cell voltage difference monitoring, and synchronised data export with main channel test records.

Its compact 1U rack-mounted structure and compatibility with Neware cyclers make the CA-4008n-1U-5VT-TC ideal for battery R&D laboratories, environmental testing systems, and industrial battery safety validation environments.

Key Features

Integrated Voltage and Temperature Monitoring
Supports simultaneous auxiliary acquisition of voltage and temperature data during battery testing.

Thermistor and Thermocouple Compatibility
Compatible with thermistors, Type K thermocouples, and T-type thermocouples.

Flexible Channel Mapping Architecture
Auxiliary channels can be assigned to any main channel under the same middle machine.

Real-Time Protection Monitoring
Supports temperature limits, voltage limits, and single-cell voltage difference protection functions.

Compact Industrial 1U Design
Rack-mounted 1U structure for professional laboratory and industrial battery testing integration.

Specifications

Parameter Specification
Model CA-4008n-1U-5VT-TC
Product Type Auxiliary Voltage & Temperature Channel Unit
Number of Main Channels 8
Voltage Measurement Range 0V–5V
Voltage Accuracy ±0.05% FS
Temperature Sensor Types Thermistor / Thermocouple
Thermistor Temperature Range -30°C to 120°C
Thermocouple Temperature Range -200°C to 260°C
Temperature Accuracy ±1°C (within 2m cable length)
Temperature Resolution 0.1°C
Sampling Frequency 10Hz (100ms)
Communication Mode RS485
Protection Functions Temperature limit, voltage limit, cell voltage difference monitoring
Data Export Excel, TXT
Channel Mapping Auxiliary channels assignable to any main channel
Temperature Auxiliary Channels per Main Channel Optional (1–248)
Voltage Auxiliary Channels per Main Channel Optional (1–248)
Protection Level IP20
Operating Temperature 0°C–40°C
Storage Temperature -10°C–50°C
Operating Humidity ≤70% RH (non-condensing)
Storage Humidity ≤80% RH (non-condensing)
Dimensions 442 × 150 × 46 mm (1U, 19")
Probe Types Thermistor, Type K Thermocouple, T-Type Thermocouple
Technical Specifications Click here

Applications & Industries

  • Battery temperature monitoring
  • Auxiliary voltage acquisition
  • Battery safety validation testing
  • Environmental chamber integration
  • Lithium-ion battery research laboratories
  • Battery module thermal analysis
  • Industrial battery testing systems
  • Electrochemical performance monitoring

FAQ

What functions does the auxiliary channel unit provide?

The unit provides synchronous voltage and temperature acquisition during battery testing.

Which temperature sensors are supported?

The system supports thermistors, Type K thermocouples, and T-type thermocouples.

How many auxiliary channels can be connected?

Each main channel supports optional auxiliary voltage and temperature channels from 1 to 248.

Can auxiliary channels be mapped freely?

Yes, auxiliary channels can be assigned to any main channel under the same middle machine.

What communication protocol does the system use?

The module uses RS485 communication for integration with Neware battery testing systems.
