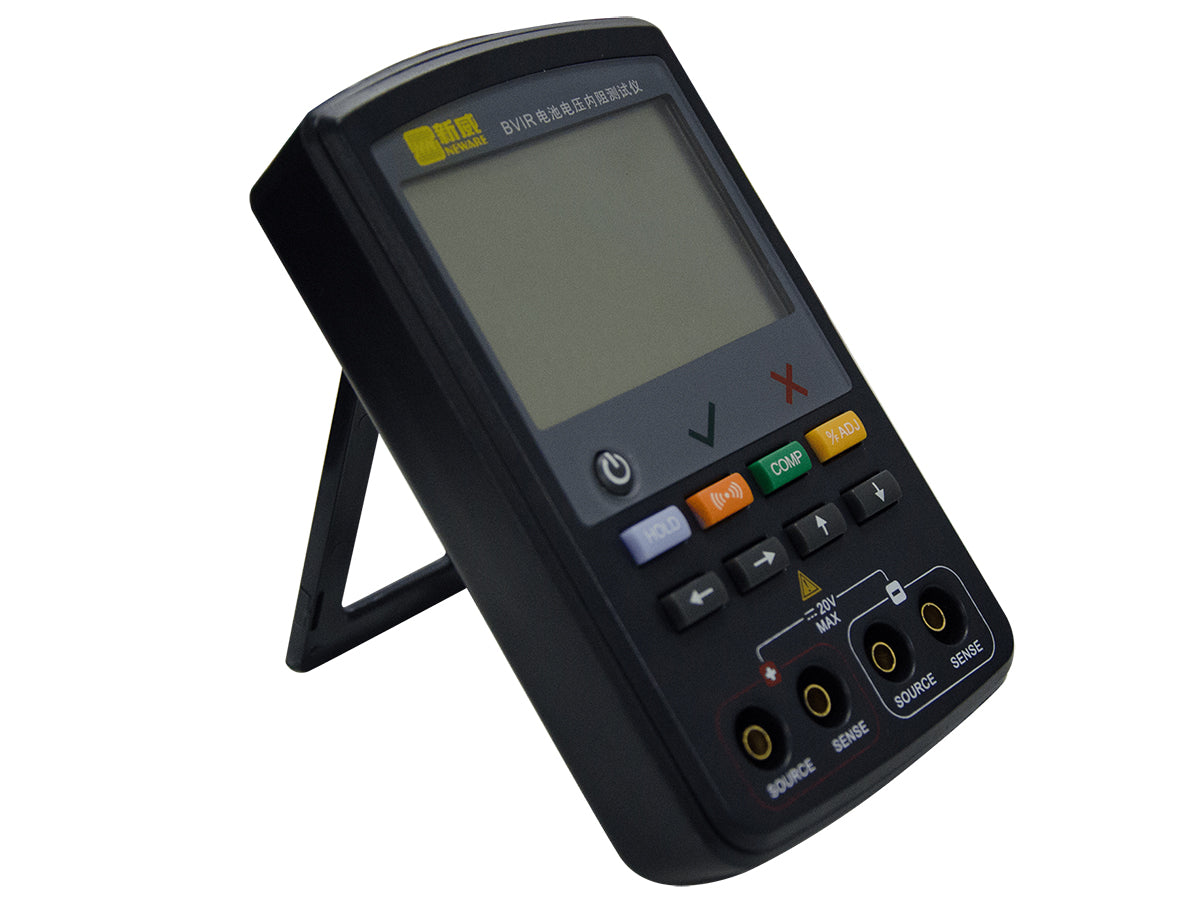

Neware BVIR battery internal resistance tester with 0–20V voltage range, four-terminal measurement, and 1kHz sampling for battery analysis and quality testing.
Neware BVIR battery internal resistance tester with 0–20V voltage range, four-terminal measurement, and 1kHz sampling for battery analysis and quality testing.

Neware BVIR Battery Internal Resistance Tester [0–20V]

Neware BVIR Battery Internal Resistance Tester [0–20V] Portable high-precision battery internal resistance and voltage tester for lithium-ion, NiMH, NiCd, and lead-acid battery analysis. General Description The Neware BVIR Battery Internal Resistance Tester is a compact high-precision instrument designed for rapid...
Vendor: Cell Lab
SKU: NW0045
Product type: Battery Tools
£1,009.00
£1,009.00
Subtotal: £1,009.00
Description
Description
x

Neware BVIR Battery Internal Resistance Tester [0–20V]

Portable high-precision battery internal resistance and voltage tester for lithium-ion, NiMH, NiCd, and lead-acid battery analysis.

General Description

The Neware BVIR Battery Internal Resistance Tester is a compact high-precision instrument designed for rapid measurement of battery internal resistance and open circuit voltage. Widely used in battery research laboratories, battery manufacturing, and quality inspection environments, the BVIR system provides fast and reliable battery condition analysis for various rechargeable battery chemistries.

Using a four-terminal connection measurement method, the tester delivers accurate internal resistance and voltage readings for lithium-ion batteries, lead-acid batteries, nickel-cadmium batteries, and nickel-metal hydride batteries. With automatic resistance range switching between 0–200mΩ and 200–2000mΩ, the system supports efficient battery grading, quality control, and failure analysis workflows.

The BVIR tester features high-speed 1kHz sampling frequency, built-in comparator functions, and onboard storage for up to 10,000 data entries, making it suitable for both laboratory analysis and portable field testing applications.

Its lightweight handheld design enables convenient operation in battery production lines, incoming inspection, battery maintenance, and research environments.

Key Features

High-Precision Internal Resistance Measurement
Accurate four-terminal measurement method for reliable battery resistance analysis.

Automatic Resistance Range Switching
Automatically switches between 0–200mΩ and 200–2000mΩ ranges for flexible testing.

Fast 1kHz Sampling Frequency
Enables rapid battery screening and quick failure analysis.

Integrated Comparator Function
Supports fourteen sets of voltage and resistance upper/lower limit comparison settings.

Portable Lightweight Design
Compact handheld structure suitable for laboratory and industrial field applications.

Specifications

Parameter Specification
SKU# NW0045
Model BVIR
Measuring Method Four-terminal connection
Voltage Range 0–20 V
Voltage Accuracy ±0.1%
Resistance Range Automatic switching: 0–200mΩ / 200–2000mΩ
Resistance Accuracy ±(0.5% FS + 0.2% reading)
Sampling Frequency 1 kHz
Current Range Max AC 20 mA
Comparator Sets 14 sets of voltage and resistance upper/lower limits
Data Storage 10,000 entries
Dimensions 120 × 75 × 25 mm
Weight 200 g
Operating Temperature 10°C – 40°C
Operating Humidity <70% RH

Applications & Industries

  • Lithium-ion battery internal resistance testing
  • Battery open circuit voltage measurement
  • Battery quality inspection and grading
  • Battery failure analysis
  • Battery manufacturing quality control
  • Research laboratory battery evaluation
  • Portable battery maintenance testing

FAQ

What types of batteries can the BVIR tester measure?

The tester supports lithium-ion, lead-acid, nickel-cadmium, and nickel-metal hydride batteries.

What measurement method does the system use?

It uses a four-terminal connection method for accurate resistance measurement.

Does the tester support automatic resistance range switching?

Yes, the system automatically switches between 0–200mΩ and 200–2000mΩ ranges.

How much test data can be stored internally?

The tester can store up to 10,000 measurement entries.

Is the BVIR suitable for portable use?

Yes, its lightweight handheld design makes it suitable for portable testing applications.
