Neware BTS4000-10V6A Battery Testing System [8 Channels, 60W]

Neware BTS4000-10V6A Battery Testing System [8 Channels, 60W] Compact high-precision battery cycler for lithium-ion cell testing, electrochemical analysis, and laboratory-scale research. General Description The Neware BTS4000-10V6A Battery Testing System is a compact and high-precision multi-channel battery cycler designed for lithium-ion cell...
Vendor: Cell Lab
SKU: NW0011
Product type: Battery Equipment
£2,919.00
£2,919.00
Subtotal: £2,919.00
Description
Description
x

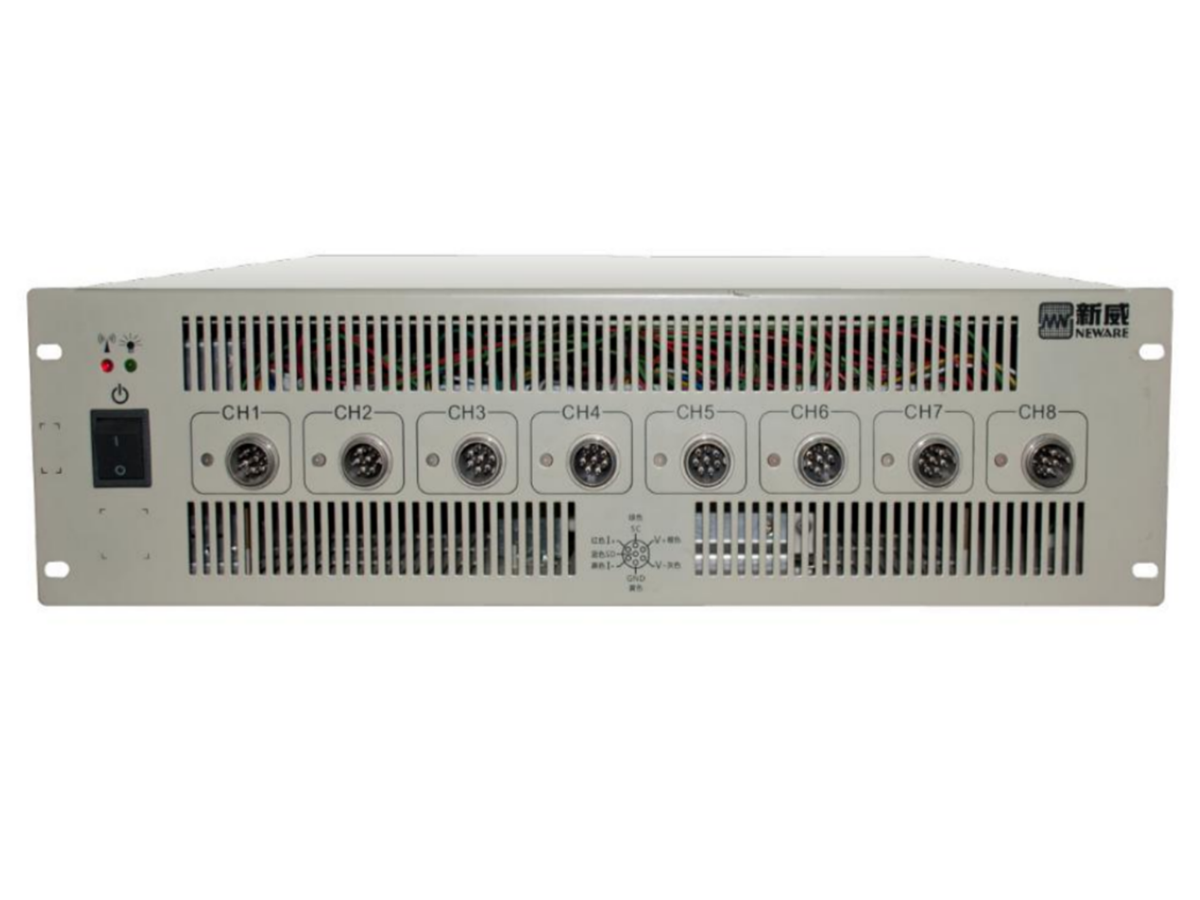

Neware BTS4000-10V6A Battery Testing System [8 Channels, 60W]

Compact high-precision battery cycler for lithium-ion cell testing, electrochemical analysis, and laboratory-scale research.

General Description

The Neware BTS4000-10V6A Battery Testing System is a compact and high-precision multi-channel battery cycler designed for lithium-ion cell testing and electrochemical performance evaluation in laboratory environments. With stable measurement accuracy and flexible testing modes, the system is widely used in battery research institutes, universities, and development laboratories.

Each channel supports a voltage range of 0.05–10V and a current range of 0.03–6A, delivering up to 60W output power per channel. The system provides ±0.1% FS accuracy for both voltage and current, ensuring reliable and repeatable testing results for battery cycling, capacity analysis, and performance characterisation.

Equipped with Ethernet communication and MySQL database architecture, the system supports real-time monitoring, automated testing, and efficient data management. Advanced features such as pulse testing, DC internal resistance (DCIR) analysis, and nested loop programming enable comprehensive electrochemical testing under dynamic conditions.

Key Features

High-Precision Multi-Channel Testing
Eight independent channels with constant-current and constant-voltage control for accurate battery testing.

Wide Voltage and Current Range
Supports 0.05–10V voltage and 0.03–6A current output per channel for versatile applications.

Advanced Battery Testing Modes
Supports CC, CV, CCCV, CP, CR modes, pulse testing (minimum 500 ms), and DCIR measurement.

Reliable Data Acquisition System
Minimum data record interval of 100 ms with stable measurement and 10 Hz recording frequency.

Professional Data Management and Communication
TCP/IP Ethernet communication with MySQL database and multi-format data export including Excel, TXT, CSV, PDF, and graphs.

Specifications

Parameter Specification
Model BTS4000-10V6A
Channels 8
Power Supply AC 220V / 110V ±10%, 50Hz
Input Power 729 W
Voltage Range 0.05 – 10 V
Minimum Discharge Voltage 2.5 V
Voltage Accuracy ±0.1% FS
Voltage Stability ±0.1% FS
Current Range 0.03 – 6 A
Current Accuracy ±0.1% FS
Output Power per Channel 60 W
Power Stability ±0.2% FS
Current Response Time ≤20 ms
Data Record Interval ≥100 ms
Recording Frequency 10 Hz
Maximum Cycles 65,535
Maximum Steps 254
Communication TCP/IP (Ethernet)
Database MySQL
Data Export Excel, TXT, CSV, PDF, Graph
Dimensions 480 × 730 × 130 mm
Noise <85 dB
Protection Level IP20
Technical Data Sheet Click here

Applications & Industries

  • Lithium-ion battery testing
  • Battery cycle life and capacity evaluation
  • Electrochemical research laboratories
  • University battery research
  • Battery material testing
  • Small-scale battery production validation

FAQ

What types of batteries can this system test?
It is suitable for lithium-ion and other rechargeable battery cells within a 0–10V range.

Does it support DC internal resistance testing?
Yes, DCIR measurement is supported.

What testing modes are available?
The system supports CC, CV, CCCV, CP, CR, pulse testing, and continuous charge–discharge switching.

What data formats can be exported?
Data can be exported in Excel, TXT, CSV, PDF, and graphical formats.
