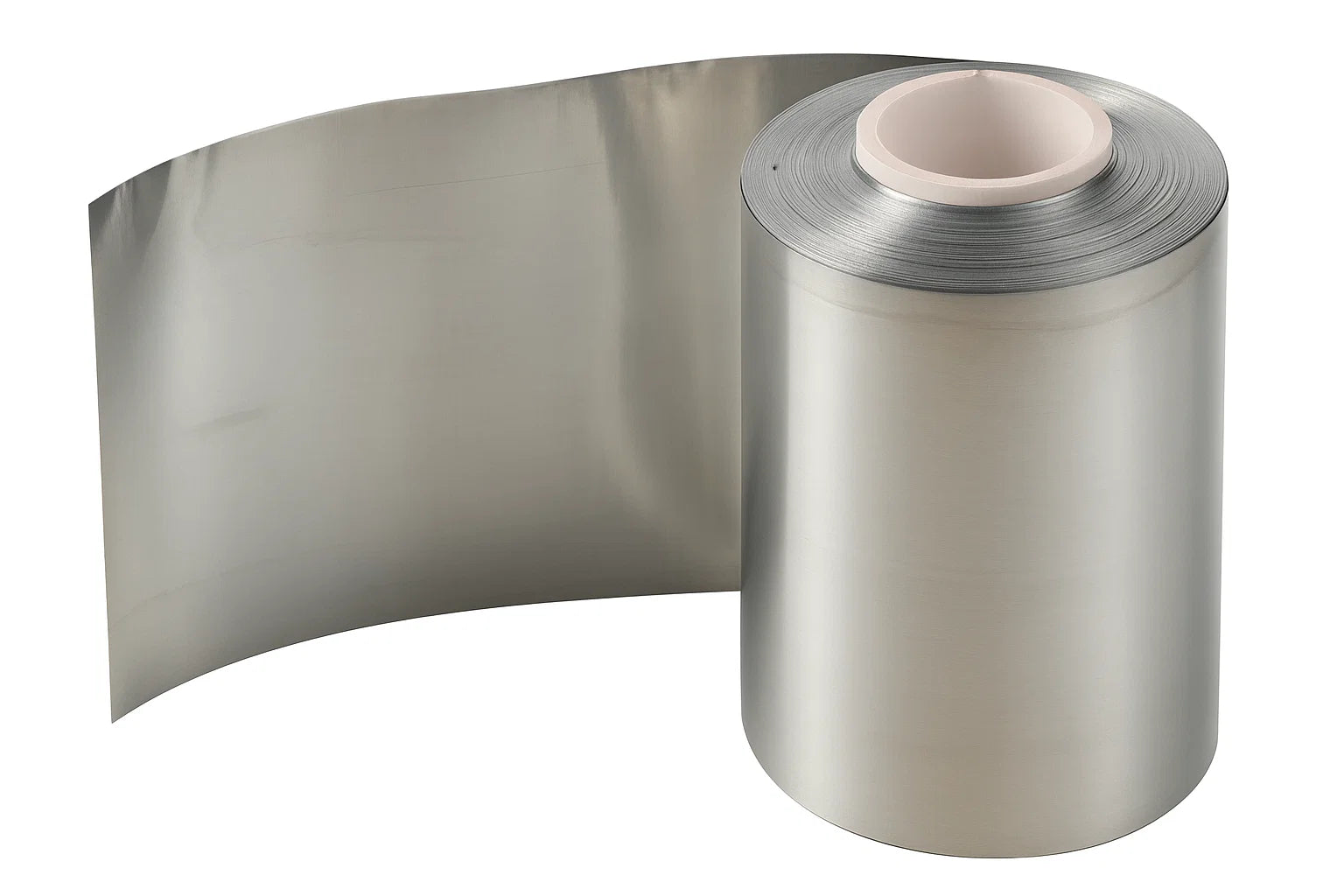

Cell Lab Zinc Metal Foil [99.9%, 1400 × 100 × 0.1 mm, for Zn-Ion Batteries & Catalysis] – High-Purity Foil for Electrochemical and Energy Applications

Cell Lab Zinc Metal Foil [99.9%, 1400 × 100 × 0.1 mm, for Zn-Ion Batteries & Catalysis] – High-Purity Foil for Electrochemical and Energy Applications

Battery-grade zinc foil for Zn-ion anodes, thin-film deposition, and catalytic research

The Cell Lab Zinc Metal Foil is a high-purity (99.9%) zinc substrate designed for aqueous zinc-ion battery R&D, thin-film deposition, and electrochemical catalysis. Zinc’s abundance, safety, and stability make it a leading material for next-generation energy storage. Serving as both anode and reference electrode, this foil provides low impurity interference, smooth surface morphology, and reliable cycling stability in aqueous or hybrid electrolyte systems.

Beyond Zn-ion batteries, it is also widely applied as a current collector or substrate in lithium-ion batteries, electrocatalytic systems, supercapacitors, and solar cell fabrication. Each roll is vacuum-sealed to maintain purity and supplied in standard 0.1 mm thickness, with full customisation available upon request.

Key Features

High-Purity Zinc (≥99.9%)
Ensures consistent electrochemical behaviour with minimal trace metal impurities.

Optimised for Zn-Ion Battery Research
Functions effectively as an anode or reference electrode in aqueous electrolyte environments.

Multi-Functional Research Material
Applicable in catalysis, thin-film deposition, solar cells, and supercapacitor studies.

Customisable Dimensions
Standard size 1400 × 100 × 0.1 mm; custom lengths, widths, and thicknesses available on request.

Excellent Physical & Thermal Properties
Offers a melting point of 420 °C, boiling point of 907 °C, and density of 7.13 g/cm³ for versatile lab use.

Technical Specifications

Applications & Industries

• Aqueous and hybrid zinc-ion battery research

• Catalysis and electrochemical electrode fabrication

• Current collector for lithium-ion and Na-ion batteries

• Thin-film deposition and photovoltaic research

• Supercapacitor and energy storage prototyping

FAQ

Q1: Is this foil suitable for aqueous Zn-ion electrolytes?
Yes. It provides excellent stability in typical ZnSO₄-based electrolytes and maintains uniform surface activity.

Q2: Can the foil be used as a reference electrode?
Yes. It performs reliably as a zinc reference electrode in three-electrode setups.

Q3: Does it require pre-treatment before use?
For best results, surface cleaning or light polishing is recommended before assembly.

Q4: Can dimensions be customised for automated roll coating?
Yes. Width, length, and thickness can be tailored for continuous pilot-line research.

Q5: How should it be stored?
Store in a cool, dry, and inert environment to prevent surface oxidation.
