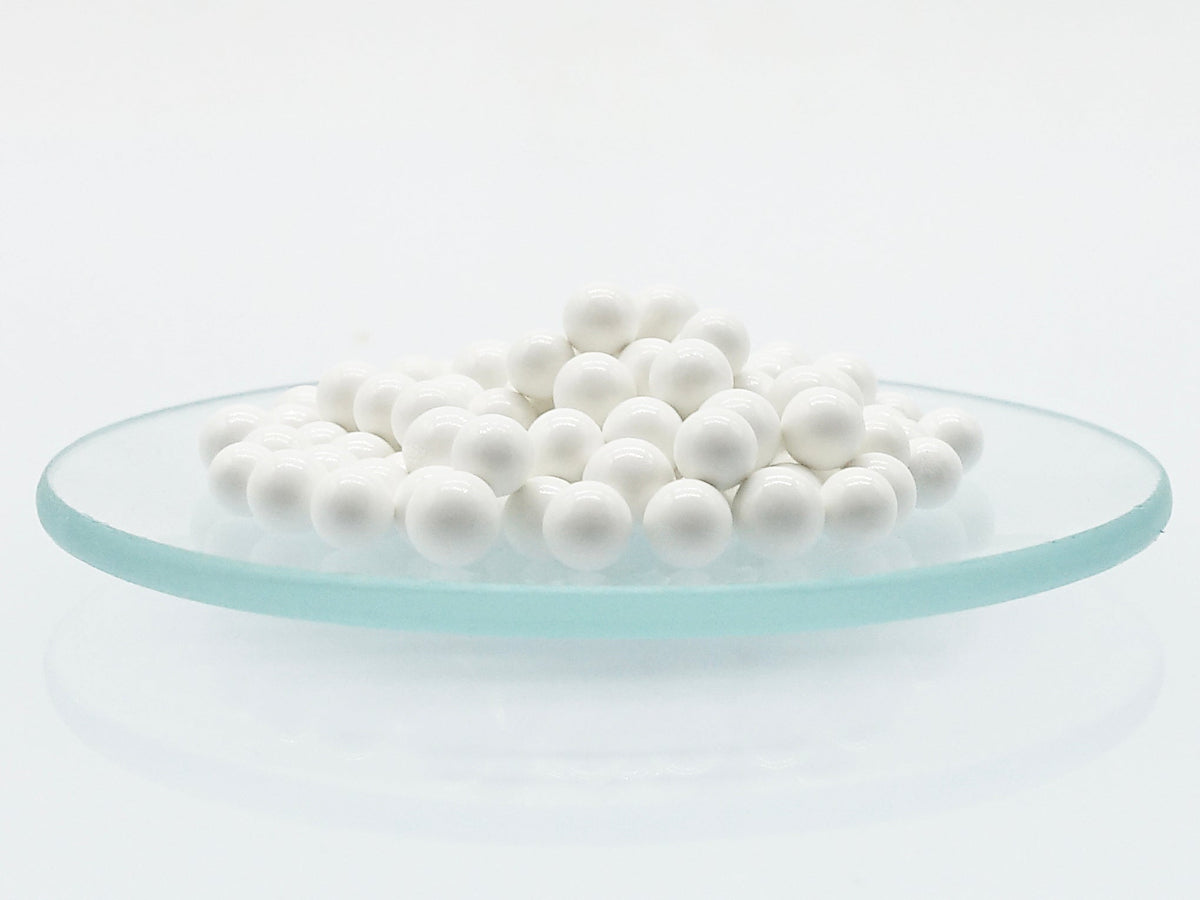

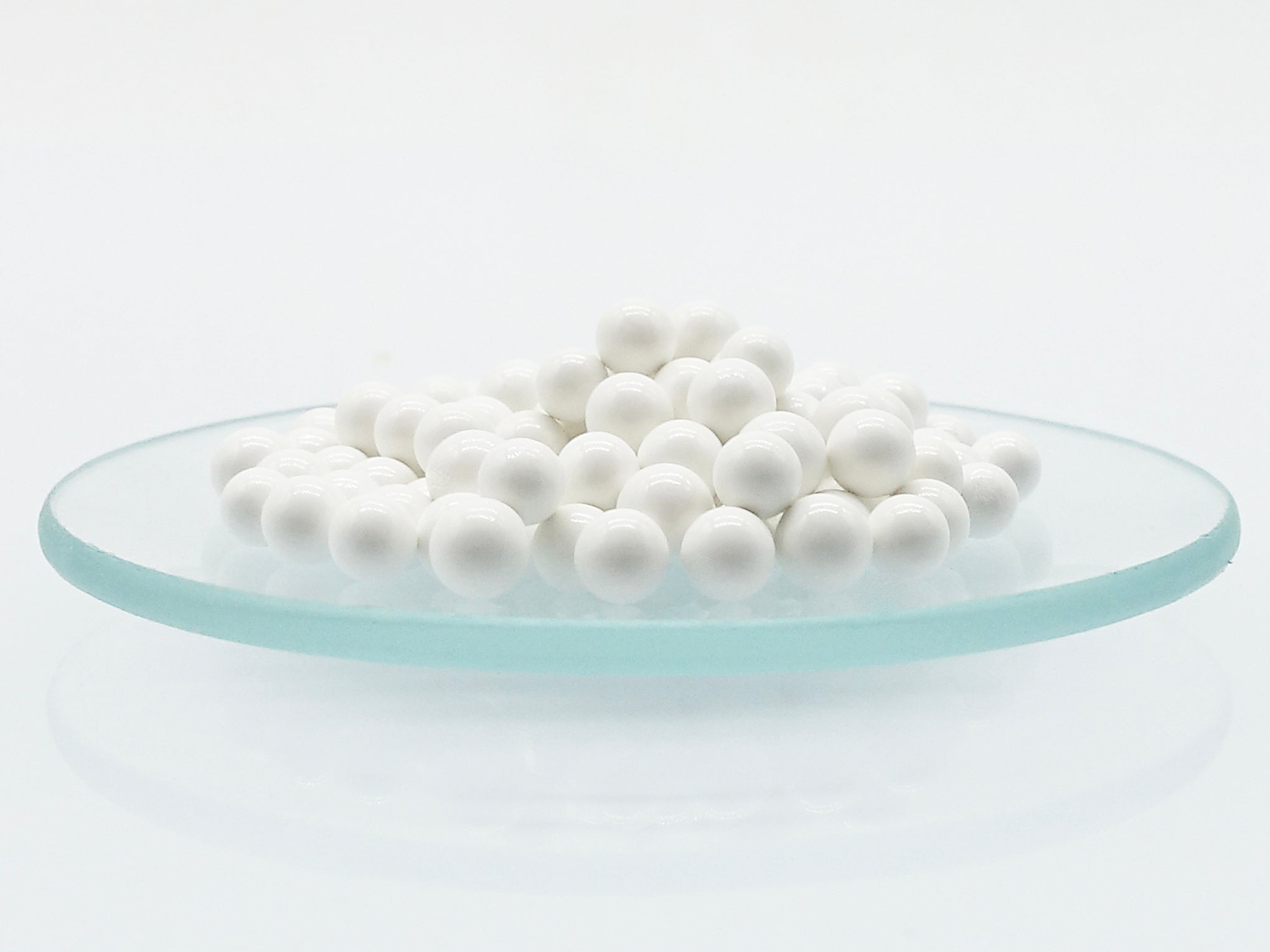

Cell Lab ZAL-32 Light Density Sintered Zirconia-Alumina Composite Beads — 25 kg
Cell Lab ZAL-32 Light Density Sintered Zirconia-Alumina Composite Beads — 25 kg High-toughness ceramic beads offering improved wear resistance and grinding efficiency, designed to outperform glass media in low-to-medium density milling and dispersion applications. Key Features Light density sintered beads...
- £519.00
- £519.00
- Unit price
- per
Subtotal:
£519.00
Couldn't load pickup availability
Description
xCell Lab ZAL-32 Light Density Sintered Zirconia-Alumina Composite Beads — 25 kg
High-toughness ceramic beads offering improved wear resistance and grinding efficiency, designed to outperform glass media in low-to-medium density milling and dispersion applications.
Key Features
-
Light density sintered beads combining zirconia and alumina, giving high toughness and outstanding breakage resistance.
-
Bulk density approx. 2.2 kg/L, solid density about 3.15-3.30 g/cc.
-
Hardness approx. 854 HV10, Mohs hardness ≈ 8; glossy white finish.
-
Wide size range: from 0.40-0.80 mm up to 5.00-6.00 mm (standard SKUs BA1161–BA1170).
Technical Specifications
| Property | Specification |
|---|---|
| Composition | ZrO₂: 20 wt % · SiO₂: 35 wt % · Al₂O₃: 40 wt % · Remainder: 5 wt % |
| Bulk Density | ≈ 2.2 kg/L |
| Density (solid) | ≈ 3.15-3.30 g/cc |
| Hardness (HV10) | ≈ 854 |
| Mohs Hardness | ≈ 8 |
| Color / Finish | White, glossy sheen |
| Melting Point | Over 1600 °C |
SKU & Size Variants
| SKU# | Size Range (mm) |
|---|---|
| CL0528 | 0.40 - 0.80 mm |
| CL0529 | 0.80 - 1.20 mm |
| CL0530 | 1.20 - 1.50 mm |
| CL0531 | 1.40 - 1.70 mm |
| CL0532 | 1.80 - 2.20 mm |
| CL0533 | 2.00 - 2.50 mm |
| CL0534 | 2.50 - 3.00 mm |
| CL0535 | 3.00 - 4.00 mm |
| CL0536 | 4.00 - 5.00 mm |
| CL0537 | 5.00 - 6.00 mm |
FAQ
Q1: What advantages does ZAL-32 offer over glass beads?
A: ZAL-32 delivers higher wear resistance, greater impact energy due to its higher density, and longer service life; though cost is higher, the total cost of ownership is often lower than with glass beads.
Q2: How to choose bead size for ZAL-32?
A: Use smaller bead sizes (≤ 1.20 mm) for fine dispersion and inks; use coarser ones (≥ 3.00 mm) for bulk grinding, feed material, or coarse particulates.
Q3: Can ZAL-32 beads handle high-energy milling or high RPM mills?
A: Yes. Their hardness and density make them well suited for planetary mills and stirred media mills; monitor for heat buildup and ensure jar compatibility.
Q4: Are there any risk of contamination or chemical issues?
A: Ceramic composition is chemically inert under most milling conditions. For very sensitive applications (e.g. biotech), ensure beads are clean and avoid excessive thermal or pH stress.
Q5: What is the expected lifespan of ZAL-32 beads?
A: With proper usage (correct loading, avoiding overloading, keeping milling within recommended RPM, periodic inspection), ZAL-32 beads significantly outlast glass or lower density ceramic beads.
