ZAL-27 zirconia-alumina composite beads with high hardness and breakage resistance, designed to replace glass beads and improve milling efficiency.
ZAL-27 zirconia-alumina composite beads with high hardness and breakage resistance, designed to replace glass beads and improve milling efficiency.

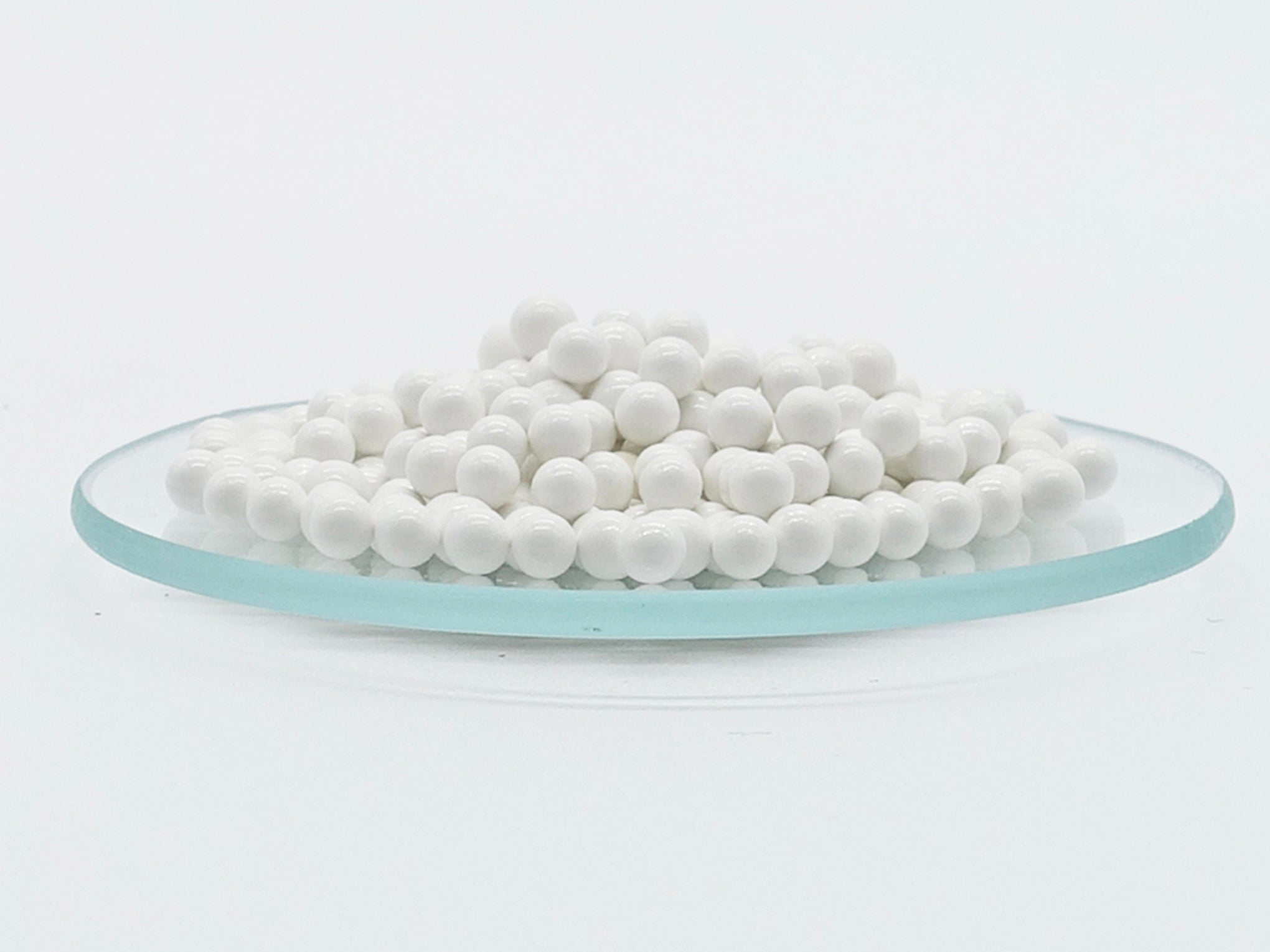

Cell Lab ZAL-27 Light Density Sintered Zirconia-Alumina Composite Bead

Cell Lab ZAL-27 Light Density Sintered Zirconia-Alumina Composite Beads — 25 kg Durable, low-wear, light-density ceramic beads ideal to substitute glass media and improve grinding efficiency in planetary, stirred, bead, and dispersion mills. Key Features Light density sintered composite beads...
Vendor: Cell Lab
SKU: CL0518
Product type: Milling Media
£449.00
£449.00
Size: 0.40 - 0.80 mm
Subtotal: £449.00
Description
Description
x

Cell Lab ZAL-27 Light Density Sintered Zirconia-Alumina Composite Beads — 25 kg

Durable, low-wear, light-density ceramic beads ideal to substitute glass media and improve grinding efficiency in planetary, stirred, bead, and dispersion mills.

Key Features

  • Light density sintered composite beads combining zirconia and alumina, yielding improved breakage resistance and toughness.

  • Bulk density ~ 1.7 kg/L, solid density around 2.65-2.85 g/cc.

  • Hardness ~ 793 Hv10, Mohs hardness ≈ 8; glossy white finish.

  • Wide size range by SKU: from 0.40-0.80 mm up to 5.00-6.00 mm.

Technical Specifications

Item Specification
Composition ZrO₂: 2 wt % • SiO₂: 35 wt % • Al₂O₃: 60 wt % • Remainder: 3 wt %
Bulk Density ≈ 1.7 kg/L
Density (solid) ≈ 2.65-2.85 g/cc
Hardness (Hv10) ≈ 793
Mohs Hardness ≈ 8
Color / Finish White, glossy sheen
Melting Point Over 1600 °C

SKU & Size Variants

SKU# Size Range (mm)
CL0518 0.40 - 0.80 mm
CL0519 0.80 - 1.20 mm
CL0520 1.20 - 1.50 mm
CL0521 1.40 - 1.70 mm
CL0522 1.80 - 2.20 mm
CL0523 2.00 - 2.50 mm
CL0524 2.50 - 3.00 mm
CL0525 3.00 - 4.00 mm
CL0526 4.00 - 5.00 mm
CL0527 5.00 - 6.00 mm

Performance & Application Notes

  • Excellent price-performance ratio among low-to-medium density grinding media.

  • Smooth bead surfaces reduce wear on mill internal components (liners, jar walls).

  • Can replace glass beads in many milling/dispersion operations to improve efficiency and reduce media attrition.

  • Size selection: finer beads (≤1.50 mm) for pigment, inks, coatings; coarser (≥3.00 mm) for general grinding, pre-grind, feed material reduction.

FAQ

Q1: What is ZAL-27 best used for vs glass beads?
A: Use ZAL-27 when you need more wear resistance and higher grinding speed than glass, but still want lighter, lower cost ceramic media.

Q2: How to choose SKU size?
A: Match bead size to your jar or mill volume and target particle size. Smaller sizes (≤ 1.20 mm) for fine dispersion; larger sizes (≥ 3.00 mm) for coarse grinding.

Q3: Is there heat or contamination concern?
A: Ceramic beads are chemically stable; heat buildup is lower than metal media but still monitor temperature on long runs.

Q4: How many beads per liter of jar volume to use?
A: Recommended bead + sample fill ≤ 2/3 of jar internal volume. Ensure bead mass is sufficient for impact energy without overloading.

Q5: Can ZAL-27 beads be used for both wet and dry milling?
A: Yes. Ensure proper sealing in wet systems and avoid stagnant liquid contact. For dry milling, avoid overheating.
