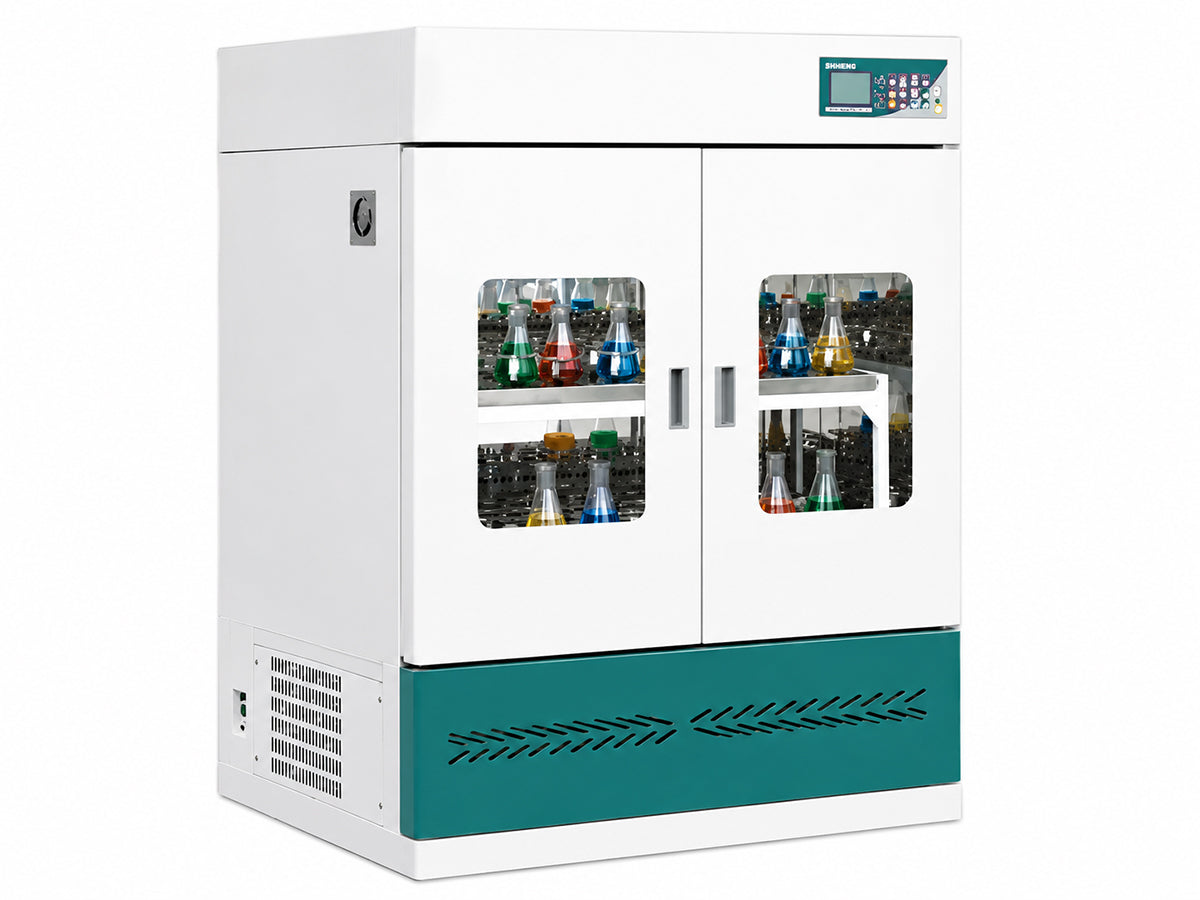

Cell Lab Vertical Shaking Incubator Series

Cell Lab Vertical Shaking Incubator Series [175L–580L | RT+5–65 °C | Laboratory Orbital Shaker Incubators] High-capacity laboratory shaking incubators with programmable PID control, multidimensional shaking and precise temperature stability for microbiology, fermentation and biochemical research. General Description The Cell Lab...
Vendor: Cell Lab
SKU: IB0066
Product type: Incubator
£6,559.00
£6,559.00
capacity: 175 L
Subtotal: £6,559.00
Description
Description
x

Cell Lab Vertical Shaking Incubator Series [175L–580L | RT+5–65 °C | Laboratory Orbital Shaker Incubators]

High-capacity laboratory shaking incubators with programmable PID control, multidimensional shaking and precise temperature stability for microbiology, fermentation and biochemical research.

General Description

The Cell Lab Vertical Shaking Incubator Series is designed for high-precision temperature-controlled shaking applications, including microbial culture, cell cultivation, fermentation, biochemical reactions and life science research. Combining intelligent PID temperature control with multidimensional orbital shaking technology, the system delivers stable and reproducible incubation environments for demanding laboratory workflows.

Built with imported compressors, servo motors and precision bearings, the incubators provide reliable long-term operation with low vibration and excellent rotational accuracy. The optimised air duct circulation system ensures uniform chamber temperature without directly blowing air onto sensitive samples.

The system supports continuous operation, programmable multi-stage control and forward/reverse shaking modes, making it suitable for advanced laboratory incubation and culture applications. Available in 175 L, 335 L and 580 L capacities, the series accommodates large-volume flask cultivation and high-throughput laboratory processing.

Key Features

• Programmable PID temperature control — Supports multi-stage control of temperature, speed and timing parameters.

• Multidimensional shaking system — Three-axis drive design ensures smooth and stable oscillation performance.

• Wide shaking speed range — Adjustable 20–350 rpm operation with ±1 rpm precision.

• Intelligent airflow circulation — Optimised duct design provides excellent chamber temperature uniformity.

• Advanced laboratory protection systems — Includes overspeed protection, over-temperature alarms, automatic defrosting and parameter memory recovery.

Technical Specifications

General Performance

Parameter Specification
Control mode PID microcomputer processor
Cycle mode Forced convection
Shaking mode Convolution oscillation
Display LCD display
Drive mode Multidimensional 3-axis drive
Speed range 20–350 rpm
Speed accuracy ±1 rpm
Temperature range RT +5–65 °C
Temperature accuracy ±0.1 °C
Temperature uniformity ±0.5 °C (37 °C)
Temperature fluctuation ≤0.1 °C (37 °C)
Timer range 0–9999 min / h

Shaking System

Parameter Specification
Oscillation amplitude Φ26 mm (customisable)
Optional amplitudes Φ35 mm / Φ50 mm
Motion modes Forward / reverse / alternating
Tray quantity 2 trays
Plate size 500 × 360 mm

Control & Safety Features

Parameter Specification
Program modes Standard / continuous / programmable
USB data download Optional
Additional functions Ultra-low start, overspeed protection, watchdog timer, parameter memory
Defrost system Automatic defrost
Safety protection Over-temperature sound/light alarm
Optional features Door-open auto stop, UV sterilisation, touchscreen

Model Variants

SKU Capacity Power Temperature Range Speed Range Standard Flask Capacity
IB0066 175 L 600 W RT +5–65 °C 20–350 rpm 250 ml × 24
IB0067 335 L 900 W RT +5–65 °C 20–350 rpm 250 ml × 28 / 500 ml × 22
IB0068 580 L 600 W RT +5–65 °C 20–350 rpm 250 ml × 45 / 500 ml × 36

Maximum Flask Capacity

Flask Size Maximum Capacity
100 ml 60 pcs
250 ml 38 pcs
500 ml 22 pcs
1 L 16 pcs

Mechanical & Electrical

Parameter Specification
External dimensions 700 × 580 × 1280 mm
Power supply AC220V ±10% / 50–60 Hz
Operating ambient temperature 5–30 °C

Applications & Industries

  • Microbial and bacterial culture
  • Fermentation and cell cultivation
  • Pharmaceutical and biochemical laboratories
  • Molecular biology research
  • Environmental and life science laboratories

SEO Keywords: shaking incubator, orbital shaking incubator, laboratory shaker incubator, microbiology shaker, temperature controlled shaker, incubator shaker

FAQ

Q1: What shaking speed range is supported?
The incubator supports adjustable shaking speeds from 20–350 rpm.

Q2: Does the system support programmable operation?
Yes. Multi-stage programmable control for temperature, speed and timing is supported.

Q3: What flask capacities are available?
The incubator supports 100 ml, 250 ml, 500 ml and 1 L flask configurations.

Q4: Does the incubator include refrigeration and defrosting?
Yes. The system includes refrigeration and intelligent automatic defrost functionality.
