Cell Lab Vertical Constant Temperature Shaker Series

Cell Lab Vertical Constant Temperature Shaker Series [175L–580L | LCD Programmable | 20–350 rpm] High-capacity laboratory shaking incubators with programmable PID control, multidimensional orbital shaking and precise temperature stability for microbial culture, fermentation and biochemical research. General Description The Cell...
Vendor: Cell Lab
SKU: IB0069
Product type: Shakers
£6,149.00
£6,149.00
capacity: 175 L RT +5–65 °C
Subtotal: £6,149.00
Description
Description
x

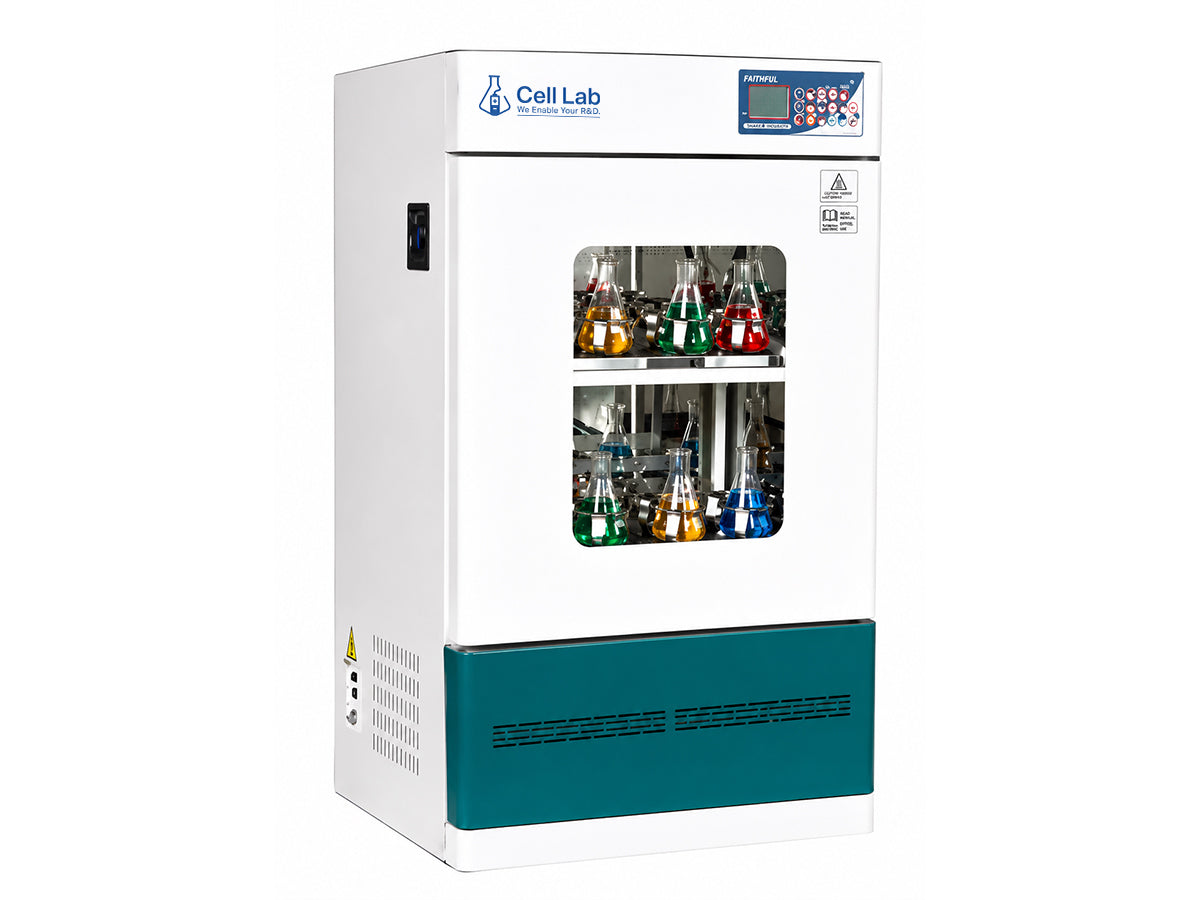

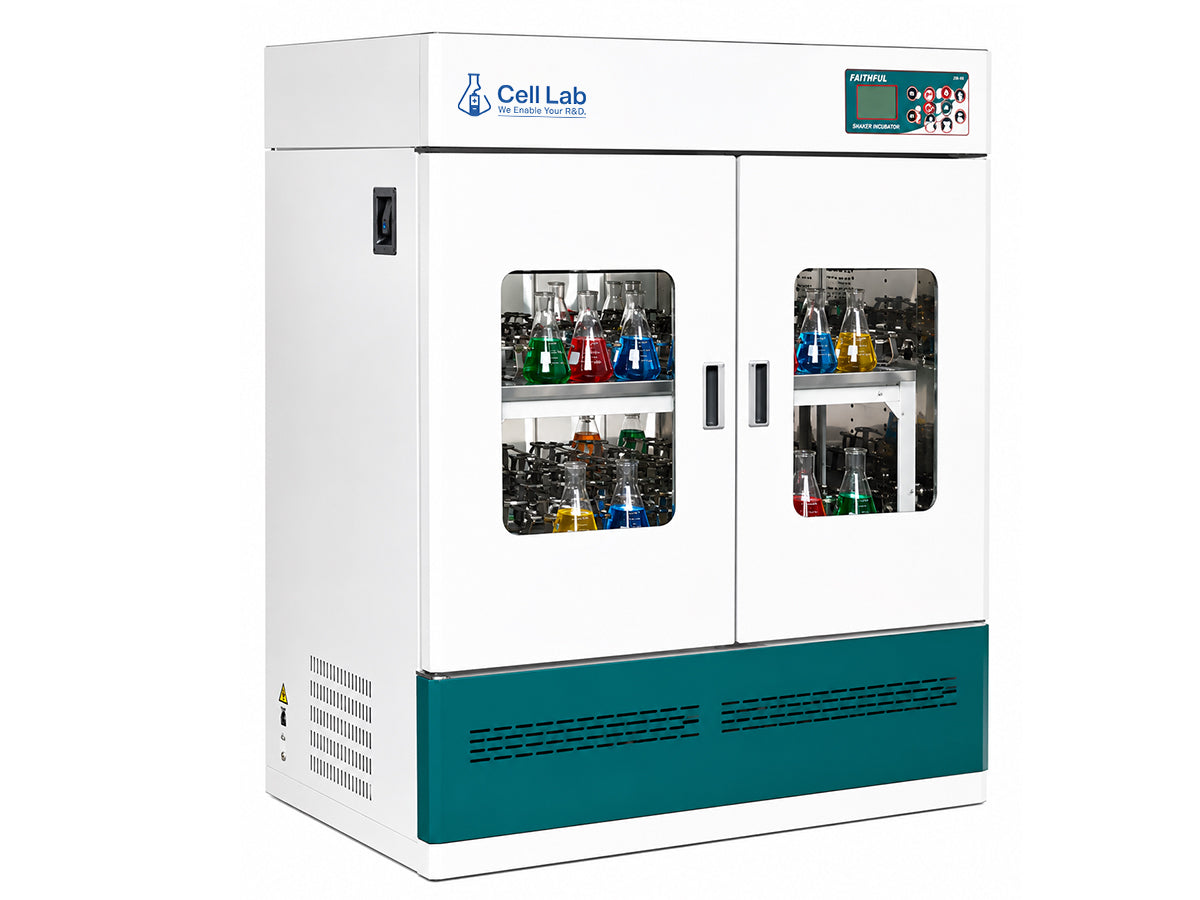

Cell Lab Vertical Constant Temperature Shaker Series [175L–580L | LCD Programmable | 20–350 rpm]

High-capacity laboratory shaking incubators with programmable PID control, multidimensional orbital shaking and precise temperature stability for microbial culture, fermentation and biochemical research.

General Description

The Cell Lab Vertical Constant Temperature Shaker Series is engineered for precision-controlled shaking and incubation applications in microbiology, molecular biology, fermentation, environmental testing and biochemical laboratories. Featuring advanced PID microcomputer control, multidimensional drive technology and high-uniformity forced convection airflow, these laboratory shaker incubators provide stable temperature and reliable oscillation performance for sensitive culture experiments.

Built with imported compressors, bearings and servo motors, the system delivers long-term operational stability while minimising vibration and temperature fluctuation. The optimised internal air duct structure prevents direct airflow onto samples, ensuring consistent incubation conditions throughout the chamber.

The incubators support programmable multi-stage operation, forward/reverse shaking, ultra-low-speed startup and intelligent protection systems, making them suitable for high-throughput laboratory culture applications. Both standard temperature and refrigerated variants are available in 175 L, 335 L and 580 L capacities.

Key Features

• Intelligent PID programmable control — Supports multi-stage temperature, speed and timing programming for complex laboratory workflows.

• Multidimensional orbital shaking system — Stable 3-axis or 4-axis drive ensures smooth shaking and high culture uniformity.

• Ultra-low-speed startup protection — Starts from very low speeds to protect delicate biological samples.

• Forced convection airflow design — Optimised air circulation prevents direct blowing and improves chamber temperature uniformity.

• Advanced safety and recovery functions — Includes automatic overspeed protection, watchdog timer, power-off memory and automatic defrosting.

Technical Specifications

General Performance

Parameter Specification
Control mode PID microcomputer processing chip
Cycle mode Forced convection
Shaking mode Convolution
Display mode LCD liquid crystal display
USB data download Optional
Program modes Standard / continuous / programmable
Speed range 20–350 rpm
Speed accuracy ±1 rpm
Timer range 0–9999 min
Tray quantity 2 trays
Operating ambient temperature 5–30 °C

Shaking System

Parameter Specification
Drive system Multidimensional drive
Drive axes 3-axis / 4-axis
Oscillation amplitude Φ26 mm
Optional amplitudes Φ35 mm / Φ50 mm
Motion modes Forward / reverse / alternating

Temperature Performance

Parameter Specification
High-temperature models RT +5–65 °C
Refrigerated models 4–65 °C
Temperature accuracy ±0.1 °C
Temperature uniformity ±0.5 °C (37 °C)
Temperature fluctuation ≤0.1 °C (37 °C)

Additional Functions

Parameter Specification
Defrost system Automatic defrost
Protection systems Overspeed & over-temperature alarm
Memory functions Parameter memory & recovery
Optional functions UV sterilisation, touchscreen, automatic door-stop
Lighting Internal lighting

Model Variants

SKU Capacity Temperature Range Speed Range Power Standard Flask Configuration
IB0069 175 L RT +5–65 °C 20–350 rpm 600 W 250 ml × 24
IB0070 335 L RT +5–65 °C 20–350 rpm 900 W 250 ml × 28 / 500 ml × 22
IB0071 580 L RT +5–65 °C 20–350 rpm 600 W 250 ml × 45 / 500 ml × 36
IB0072 175 L 4–65 °C 20–350 rpm 600 W 250 ml × 24
IB0073 335 L 4–65 °C 20–350 rpm 900 W 250 ml × 28 / 500 ml × 22
IB0074 580 L 4–65 °C 20–350 rpm 600 W 250 ml × 45 / 500 ml × 36

Maximum Flask Capacity

175 L Models

Flask Size Clamp Capacity Stick Mat Capacity
100 ml 60 pcs 60 pcs
250 ml 38 pcs 36 pcs
500 ml 22 pcs 24 pcs
1 L 16 pcs 16 pcs

335 L Models

Flask Size Clamp Capacity Stick Mat Capacity
100 ml 100 pcs 120 pcs
250 ml 56 pcs 70 pcs
500 ml 44 pcs 44 pcs
1 L 24 pcs 24 pcs

580 L Models

Flask Size Clamp Capacity Stick Mat Capacity
250 ml 90 pcs 112 pcs
500 ml 72 pcs 76 pcs
1000 ml 42 pcs 42 pcs

Mechanical Dimensions

Model Capacity Plate Size External Dimensions
175 L 500 × 360 mm 700 × 580 × 1280 mm
335 L 710 × 455 mm 950 × 700 × 1280 mm
580 L 950 × 550 mm 1200 × 800 × 1630 mm

Applications & Industries

  • Microbial and bacterial culture
  • Cell cultivation and fermentation
  • Molecular biology research
  • Pharmaceutical laboratories
  • Environmental testing laboratories
  • Biochemical and life science research

SEO Keywords: vertical shaking incubator, laboratory shaker incubator, orbital shaking incubator, refrigerated shaker incubator, microbiology shaking incubator, programmable incubator shaker

FAQ

Q1: What is the difference between RT+5 °C and 4 °C models?
RT+5 °C models are standard heated incubators, while 4 °C models include refrigeration for lower temperature applications.

Q2: Does the incubator support programmable operation?
Yes. The system supports multi-stage programmable control of temperature, speed and time.

Q3: What shaking modes are available?
The incubator supports forward, reverse and alternating shaking modes.

Q4: Is USB data export available?
Yes. USB data download functionality is available as an optional feature.
