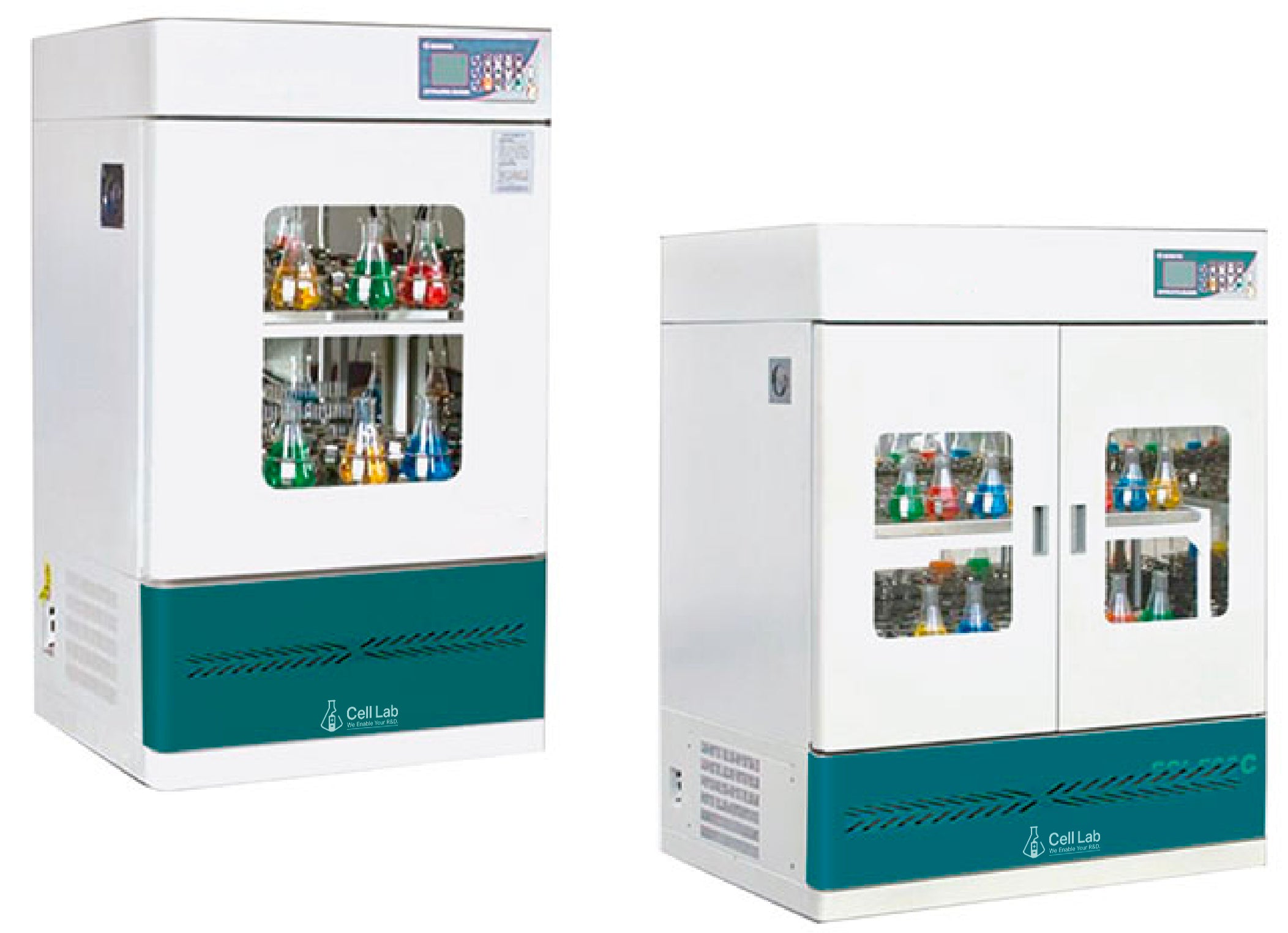

Cell Lab Vertical Constant Temperature Shaker [Multi-Amplitude Motion]

Cell Lab Vertical Constant Temperature Shaker [Multi-Amplitude Motion] Precision orbital incubator shaker with LCD interface for microbial, fermentation and biological applications The Cell Lab Vertical Constant Temperature Shaker [LCD] delivers exceptional performance for microbial, fermentation and cell-culture processes. Integrating PID...
Vendor: Cell Lab
SKU: SK0001
Product type: Shakers
£3,619.00
£3,619.00
Type: 175 L Ambient temperature+5-65 ℃
Subtotal: £3,619.00
Description
Description
x

Cell Lab Vertical Constant Temperature Shaker [Multi-Amplitude Motion]

Precision orbital incubator shaker with LCD interface for microbial, fermentation and biological applications

The Cell Lab Vertical Constant Temperature Shaker [LCD] delivers exceptional performance for microbial, fermentation and cell-culture processes. Integrating PID microprocessor control, multi-axis shaking and multi-stage temperature programming, this vertical space-saving system ensures uniform heating, precise motion and reliable operation from 175 L to 580 L capacity.

Key Features

• Multi-Stage PID Control with LCD Programming
Advanced PID microprocessor controller and LCD interface support standard, continuous and programmable modes, enabling multi-stage temperature, speed and time control with delayed start, USB data download (optional) and auto-recovery after power failure.

• Stable Orbital Shaking with Custom Amplitude
Bi-directional motion (forward/reverse/alternating) at 20–350 rpm (3-axis) or 20–280 rpm (4-axis) with ±1 rpm precision. Selectable amplitudes Φ26 / Φ35 / Φ50 mm and smooth start/stop function ensure optimal mixing for sensitive cultures.

• Uniform Temperature and Intelligent Cooling System
Temperature ranges: RT + 5 °C to 65 °C (standard) or 4 °C to 65 °C (refrigerated). Imported compressor, solenoid-valve defrost and forced convection achieve ± 0.5 °C uniformity and ± 0.1 °C control precision.

• Large Capacity with Modular Tray Design
Three sizes (175 L / 335 L / 580 L) support up to 42 × 1000 ml flasks. Two trays included as standard; compatible with clamp or stick-mat configurations for 100 ml – 1000 ml flasks.

• Comprehensive Safety and Automation
Built-in overspeed protection, watchdog timer, parameter memory, refrigeration overload protection and auto power delay. Optional features include UV sterilisation, internal illumination, touchscreen operation and auto door-stop for maximum user safety.

Specifications:


Name

Vertical constant temperature shaker(LCD)

Model

SK0001

SK0002

SK0003

SK0004

SK0005

SK0006

Control Mode

PID microcomputer processing chip

Cycle Mode

Forced convection

Shaking mode

Convolution

Display mode

LCD liquid crystaldisplay

Drive Mode

Multidimensional drive

3 Axes

4 Axes

USB data download

system

Yes(optional)

Control system

（Standard mode; continuous mode, programmable mode(multi-stage temperature, speed, time control)

Rotary speed

range(rpm)

0, 20-350(can do static training, forward and reverse)

0, 20-280(can do static training, forward and reverse)

Rotary accuracy(rpm)

±1

Amplitude(mm)

ᶲ26(customizable) ᶲ35(20-250rpm/min).ᶲ50(20-2000rpm/min)

Max Capacity(clamp)

100ml*60 or 250ml*38 or 500ml*22 or 1L*16

100ml*100 or 250ml*56 or500ml*44 or 1L*24

250ml*90 or 500ml*72 or1000ml*42

Max Capacity(stickmat)

100ml*60 or 250ml*36 or 500ml*24 or 1L*16

100ml*120 or 250ml*70 or500ml*44 or 1L*24

250ml*112 or 500ml*76 or1000ml*42

Standard configuration

250ml*24

250ml*28  500ml*22

250ml*45  500ml*36

Plate size(mm)

500*360

710*455

950*550

Timer range(h/min)

0-9999(with timing function)

Temp range(C)

Ambient

temperature+5-65

4-65(25C)

Ambient

temperature+5-65

4-65(25C)

Ambient

temperature+5-65

4-65(25C)

Temp accuracy

±0.1

Temp uniformity

±0.5（37℃）

Temp motion

≤0.1（37℃）

Tray Quantity

(2 pieces)

External size

700*580*1280

950*700*1280

1200*800*1630

Capacity(L)

175 L

335 L

580 L

Power(W)

600

850

900

1150

1100

1400

Power supply

AC220V/50Hz

Ambient temp(C)

5-30

Additional function

Ultra-low start, adjustable start speed, automatic overspeed protection, watchdog timer, parameter memory, call recovery, refrigeration unit overload protection and call delay start, automatic defrost, upper and lower limit over temperature sound and light alarm, automatic stop when the door is opened (optional ), with lighting, ultraviolet disinfection function (optional), setting parameter view, monitoring temperature and correction of ambient temperature. Touch screen (optional)

Applications & Industries

  • Microbial and fermentation culture research

  • Cell and tissue culture incubation

  • Protein expression and enzyme studies

  • Pharmaceutical and biotechnology process development

  • Industrial and academic R&D requiring precise temperature control and orbital mixing

FAQ

Q1: Can the shaker support low-speed operation for fragile cultures?
A1: Yes, it features ultra-low startup speeds (from 10 rpm) with smooth acceleration to prevent shear damage.

Q2: Is temperature control accurate enough for enzymatic and cell research?
A2: Absolutely – the PID controller maintains ± 0.1 °C precision and ± 0.5 °C uniformity throughout the chamber.

Q3: What safety features are included?
A3: Overspeed, over-temperature, refrigeration overload and power-failure protection with memory recovery are built in.

Q4: Can the unit be customised for different flask sizes or amplitudes?
A4: Yes, flask holders and amplitudes are customisable to fit specific culture needs.

Q5: Is data logging available?
A5: Yes, optional USB data export enables operation recording and monitoring for GLP documentation.
