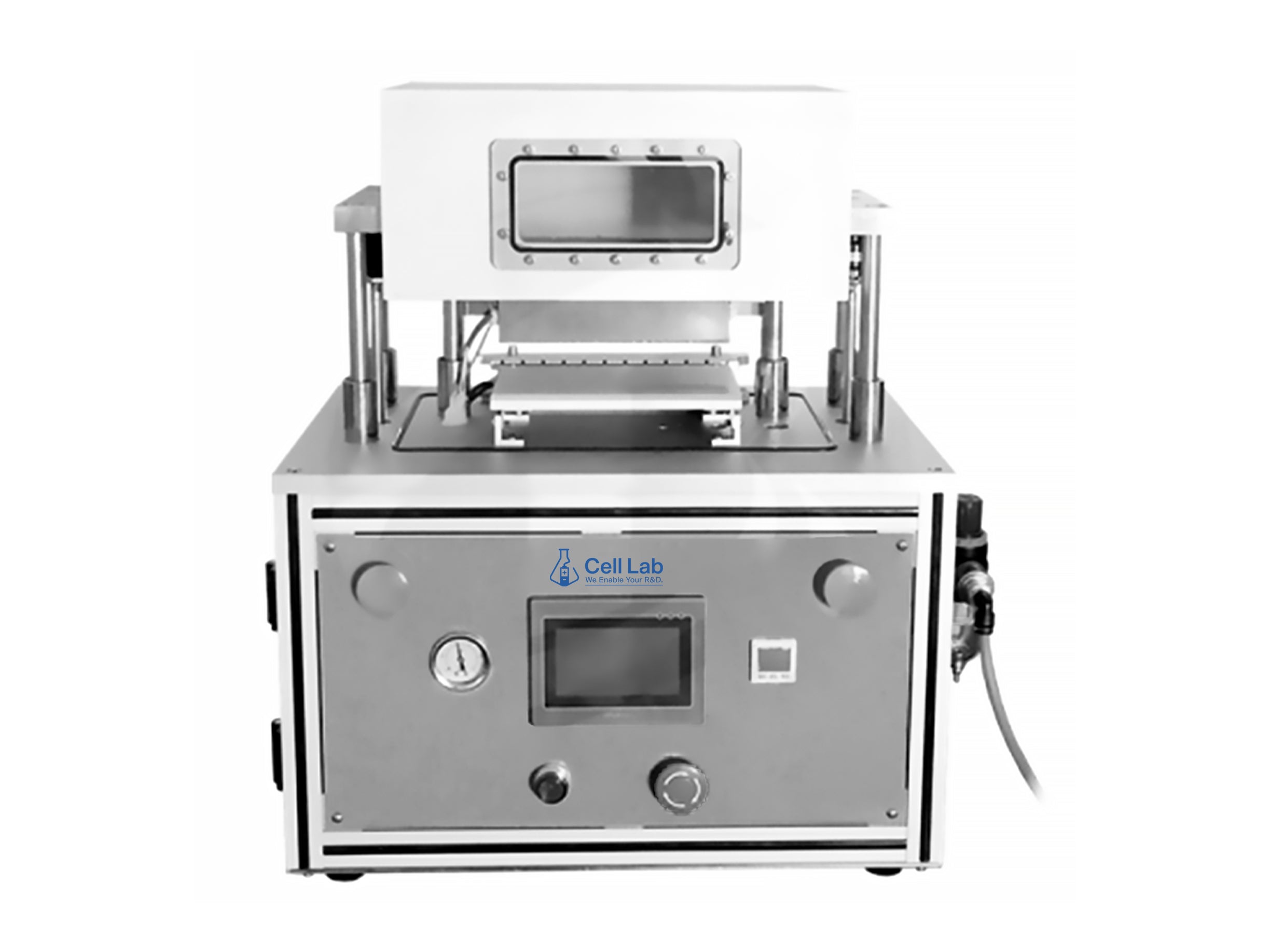

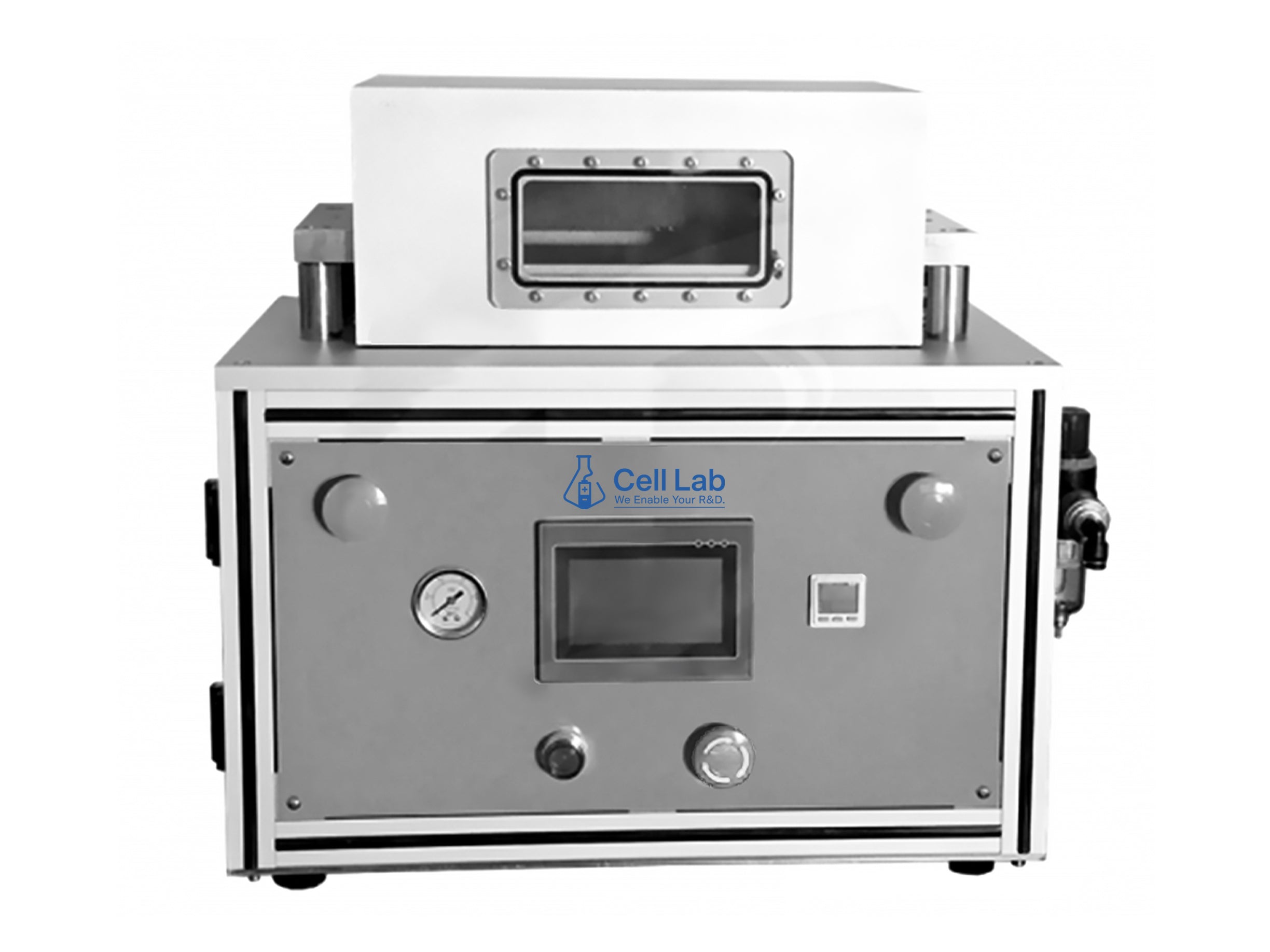

Cell Lab Vacuum Heat Sealer for Pouch Cell [Battery Heat Sealing Machine for Secondary Electrolyte Sealing]

Compact, precision-controlled vacuum sealer for post-electrolyte sealing in lithium-ion pouch cell R&D

The Cell Lab Vacuum Heat Sealer for Pouch Cells is a high-precision benchtop sealing system engineered for secondary sealing after electrolyte injection in lithium-ion battery assembly. Designed for laboratory and pilot-scale applications, it combines accurate temperature control, uniform heat distribution, and adjustable sealing pressure to ensure consistent, airtight, and contamination-free seals.

Its durable construction, reliable heating module, and compact design make it ideal for research environments focused on pouch cell prototyping and electrolyte sealing. Optional configurations and vacuum pumps are available upon request to accommodate diverse experimental needs.

Key Features

  • Precise Temperature Control (up to 250 °C) – Delivers ±1.5 °C accuracy for uniform and reliable sealing results.

  • Adjustable Sealing Pressure (0–7 kg/cm²) – Provides full control for different pouch materials and electrolyte conditions.

  • Compact Benchtop Design – Space-efficient and easy to integrate into laboratory-scale R&D lines.

  • Optimised for Secondary Sealing – Specially designed for post-electrolyte injection sealing of lithium-ion pouch cells.

  • Customisable Configuration – Optional models, sealing lengths, and vacuum systems available upon request.

Specifications:

    Parameter Specification
    Maximum Sealing Length 200 mm
    Sealing Width 5 mm
    Vacuum Level Max. -90 kPa (vacuum pump not included)
    Heating Temperature Room temperature to 250°C
    Temperature Accuracy ±1.5°C
    Sealing Pressure 0 – 7 kg/cm² (adjustable)
    Heating Time 0 – 99 seconds (adjustable)
    Voltage 220 V / 50 Hz
    Power 800 W
    Dimensions (L × W × H) 510 × 350 × 500 mm
    Net Weight 55 kg

    Applications & Industries

    • Lithium-ion and solid-state pouch cell R&D

    • Secondary sealing after electrolyte filling

    • Pilot-scale battery production and prototyping

    • Material integrity testing under vacuum conditions

    • Electrochemical research and assembly laboratories

    FAQ

    Q1: What is the main function of this machine?
    A1: It performs secondary vacuum heat sealing of pouch cells after electrolyte injection to ensure airtight sealing and prevent leakage.

    Q2: Does it include a vacuum pump?
    A2: The standard model does not include a vacuum pump, but compatible pumps are available upon request.

    Q3: What is the maximum sealing temperature?
    A3: Up to 250 °C, with precise ± 1.5 °C temperature control.

    Q4: Can the sealing pressure be adjusted?
    A4: Yes. The pressure is adjustable between 0 – 7 kg/cm² to suit different pouch film materials.

    Q5: Is this suitable for research and small-scale production?
    A5: Absolutely. It’s ideal for laboratory and pilot-line environments focusing on electrolyte sealing and quality testing.
