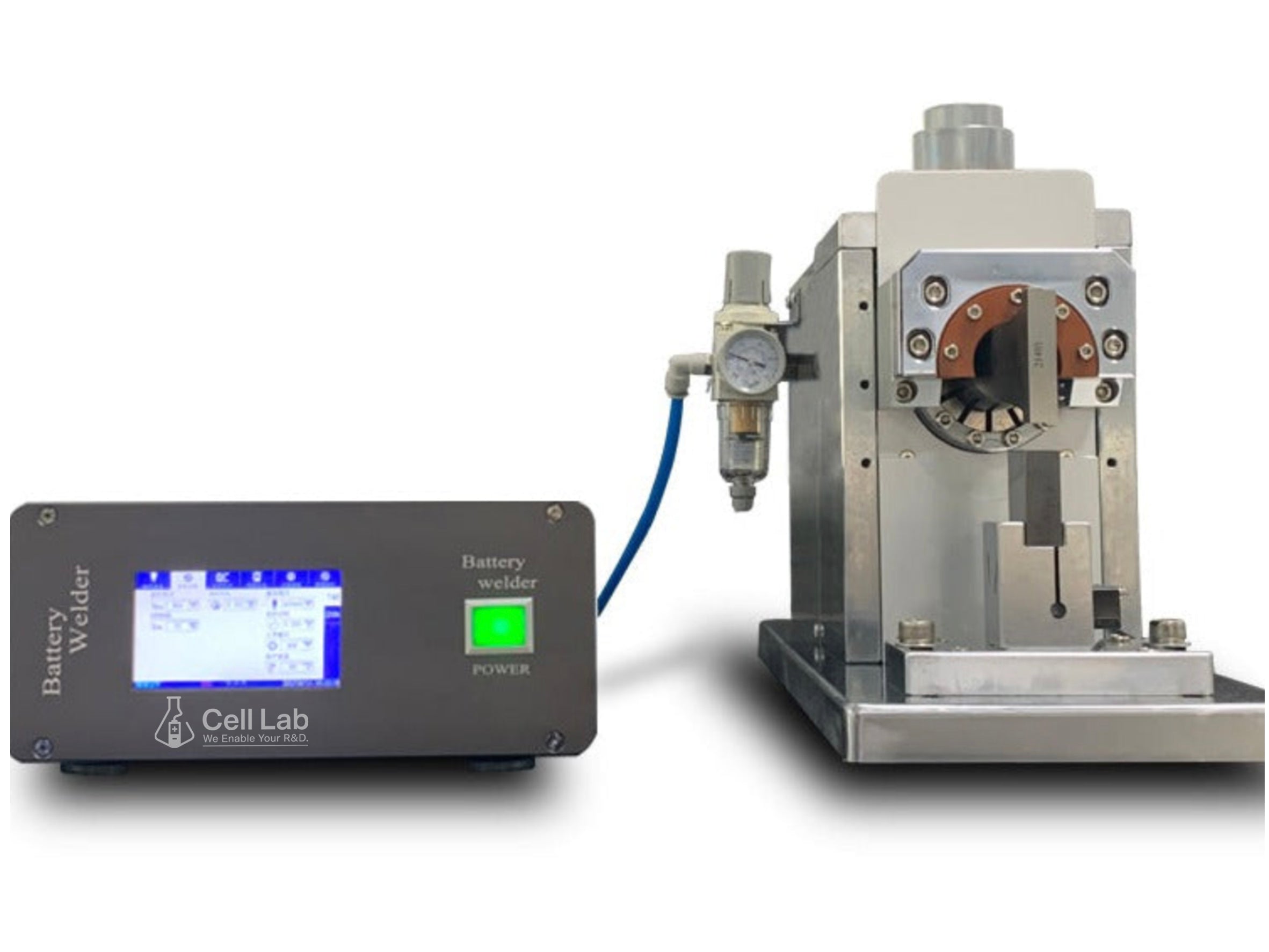

Cell Lab ultrasonic spot welding machine (40 kHz, 800 W) for Cu and Al tab joining is glovebox-compatible and offers fast 0.2 s welding cycles, precise pressure control, and 1.5 million-weld durability for battery R&D.
Cell Lab ultrasonic spot welding machine (40 kHz, 800 W) for Cu and Al tab joining is glovebox-compatible and offers fast 0.2 s welding cycles, precise pressure control, and 1.5 million-weld durability for battery R&D.

Cell Lab Ultrasonic Spot Welding Machine [Glovebox-Compatible | 40 kHz High-Frequency Welder | Cu & Al Tab Battery Welding]

Cell Lab Ultrasonic Spot Welding Machine [Glovebox-Compatible | 40 kHz High-Frequency Welder | Cu & Al Tab Battery Welding] Precision ultrasonic spot welder for copper and aluminium tab joining in lithium battery research The Cell Lab Ultrasonic Spot Welding Machine...
Vendor: Cell Lab
SKU: CL0118
Product type: Battery Equipment
£15,490.00
£15,490.00
Subtotal: £15,490.00
Description
Description
x

Cell Lab Ultrasonic Spot Welding Machine [Glovebox-Compatible | 40 kHz High-Frequency Welder | Cu & Al Tab Battery Welding]

Precision ultrasonic spot welder for copper and aluminium tab joining in lithium battery research

The Cell Lab Ultrasonic Spot Welding Machine is a compact, high-frequency system engineered for precision electrode tab welding in lithium-ion and solid-state battery development. Designed for glovebox integration, it enables reliable ultrasonic welding of copper and aluminium foils with excellent bonding strength and minimal heat-affected zones. Its stable 40 kHz frequency and 800 W output ensure clean, repeatable welds for pouch-cell, prismatic, and cylindrical formats — making it an essential tool for laboratory-scale cell assembly and pilot-line research.

Key Features

  • Glovebox-Compatible Design: Compact dimensions allow seamless installation inside inert-gas gloveboxes.

  • High-Frequency Ultrasonic Welding: Operates at 40 kHz for strong, uniform welds on aluminium and copper tabs.

  • Adjustable Power and Pressure: 800 W ultrasonic output with tunable gas pressure for diverse material combinations.

  • Fast and Reliable Operation: Welding completes within 0.2 s; welding head lifespan up to 1.5 million cycles.

  • Wide Material Compatibility: Supports Al and Cu foil thickness of 0.012 – 0.018 mm and up to 20 layers.


Technical Specifications：

Parameter Specification
Power 220V AC, Single Phase
Ultrasonic Frequency 40 kHz
Ultrasonic Power 800 W (customisable for tab layers)
Gas Pressure 0.4 – 0.6 MPa, Adjustable
Welding Time ≤ 0.2 s, Adjustable
Welding Area 4 x 4 mm²
Welding Point Single
Tab Materials (Al / Cu) 0.012 – 0.018 mm, ≤ 20 Layers
Welding Tensile Strength ≥ 25 N
Welding Head Lifetime 1.5 Million Welds
Dimensions (L x W x H) Generator: 480 x 365 x 202 mmWelder Head: 420 x 180 x 290 mm
Weight Total: 50 kgControl Unit: ~15 kgWelder Head: ~35 kg

Optional Configurations: Multiple-point heads, integrated data-logging control, and custom fixture designs available upon request.

Applications & Industries

  • Lithium-ion and solid-state battery electrode tab welding

  • Pouch cell and cylindrical cell assembly lines

  • Laboratory R&D and pilot-scale production

  • Copper / aluminium foil current collector bonding

  • Battery pack prototyping and materials testing

FAQ

Q1: What materials can this machine weld?
It is optimised for aluminium and copper electrode tabs up to 20 layers thick.

Q2: Is it suitable for use inside a glovebox?
Yes. Its compact design and low heat generation make it ideal for argon-filled environments.

Q3: How long is the welding cycle?
Each weld takes approximately 0.2 seconds for fast and efficient operation.

Q4: What is the expected lifetime of the welding head?
Up to 1.5 million welds under standard operating conditions.

Q5: Can the power and pressure be adjusted?
Yes. Both parameters are manually adjustable for different foil thicknesses and tab structures.
