Cell Lab Top-Side Heat Sealing Machine for Pouch Cell [Battery Aluminium Film Sealing Machine for Pre-Electrolyte Applications]

Cell Lab Top-Side Heat Sealing Machine for Pouch Cell [Battery Aluminium Film Sealing Machine for Pre-Electrolyte Applications] Precision-controlled pouch cell top heat sealer for aluminium-laminated film encapsulation The Cell Lab Top-Side Heat Sealing Machine is a precision-engineered benchtop system designed...
Vendor: Cell Lab
SKU: CL0065
Product type: Battery Equipment
£2,999.00
£2,999.00
Subtotal: £2,999.00
Description
Description
x

Cell Lab Top-Side Heat Sealing Machine for Pouch Cell [Battery Aluminium Film Sealing Machine for Pre-Electrolyte Applications]

Precision-controlled pouch cell top heat sealer for aluminium-laminated film encapsulation

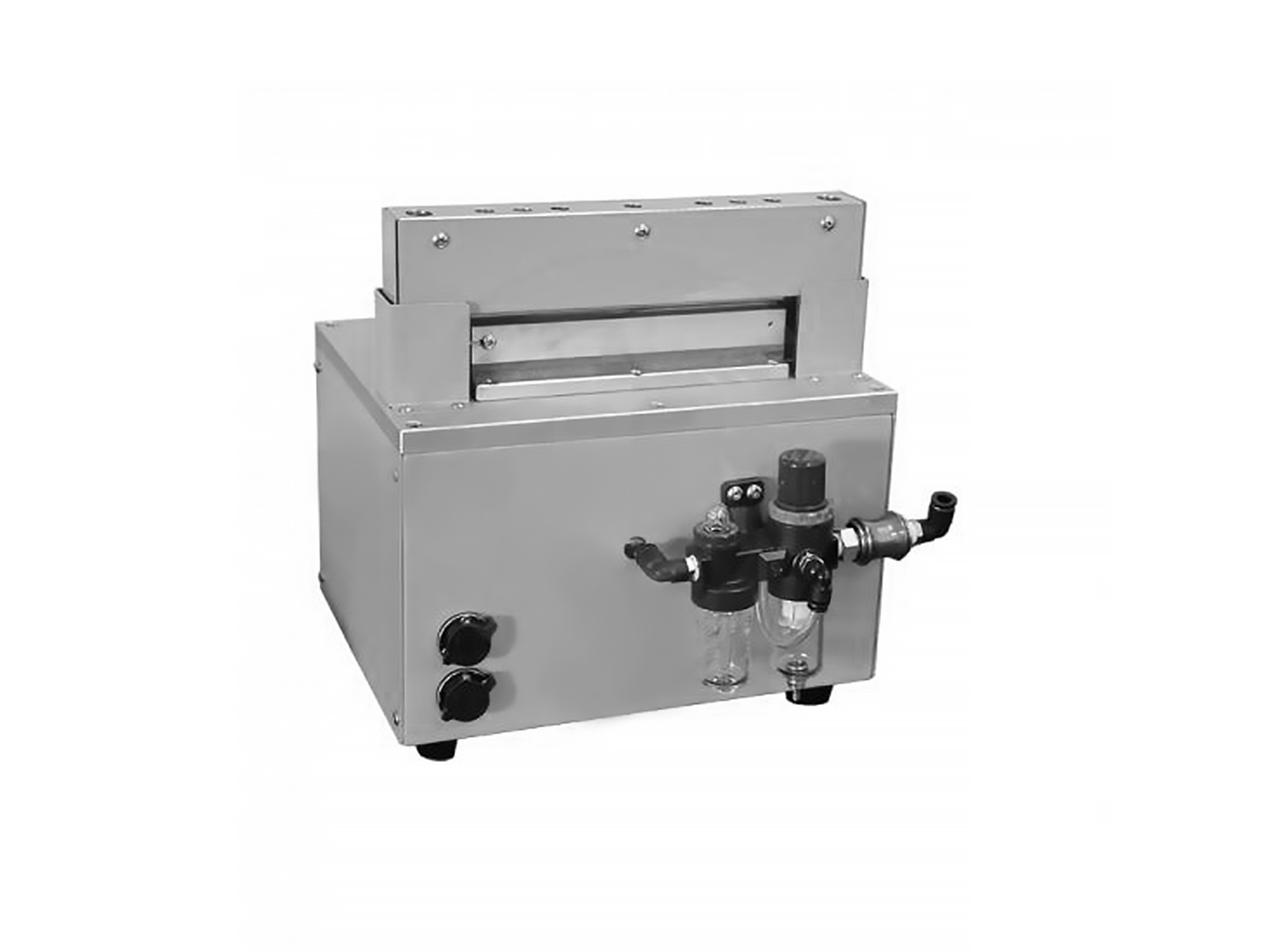

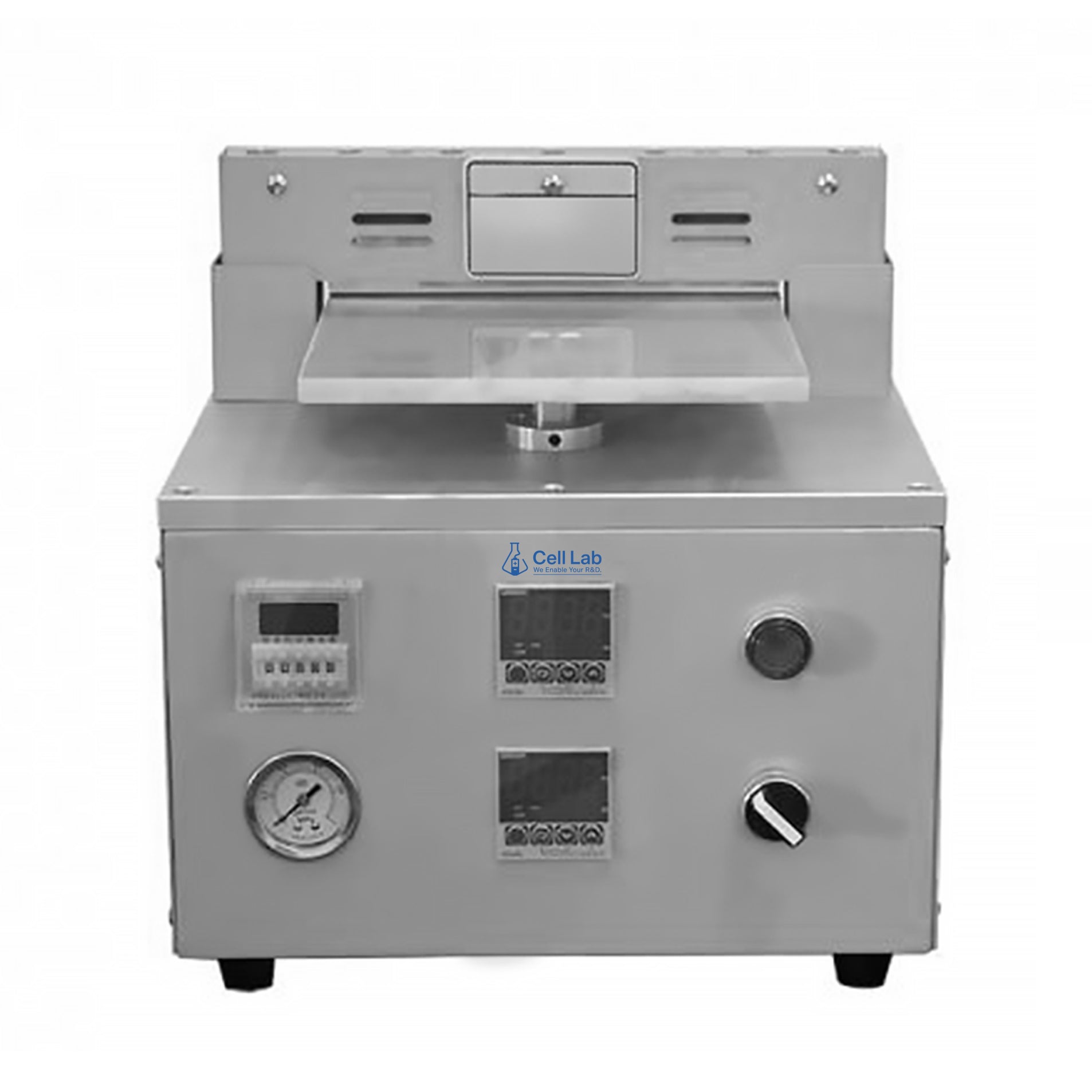

The Cell Lab Top-Side Heat Sealing Machine is a precision-engineered benchtop system designed for sealing aluminium-laminated film pouch cells before electrolyte injection. Built for laboratory and pilot-scale production, this compact unit offers high sealing uniformity, reliable temperature control, and adjustable sealing pressure to ensure consistent, leak-free seals across different pouch materials and film thicknesses.

Equipped with a soft sealing blade to prevent puncture and thermal deformation, this system delivers smooth, airtight adhesion suitable for pre-electrolyte pouch preparation, material testing, and prototype cell assembly.

Key Features

  • High-Precision Temperature Control (RT–250 °C) – Ensures stable, uniform heating across the sealing surface.

  • Adjustable Sealing Pressure (0.5–0.7 MPa) – Provides fine control for different aluminium film thicknesses and cell formats.

  • Soft Sealing Blade Design – Prevents film damage or puncture while maintaining strong adhesion.

  • Compact & User-Friendly Design – Ideal for benchtop use in research, prototyping, and pilot production.

  • Pre-Electrolyte Sealing Optimisation – Specially developed for pouch closure before electrolyte filling.

Specifications:

    Parameter Value
    Sealing Head Length 200 mm (customisable)
    Sealing Stamp Width 6 mm (customisable)
    Sealing Thickness 0.15–0.3 mm (depends on Al film)
    Sealing Pressure 0.5–0.7 MPa (adjustable)
    Sealing Blade Soft sealing blade
    Sealing Temperature RT–250 °C, ±2 °C
    Sealing Time 0–99 s (adjustable)
    Power Consumption 600 W
    Voltage 220 V, 50 Hz
    Net Weight 40 kg
    Dimensions (L × W × H) 310 × 240 × 380 mm

    Applications & Industries

    • Lithium-ion pouch cell sealing and lamination

    • Pre-electrolyte top and side sealing operations

    • R&D and pilot-line battery production

    • Flexible aluminium-laminated film encapsulation

    • Quality control and battery prototyping laboratories

    FAQ

    Q1: What stage of pouch cell assembly is this sealer used for?
    A1: It’s primarily used for top and side sealing before electrolyte filling during pouch cell assembly.

    Q2: How is film damage avoided during sealing?
    A2: The soft sealing blade design distributes heat evenly and prevents puncture or excessive compression.

    Q3: What is the maximum sealing temperature?
    A3: Up to 250 °C, with precise ±2 °C temperature accuracy.

    Q4: Can sealing time and pressure be adjusted?
    A4: Yes. Both parameters are fully adjustable to suit various aluminium film types and cell configurations.

    Q5: Is this suitable for laboratory environments?
    A5: Absolutely. Its compact benchtop design and user-friendly interface make it ideal for research and small-scale production.
