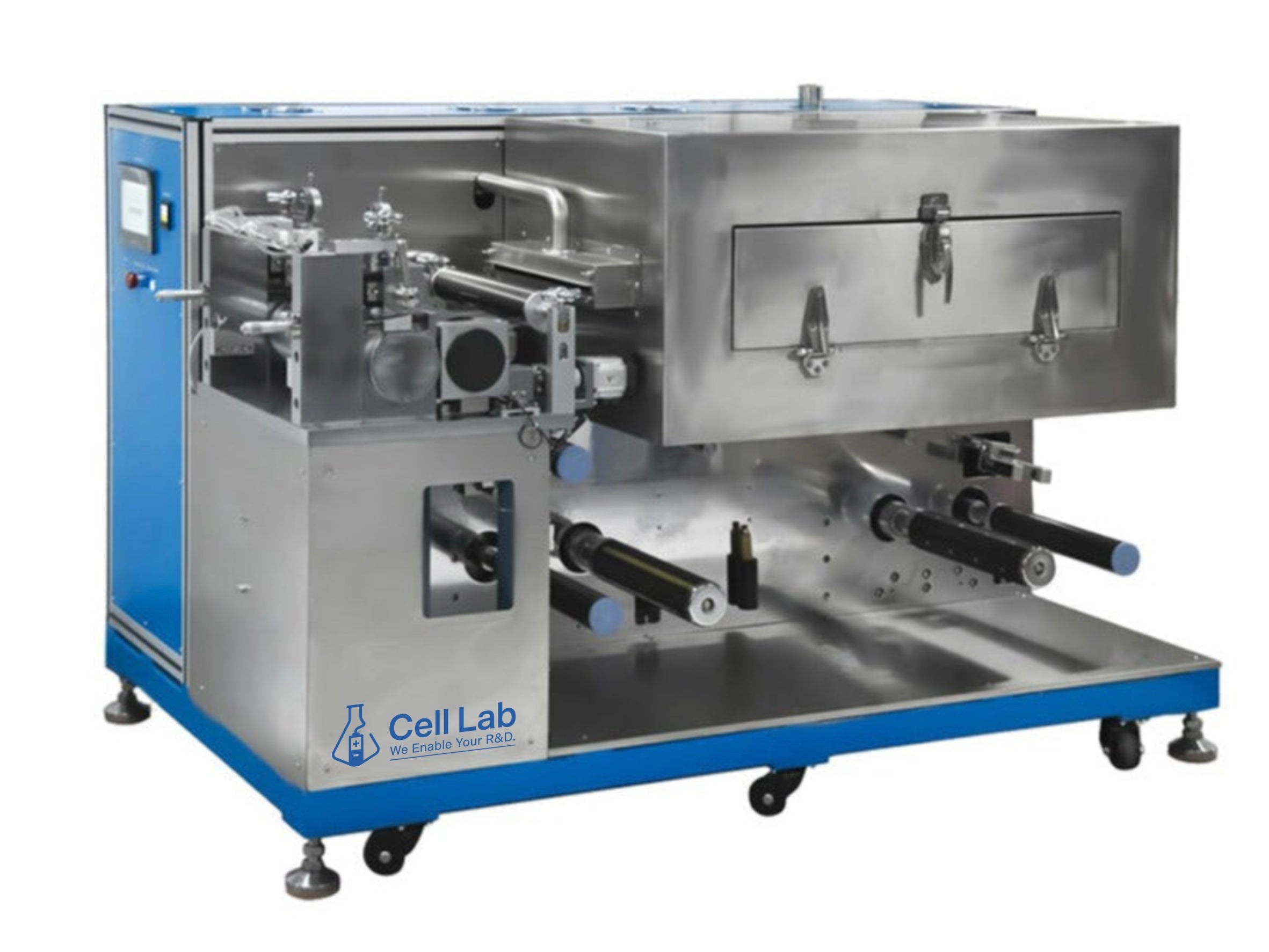

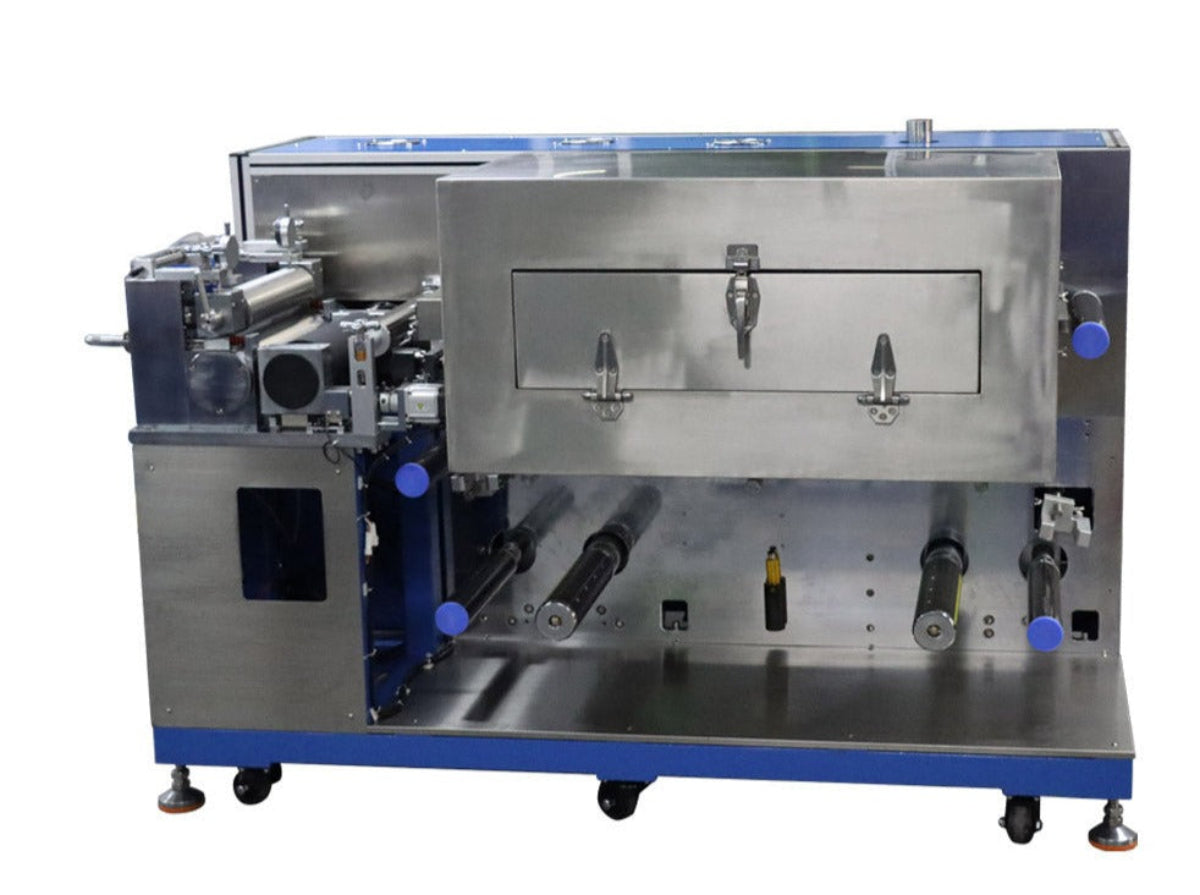

xCell Lab Three-Roll Transfer Coating Machine [Precision Battery Electrode Coating System | Customisable Width & High-Accuracy Control]
Versatile, high-precision coating solution for lithium-ion and solid-state battery electrode fabrication
The Cell Lab Three-Roll Transfer Coating Machine is a professional-grade coating system engineered for R&D and pilot-scale electrode production. Designed to handle both aluminium and copper foils up to 330 mm wide, it delivers exceptional coating uniformity and reproducibility across a range of electrode chemistries including LFP, LCO, LMO, graphite, and Si-C. With continuous and intermittent coating capabilities, PLC-based touchscreen control, and a modular design that supports integration with custom drying ovens or tension systems, it is an ideal choice for laboratories and advanced material research centres developing next-generation batteries.
Key Features
-
Dual Coating Modes: Supports both continuous and intermittent coating operations for flexible experimental setups.
-
High-Precision Scraper Mechanism: Ensures consistent coating thickness and film uniformity across substrates.
-
PLC Touchscreen Control: Intuitive interface for setting coating speed, gap, and process parameters with real-time monitoring.
-
Fully Customisable Design: Coating width, drying modules, and process configuration can be tailored to specific research needs.
-
Wide Material Compatibility: Suitable for cathode and anode slurry systems including LFP, LCO, LMO, graphite, and silicon-carbon composites.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Power Supply | Three Phase 380V / 50Hz / 10kW |
| Roll Surface Width | 300 mm |
| Maximum Coating Width | ≤ 260 mm |
| Maximum Substrate Width | ≤ 330 mm (Al & Cu foil) |
| Substrate Thickness | Aluminium foil: 11–30 μm / Copper foil: 9–30 μm |
| Dry Thickness (Single-Coated) | 20–150 μm (depends on slurry viscosity) |
| Slurry Viscosity | 2000–12000 mPa·s |
| Coating Method | Continuous and intermittent |
| Drying Oven | Optional (length, section number & temp. customisable) |
| Dimensions (L × W × H) | 1800 × 1300 × 1200 mm |
| Suitable Systems | LFP, LCO, LMO, graphite, Si-C battery electrode coating |
| Net Weight | ~1.2 T (depends on configuration) |
Optional Upgrades: Multi-zone drying ovens, servo tension control, dual-head coating modules, and automated unwinding/rewinding systems available upon request.
Applications & Industries
-
Lithium-ion and solid-state battery electrode fabrication
-
Precision coating of anode/cathode materials
-
Pilot-scale battery R&D and prototyping
-
Slurry formulation testing and materials research
-
Thin-film coating for advanced energy storage technologies
FAQ
Q1: What materials can be coated?
Compatible with aluminium and copper foils used in LFP, LCO, NCM, graphite, and Si-C electrodes.
Q2: Can the coating width or oven length be customised?
Yes. Both coating width and drying-oven specifications can be fully configured to meet your process requirements.
Q3: What coating precision can be achieved?
The system supports film-thickness control down to ±3 µm, depending on slurry viscosity and coating parameters.
Q4: Is the coating mode adjustable during operation?
Yes. The user can switch between continuous and intermittent coating through the PLC interface.
Q5: Does the machine support automated tension control?
Optional servo tension-feedback modules can be integrated for consistent substrate feeding and superior coating quality.
