xCell Lab Three-Layer Automatic Vacuum Oven [Programmable Vacuum Drying System | High-Precision Temperature Control | Pilot-Scale Battery Baking]
Advanced multi-chamber vacuum drying oven for lithium-ion electrode and material processing

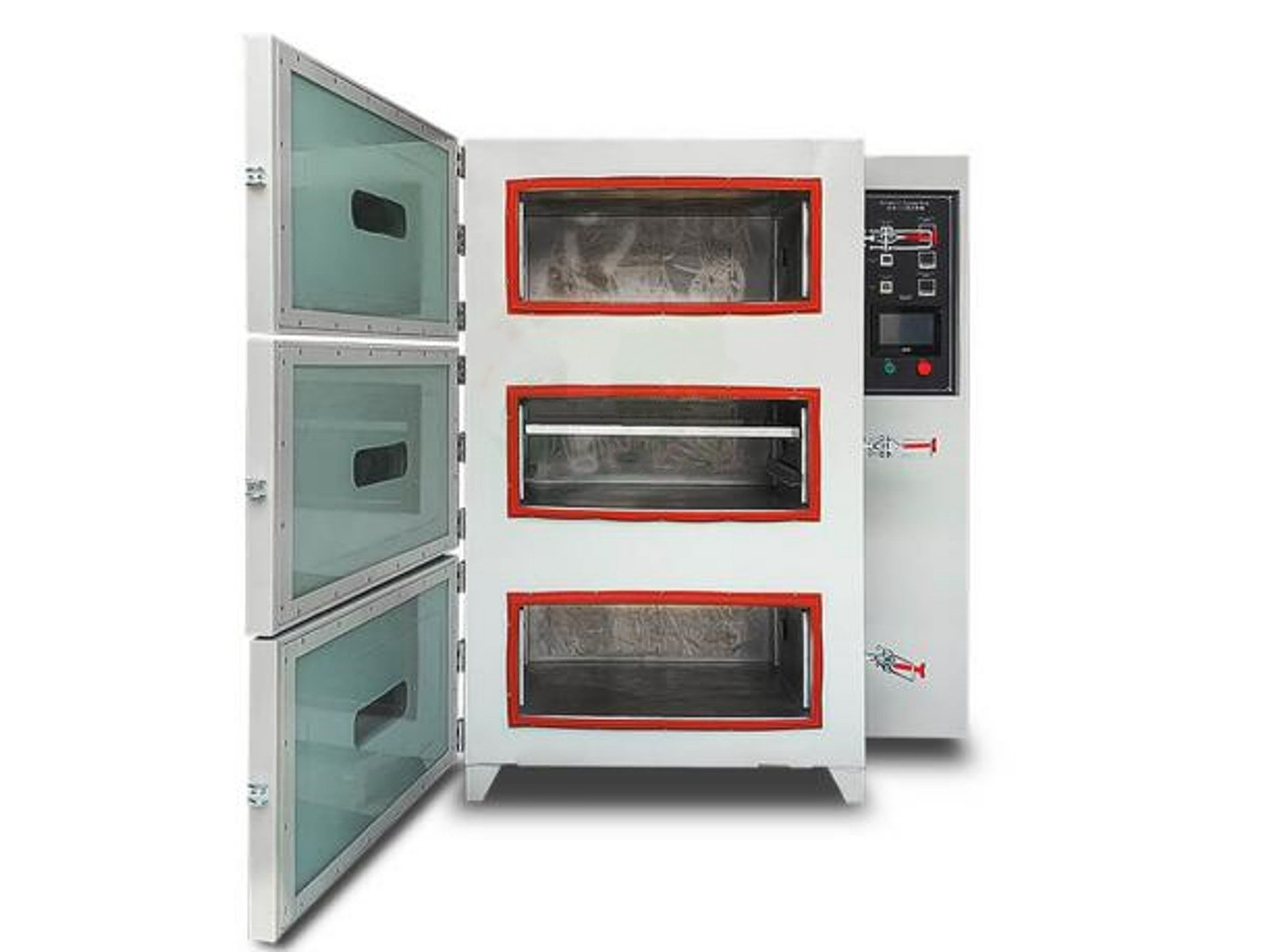

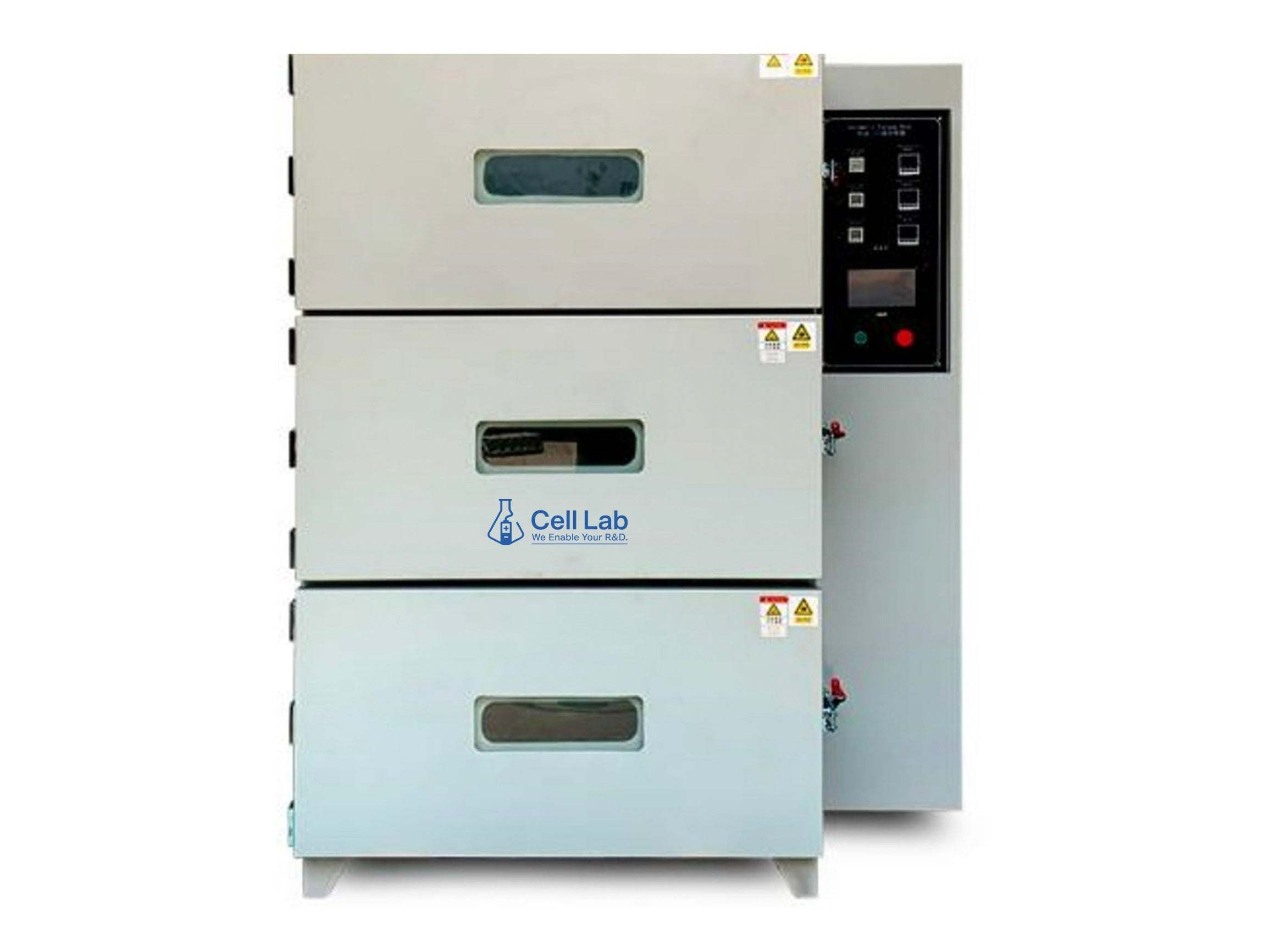

The Cell Lab Three-Layer Automatic Vacuum Oven is a high-performance system specifically designed for vacuum drying of lithium-ion battery materials, electrode sheets, and other advanced functional materials. Featuring three independent vacuum chambers with separate solenoid valve control and PID temperature regulation, it enables efficient, uniform, and contamination-free drying across layers. The intuitive 7.0″ LCD touchscreen allows programmable control of both temperature and pressure, ensuring stable and precise baking under vacuum conditions. Ideal for R&D laboratories and pilot-scale battery production lines, it delivers industrial-grade reliability and reproducibility.
Key Features
-
Three Independent Chambers: Each layer has its own vacuum port, solenoid valve, and temperature control for flexible, simultaneous multi-batch drying.
-
High Thermal Uniformity: 90 mm aluminium-silicate fibre insulation ensures outstanding temperature stability and energy efficiency.
-
Smart Vacuum & Temperature Control: 7.0″ touchscreen interface allows programmable pressure and temperature regulation with ±1 °C accuracy.
-
Comprehensive Safety System: Equipped with air-switch circuit breaker, overcurrent protection, and temperature overrun safeguard.
-
Industrial-Grade Durability: SUS304 stainless-steel inner chamber with CE-compliant construction for long-term operational integrity.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Power Supply | 380V / 50Hz, Three Phase |
| Power | 4.5kW × 3 (Each Layer) |
| Maximum Current | 20A |
| Working Chamber Size (H × W × D) | 300 × 800 × 600 mm × 3 (Three Layers) |
| Insulation Layer | 90mm Aluminium Silicate Fibre |
| Temperature Range | RT +15°C to 200°C (±1°C) |
| Temperature Control | PID Adjustment with Digital Display |
| Vacuum Degree | ≤100 Pa |
| Inner Chamber Material | SUS304 Stainless Steel |
| External Dimensions (L × W × H) | 1490 × 970 × 1810 mm |
| Weight | 400 kg |
Optional: Custom chamber dimensions, vacuum-pump systems, and automated purge control modules available upon request.
Applications & Industries
-
Lithium-ion and solid-state battery electrode drying
-
Powder and slurry material dehydration under vacuum
-
Laboratory and pilot-scale R&D processing
-
Post-coating electrode moisture removal
-
Advanced materials research requiring uniform thermal control
FAQ
Q1: What advantages does the three-layer design offer?
It allows independent operation of each chamber for parallel drying cycles, improving efficiency and flexibility.
Q2: How precise is the temperature control?
The PID controller maintains ±1 °C accuracy, ensuring repeatable drying conditions.
Q3: What level of vacuum can be achieved?
Each chamber maintains ≤ 100 Pa vacuum degree under normal operating conditions.
Q4: Can this oven be integrated with an external vacuum pump?
Yes. Cell Lab offers compatible vacuum-pump systems and full integration support.
Q5: Is the oven suitable for pilot-scale production lines?
Absolutely. Its multi-chamber, programmable architecture is ideal for R&D and small-batch production environments.
