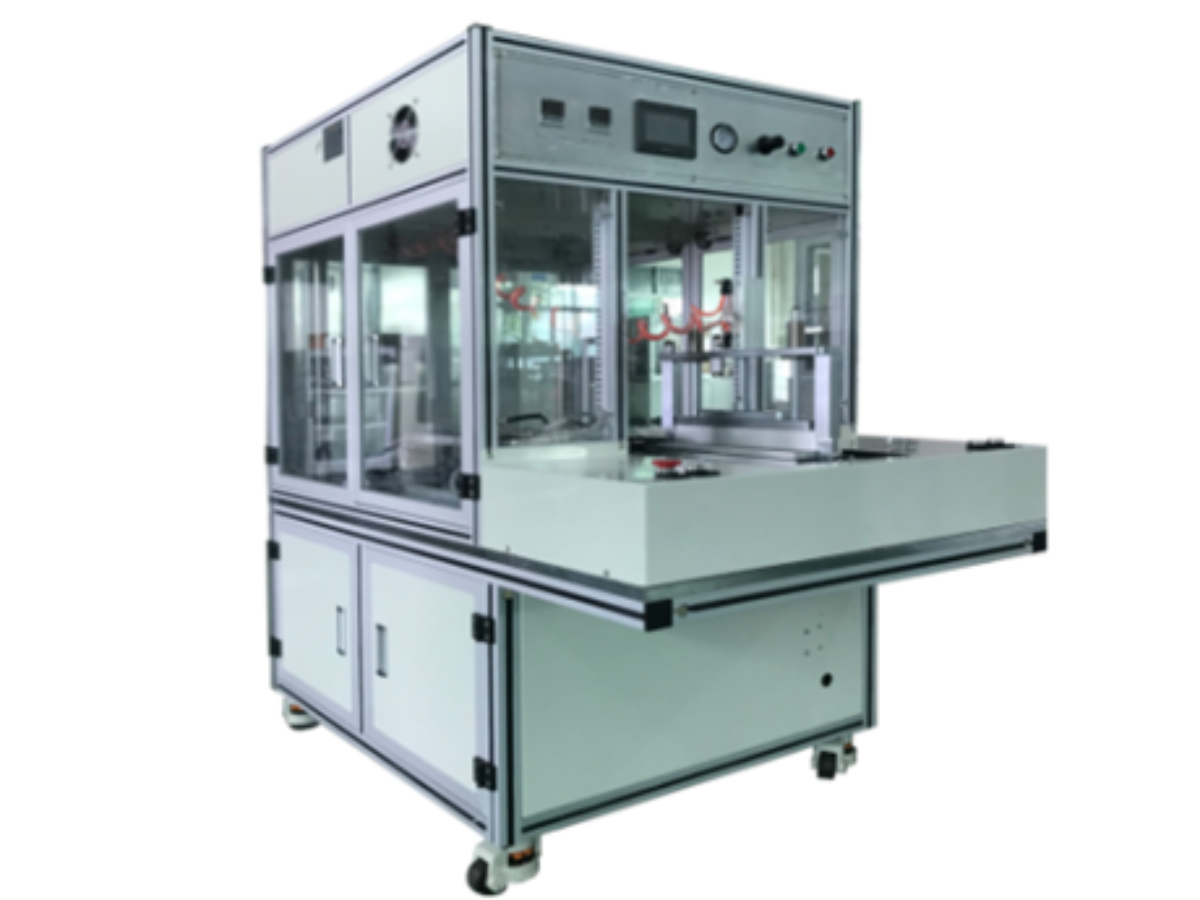

xCell Lab Three-in-One Battery Edge Trimming, Folding & Heating System [Precision Polymer Pouch Cell Processing]
Integrated edge trimming, folding and thermal forming in one automated workstation
The Cell Lab™ Three-in-One Battery Edge Trimming, Folding & Heating System provides an all-in-one solution for high-precision processing of polymer lithium pouch cells. Combining cutting, folding and heat-forming in a single automated flow, this unit ensures clean edge finish, consistent folds and uniform thermal sealing.
Batteries are automatically conveyed through three synchronised processing zones—edge trimming, folding & heating, and finished-cell discharge—enabling seamless integration into pilot or small-scale production lines. The robust structure, fine-tuned mechanics and programmable control deliver excellent repeatability, high throughput and contamination-free results for R&D and quality-critical cell manufacturing.
Key Features
• Three-in-One Integrated Operation
Performs trimming, edge folding and thermal sealing sequentially under automated control, reducing manual handling and improving production efficiency.
• Precision Cutting Mechanism
Utilises a high-precision circular blade (HRC ≥ 58°) with cutting accuracy of ±0.10 mm and knife parallelism ≤ 0.05 mm for clean, burr-free edges.
• Controlled Heating and Forming
Adjustable heating range from RT to 200 °C with copper die parallelism ≤ 0.1 mm ensures stable sealing and uniform folding quality.
• Flexible Battery Compatibility
Supports polymer lithium battery dimensions from L 15–300 mm, W 12–250 mm and T 3–12 mm, accommodating a broad range of R&D and prototype cell formats.
• Advanced Safety & Reliability
Features automatic interlocks, overload protection and precision alignment systems to guarantee operational stability and user safety.
Specifications:
| Model | CL0029 |
|---|---|
| Power Supply | AC220V, 50Hz, single-phase (customisable by region) |
| Rated Power | 1.8 KW |
| Air Supply Requirement | 0.68 MPa, 5 L/min |
| Cutting Method | High-precision circular blade |
| Supported Battery Size | L 15–300 mm / W 12–250 mm / T 3–12 mm |
| Folding Edge Thickness | 0.19–0.3 mm |
| Cutting Accuracy | ±0.10 mm |
| Knife Parallelism | ≤ 0.05 mm |
| Blade Hardness | HRC ≥ 58° |
| Blade Lifetime | Up to 1,000,000 cycles (with periodic sharpening) |
| Heating Range | RT to 200°C (adjustable) |
| Copper Die Parallelism | ≤ 0.1 mm |
| Overall Dimensions | 1530 × 900 × 1585 mm (L×W×H) |
| Machine Weight | 300 kg |
| Warranty | 1-year limited warranty with lifetime support |
Applications & Industries
-
Polymer lithium-ion and solid-state battery pouch cell processing
-
Pilot-scale R&D lines for battery trimming, folding and heat-sealing
-
Custom battery prototyping and small-batch precision manufacturing
-
Academic and industrial laboratories developing next-generation pouch cells
FAQ
Q1: What advantages does a three-in-one system offer over separate machines?
A1: It integrates trimming, folding and heating into a continuous automated cycle, improving alignment precision and reducing process time.
Q2: Can it handle varying pouch thicknesses?
A2: Yes. Adjustable tooling accommodates thicknesses from 3 mm to 12 mm with stable fold consistency.
Q3: How long does the blade last before replacement?
A3: Each blade endures up to 1 million cycles with routine sharpening.
Q4: Is heating temperature programmable?
A4: Yes — the PID-controlled heating range is adjustable between room temperature and 200 °C.
Q5: Can the system be integrated into a full production line?
A5: Absolutely. It supports automated conveying interfaces for continuous pouch cell processing and in-line QC systems.
