Cell Lab Temperature & Humidity Test Chamber [80L, −40 to 130°C]

Compact environmental test chamber for high–low temperature, humidity cycling and reliability testing of battery cells and electronic components.

General Description

The Cell Lab Temperature & Humidity Test Chamber is designed for environmental reliability testing under controlled high-temperature, low-temperature and damp heat conditions. It is widely used for performance evaluation and durability testing of battery cells, electronic components, materials and assemblies subjected to temperature variation and humidity stress.

With precise temperature and humidity control, uniform air circulation and stable long-term operation, this chamber provides a reliable simulation environment for IEC-standard environmental testing. Its compact 80 L effective volume makes it particularly suitable for laboratory research, battery R&D, quality inspection and pilot-scale testing.

Key Features

• Wide temperature and humidity control range – Supports −40 °C to +130 °C and 20–98% RH for comprehensive environmental simulation.
• High control accuracy and uniformity – Stable temperature and humidity control with low fluctuation and excellent spatial uniformity.
• IEC standard compliance – Designed in accordance with IEC 60068 series environmental testing standards.
• Robust chamber structure – Stainless steel inner chamber with thick PU insulation for long-term stability and safety.
• Comprehensive safety protection – Multiple protection mechanisms for over-temperature, pressure balance, electrical safety and system diagnostics.

Technical Specifications

Volume & Dimensions

Item Specification
Effective volume 80 L
Inner dimensions (W × H × D) 400 × 500 × 400 mm
Overall dimensions (W × H × D) 650 × 1650 × 1270 mm
Power supply 220V / 50Hz, single phaseTotal weight
Remark Exact overall dimensions refer to final design drawing

Performance (No Load)

Item Specification
Operating condition Ambient temperature +5 °C to +35 °C; ≤85% RH
Temperature range −40 °C to +130 °C
Humidity range 20% RH – 98% RH
Temperature fluctuation ±0.5 °C
Humidity fluctuation ±2% RH
Temperature deviation ≤2.0 °C
Humidity deviation ≤+2% / −3% RH (≥75% RH); ≤±5% RH (≤75% RH)
Temperature uniformity ≤±2.0 °C
Humidity uniformity +2% / −3% RH
Heating rate 1–3 °C/min, non-linear, without load
Cooling rate 1 °C/min, non-linear, without load
Noise level ≤70 dB(A)

Standards Compliance

  • IEC 60068-2-1:2007 – Environmental testing, Test A: Cold

  • IEC 60068-2-2:2007 – Environmental testing, Test B: Dry Heat

  • IEC 60068-2-30:2005 – Environmental testing, Test Db: Damp Heat, Cyclic (12 h + 12 h)

Air Supply System

Item Specification
Airflow direction Top-to-bottom circulation
Circulation motor Low-pressure asynchronous motor
Blower Multi-blade centrifugal blower with aluminium blades
Sensor PT100 temperature & humidity sensor (wet-dry bulb)

Refrigeration System

Item Specification
Cooling method Air-cooled
Compressor Tecumseh or equivalent
Refrigerant R404A
Condenser Air-cooled high-efficiency finned type
Auxiliary components International brand components

Heating & Humidification System

Item Specification
Heating element Nickel-chromium alloy electric heating tube
Humidification method Humidifying barrel system, high speed, no scaling
Humidification tube Inlaid type with insulation resistance >50 MΩ
Safety Dry-burn and explosion-proof protection

Protection Functions

  • Specimen anti-condensation protection

  • Over-temperature protection with independent adjustable limiter

  • Fuse-free protection switch

  • Heater over-temperature protection

  • Compressor overload and overheat protection

  • High/low pressure protection for refrigeration system

  • System over-current protection

  • Controller self-diagnosis and fault display

  • Phase-sequence protection

Applications & Industries

  • Battery cell high-/low-temperature testing

  • Temperature–humidity cycling and ageing tests

  • Environmental reliability testing for electronic components

  • Materials research and quality control

  • University laboratories and R&D centres

FAQ

Q1: Is this chamber suitable for battery cell testing?
Yes. It is widely used for high-low temperature and humidity testing of battery cells and modules.

Q2: Does it support cyclic damp heat testing?
Yes. The chamber complies with IEC 60068-2-30 damp heat cyclic testing standards.

Q3: Can the chamber be operated continuously?
Yes. It is designed for long-term, stable operation under controlled laboratory conditions.

Q4: Is humidity control available across the full temperature range?

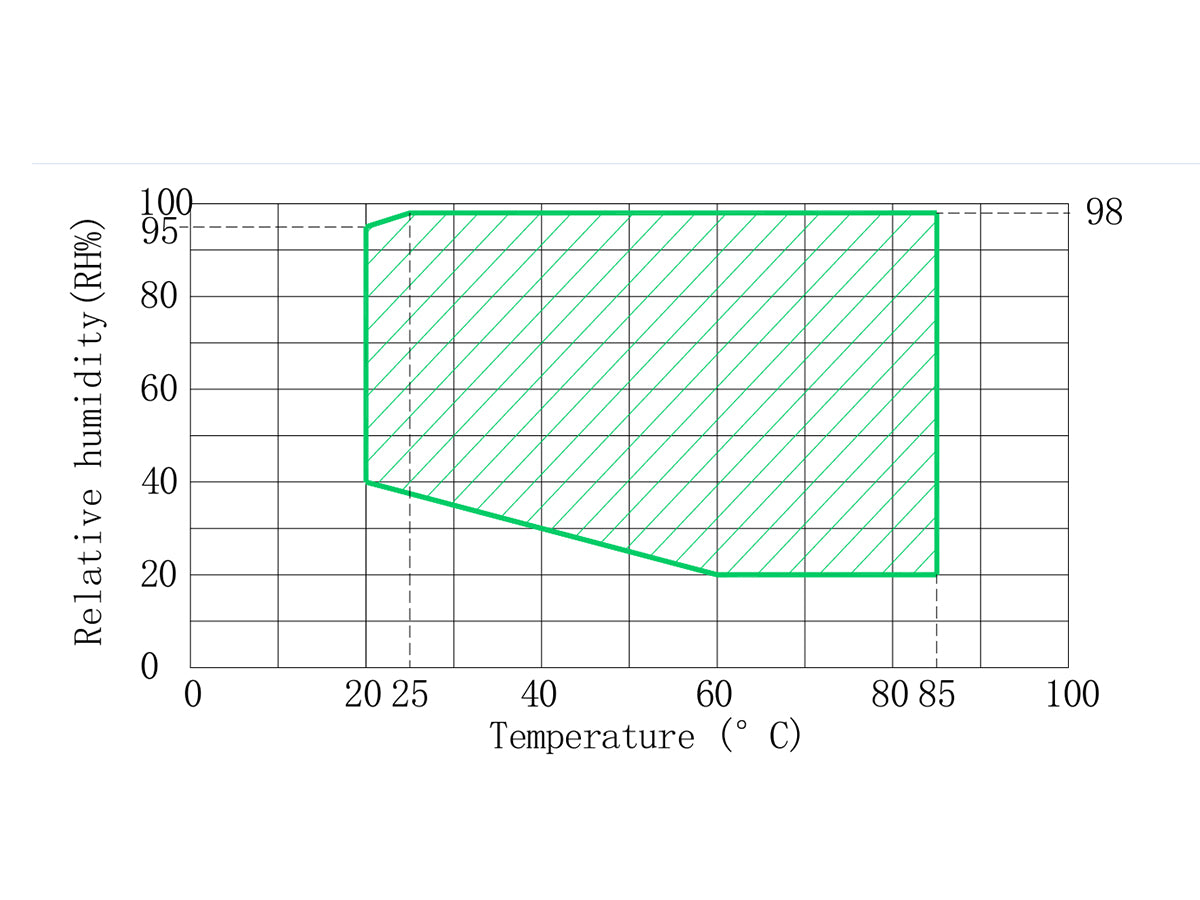

Humidity control is available within the specified temperature–humidity control diagram.
