Cell Lab Table Top Laboratory Roller Jar Ball Mill Machine [0.5L–5L Jars, Programmable Speed]

Compact Table Top Roller Mill for Versatile Laboratory Grinding

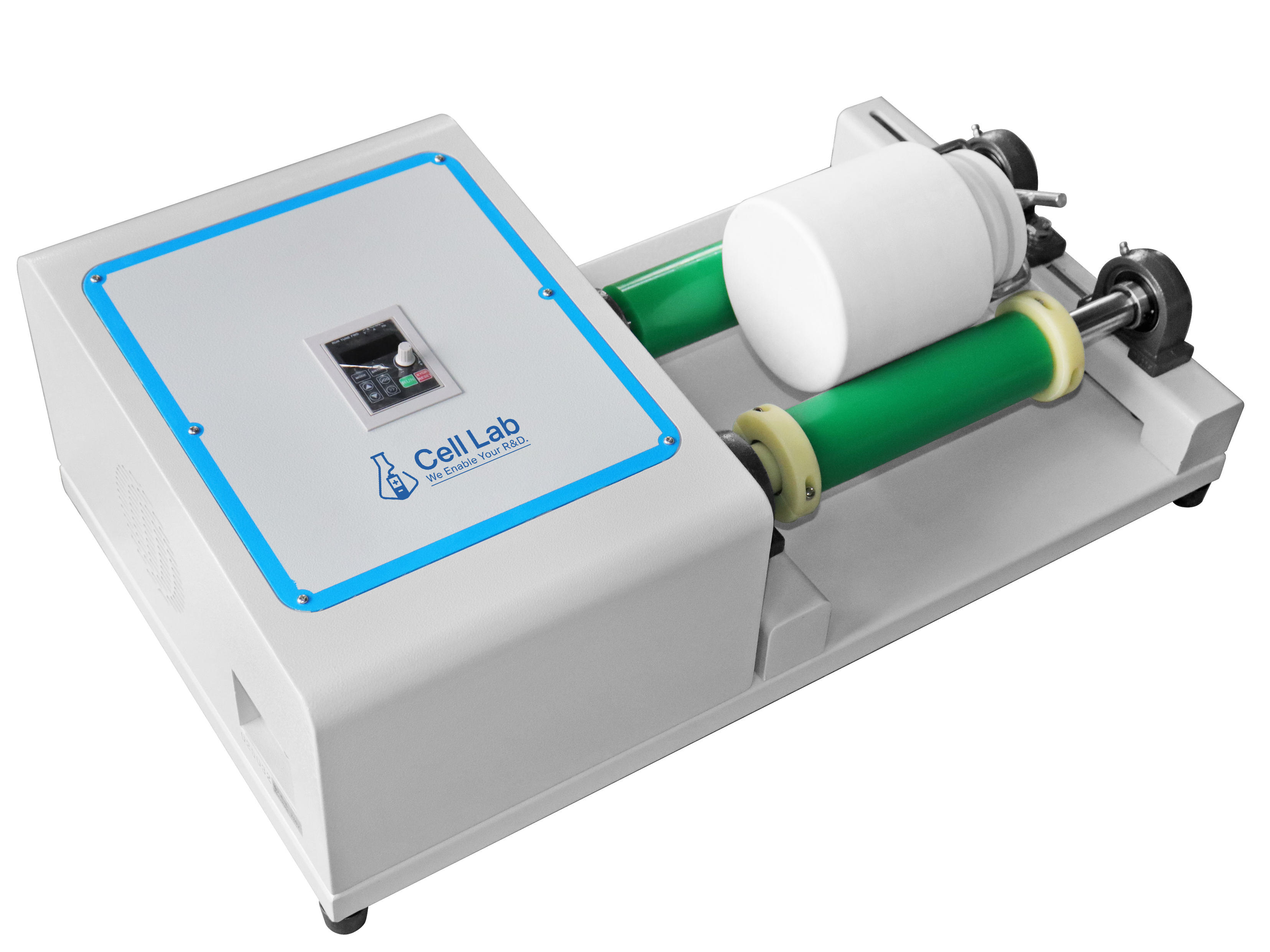

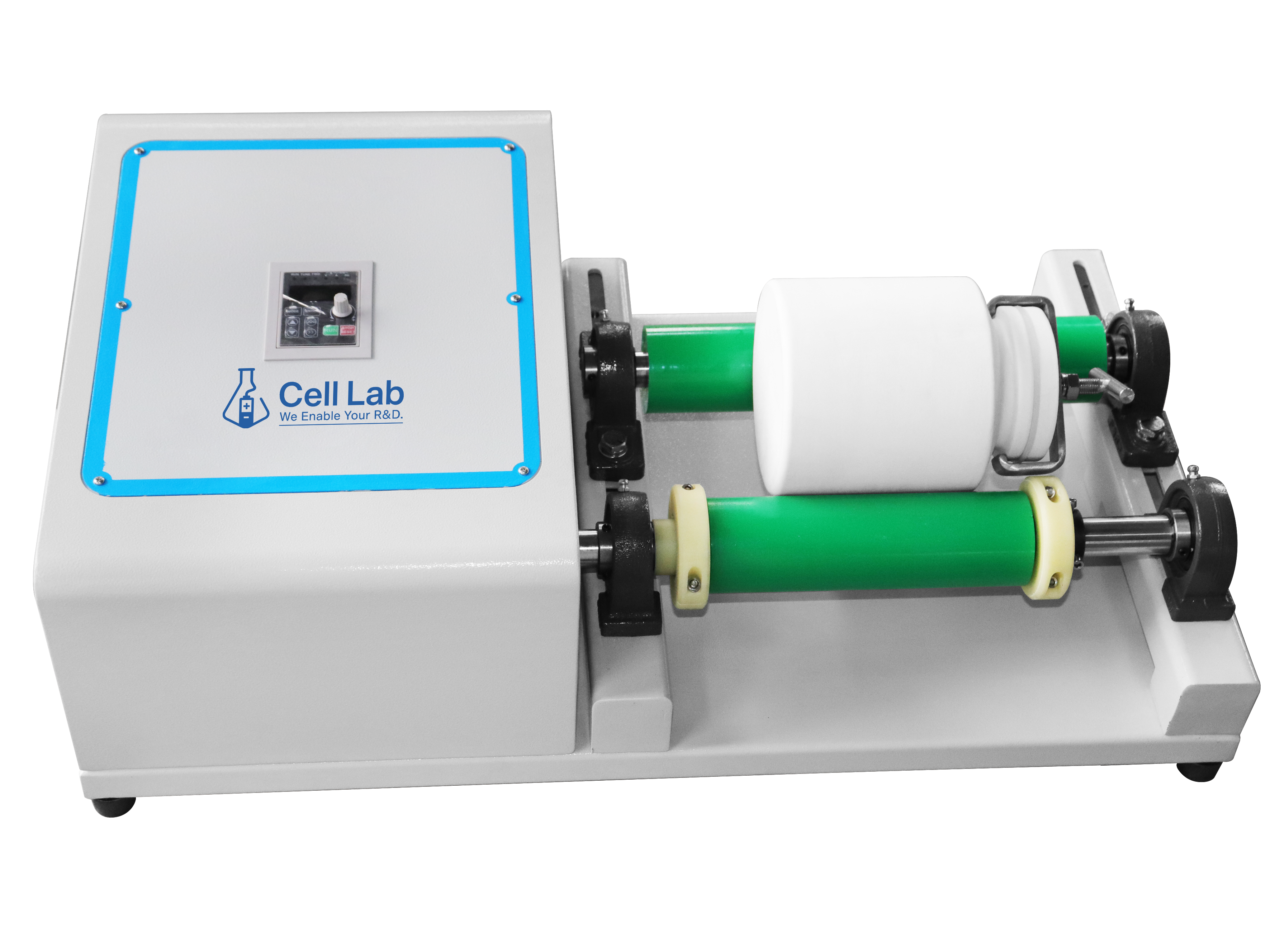

The Cell Lab Table Top Roller Jar Mill is a compact and durable laboratory milling machine designed for grinding and mixing materials with precision. Supporting jars from 0.5 L to 5 L (90–200 mm diameter), it provides programmable speed control and rolling direction adjustment, making it an ideal tool for research labs across the UK, EU, and US.

Built with a robust motor and an open structure (no safety cover), it allows easy jar access while maintaining consistent performance. Suitable for chemical, materials science, and battery R&D applications, this roller mill ensures reliable and repeatable powder processing.

Key Features

  • Wide Jar Compatibility – Fits 0.5–5 L roller jars (90–200 mm diameter).

  • Programmable Operation – Adjustable rolling speed, direction, and pause intervals up to 570 RPM.

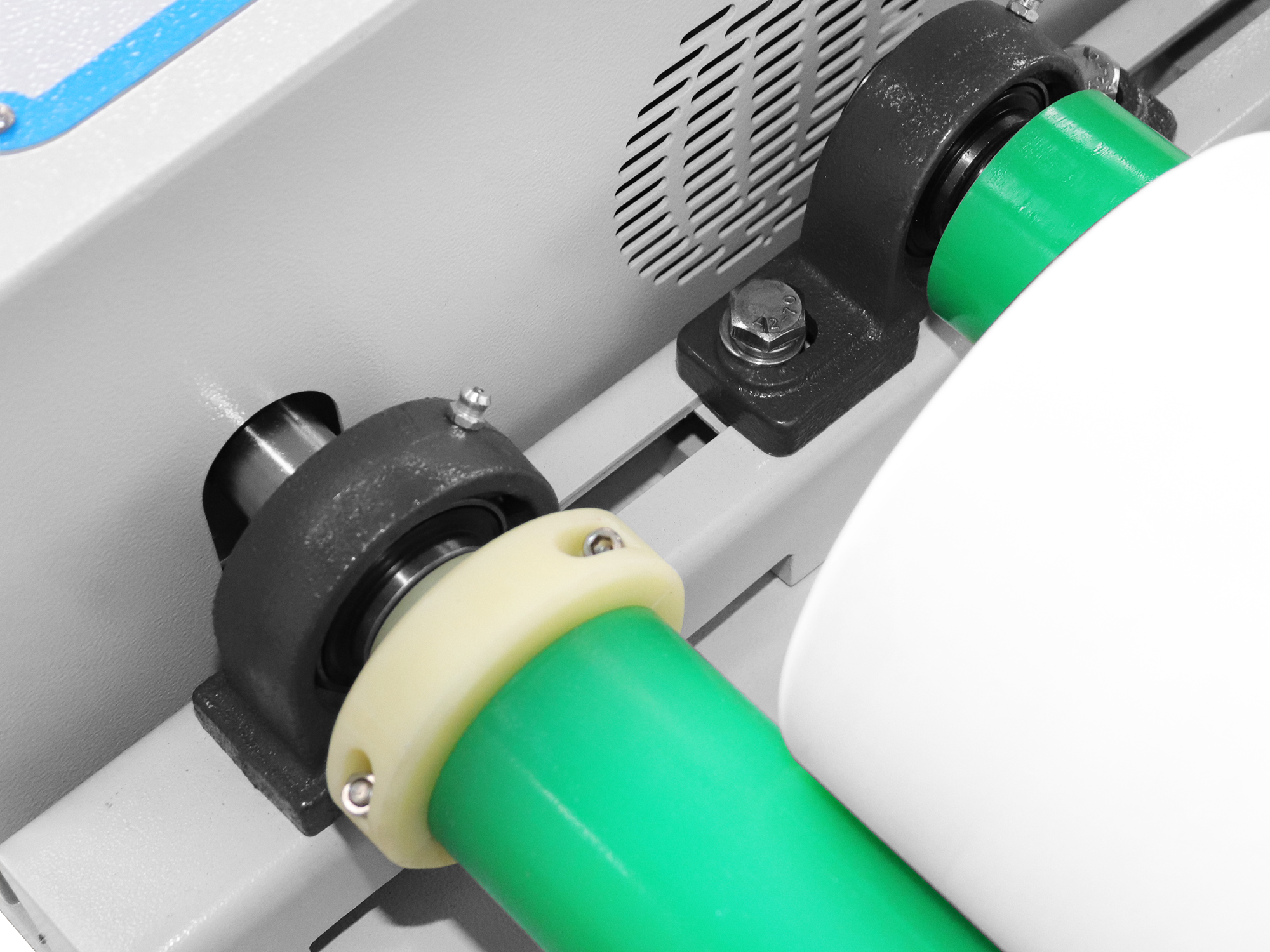

  • Durable Design – Table top structure with dual rollers for stability and long service life.

  • High Load Capacity – Supports up to 35 kg including jar, milling media, and sample materials.

  • Lab-Optimised Performance – Compact footprint (730 × 415 × 260 mm), ideal for laboratory workspaces.

Technical Specifications

Specification Value
Grinding Tool Horizontal roller jar (1 jar capacity, not included)
Recommended Jar Diameter 90–200 mm (approx. 0.5–5 L jars)
Max. Loading Capacity 35 kg (jar + media + material)
Rotational Speed Programmable, up to 570 RPM
Programmable Parameters Speed, direction, pause intervals
No. of Rollers 2
Roller Length ~299 mm
Distance Between Rollers 115–235 mm (adjustable)
Power Supply 220 V
Dimensions 730 × 415 × 260 mm
Net Weight 32 kg

Applications & Industries

  • Battery & Energy Research – mixing electrode powders, conductive additives

  • Chemical & Pharmaceutical Labs – powder blending, fine grinding

  • Material Science – ceramics, polymers, pigments, composites

  • Geology & Environmental Studies – soil and mineral sample milling

FAQ

Q1: What jar sizes can be used with this roller mill?
A: Compatible with 90–200 mm jars, approximately 0.5–5 L in capacity.

Q2: Can the roller speed be adjusted?
A: Yes — fully programmable up to 570 RPM, including direction and interval control.

Q3: What industries use laboratory roller mills?
A: Commonly applied in battery materials, ceramics, pharmaceuticals, and research laboratories.
