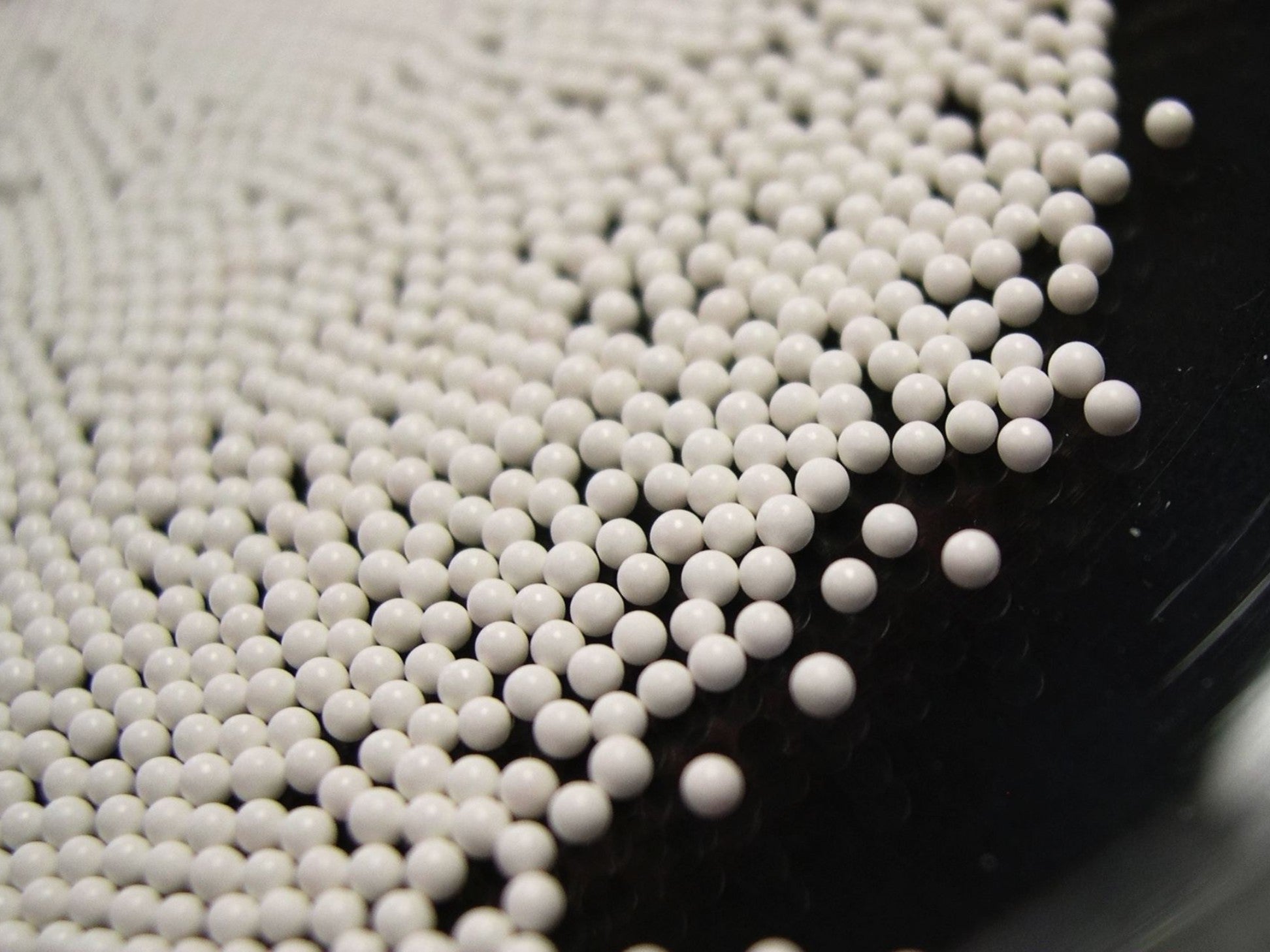

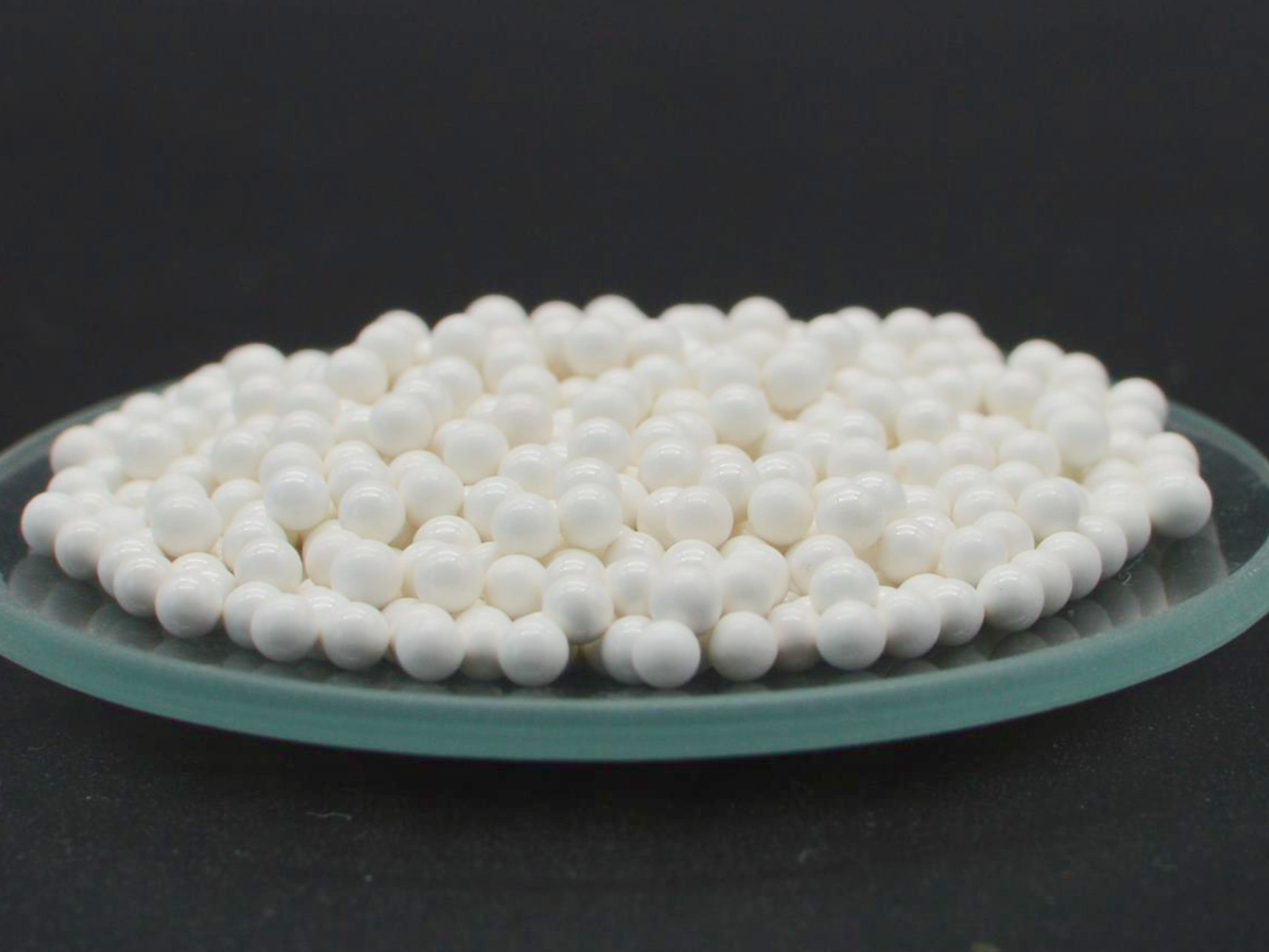

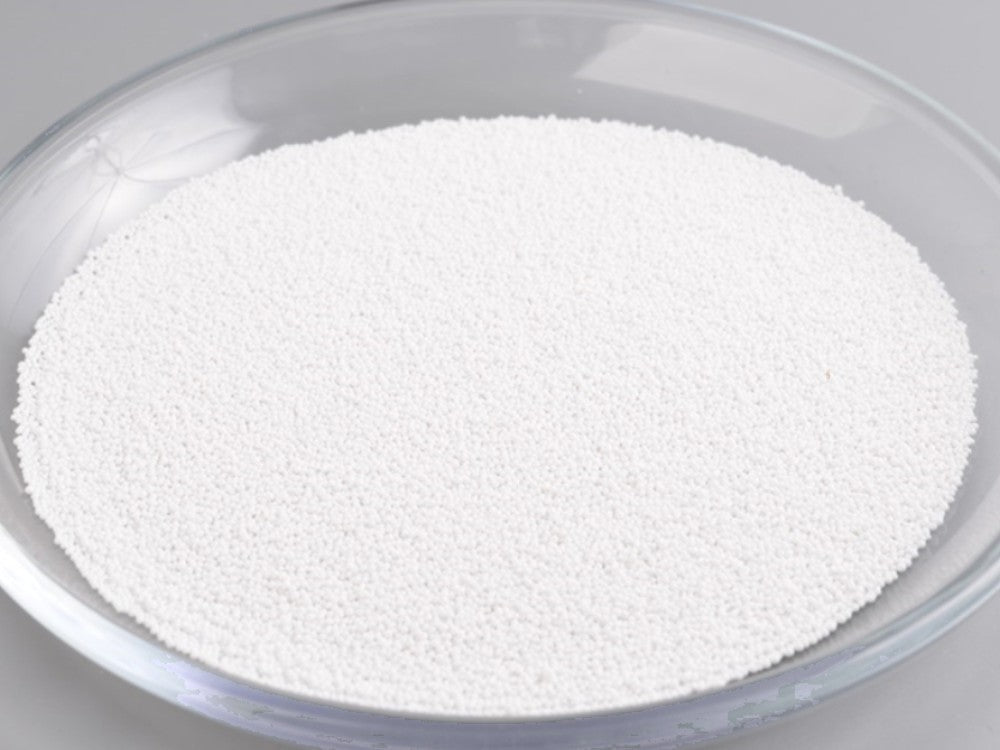

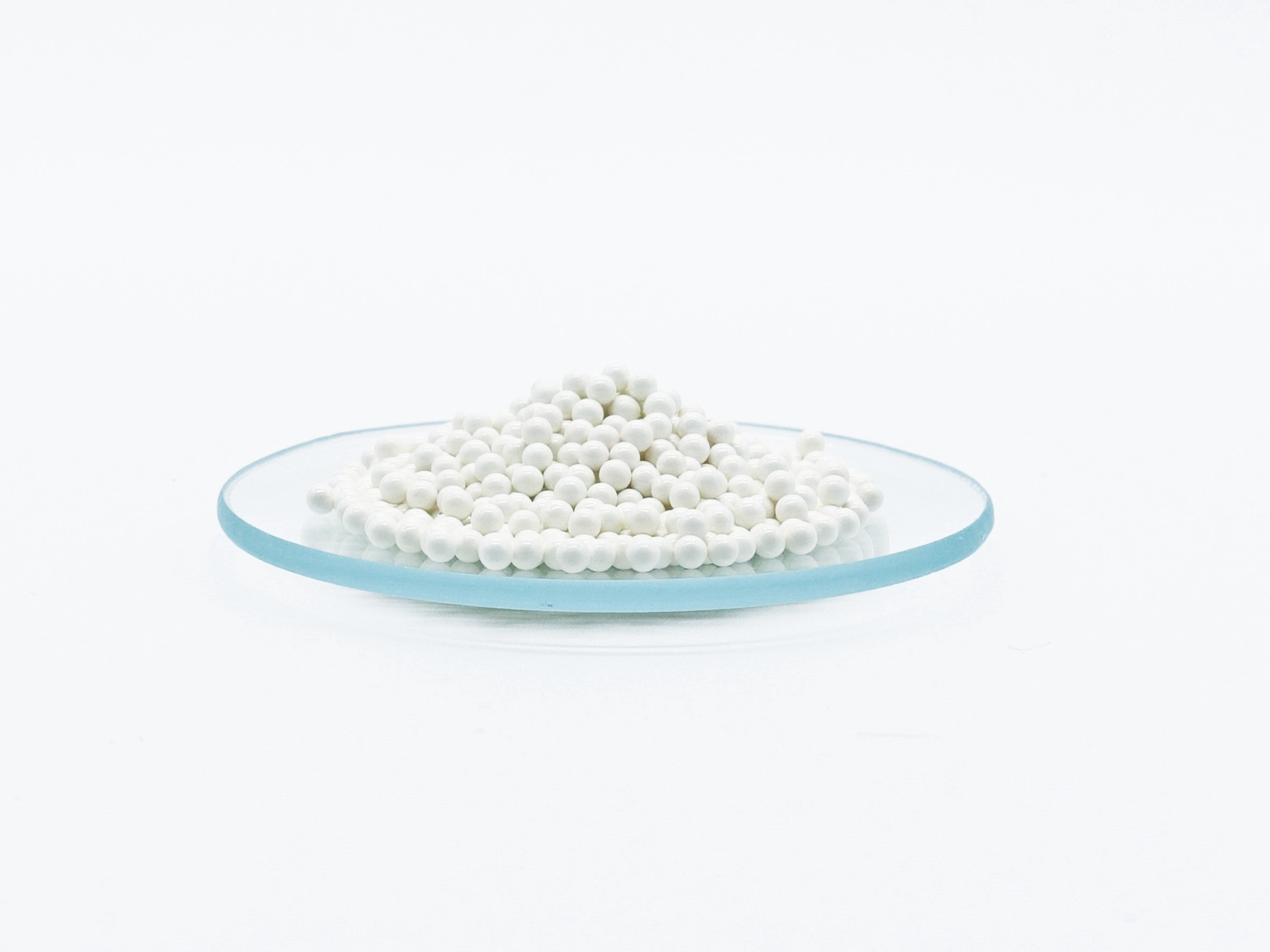

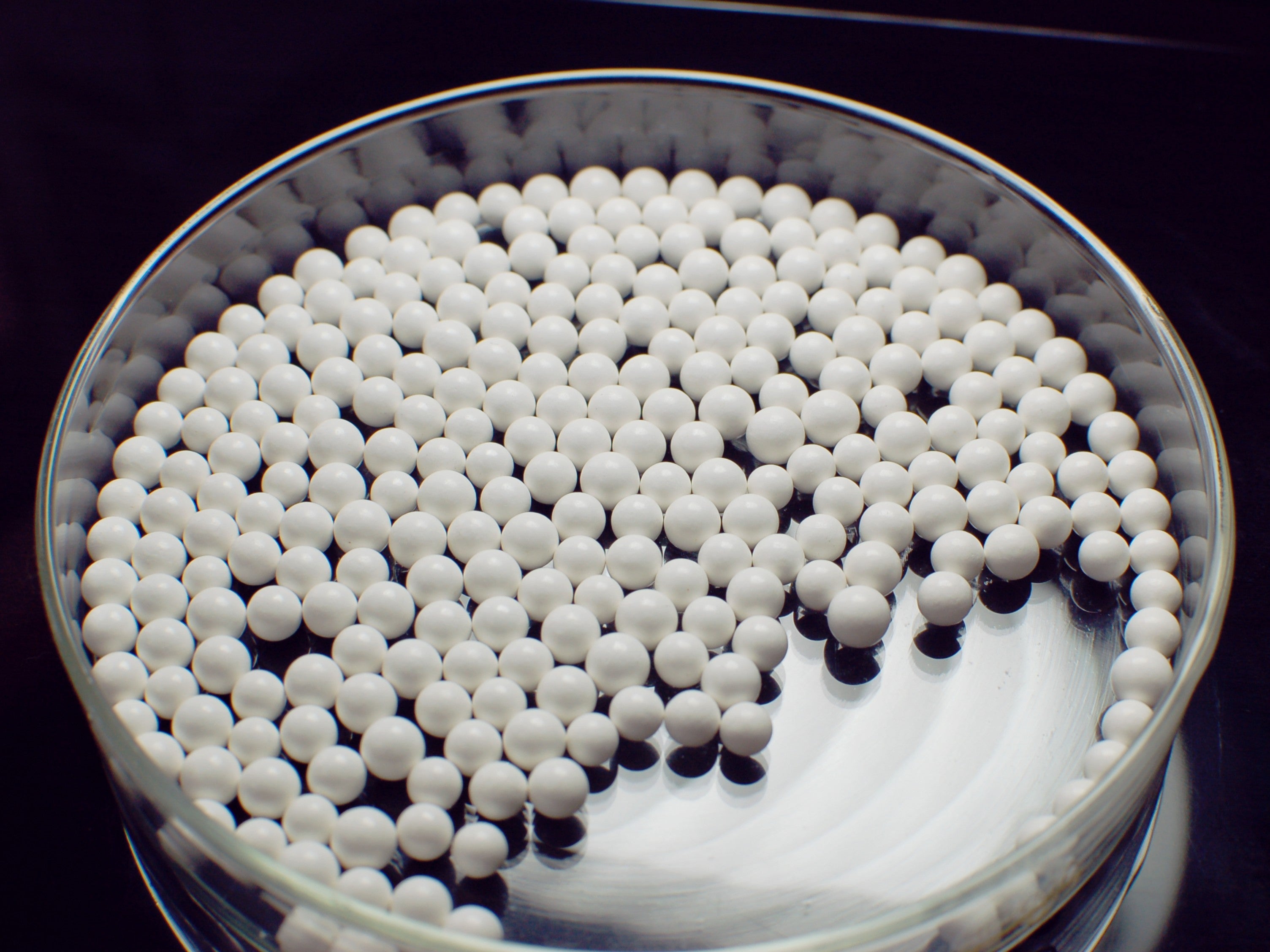

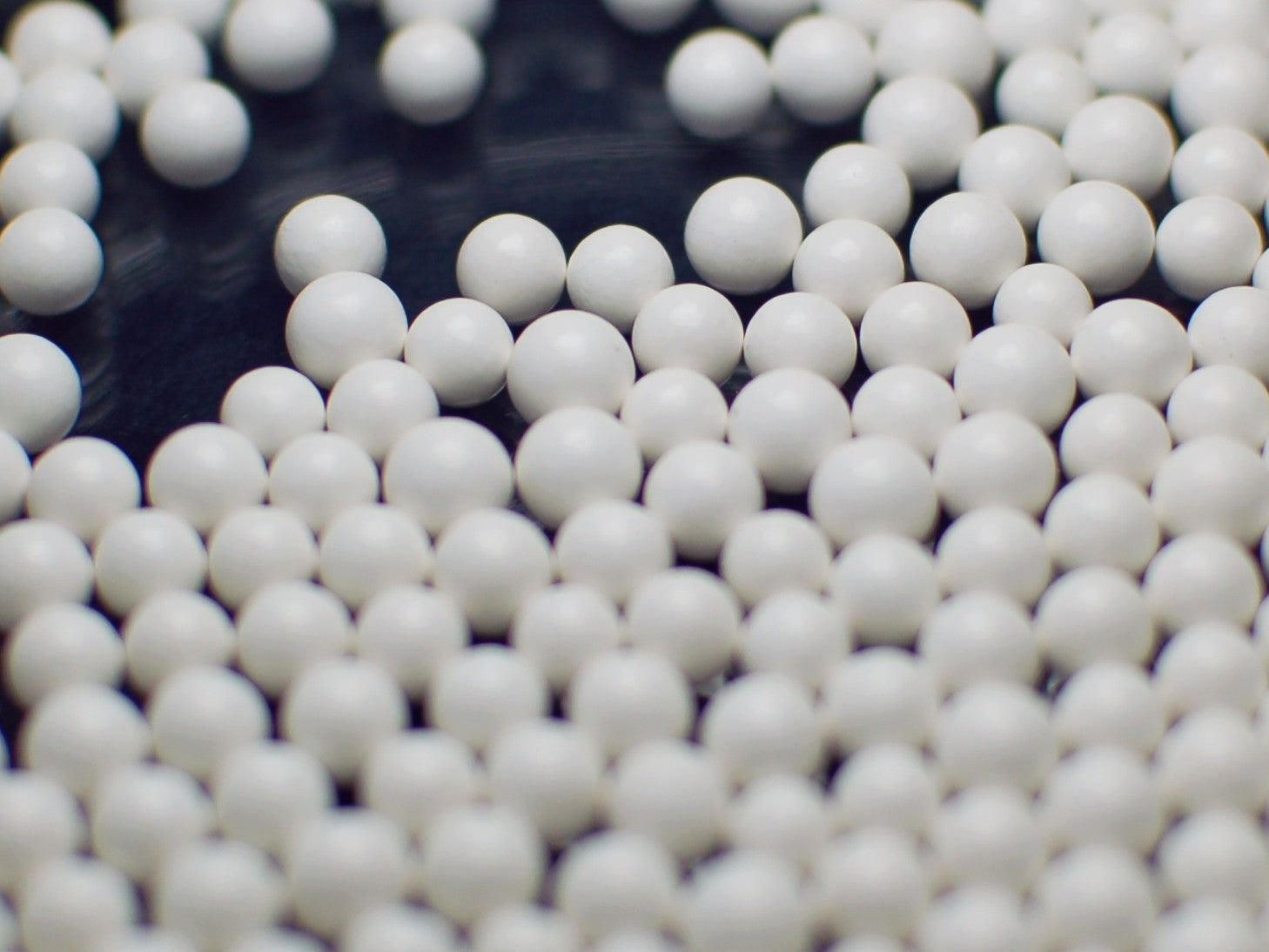

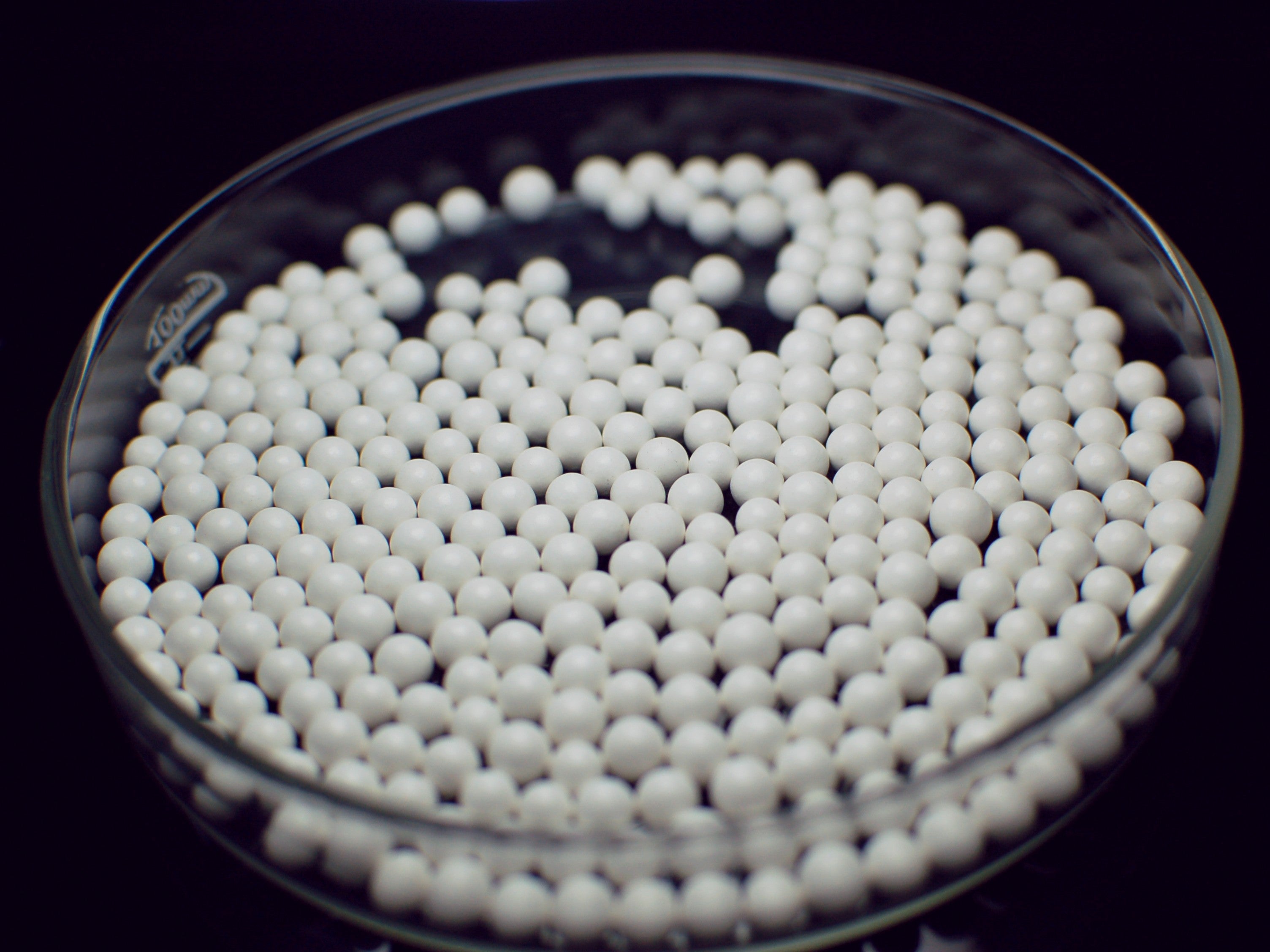

Cell Lab SZS Milling Media [Medium Density Zirconium Silicate Beads, 0.4–14 mm]
Cell Lab SZS Milling Media [Medium Density Zirconium Silicate Beads, 0.4–14 mm] Cost-Effective, Durable & Optimised for Large-Volume Bead Mills The Cell Lab SZS Milling Media are medium density sintered zirconium silicate beads, manufactured from premium zircon (ZrSiO₄) using a...
- £39.00
- £39.00
- Unit price
- per
Subtotal:
£39.00
Couldn't load pickup availability
Description
xCell Lab SZS Milling Media [Medium Density Zirconium Silicate Beads, 0.4–14 mm]
Cost-Effective, Durable & Optimised for Large-Volume Bead Mills
The Cell Lab SZS Milling Media are medium density sintered zirconium silicate beads, manufactured from premium zircon (ZrSiO₄) using a high-temperature sintering process. With excellent breakage resistance, smooth sphericity, and competitive pricing, these beads are ideal for large-volume agitated bead mills. Offering an optimal performance-to-price ratio, SZS beads are widely chosen for fine grinding and dispersion applications where cost efficiency and durability are equally critical.
Key Features
-
High-quality sintered zirconium silicate – Produced from premium zircon (ZrSiO₄) under controlled high-temperature sintering.
-
Medium density & cost-effective – Perfect balance between grinding efficiency and price advantage for bulk use.
-
Outstanding durability – Excellent breakage resistance and long media lifespan, even in high-intensity mills.
-
Perfect sphericity & smooth surface – Fully dense, defect-free beads ensure uniform grinding and consistent dispersion.
-
Versatile bead sizes – Wide range from 0.4 mm to 14 mm, enabling precise matching to different grinding requirements.
Specifications
| Parameter | Value |
|---|---|
| Composition | ZrO₂: 52 wt% · SiO₂: 35 wt% · Al₂O₃: 10 wt% · Remainder: <5 wt% |
| SKU & Size Ranges |
CL0550: 0.4–0.6 mm CL0551: 0.6–0.8 mm CL0552: 0.8–1.0 mm CL0553: 1.0–1.2 mm CL0554: 1.2–1.4 mm CL0555: 1.4–1.6 mm CL0556: 1.6–1.8 mm CL0557: 1.8–2.0 mm CL0558: 2.0–2.2 mm CL0559: 2.0–2.5 mm CL0560: 2.5–2.8 mm CL0561: 2.8–3.2 mm CL0562: 3.0–4.0 mm CL0563: 4.0–5.0 mm CL0564: 5.0–6.0 mm CL0565: 6.0–7.0 mm CL0566: 7.0–8.0 mm CL0567: 8.0–10.0 mm CL0568: 10.0–12.0 mm CL0569: 12.0–14.0 mm |
| Density | 4.0 ± 0.1 g/cm³ |
| Bulk Density | ~2.4 kg/L |
| Hardness | 1127 HV1 |
| Mohs’ Hardness | 7.2 |
| Breaking Load | 800 N |
| Color / Finish | White to yellow, glossy sheen |
| Melting Point | Over 1600 °C |
Applications & Industries
Cell Lab SZS milling beads are designed for large-volume bead mills and suitable for:
-
Fine grinding & dispersion of zircon and other minerals
-
Large-scale pigment & dye production
-
Ceramic slurries & coatings
-
Paints, inks & surface treatments
-
Chemical processing requiring cost-efficient media
FAQ
Q1: What makes SZS beads different from high-density zirconia beads?
A: SZS beads offer a medium density and lower cost, making them ideal for large-volume processes where price efficiency and durability are key. High-density zirconia beads provide more grinding power but at higher cost.
Q2: What bead sizes are recommended for large-volume bead mills?
A: Larger beads (4–14 mm) are generally used in large-scale, high-throughput mills. Smaller beads (0.4–2 mm) are suited for fine dispersion in medium-volume or specialised processes.
Q3: Are SZS beads resistant to breakage?
A: Yes. They are fully dense, non-porous, and manufactured through a high-temperature sintering process, giving them excellent breakage resistance.
Q4: Can they be used for grinding zircon specifically?
A: Yes. These beads are the recommended choice for efficient fine grinding of zircon materials.
Q5: What industries benefit most from SZS media?
A: Pigments, ceramics, coatings, chemical processing, and mineral grinding industries that require durable yet cost-efficient media for large-scale operations.
