Cell Lab stirring heating mantles combine precise magnetic stirring and uniform heating up to 450 °C for flasks from 50 ml to 20 L, ideal for chemical synthesis, distillation, and reflux processes.
Cell Lab stirring heating mantles combine precise magnetic stirring and uniform heating up to 450 °C for flasks from 50 ml to 20 L, ideal for chemical synthesis, distillation, and reflux processes.

Cell Lab Stirring Heating Mantle [Simultaneous Heating & Magnetic Stirring | Up to 450 °C | 50 ml–20 L Capacity]

Cell Lab Stirring Heating Mantle [Simultaneous Heating & Magnetic Stirring | Up to 450 °C | 50 ml–20 L Capacity] Simultaneous stirring and heating for precise laboratory reactions The Cell Lab™ Stirring Heating Mantle integrates powerful surface heating with magnetic...
Vendor: Cell Lab
SKU: HM11
Product type: Heating Mantles
£129.00
£129.00
Volume: 50 ml
Subtotal: £129.00
Cell Lab stirring heating mantles combine precise magnetic stirring and uniform heating up to 450 °C for flasks from 50 ml to 20 L, ideal for chemical synthesis, distillation, and reflux processes.

Cell Lab Stirring Heating Mantle [Simultaneous Heating & Magnetic Stirring | Up to 450 °C | 50 ml–20 L Capacity]

£129.00
Cell Lab stirring heating mantles combine precise magnetic stirring and uniform heating up to 450 °C for flasks from 50 ml to 20 L, ideal for chemical synthesis, distillation, and reflux processes.

Cell Lab Stirring Heating Mantle [Simultaneous Heating & Magnetic Stirring | Up to 450 °C | 50 ml–20 L Capacity]

£129.00
Volume: 50 ml
Description
Description
x

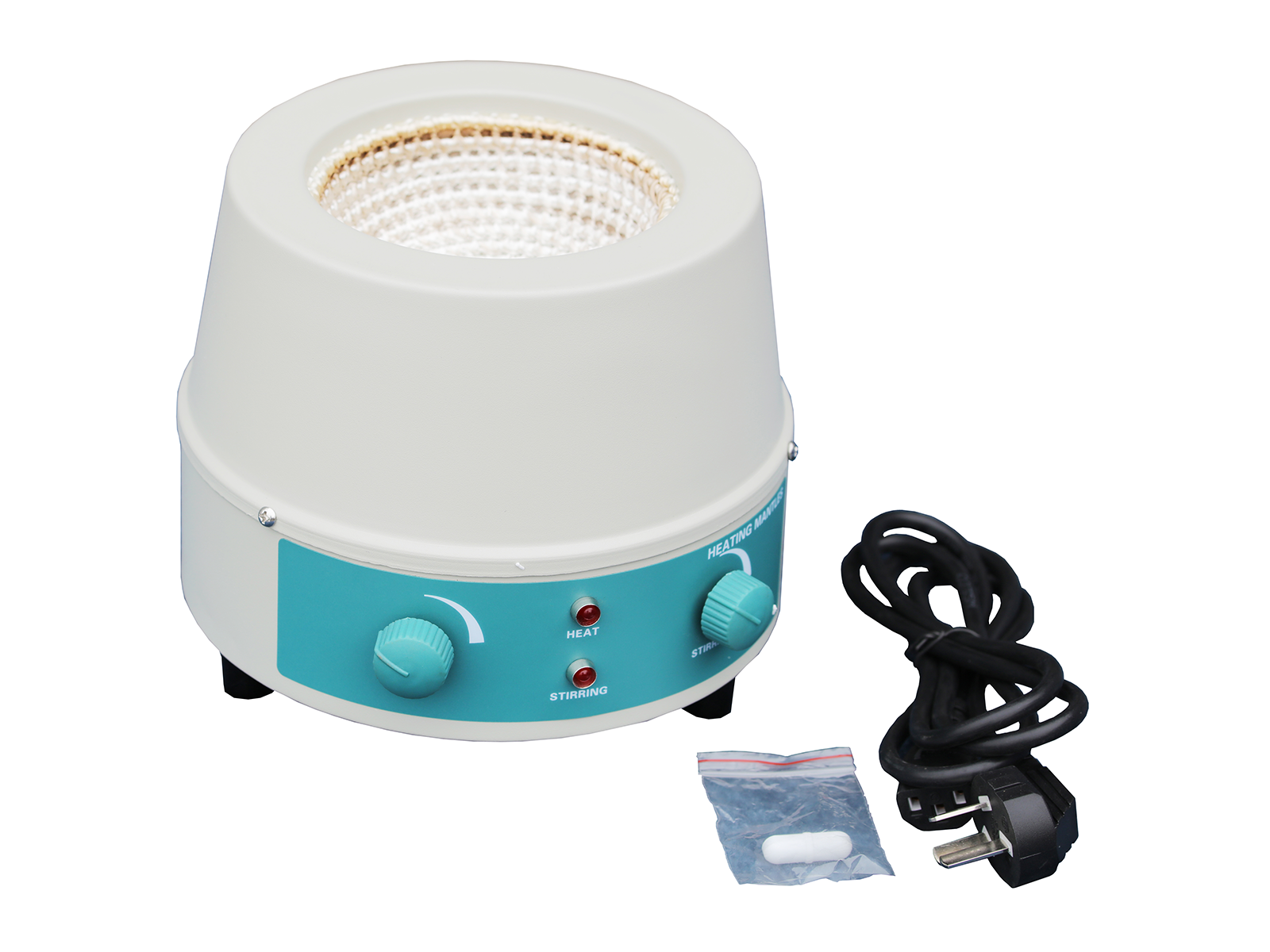

Cell Lab Stirring Heating Mantle [Simultaneous Heating & Magnetic Stirring | Up to 450 °C | 50 ml–20 L Capacity]

Simultaneous stirring and heating for precise laboratory reactions

The Cell Lab™ Stirring Heating Mantle integrates powerful surface heating with magnetic stirring in one compact unit — ideal for chemical synthesis, reflux, distillation, extraction, and general laboratory heating tasks. Covering a broad capacity range from 50 ml to 20 L, it combines precise thermal control with uniform agitation for consistent, reproducible reaction results.

Key Features

• Simultaneous Heating and Stirring
Magnetic stirring and heating operate together with stepless speed adjustment (0–1600 rpm), ensuring continuous, uniform mixing during heating — enhancing both reaction kinetics and heat transfer uniformity.

• High-Temperature Nichrome Heating Element
The mantle uses nichrome wire for rapid and even surface conduction, reaching up to 450 °C. The CE-certified aluminium silicate insulation guarantees safe, stable, and efficient heat containment during extended operation.

• Broad Flask Volume Compatibility
Models support 50 ml to 20 000 ml round-bottom flasks. Custom volumes such as 4 L, 6 L, 50 L and 100 L are available on request, providing flexibility for both small-batch and scale-up chemistry workflows.

• Durable Structure & Chemical Resistance
Constructed from cold-rolled steel with anti-corrosion coating and fitted with a PTFE-coated stir bar, this mantle resists chemical wear while maintaining stable mechanical performance.

• Continuous Operation & Global Voltage Support
Designed for continuous working mode, the unit operates on 100–120 V or 200–240 V / 50–60 Hz, ensuring universal compatibility. Its compact form and low noise motor make it ideal for benchtop use.


Specifications:

  • Heating and stirring can be used simultaneously, stepless speed adjustable.
  • We can produce different size heating mantle as customer' s requirement. For example: 4000ml,6000ml,50 liters, 100 liters and etc.



Model

HM11

HM12

HM13

HM14

HM15

HM16

HM17

HM18

HM19

HM20

Function

Capacity(ml)

50

100

250

500

1000

2000

3000

5000

10000

20000

 Heating Mode

Surface heat-conduction

Surface Max. Temp.( ℃)



450℃

Speed range

0～1600rpm

Structure

Heating element

Nichrome wire

Stir bar

PTFE

Shell(Insulation Layer)

High quality aluminum silicate cotton

Motor power

0.01kW

Heating power (kW)

0.08

0.1

0.15

0.25

0.35

0.45

0.6

0.8

1.2

2.5

Controller

Working  Mode

Continuous

Specification

Exterior Size (mm)

￠220×165

￠280×220

￠330×230

￠340×245

￠350×250

￠425×320

￠470×340

Packing Size (mm)

230×230×195

290×290×300

340×340×350

360×360×300

390×390×310

430×430×350

510×510×380

Voltage(V)

100～120V or 200～240V

200～240V

N.W.(Kg)

2.5

5.5

6.5

7.5

8

9.8

16

G.W. (Kg)

2.8

6

7

8

9.2

12

20

Applications & Industries

  • Reflux and distillation in chemical synthesis

  • Solvent extraction and evaporation

  • Organic and inorganic heating + mixing reactions

  • Pharmaceutical, petrochemical, and materials research

  • Continuous heating of viscous or multi-phase solutions

FAQ

Q1: What is the maximum temperature of the mantle?
A1: The heating surface can reach up to 450 °C, with excellent uniformity and thermal stability.

Q2: Can heating and stirring be used together?
A2: Yes — both functions operate simultaneously for consistent reaction mixing and heat distribution.

Q3: What is the speed range for stirring?
A3: The magnetic stirring speed is steplessly adjustable from 0 to 1600 rpm, suitable for liquids of different viscosities.

Q4: Does it support continuous operation?
A4: Yes — it is engineered for safe, long-term continuous use in research and production labs.

Q5: Can custom large capacity versions be ordered?
A5: Yes — Cell Lab can manufacture bespoke units from 4 L up to 100 L to meet your process requirements.
