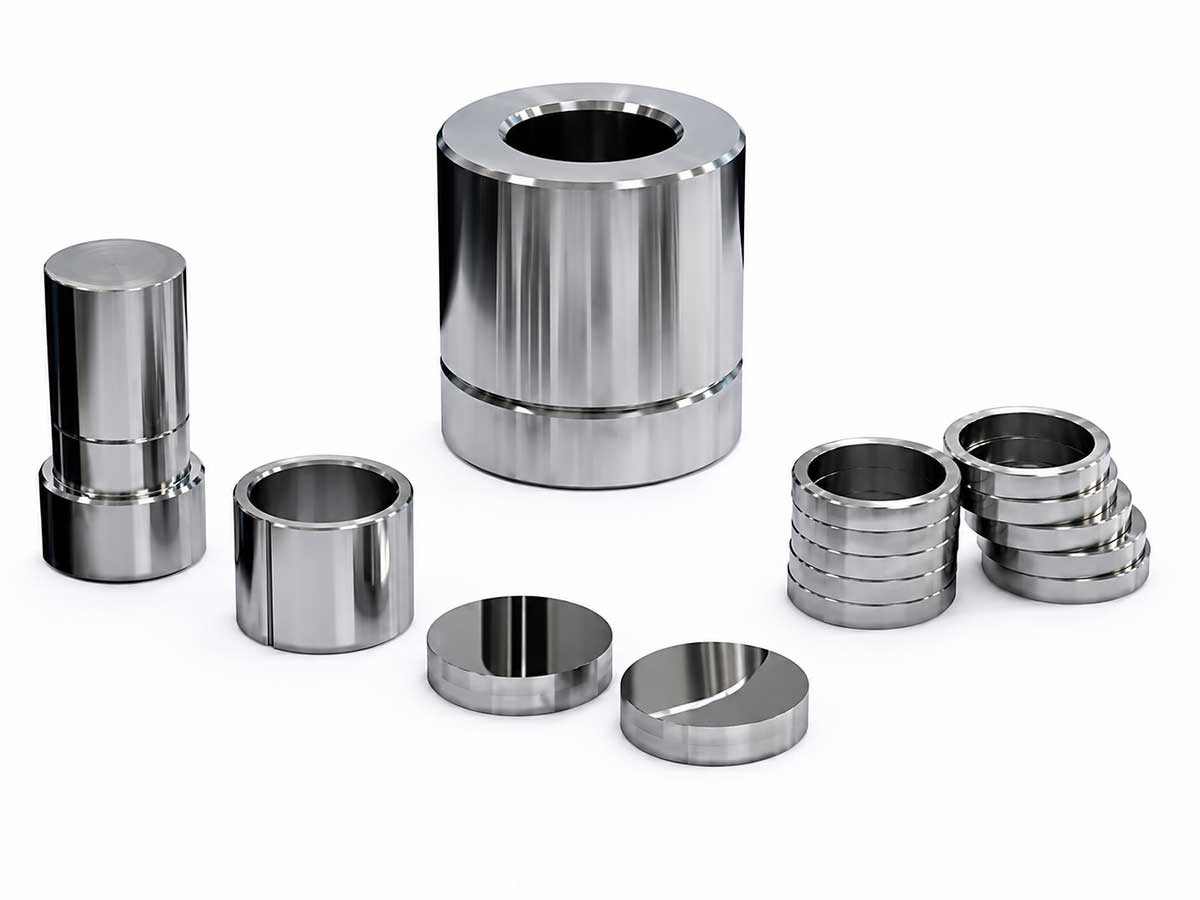

Cell Lab Steel Ring Pellet Pressing Die Set for XRF Sample Preparation

Cell Lab Steel Ring Pellet Pressing Die Set for XRF Sample Preparation Precision steel ring pressing die set designed for XRF pellet sample preparation and spectroscopic analysis General Description The Cell Lab Steel Ring Pellet Pressing Die Set is specially designed...
Vendor: Cell Lab
SKU: CL0894
Product type: Pellet Press Die Set
£499.00
£499.00
Ring sizes: Ф32-24 mm
Subtotal: £499.00
Description
Description
x

Cell Lab Steel Ring Pellet Pressing Die Set for XRF Sample Preparation

Precision steel ring pressing die set designed for XRF pellet sample preparation and spectroscopic analysis

General Description

The Cell Lab Steel Ring Pellet Pressing Die Set is specially designed for preparing pressed pellets for XRF (X-ray fluorescence) analysis. Compatible with laboratory hydraulic presses and widely used alongside XRF spectrometers such as the Epsilon 4, this die set enables the production of dense, uniform and dimensionally stable sample pellets for accurate elemental analysis.

Manufactured from high-strength Cr12MoV alloy tool steel with hardness up to HRC60–62, the die provides excellent wear resistance and long-term dimensional stability under repeated high-pressure operation.

The steel ring configuration improves pellet integrity and handling stability, making it ideal for mining, cement, geology, metallurgy, battery materials and laboratory XRF sample preparation.

Key Features

• Designed for XRF sample preparation — Produces dense and uniform pressed pellets for accurate XRF elemental analysis.

• High-strength alloy steel construction — Cr12MoV alloy tool steel with HRC60–62 hardness for long service life.

• Multiple ring size options — Supports different pellet dimensions for varied analytical requirements.

• Excellent dimensional stability — Ensures reproducible pellet geometry and consistent analytical performance.

• Compatible with laboratory hydraulic presses — Suitable for routine laboratory and industrial XRF workflows.

Technical Specifications

Parameter Specification
Sample shape
Product type Steel ring pellet pressing die set
Application XRF sample preparation
Die material Cr12MoV alloy tool steel
Indenter hardness HRC60–HRC62
Ring sizes Φ32–24 mm / Φ40–32 mm / Φ51.5–35 mm
Cavity depth 45 mm (N)
Dimensions Φ73 × 133 mm (L × H)
Weight 3.2 kg

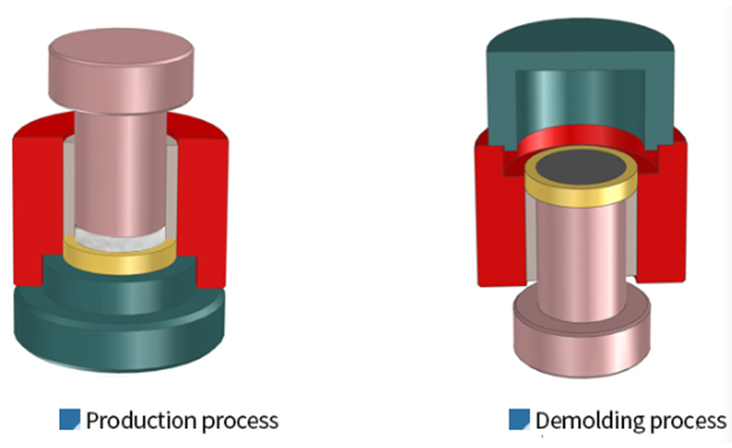

Diagram of the pressing die

Applications & Industries

  • XRF sample preparation
  • Mining and geological analysis
  • Cement and metallurgy laboratories
  • Battery and advanced material testing
  • Elemental analysis laboratories

SEO Keywords: XRF pellet die, steel ring pressing die, XRF sample preparation die, pressed pellet die set, X-ray fluorescence pellet mold, Epsilon 4 sample die

FAQ

Q1: What is this die set used for?
It is used for preparing pressed pellets for XRF elemental analysis.

Q2: Is it compatible with Epsilon 4 XRF spectrometers?
Yes. The die is suitable for preparing pellets commonly used with systems such as the Epsilon 4.

Q3: What material is the die made from?
It is manufactured from Cr12MoV alloy tool steel with HRC60–62 hardness.

Q4: Why use steel ring pellets in XRF analysis?
Steel ring support improves pellet strength, handling stability and analytical consistency.
