Cell Lab Stainless Steel Vacuum Roller Mill Jars [304 / 316 Grade | 0.5–15 L | Vacuum Type]
Cell Lab Stainless Steel Vacuum Roller Mill Jars [304 / 316 Grade | 0.5–15 L | Vacuum Type] Vacuum-sealable stainless steel jars for contamination-free roller milling The Cell Lab Stainless Steel Vacuum Roller Mill Jars are precision-engineered for contamination-free milling...
- £899.00
- £899.00
- Unit price
- per
Subtotal:
£899.00
Description
xCell Lab Stainless Steel Vacuum Roller Mill Jars [304 / 316 Grade | 0.5–15 L | Vacuum Type]
Vacuum-sealable stainless steel jars for contamination-free roller milling

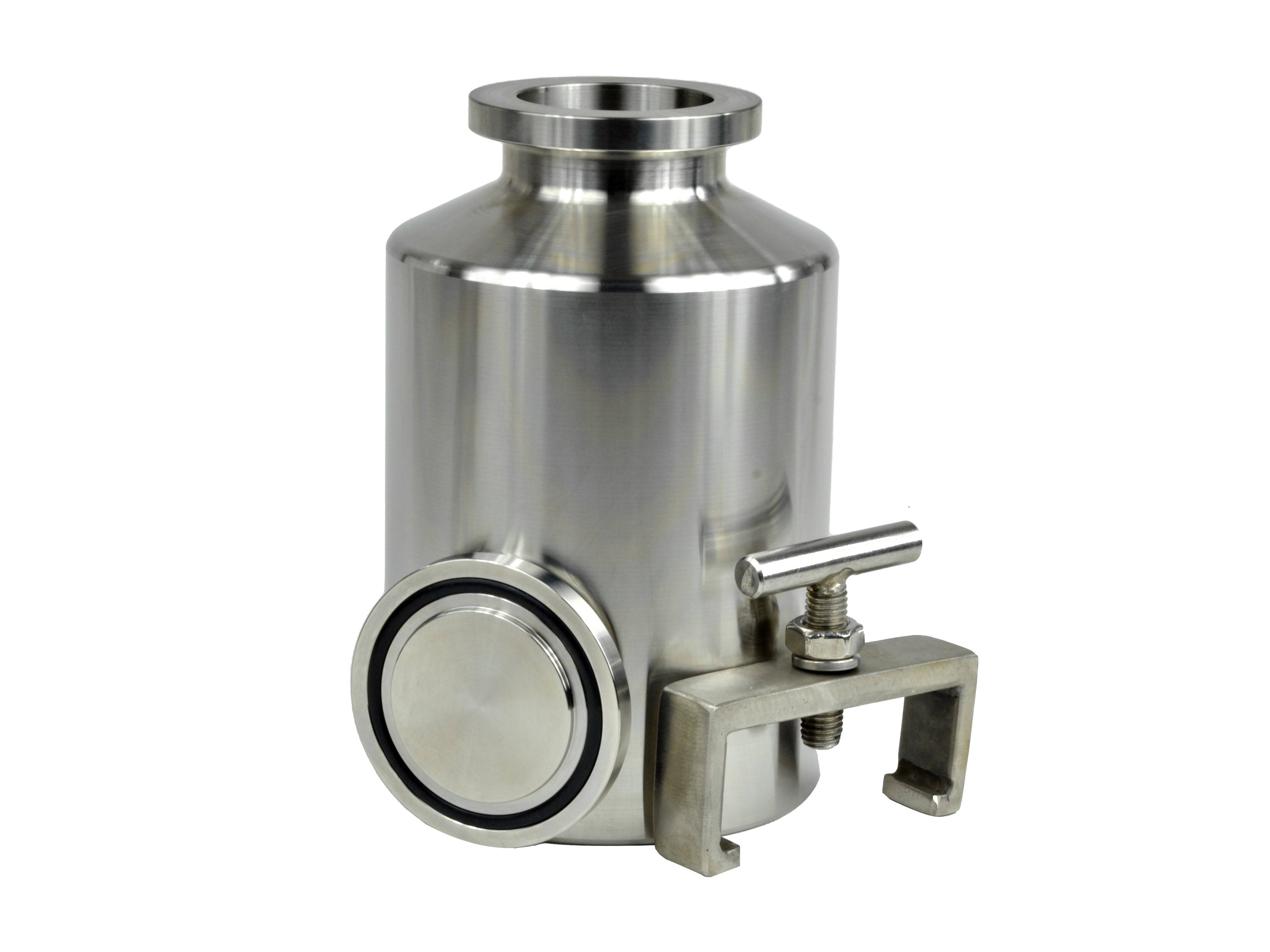

The Cell Lab Stainless Steel Vacuum Roller Mill Jars are precision-engineered for contamination-free milling and mixing under vacuum conditions.
Constructed from high-quality 304 or 316 stainless steel, they provide superior corrosion resistance, excellent mechanical strength, and long service life in both dry and wet milling applications.
Their airtight vacuum-sealable lid design, incorporating a durable silicon sealing gasket and clamp lock, ensures optimal environmental control during material processing.
Available in volumes from 0.5 L to 15 L, these jars are ideal for research laboratories, pilot-scale testing, and industrial material development.
Key Features
-
Vacuum-sealable design – Lid, silicon gasket, and clamp lock system ensure reliable airtight sealing for both wet and dry milling.
-
Durable 304 / 316 stainless steel construction – Provides excellent corrosion resistance and compatibility with a broad range of materials.
-
Smooth cylindrical inner surface – Minimises residue, promotes uniform grinding, and allows effortless cleaning.
-
Supports multiple grinding media types – Compatible with stainless steel balls of various diameters for controlled particle reduction.
-
Multiple capacity options – From 0.5 L to 15 L with consistent design standards for roller mill applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Stainless Steel Vacuum Roller Mill Jar |
| Brand | Cell Lab |
| Material | 304 or 316 Stainless Steel |
| Volume Range | 0.5 L – 15 L |
| Max. Loading Capacity | 2⁄3 of total jar volume |
| Shape | Cylindrical |
| Outer Diameter | 88–271 mm (varies by size) |
| Height | 144–347 mm (varies by size) |
| Density | 8.0 g/cm³ |
| Main Chemical Composition | Fe (70.6–67.4%), Cr (17–19%), Ni (8–10%) |
| Hardness | ≤ 187 HB |
| Accessories | Lid with silicon sealing gasket |
| Supported Grinding Media | 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm stainless steel balls |
| Suitable For | Medium-hard, brittle materials |
| Abrasion Resistance | Good |
Available Jar Sizes and Weights
| Jar Volume | Outer Diameter (mm) | Inner Diameter (mm) | Height (mm) | Approx. Weight |
|---|---|---|---|---|
| 500 mL | 88 | 82 | 144 | ~1 kg |
| 1 L | 106 | 100 | 172 | ~2 kg |
| 2 L | 131 | 124 | 206 | ~3 kg |
| 3 L | 158 | 152 | 217 | ~4 kg |
| 5 L | 178 | 172 | 269 | ~5 kg |
| 10 L | 243 | 233 | 307 | ~12 kg |
| 15 L | 271 | 263 | 347 | ~13 kg |
Note: Please contact us for quotes on other sizes.
Applications & Industries
Cell Lab stainless steel vacuum jars are ideal for:
-
Battery material processing – ensuring contamination-free mixing of electrode powders and electrolytes.
-
Ceramics and advanced materials – uniform grinding of oxides, nitrides, and metallic compounds.
-
Pharmaceutical and biotechnology research – controlled vacuum conditions for fine powder preparation.
-
Metallurgy and chemical engineering – wet and dry milling of alloys, catalysts, and composites.
-
Nanomaterials and high-purity compounds – low-contamination environment for ultra-fine milling.
FAQ
Q1: What is the difference between 304 and 316 stainless steel jars?
A: 316 grade provides better corrosion resistance, particularly against acids and chlorides, making it ideal for chemical and biomedical research.
Q2: Can these jars be used under full vacuum?
A: Yes. The integrated sealing gasket and clamp system support strong vacuum environments for extended durations.
Q3: What types of media are compatible?
A: Compatible with stainless steel, tungsten carbide, zirconia, and alumina balls, depending on the application.
Q4: Are these jars suitable for both dry and wet milling?
A: Yes. They perform effectively in both dry and slurry-based processes.
Q5: Can I request custom jar sizes or fittings?
A: Absolutely. Custom dimensions, fittings, and alternative stainless steel grades are available on request.
