Cell Lab Stainless Steel Vacuum Chambers [High-Purity Storage]
Cell Lab Stainless Steel Vacuum Chambers [Multiple Sizes, High-Purity Storage] Premium stainless steel vacuum chambers engineered for air-sensitive sample storage with customisable size options The Cell Lab Stainless Steel Vacuum Chambers are designed to provide a high-purity, controlled, and moisture-free...
- £3,299.00
- £3,299.00
- Unit price
- per
Subtotal:
£3,299.00
Description
xCell Lab Stainless Steel Vacuum Chambers [Multiple Sizes, High-Purity Storage]
Premium stainless steel vacuum chambers engineered for air-sensitive sample storage with customisable size options
The Cell Lab Stainless Steel Vacuum Chambers are designed to provide a high-purity, controlled, and moisture-free storage environment for air-sensitive materials.
By enabling deep vacuum or inert gas purging, these chambers effectively protect samples from oxidation, humidity, and contamination — making them indispensable for battery research, semiconductor laboratories, and chemical material preservation.

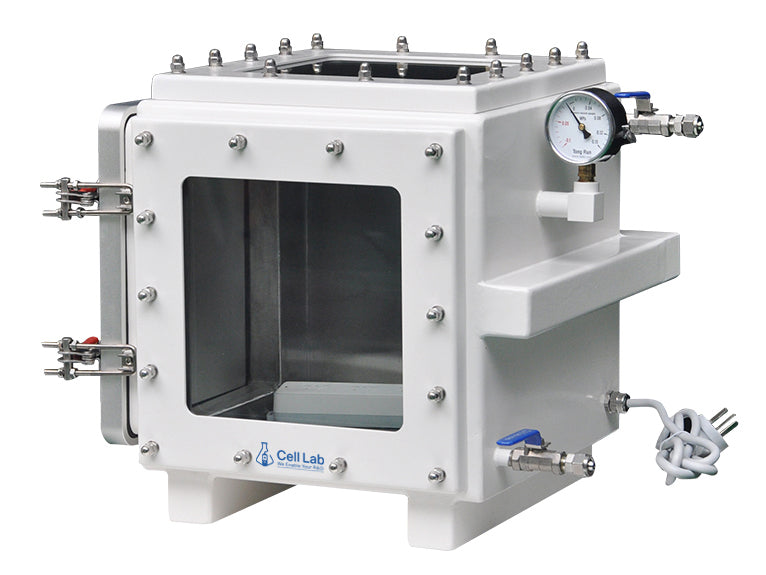

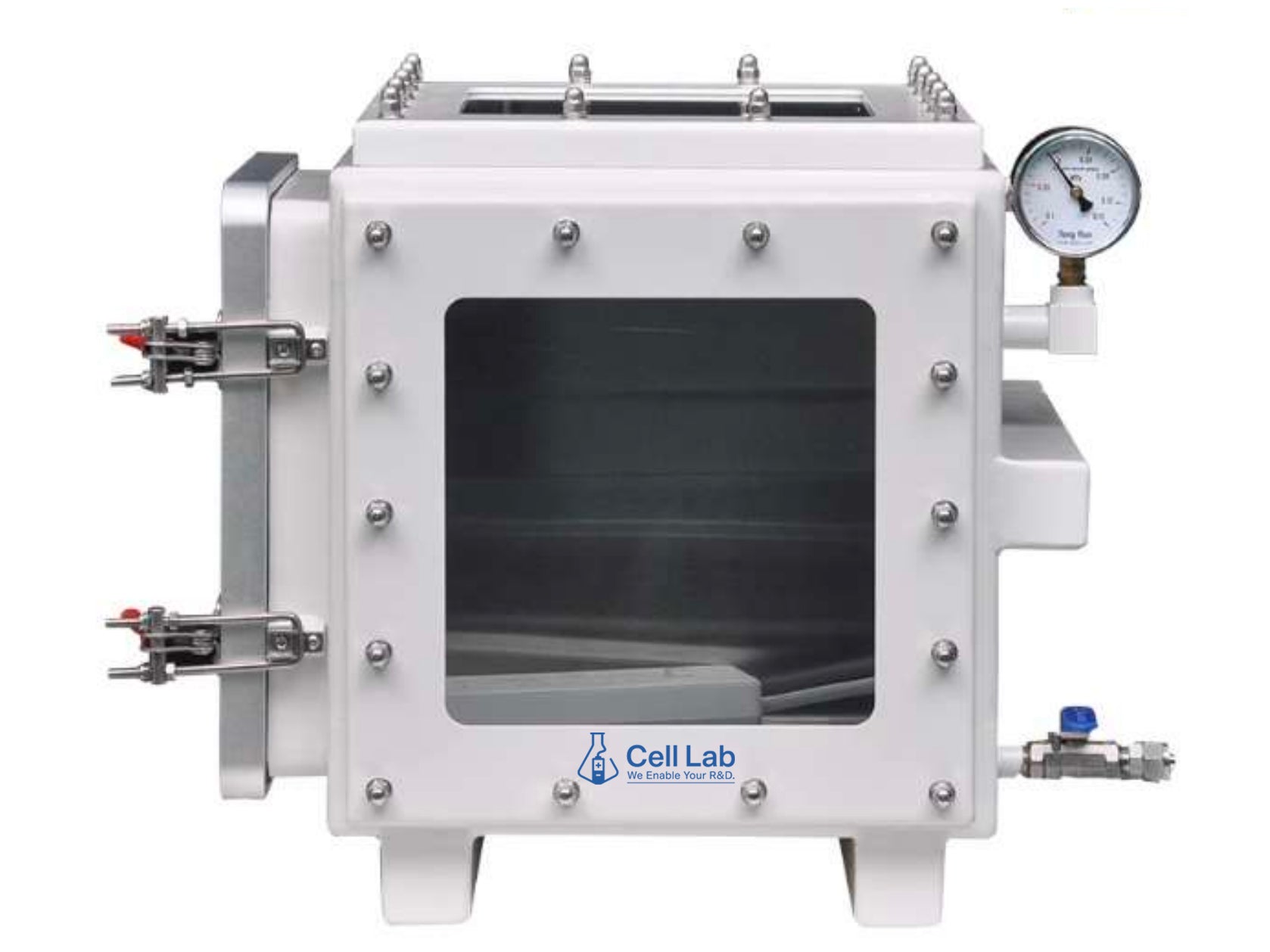

Built from 304-grade stainless steel, each chamber features precision sealing, optional vacuum pumps, and observation windows for real-time monitoring.
Available in 400 mm, 600 mm, and 800 mm models, with full customisation options for advanced laboratory requirements.
Key Features
-
High-Purity Storage Environment – Achieves vacuum levels up to –0.1 MPa, maintaining a stable inert atmosphere for air-sensitive materials.
-
Multiple Size Options – Available in 400 mm, 600 mm, and 800 mm models to suit laboratory and pilot-scale needs.
-
Durable Construction – Fabricated from 304 stainless steel with precision-engineered sealing for long-term performance.
-
Observation Windows – Equipped with 10 mm-thick tempered glass windows on both top and front panels for safe and clear sample inspection.
-
Customisable Design – Optional shelves, vacuum pumps, and gas fittings available to match specific research workflows.
Technical Specifications
| Model | SKU | Outer Dimensions (mm) | Chamber Dimensions (mm) | Side Door Size (mm) | Observation Window (mm) | Vacuum Degree |
|---|---|---|---|---|---|---|
| Small | CL0236 | 400 W × 400 D × 400 H | 394 W × 394 D × 394 H | 260 W × 300 H | 490 W × 490 H (top & front) | –0.1 MPa |
| Medium | CL0237 | 600 W × 600 D × 600 H | 594 W × 594 D × 594 H | 350 W × 300 H | 490 W × 490 H (top & front) | –0.1 MPa |
| Large | CL0238 | 800 W × 800 D × 800 H | 794 W × 794 D × 794 H | 500 W × 500 H | 490 W × 490 H (top & front) | –0.1 MPa |
Specifications
| Parameter | Specification |
|---|---|
| Material | Stainless Steel 304 |
| Observation Window Thickness | 10 mm (tempered glass) |
| Gas Valves | 1 inlet, 1 outlet (SUS304) |
| Sealing Material | Fluoro-rubber |
| Pressure Gauge | 1 integrated pressure gauge |
| Power Socket | 1 interior power outlet |
| Optional Add-ons | Shelves, vacuum pump, inert gas fittings |
Applications & Industries
Cell Lab stainless steel vacuum chambers are widely used in:
-
Battery R&D – storage of lithium-based electrode powders and moisture-sensitive electrolytes.
-
Semiconductor research – maintaining high-purity environments for wafer and substrate materials.
-
Chemical and pharmaceutical laboratories – protecting reactive or hygroscopic compounds.
-
Materials science – handling of metals, catalysts, and rare-earth materials.
-
Environmental and corrosion studies – controlled gas or vacuum conditions for testing.
FAQ
Q1: Can the chamber be connected directly to a vacuum pump?
A: Yes. Each chamber includes standard inlet and outlet valves for easy connection to a rotary or molecular vacuum pump.
Q2: What inert gases can be used for purging?
A: Common gases include argon, nitrogen, and helium. The system supports safe purging for maintaining stable atmospheric conditions.
Q3: Are custom sizes or fittings available?
A: Yes. Cell Lab provides full customisation for chamber dimensions, window placement, and internal shelving.
Q4: How is the vacuum level monitored?
A: Each unit includes a precision pressure gauge for accurate real-time vacuum measurement.
Q5: What is the maximum achievable vacuum?
A: The chambers achieve up to –0.1 MPa, suitable for high-purity and inert-gas storage applications.
