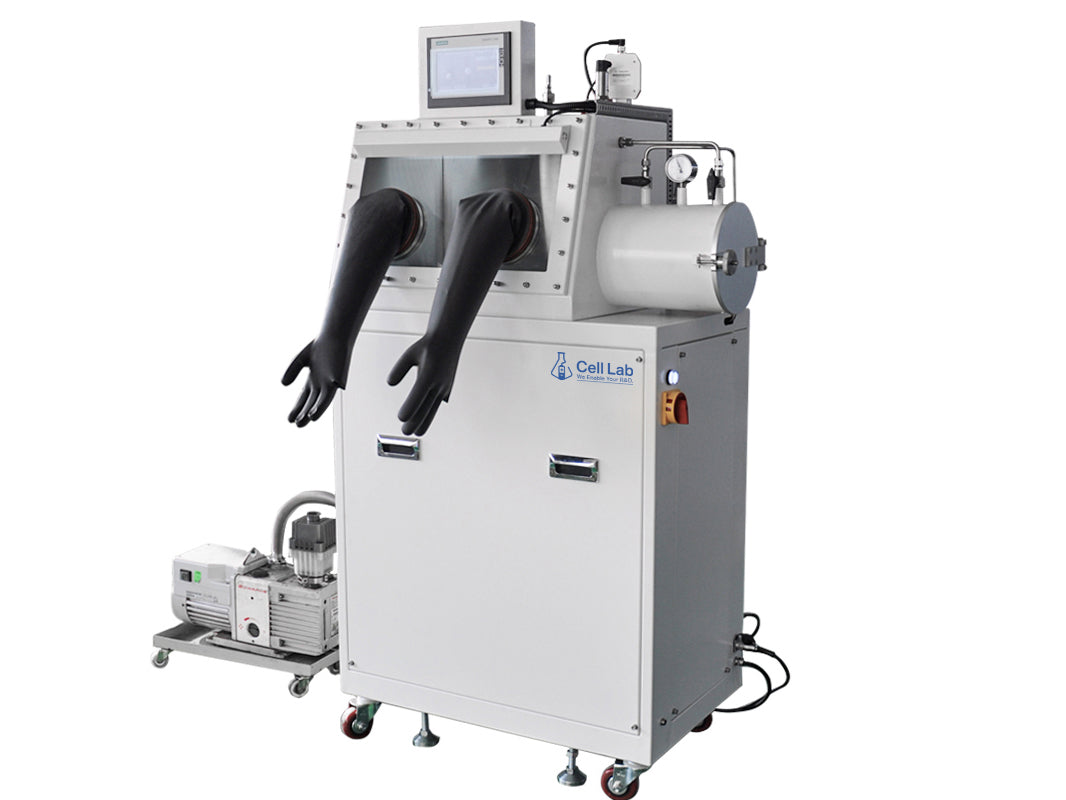

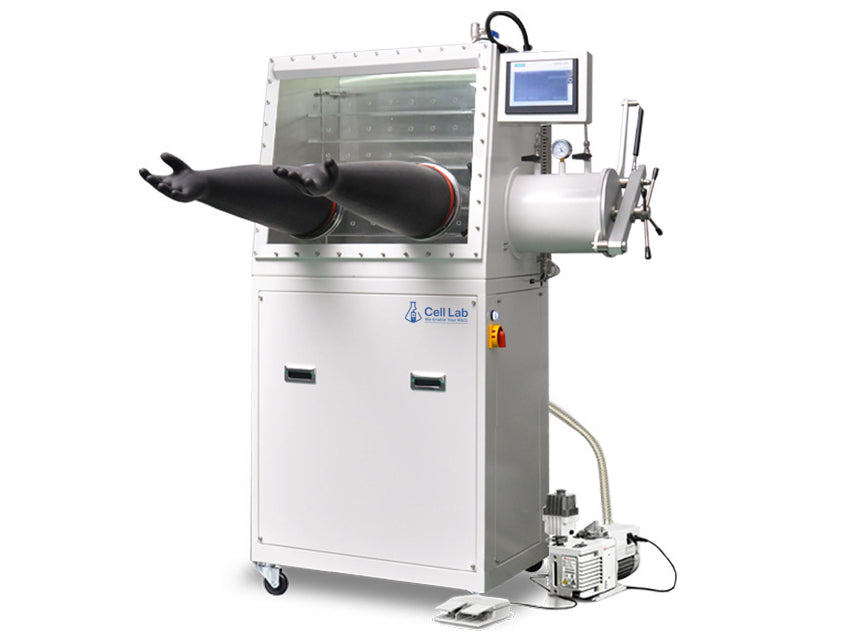

Cell Lab Stainless Steel Glove Boxes with Gas Purification System [113L & 354L]

Cell Lab Stainless Steel Glove Boxes with Gas Purification System [113 L & 354 L]

High-performance glove boxes engineered for ultra-pure, inert laboratory environments

The Cell Lab Stainless Steel Glove Boxes with Gas Purification System are designed to maintain an ultra-pure, low-moisture, and oxygen-free environment for handling highly sensitive materials.
By integrating a closed-loop circulation system with advanced purification modules, these glove boxes consistently keep O₂ and H₂O levels below 1 ppm, ensuring stable operation for demanding research.

Available in 113 L and 354 L configurations, these systems are ideal for battery R&D, semiconductor materials, OLED fabrication, catalysis, and fine chemical research, providing long-term reliability with industrial-grade performance.

Key Features

• Ultra-Pure Atmosphere Control – Maintains O₂ and H₂O levels below 1 ppm, ideal for handling air-sensitive compounds.

• Advanced Gas Purification System – Equipped with German BASF copper catalysts and UOP molecular sieves for continuous, high-efficiency purification.

• Smart Digital Control – 7-inch PLC touchscreen enables real-time monitoring, automation, and environmental data logging.

• Robust Construction – Built from 3 mm thick 304 stainless steel, with precision sealing and dual HEPA filters for superior containment.

• Flexible Integration – Available in 113 L and 354 L models, adaptable for both small-scale laboratory and large-scale production use.

Technical Specifications

Control & Monitoring System

• 7" Touchscreen PLC Interface – Intuitive user interface for system monitoring and automation.

• Oxygen Control: 0 ~ 1000 ppm range, ± 0.1 ppm precision.

• Moisture Control: 0 ~ 1000 ppm range, ± 0.1 ppm precision.

• Data Logging: Continuous recording of environmental parameters for compliance and quality traceability.

Gas Purification & Circulation

• Purification Media: BASF Cu-based catalyst + UOP molecular sieve.

• Closed-Loop Circulation: Ensures constant regeneration and continuous purification of inert gas.

• Vacuum Antechambers:113 L model: DN210 × 240 mm, 354 L model: DN240 × 260 mm, Both equipped with sliding trays, automatic vacuum cycling, and low leakage rate (<0.001 Vol%/h).

Included Accessories

Applications & Industries

The Cell Lab stainless steel glove boxes are ideal for advanced R&D and production in:

• Battery Materials Research – Lithium-ion, solid-state, and sodium-ion systems.

• Semiconductor & OLED Manufacturing – Ultra-low oxygen environment for sensitive substrates.

• Fine Chemical & Catalyst Development – Stable inert gas atmosphere for high-purity synthesis.

• Nuclear & Special Lighting Research – Safe containment for radioactive or high-reactivity materials.

• Advanced Materials Science – Controlled processing for nanomaterials and air-sensitive powders.

FAQ

Q1: What is the typical O₂ and H₂O level achievable?
A: Both parameters can be maintained below 1 ppm continuously with the integrated purification system.

Q2: How often do the purification columns require regeneration?
A: Regeneration is typically required every 3–6 months, depending on usage and humidity levels.

Q3: Can the glove box run with nitrogen or argon gas?
A: Yes. Both N₂ and Ar are compatible; argon is recommended for ultra-sensitive applications.

Q4: Is the system suitable for battery electrolyte preparation?
A: Yes. Its ultra-low oxygen and moisture levels make it ideal for electrolyte filling and electrode assembly.

Q5: Can additional accessories like a cooling trap or transfer chamber be added?
A: Absolutely. Custom modules including transfer chambers, cooling traps, or vacuum extensions are available upon request.
