Cell Lab Stainless Steel CR1820 Coin Cell Cases [304SS Lithium Coin Cell Housings for Battery R&D, 100 pcs]

Cell Lab Stainless Steel CR1820 Coin Cell Cases [304SS Lithium Coin Cell Housings for Battery R&D, 100 pcs] Precision-engineered coin cell enclosures for lithium-ion battery assembly and material testing The Cell Lab Stainless Steel CR1820 Coin Cell Cases are precision-manufactured...
Vendor: Cell Lab
SKU: CL0073
Product type: Battery Consumables
£199.00
£199.00
Subtotal: £199.00
Description
Description
x

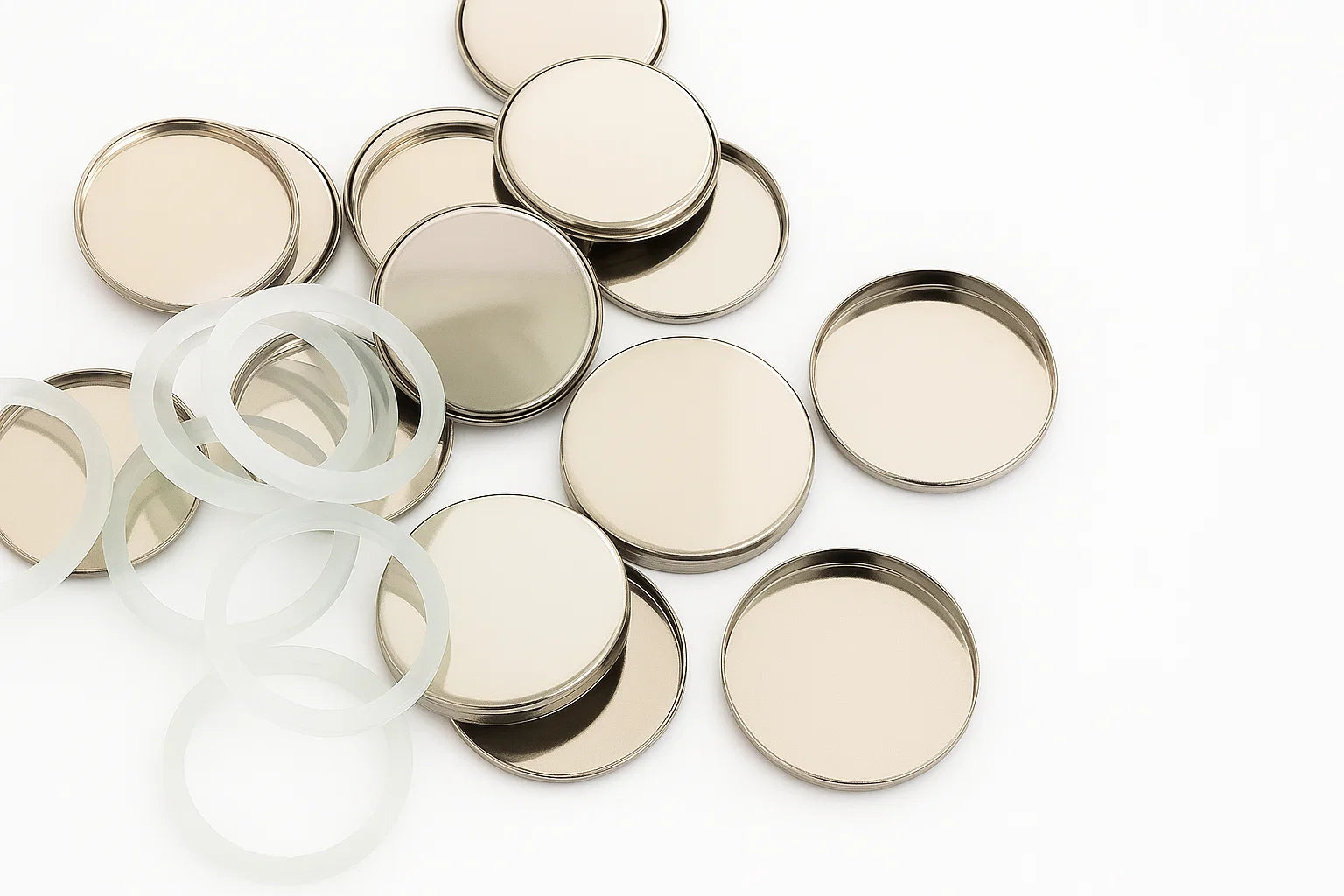

Cell Lab Stainless Steel CR1820 Coin Cell Cases [304SS Lithium Coin Cell Housings for Battery R&D, 100 pcs]

Precision-engineered coin cell enclosures for lithium-ion battery assembly and material testing

The Cell Lab Stainless Steel CR1820 Coin Cell Cases are precision-manufactured enclosures designed for laboratory-scale lithium coin cell assembly and R&D. Constructed from corrosion-resistant 304 stainless steel (304SS), these components ensure excellent chemical stability and tight dimensional accuracy for use with lithium-based electrolytes.

Each set includes one upper and one lower case, along with a separate polypropylene (PP) sealing gasket to guarantee a secure and leak-free seal. Conforming to IEC 60086 standards, the CR1820 format corresponds to a 18.0 mm diameter and 2.0 mm height, suitable for compact lithium coin cell fabrication, electrode evaluation, and materials research.

Key Features

  • High-Quality 304SS Construction – Provides superior corrosion resistance for electrolyte compatibility and long-term stability.

  • Complete Assembly Set – Includes upper case, bottom case, and a separate PP sealing gasket for secure closure.

  • Precision Dimensional Tolerances – Ensures tight fit and reliable mechanical sealing in laboratory environments.

  • IEC 60086 Standard Compliance – Manufactured according to international coin cell size and tolerance specifications.

  • Ideal for Battery R&D – Perfect for lithium coin cell assembly, materials testing, and prototype development.

Technical Specifications

Parameter Specification
Pack Size 100 pcs per pack
Material 304 stainless steel (304SS)
Overall Dimensions CR1820: Ø18.0 mm × 2.0 mm
Upper Case O.D. 18.46 mm, I.D. 17.87 mm, Height 2.25 mm
Bottom Case O.D. 16.78 mm, Height 1.31 mm
Weight 2.0 g (0.1 oz) per set
Sealing Gasket Polypropylene (PP), supplied separately



Applications & Industries

  • Lithium coin cell fabrication for R&D

  • Electrochemical and materials testing laboratories

  • Cathode and anode performance benchmarking

  • Prototype battery design and validation

  • Educational and industrial research on lithium-based systems

FAQ

Q1: What is included in each CR1820 coin cell set?
A1: Each set includes one upper case, one bottom case, and one separate PP sealing gasket.

Q2: Are these housings compatible with liquid electrolytes?
A2: Yes. The 304SS construction provides excellent corrosion resistance against common lithium-ion electrolytes.

Q3: What are the standard CR1820 dimensions?
A3: The IEC 60086 standard defines CR1820 as a 18.0 mm diameter and 2.0 mm height lithium coin cell.

Q4: Can the gasket be reused?
A4: For best sealing performance, it is recommended to replace the PP gasket after each assembly cycle.

Q5: What are the typical research applications?
A5: These cases are ideal for coin cell assembly, materials testing, electrode evaluation, and laboratory-scale energy research.
