Cell Lab stainless-steel coin cell cases for CR2016, CR2025 and CR2032 formats – available in 304 SS and 316 SS. Precision-machined battery housings with PP sealing gaskets for lithium-ion battery R&D and electrochemical testing.
Cell Lab stainless-steel coin cell cases for CR2016, CR2025 and CR2032 formats – available in 304 SS and 316 SS. Precision-machined battery housings with PP sealing gaskets for lithium-ion battery R&D and electrochemical testing.

Cell Lab Stainless Steel Coin Cell Cases [CR2016 / CR2025 / CR2032 | 304SS & 316SS] – Battery-Grade Coin Cell Housings for Laboratory R&D

Cell Lab Stainless Steel Coin Cell Cases [CR2016 / CR2025 / CR2032 | 304SS & 316SS] – Battery-Grade Coin Cell Housings for Laboratory R&D High-precision stainless-steel cases for coin cell battery assembly and electrochemical testing The Cell Lab Stainless Steel...
Vendor: Cell Lab
SKU: CL0206
Product type: Battery Consumables
£169.00
£169.00
Type: CR2032 & 304SS
Subtotal: £169.00
Description
Description
x

Cell Lab Stainless Steel Coin Cell Cases [CR2016 / CR2025 / CR2032 | 304SS & 316SS] – Battery-Grade Coin Cell Housings for Laboratory R&D

High-precision stainless-steel cases for coin cell battery assembly and electrochemical testing

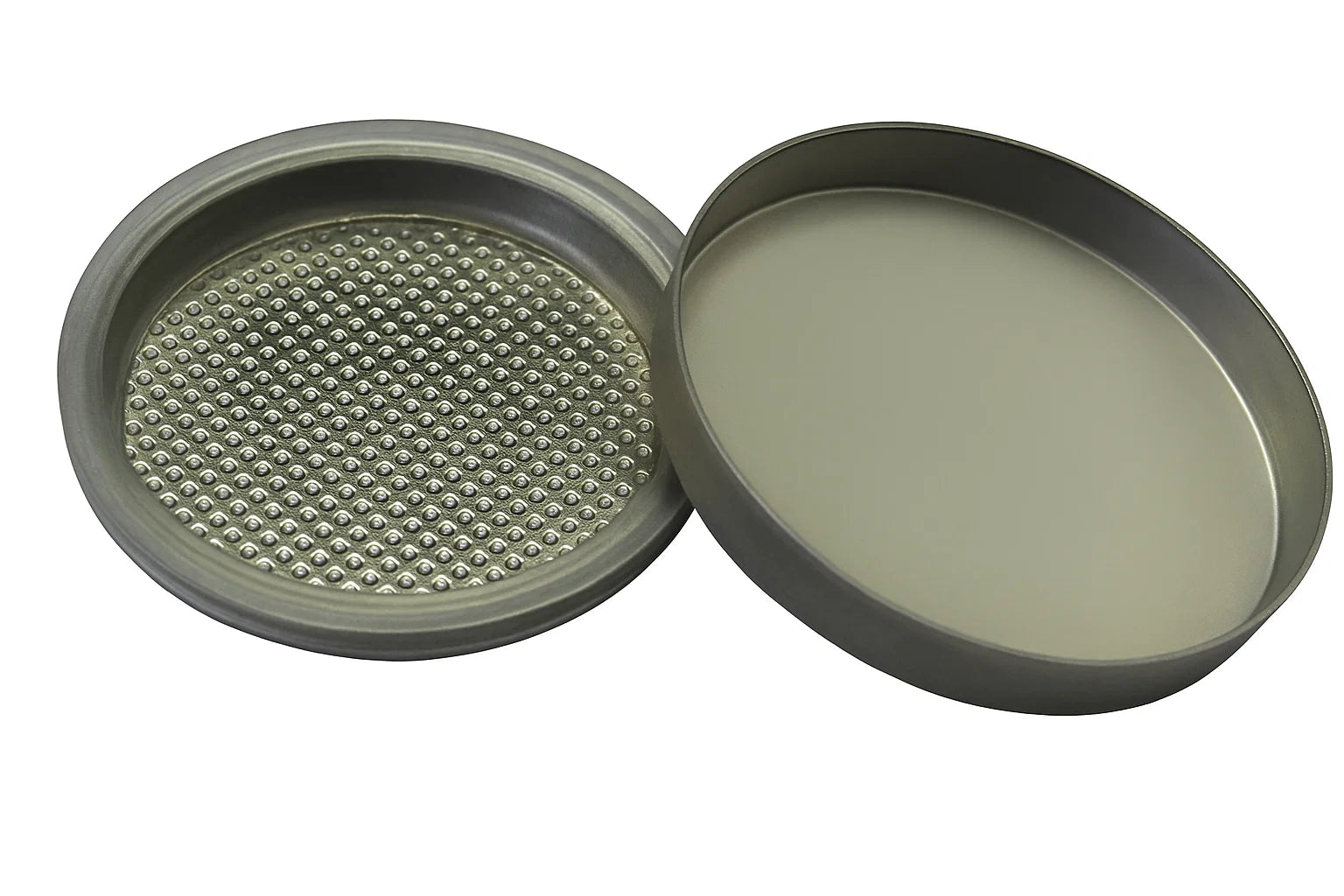

The Cell Lab Stainless Steel Coin Cell Cases are engineered for reliable and reproducible coin cell assembly, offering high dimensional accuracy and corrosion resistance for advanced battery R&D. Manufactured from 304 or 316 stainless steel, these cases include both anode and cathode housings with polypropylene ( PP ) sealing gaskets, ensuring tight sealing and consistent electrochemical performance.

Compatible with CR2016, CR2025, and CR2032 formats, each case meets IEC 60086 standards and is fully compatible with common coin-cell crimpers. These housings are ideal for half-cell testing, electrode evaluation, and coin-cell prototyping.

Key Features

Versatile Format Options
Available in CR2016, CR2025, and CR2032 sizes to support different electrode loadings and separator thicknesses.

Material Selection for Every Need
Choose 304SS for standard corrosion resistance or 316SS for superior chemical durability in aggressive electrolyte systems.

Battery-Grade Precision Machining
Each component is CNC-fabricated to tight tolerances for consistent fit and leak-free performance during cycling.

Reliable Sealing Performance
Polypropylene ( PP ) gaskets ensure excellent electrolyte containment and thermal stability under vacuum crimping.

Standardised Compatibility
Fully interchangeable with most commercial coin-cell fixtures and assemblers used in academic and industrial labs.

Available Variants

Model Material Dimensions (Dia x Height) Weight / Piece SKU
CR2032 304SS 20 mm × 3.2 mm 2.0 g CL0206
CR2032 316SS 20 mm × 3.2 mm 2.0 g CL0207
CR2025 304SS 20 mm × 2.5 mm 2.0 g CL0208
CR2025 316SS 20 mm × 2.5 mm 2.0 g CL0209
CR2016 304SS 20 mm × 1.6 mm 2.0 g CL0210
CR2016 316SS 20 mm × 1.6 mm 2.0 g CL0211

Applications & Industries

  • Lithium-ion and sodium-ion coin cell assembly

  • Half-cell testing for anode and cathode materials

  • Electrochemical performance and cycling evaluation

  • R&D labs and battery prototype development

  • Corrosion and electrolyte compatibility studies

FAQ

Q1: What is the difference between 304 SS and 316 SS models?
316 SS contains molybdenum for enhanced corrosion resistance in acidic or salt-rich environments.

Q2: Are these cases compatible with standard crimpers?
Yes, they fit most commercial CR-series coin cell assemblers and sealers.

Q3: Do the cases include gaskets?
Yes, each case comes with polypropylene ( PP ) sealing gaskets pre-installed.

Q4: Can I order custom quantities or sizes?
Yes, Cell Lab offers custom pack sizes and special dimensions on request for bulk or institutional use.

Q5: What applications require 316 SS instead of 304 SS?
Use 316 SS when working with corrosive electrolytes (e.g., Na-ion systems or strong acidic media).
