Cell Lab Stainless Steel AG3 Coin Cell Cases [304SS Micro Battery Housings & Coin Cell Enclosures, 100 pcs]

Cell Lab Stainless Steel AG3 Coin Cell Cases [304SS Micro Battery Housings & Coin Cell Enclosures, 100 pcs] High-precision miniature coin cell housings for medical and micro battery R&D applications The Cell Lab Stainless Steel AG3 Coin Cell Cases are...
Vendor: Cell Lab
SKU: CL0075
Product type: Battery Consumables
£219.00
£219.00
Subtotal: £219.00
Description
Description
x

Cell Lab Stainless Steel AG3 Coin Cell Cases [304SS Micro Battery Housings & Coin Cell Enclosures, 100 pcs]

High-precision miniature coin cell housings for medical and micro battery R&D applications

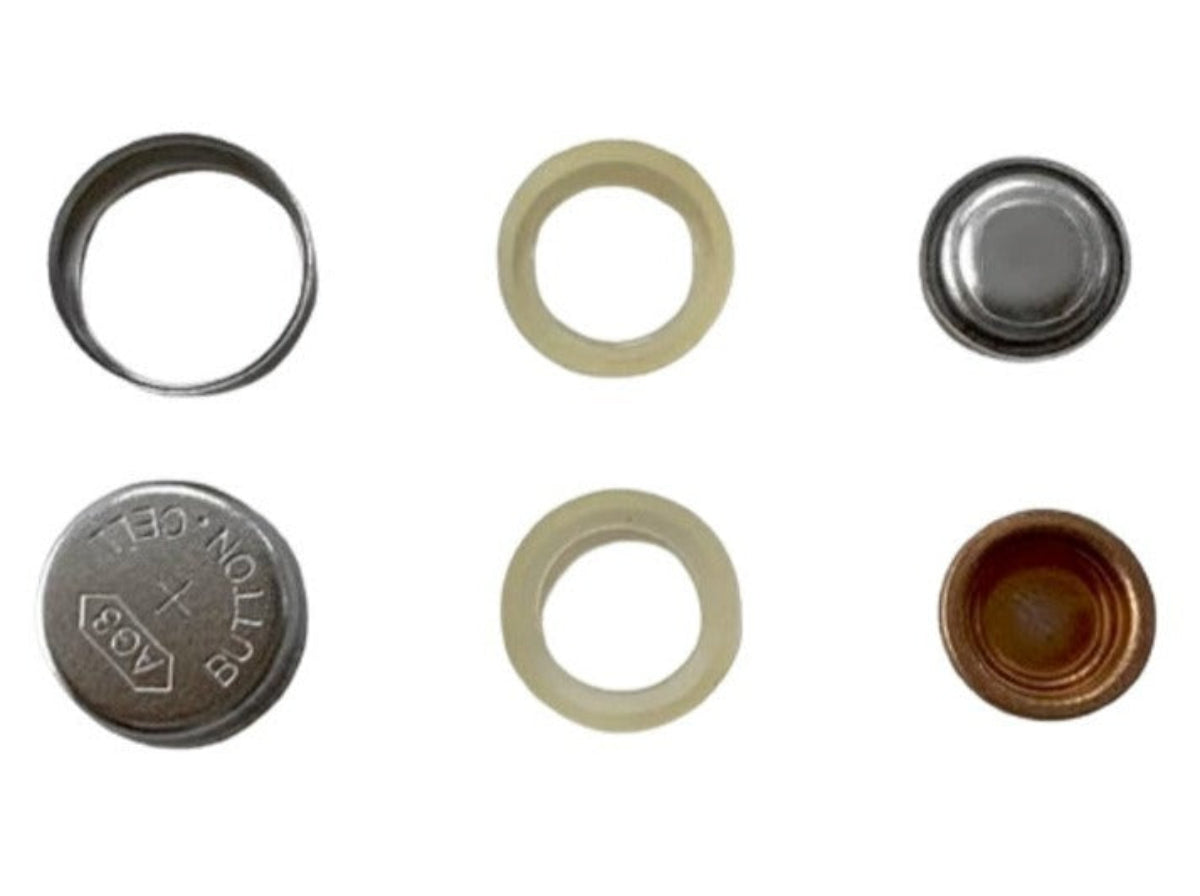

The Cell Lab Stainless Steel AG3 Coin Cell Cases are precision-fabricated micro battery housings designed for miniature energy devices such as hearing aids, sensors, and medical research batteries. Constructed from corrosion-resistant 304 stainless steel, each case set includes both the anode and cathode caps, along with a polypropylene (PP) sealing gasket for reliable insulation and leak protection.

With standard AG3 dimensions of Ø7.9 mm × 3.6 mm, these housings are widely used in micro battery development, electrode testing, and prototype fabrication, ensuring stable electrochemical performance under laboratory and pilot-scale conditions.

Key Features

  • High-Purity 304SS Construction – Excellent corrosion resistance compatible with most battery electrolytes.

  • Complete Cell Set – Includes both anode and cathode shells plus a PP sealing gasket for secure assembly.

  • Micro Battery Compatible – Ideal for AG3-size cells used in hearing aids and compact power systems.

  • Precision-Machined Interior – Ensures clean surfaces and stable contact for high-purity electrode testing.

  • Research & Medical Applications – Perfect for micro battery R&D, biosensor power systems, and device prototyping.

Technical Specifications

Parameter Specification
Pack Size 100 pcs per pack
Material 304 stainless steel (304SS)
Overall Dimensions AG3: Ø7.9 mm × 3.6 mm
Weight 0.34 g (0.012 oz) per set
Sealing Gasket Polypropylene (PP)



Applications & Industries

  • Hearing aid and medical micro battery development

  • Coin cell prototyping and electrode testing

  • Miniature power supply research

  • Sensor and wearable electronics integration

  • Laboratory-scale lithium-ion and zinc-air micro cells

FAQ

Q1: What is included in each AG3 coin cell case set?
A1: Each set contains one anode case, one cathode case, and one PP sealing gasket.

Q2: Are these cases compatible with liquid electrolytes?
A2: Yes. The 304SS construction ensures high corrosion resistance in common electrolytic environments.

Q3: Can the gasket be replaced or customised?
A3: Yes. Replacement polypropylene or alternative sealing materials can be supplied upon request.

Q4: What is the internal surface finish like?
A4: The interior is precision-polished to ensure clean contact and low contamination for electrochemical research.

Q5: What are typical applications?
A5: These housings are widely used in hearing aid batteries, micro battery R&D, and compact energy device testing.
