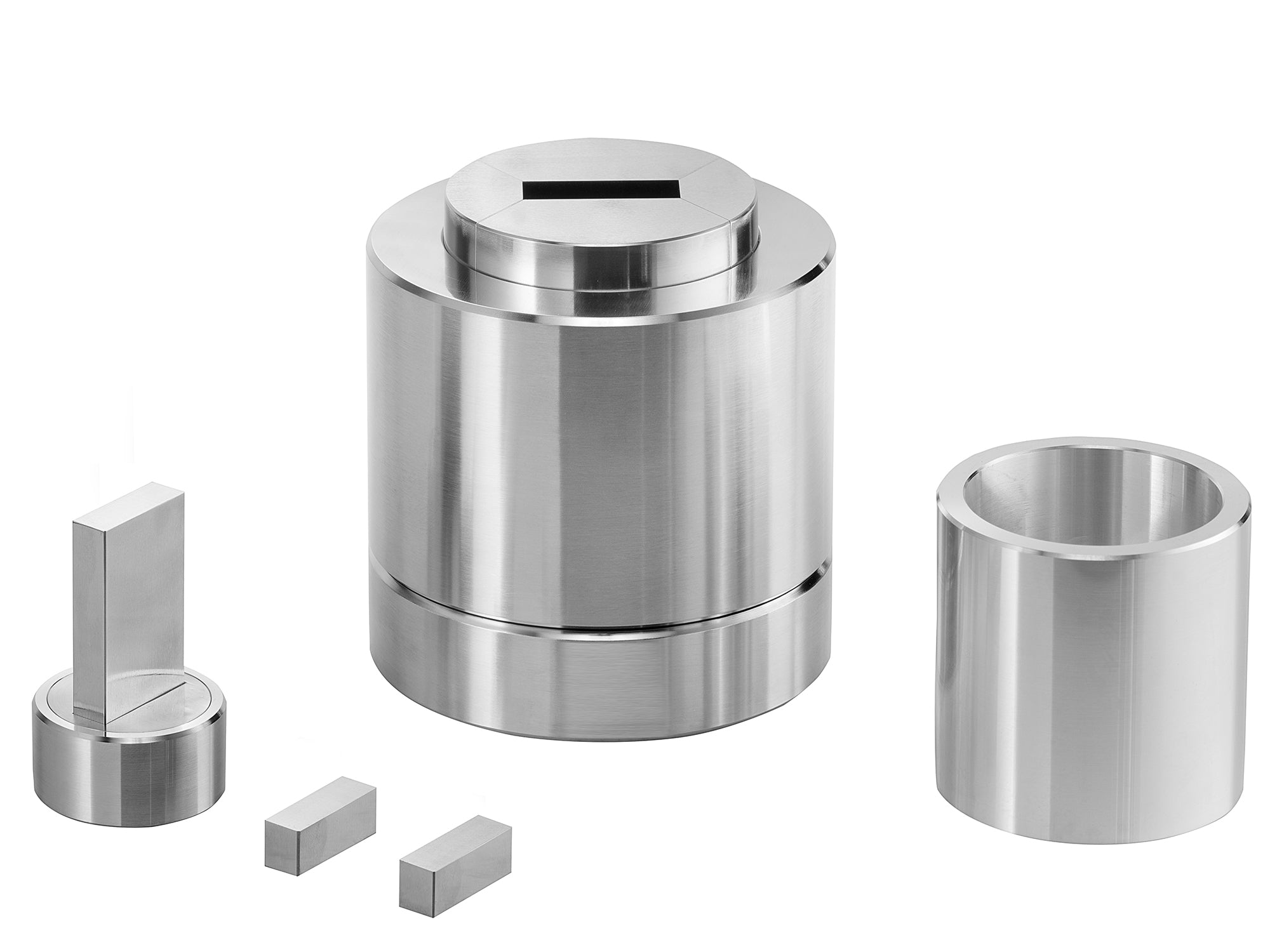

Cell Lab Square & Rectangle Split Pressing Die Sets [3×3 mm – 50×50 mm]

Precision-engineered stainless steel split dies for square and rectangular pellet pressing

General Description

Cell Lab Square & Rectangle Split Pressing Die Sets are specialised tools for compressing powders into uniform square or rectangular pellets. The split sleeve design ensures easy demoulding, reducing the risk of cracks and damage during pellet retrieval—especially important for fragile or sticky powders.

Constructed from 440C stainless steel with RC60–62 hardness, these die sets offer durability and precise sample shaping. Available in sizes ranging from 3×3 mm to 50×50 mm, they support a broad scope of applications in materials science, pharmaceuticals, ceramics, minerals, and powder metallurgy.

Key Features

  1. Split sleeve design — Allows easy demoulding and minimises pellet cracking.

  2. High-strength stainless steel — Made from 440C stainless steel, hardened to RC60–62.

  3. Multiple formats — Available in square (3×3, 10×10, 20×20, 50×50 mm) and rectangular (20×10 mm) sizes.

  4. Laboratory & industrial use — Ideal for spectroscopy, ceramics, pharmaceuticals, and powder compaction.

  5. Customisable — Additional square and rectangular dimensions available upon request.

Specifications

Product No. Shape Reference Sample Size Cavity Depth (mm) Die Material Hardness Dimensions (mm) Weight
CL0656 Square 3×3 mm 30 440C Stainless Steel RC60–62 Φ53 × 120 1.2 kg
CL0657 Square 10×10 mm 30 440C Stainless Steel RC60–62 Φ53 × 120 1.2 kg
CL0658 Square 20×20 mm 40 440C Stainless Steel RC60–62 Φ73 × 133 3.6 kg
CL0659 Rectangle 20×10 mm 40 440C Stainless Steel RC60–62 Φ73 × 133 3.6 kg
CL0660 Square 50×50 mm 55 440C Stainless Steel RC60–62 Φ127 × 150 20 kg

Applications & Industries

  • Pharmaceuticals — Tablet and pellet pressing for uniform compaction.

  • Materials science — Research into novel solid materials and composites.

  • Ceramics & minerals — Compaction of ceramic and mineral powders.

  • Analytical chemistry — Preparing solid test samples for spectroscopy and XRF.

  • Powder metallurgy — Square and rectangular compacts for prototype testing.

FAQ

Q1: What is the advantage of a split die design?
It allows easy removal of fragile pellets, reducing breakage during demoulding.

Q2: What materials can be pressed?
Ceramics, minerals, metallic powders, halide salts, and pharmaceutical powders.

Q3: Are both square and rectangular dies available?
Yes. This series includes both square and rectangular formats.

Q4: How should these dies be maintained?
Clean and dry after use, and apply light oil during storage to prevent rust.

Q5: Are larger or custom sizes available?
Yes. Custom square and rectangular cavity sizes can be produced on request.

Sample Shape:

Diagram Of Press Die:
