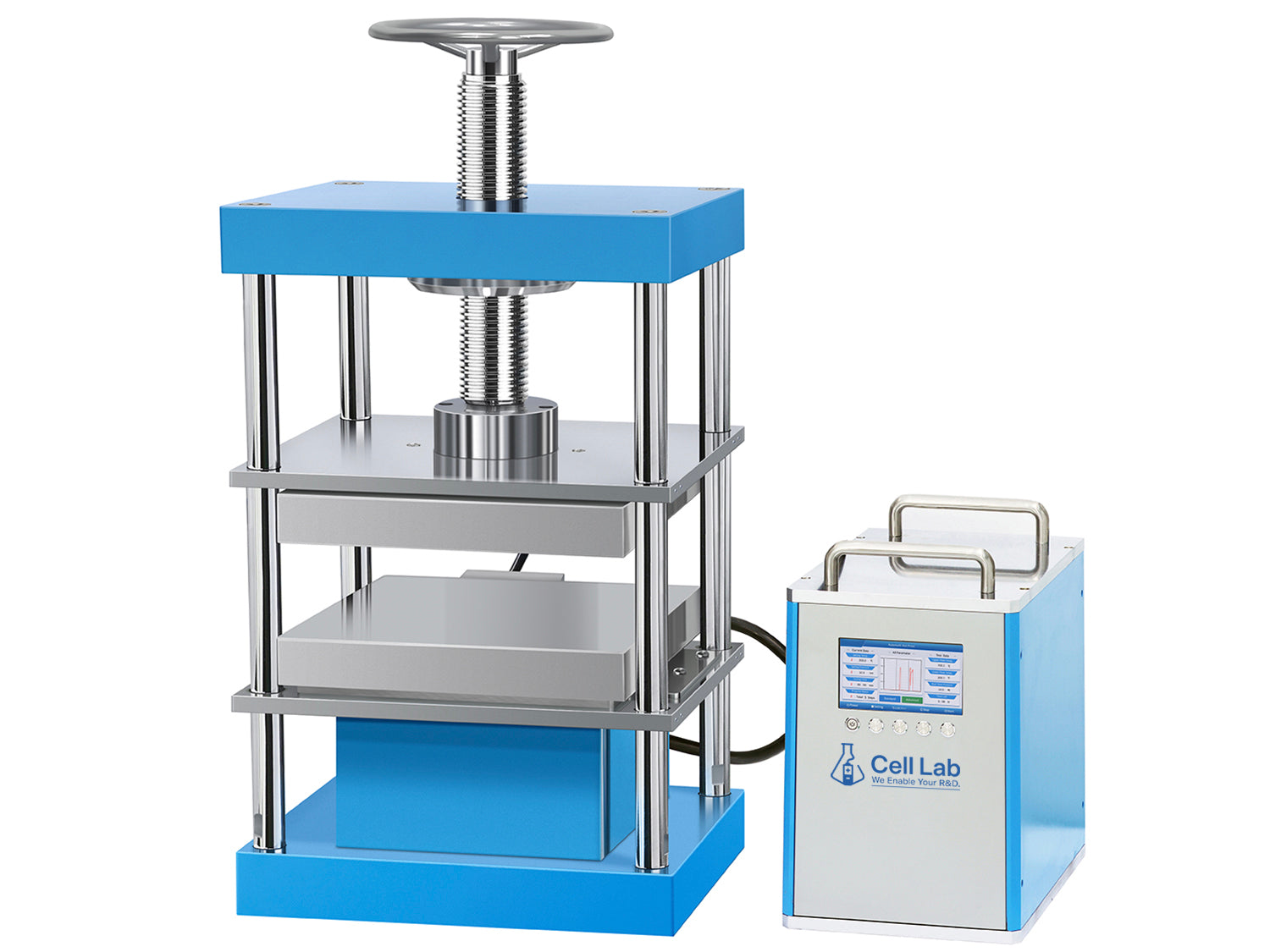

Cell Lab Split Type Electric Heated Lab Press [40T, 300 °C, 400 × 400 mm Plates]

High-Tonnage Heated Press with Precision Temperature & Pressure Control

The Cell Lab 40-Ton Split Type Electric Heated Lab Press is designed for heated pressing of polymers, ceramic powders, and electrode/membrane films. Equipped with dual 400 × 400 mm flat heating plates capable of reaching up to 300 °C, it ensures precise and uniform heating. Each plate is independently controlled by digital temperature controllers with ±0.1 °C accuracy.

Compared with manual heated lab presses, this electric hydraulic system enables faster pressing and automatic pressure replenishment, making it highly suitable for large-tonnage applications. Optional water-cooling jackets (with external chiller) provide rapid cooling capability, extending application versatility. This unit can also be used as a compact laminator for polymer films.

Key Features

  • High tonnage capacity – Supports up to 40 tons for demanding applications.

  • Large heating plates – Dual 400 × 400 mm plates with precise temperature control.

  • Electric hydraulic system – Provides fast pressing and automatic pressure compensation.

  • Programmable press cycle – Programmed pressurisation, pressure holding, and timed release.

  • Optional rapid cooling – Configurable with water chiller for faster plate cooling.

Specifications

Parameter CL0781A (Without Chiller) CL0781B (With Chiller)
Pressure Range 0–40 Tons 0–40 Tons
Heating Range Up to 300 °C Up to 300 °C
Pressure Holding Time Unlimited Unlimited
Pressurisation Process Program pressurisation – holding – timed release Same
Temperature Control Accuracy ±0.1 °C ±0.1 °C
Cooling Mode Natural cooling Water cooling (with chiller)
Heating Plate Size Dual 400 × 400 mm Dual 400 × 400 mm
Hot Press Dimension (L × W × H) 500 × 480 × 650 mm 500 × 480 × 650 mm
Overall Dimension (With Chiller) – 850 × 480 × 650 mm
Net Weight 480 kg 505 kg
Power Supply 220V / 50 Hz, 5500 W 220V / 50 Hz, 5500 W
Warranty One-year limited (misuse excluded) One-year limited (misuse excluded)

Applications & Industries

  • Polymer film lamination – Precision hot pressing and film bonding.

  • Battery R&D – Electrode and membrane sheet pressing.

  • Ceramics & composites – Consolidation of powders into dense samples.

  • Material science – High-pressure heated compaction for research experiments.

  • Pilot production – Suitable for medium-scale laboratory and industrial applications.

FAQ

Q1: What is the maximum heating temperature?
A: Both models can reach up to 300 °C.

Q2: What is the advantage of the electric system over manual hydraulic presses?
A: It enables faster pressing speed and automatic pressure replenishment, especially useful for long holding times.

Q3: Do I need to purchase a water chiller separately?
A: Yes, the with chiller version (CL0781B) includes the integration setup, but the chiller unit is sold separately.

Q4: Can this press be used inside a glove box?
A: No, due to its size and cooling requirements, it is not suitable for glove box use.

Q5: What is included with the purchase?
A: The press unit, dual heating plates, and digital temperature controllers. Pellet dies and chillers are optional accessories.
