Cell Lab Silicon Oxide (1600) – Lithium-Ion Battery Anode Material [CVD-Coated SiOx | 1600 mAh/g]

Cell Lab Silicon Oxide (1600) – Lithium-Ion Battery Anode Material [CVD-Coated SiOx | 1600 mAh/g] High-capacity carbon-coated silicon oxide anode for next-generation energy storage The Cell Lab™ Silicon Oxide (SiOx 1600) is a high-performance lithium-ion battery anode material featuring a...
Vendor: Cell Lab
SKU: CL0030
Product type: Battery Consumables
£169.00
£169.00
size: 20g
Subtotal: £169.00
Description
Description
x

Cell Lab Silicon Oxide (1600) – Lithium-Ion Battery Anode Material [CVD-Coated SiOx | 1600 mAh/g]

High-capacity carbon-coated silicon oxide anode for next-generation energy storage

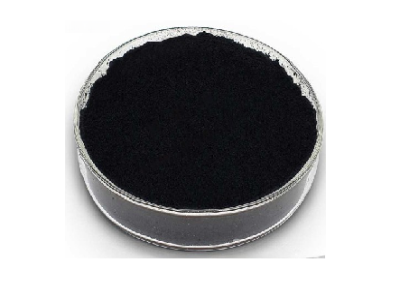

The Cell Lab™ Silicon Oxide (SiOx 1600) is a high-performance lithium-ion battery anode material featuring a carbon-coated SiOx composite structure produced through Chemical Vapour Deposition (CVD). Engineered for superior energy density and cycle stability, this advanced material offers a first-cycle reversible capacity exceeding 1600 mAh/g—significantly outperforming conventional graphite anodes.

Designed for battery R&D, prototyping, and pilot-scale cell manufacturing, SiOx (1600) enhances lithium storage capacity, structural stability, and conductivity, making it a key material for next-generation EV and solid-state battery research.

Key Features

• High Specific Capacity (≈1600 mAh/g)
Delivers more than four times the reversible capacity of standard graphite, boosting overall cell energy density.

• Carbon-Coated SiOx Core
CVD carbon coating improves electronic conductivity and mechanical flexibility, reducing particle fracture during cycling.

• Optimised Particle Morphology
Average particle size of 5 µm with uniform distribution ensures efficient electrode slurry dispersion and smooth coating behaviour.

• Excellent Processing Compatibility
Ideal for use with standard binder systems such as PVDF or LA133 and compatible with NMP and water-based electrode fabrication.

• High Purity and Stability
Low surface area and moisture absorption enhance oxidation resistance and long-term electrode integrity.

Specifications

Test Item Unit Result Method
Appearance — Black powder Visual
Particle Size (D50) μm 5.012 ICP
Specific Surface Area m²/g 1.76 BET surface area analyser
Tap Density g/cm³ 1.11 Vibrating density meter
1st Reversible Capacity mAh/g 1650.46 0.1C (0.005–2V), staged discharge
First Coulombic Efficiency % 79.7 Calculated
Moisture Content ppm N/A Karl Fischer Titration

Packaging & Storage

  • Packaging: Vacuum-sealed in aluminium-plastic laminate, double-layered with outer protective plastic bag.

  • Storage: Keep sealed in a cool, dry environment. Re-vacuum seal immediately after opening to prevent oxidation and moisture absorption.

Recommended Electrode Baking Conditions

Before cell assembly, bake at 85 °C for 4 hours under vacuum or inert atmosphere to remove residual moisture and surface adsorbates.

Applications & Industries

  • Lithium-ion and solid-state battery R&D

  • High-capacity anode formulation for EVs and energy storage systems

  • Pilot-scale battery manufacturing

  • Material development for next-generation energy storage technologies

FAQ

Q1: What advantage does SiOx (1600) offer over traditional graphite anodes?
A1: It offers much higher specific capacity (≈1600 mAh/g vs. 370 mAh/g for graphite) and better cycle stability when paired with advanced binders or prelithiation techniques.

Q2: Is carbon coating necessary for performance?
A2: Yes, the carbon layer enhances conductivity and reduces irreversible lithium loss during the first cycle.

Q3: Can SiOx (1600) be blended with graphite?
A3: Absolutely—blending (typically 5–20 wt%) improves cycle life and reduces expansion stress.

Q4: What slurry system is recommended?
A4: Compatible with PVDF/NMP and LA133/water-based systems. Ensure thorough mixing and controlled viscosity.

Q5: What precautions are required during storage?
A5: Store in a moisture-free, vacuum-sealed environment. Avoid exposure to air or humidity to prevent surface oxidation.
