Cell Lab Shaking Incubator with Universal Spring Tray

Cell Lab Shaking Incubator with Universal Spring Tray [50L | 30–300 rpm | PID Temperature Controlled Orbital Shaker] Compact laboratory shaking incubator with precise temperature control, programmable oscillation and uniform airflow for microbial culture and biochemical applications. General Description The Cell...
Vendor: Cell Lab
SKU: IB0065
Product type: Incubator
£2,099.00
£2,099.00
capacity: 50 L
Subtotal: £2,099.00
Description
Description
x

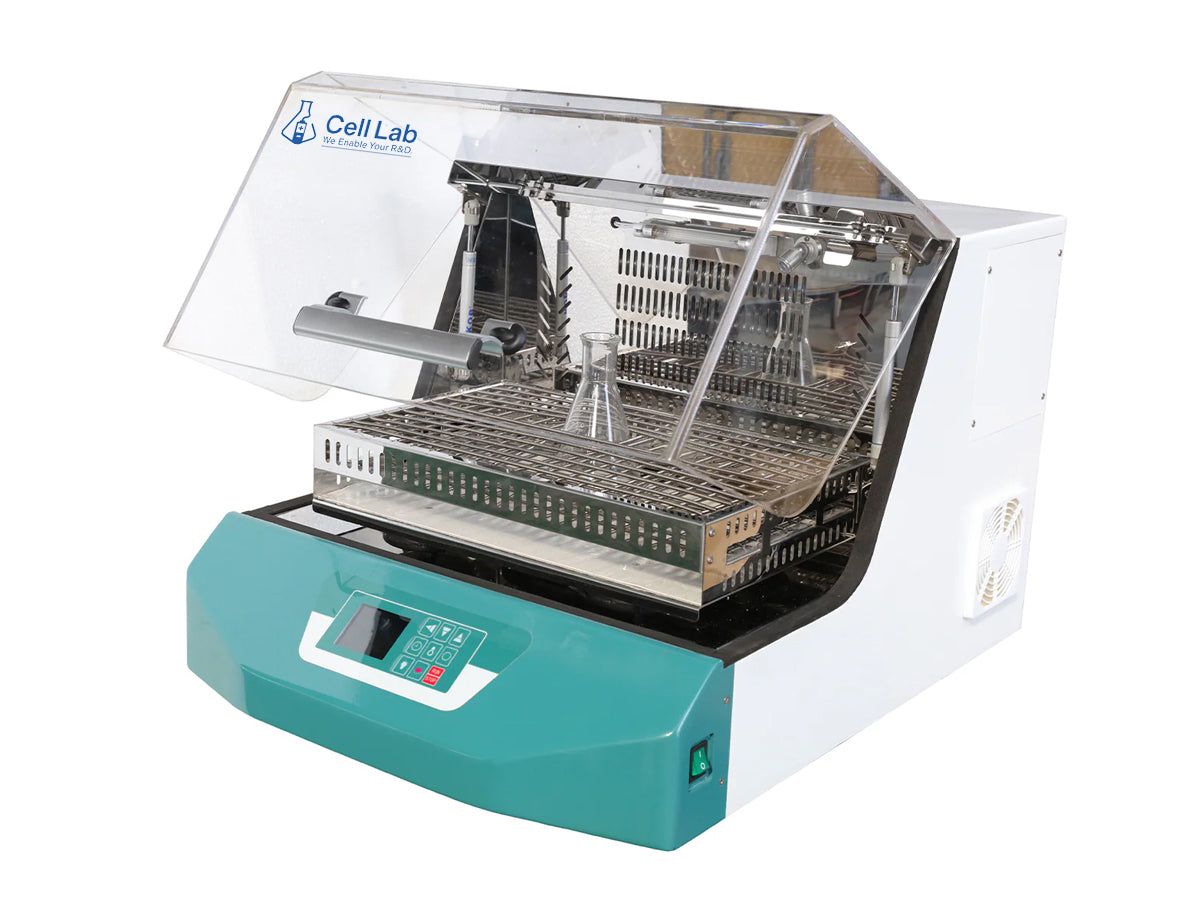

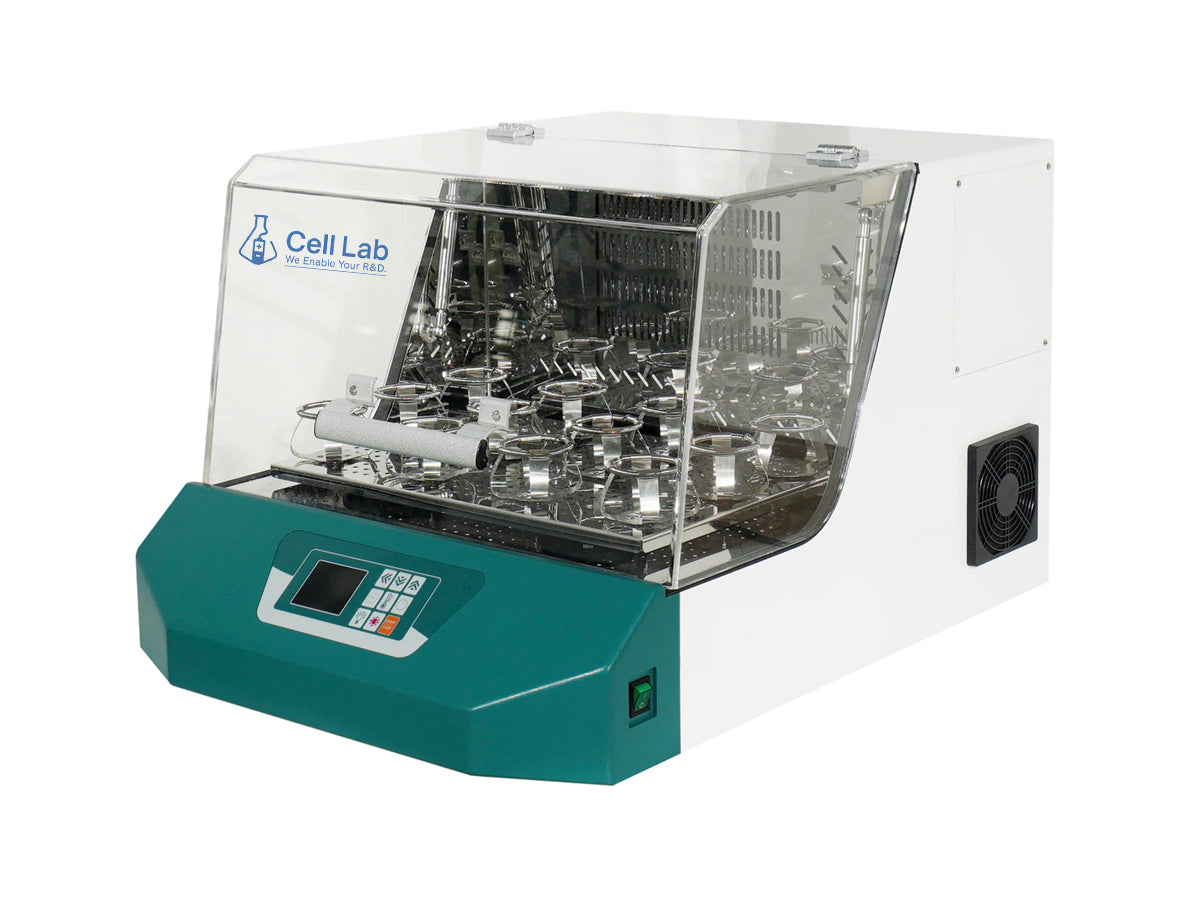

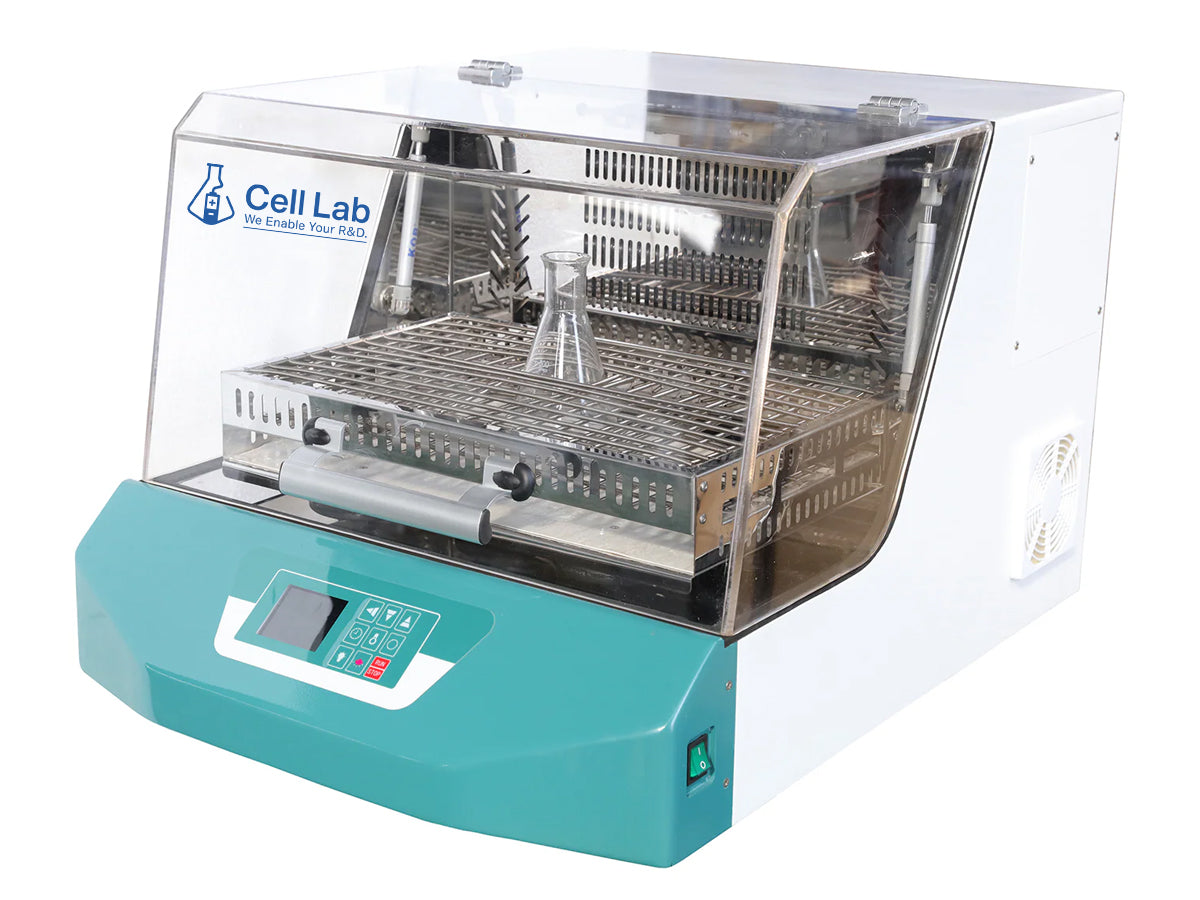

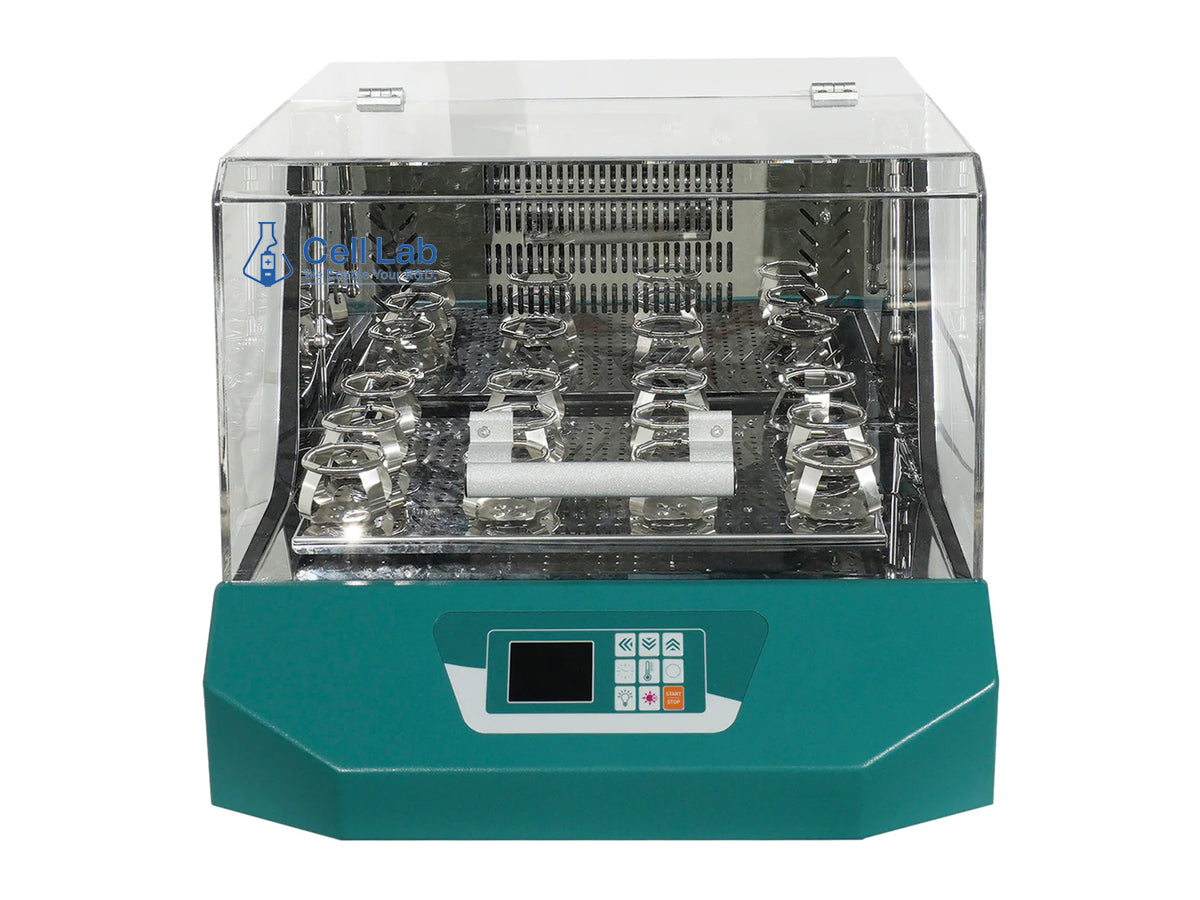

Cell Lab Shaking Incubator with Universal Spring Tray [50L | 30–300 rpm | PID Temperature Controlled Orbital Shaker]

Compact laboratory shaking incubator with precise temperature control, programmable oscillation and uniform airflow for microbial culture and biochemical applications.

General Description

The Cell Lab Shaking Incubator is a high-precision benchtop incubator designed for microbial culture, biochemical reactions, cell cultivation and laboratory shaking applications. Combining stable temperature control with intelligent oscillation management, the system provides reliable incubation conditions for research and industrial laboratory environments.

Featuring a cyclotron oscillation system, intelligent PID temperature control and real-time LCD monitoring, the incubator ensures highly stable shaking performance and excellent temperature uniformity. The integrated brushless DC motor delivers accurate speed regulation with low vibration and quiet operation, while automatic recovery functions protect experiments during unexpected power interruptions.

Built with a mirror-finish stainless steel chamber, horizontal convection airflow system and universal spring tray platform, the unit supports flexible flask configurations for routine microbiology and life science workflows.

Key Features

• Real-time LCD monitoring system — Displays temperature, speed and timing data simultaneously for convenient laboratory operation.

• Precise oscillation control — Brushless DC motor provides stable 30–300 rpm shaking with ±1 rpm accuracy.

• Uniform temperature distribution — Horizontal convection airflow system improves incubation consistency.

• Intelligent safety protection — Includes gating protection, over-temperature alarm, power-off recovery and anti-splash slow start.

• Universal spring tray platform — Supports multiple flask sizes for flexible laboratory applications.

Technical Specifications

General Performance

Parameter Specification
SKU IB00065
Shaking mode Cyclotron oscillation
Oscillation amplitude Φ20 mm
Temperature range RT +5–65 °C
Temperature resolution 0.1 °C
Temperature fluctuation ±0.1 °C
Temperature uniformity ±1 °C
Rotary speed 30–300 rpm
Speed accuracy ±1 rpm

Structure & Materials

Parameter Specification
Chamber material Mirror stainless steel
Outer shell ABS
Observation window Imported resin
Insulation material Polyurethane
Heating system Stainless steel heating tube
Cooling system None
Air circulation mode Horizontal convection
Oscillation platform Spring wire rack
Drive mode Three-axis horizontal

Control System

Parameter Specification
Temperature control LCD PID intelligent control
Speed control Automatic bidirectional rotation
Setting mode Touch button setting
Display LCD display
Timer 0–9999 min
Operation modes Fixed value / timing / auto stop / quick stop-start
Additional functions Deviation correction, menu lock, power-off memory
Temperature sensor PT100
Speed sensor Hoare

Safety Features

Parameter Specification
Over-temperature protection Yes
Gating system Yes
Power-off recovery Yes
Plugging turn protection Yes
Menu lock protection Yes

Mechanical & Capacity Specifications

Parameter Specification
Chamber size 455 × 380 × 290 mm
External dimensions 500 × 640 × 480 mm
Shelf size 380 × 320 mm
Chamber volume 50 L
Shelf load capacity ≤10 kg
Shelf layers 1
Standard flask clamps 250 ml × 8
Flask capacity support 100 ml ×16 / 250 ml ×9 / 500 ml ×4 / 1000 ml ×4
Power supply AC220V / 50 Hz
Current rating 2.5 A
Net weight 44 kg

Optional Accessories

  • Flask clip trays
  • Wireless short-message alarm system
  • 100 ml / 250 ml / 500 ml / 1000 ml flask holders

Applications & Industries

  • Microbial and bacterial culture
  • Cell cultivation and fermentation
  • Biochemical and pharmaceutical research
  • Molecular biology laboratories
  • Environmental and life science research

SEO Keywords: shaking incubator, orbital shaking incubator, laboratory shaker incubator, microbiology incubator shaker, PID shaking incubator, benchtop shaking incubator

FAQ

Q1: What shaking speed range does the incubator support?
The shaking speed range is 30–300 rpm with ±1 rpm precision.

Q2: What flask sizes are supported?
The incubator supports 100 ml, 250 ml, 500 ml and 1000 ml flask configurations.

Q3: Does the incubator include temperature control?
Yes. It features PID intelligent temperature control from RT +5 °C to 65 °C.

Q4: What safety protections are included?
The system includes over-temperature alarm, gating protection, power-off recovery and menu lock protection.
