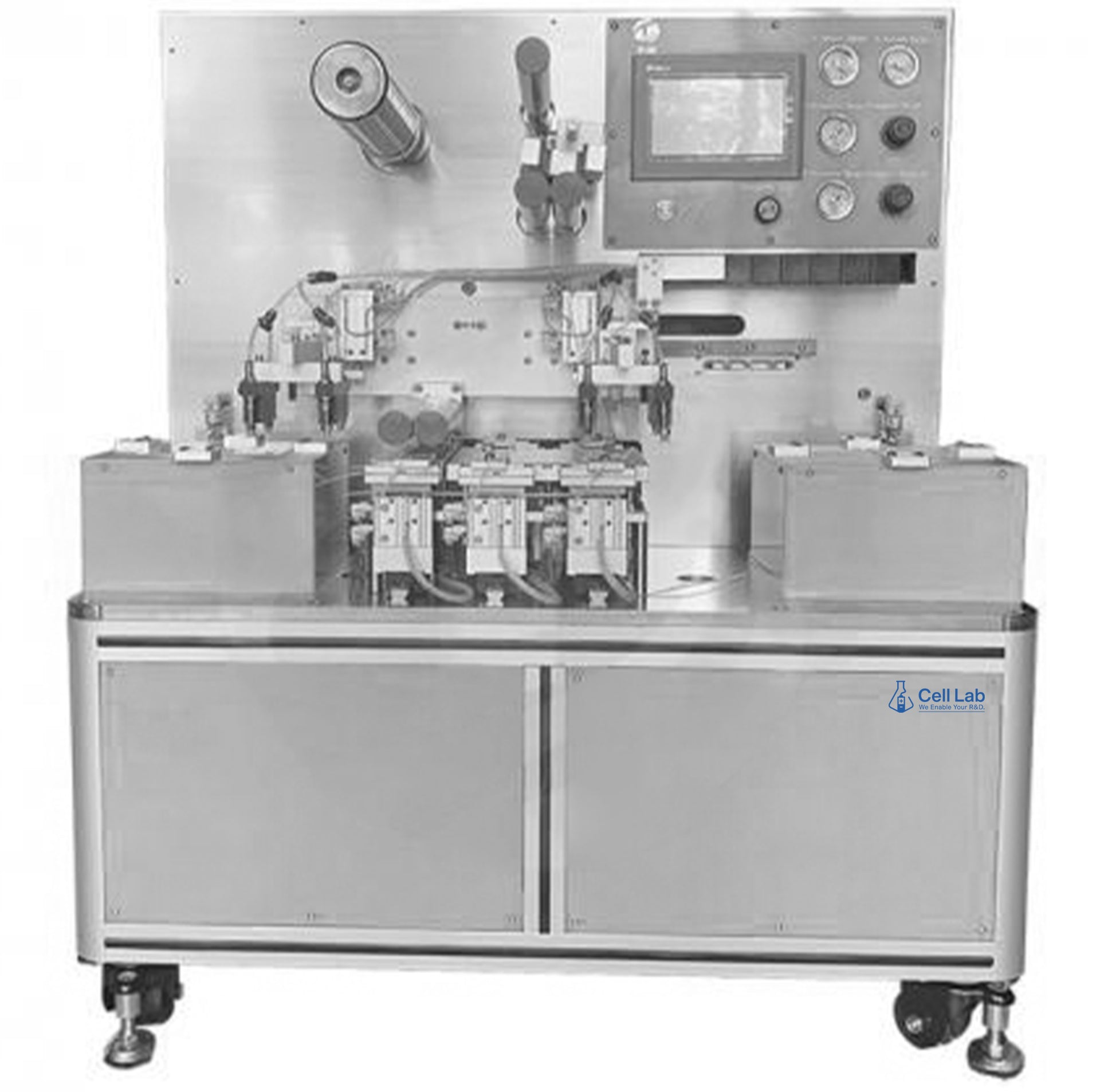

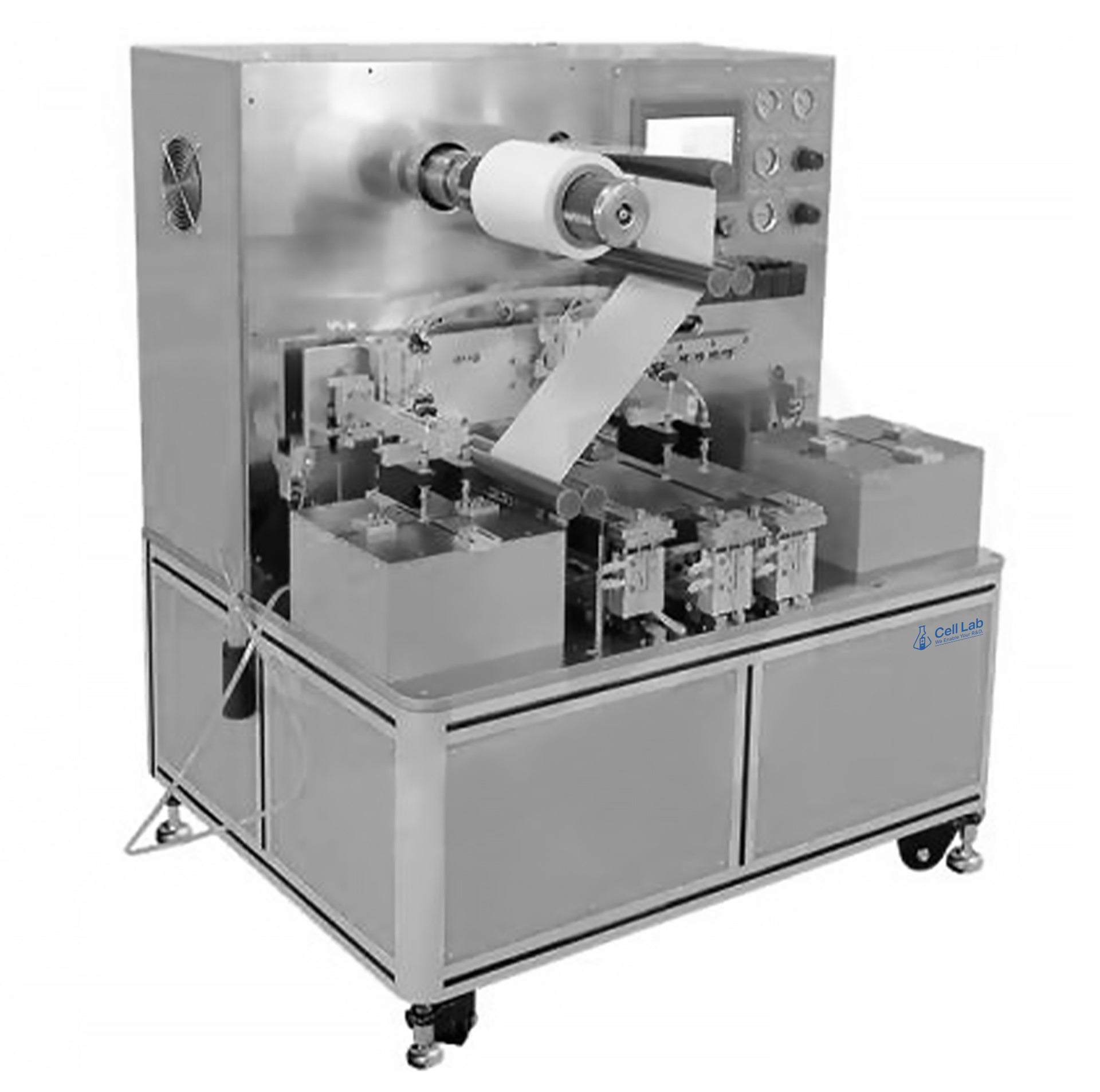

Cell Lab Semi-Automatic Electrode Stacking Machine [Z-Type Electrode Lamination System for Pouch Cell Assembly]

Precision stacking solution for lithium-ion battery electrode alignment in R&D and pilot production

The Cell Lab Semi-Automatic Electrode Stacking Machine is engineered for precise Z-type lamination of lithium-ion battery electrodes and separators. Combining manual electrode placement with automatic alignment and stacking, it ensures uniform layer registration, stable separator tension, and repeatable pouch cell assembly results.

Built with a single-arm cantilever frame, the system offers open accessibility, stable film feed, and precise separator control through a tension-regulated roller system. It is an ideal choice for research institutes, pilot lines, and small-scale pouch cell manufacturing setups requiring high alignment accuracy and flexibility.

Key Features

  • Z-Type Stacking Design – Performs precise electrode–separator–electrode lamination for pouch cell assembly.

  • High Alignment Accuracy (≤ ± 0.3 mm) – Guarantees uniform stacking results for improved cell performance.

  • Adjustable Range and Thickness – Supports various electrode sizes up to 200 × 200 mm and stacking thicknesses up to 30 mm.

  • Tension-Controlled Separator Feed – Ensures stable film handling with automatic correction.

  • Compact and Reliable Construction – Benchtop design suited for laboratory R&D and pilot-scale production environments.

Technical Specifications

    Property Specification
    Stacking Type Z-Type (Electrode–Separator–Electrode)
    Stacking Uniformity ≤ ±0.3 mm
    Stacking Range

    Min. L36mm x W36mm

    Max. L200mm x W200mm
    Stacking Thickness Max. 30mm
    Stacking Layer Max. 500, adjustable
    Separator Roller Diameter Max. 250mm
    Separator Core Diameter 3" roll core with air shaft clamping
    Voltage 220V 50Hz
    Power 600W
    Compressed Air Source 0.6-0.8MPa
    Outer Dimensions L1000mm x W780mm x H1050mm
    Net Weight 285kg



    Applications & Industries

    • Lithium-ion and solid-state pouch cell manufacturing

    • Electrode and separator alignment research

    • Battery prototyping and small-scale production

    • Pilot-line lamination and stacking verification

    • Research laboratories and academic R&D centres

    FAQ

    Q1: What is the main function of this stacking machine?
    A1: It performs semi-automatic Z-type electrode stacking, aligning electrodes and separators with high precision for pouch cell assembly.

    Q2: How accurate is the stacking alignment?
    A2: It maintains layer alignment within ± 0.3 mm, ensuring consistency across all electrode layers.

    Q3: Can the machine handle different electrode sizes?
    A3: Yes, it supports sizes from 36 × 36 mm up to 200 × 200 mm, with adjustable stacking parameters.

    Q4: What type of air source is required?
    A4: A stable compressed air supply of 0.6–0.8 MPa is needed for operation.

    Q5: Is it suitable for pilot-scale production?
    A5: Absolutely. It bridges the gap between R&D prototyping and automated industrial-scale stacking.
